Resideo AMX302TLF/U Water Heater Kit - DirectConnect Valve, Tee, and 11 in Flex Connector LF

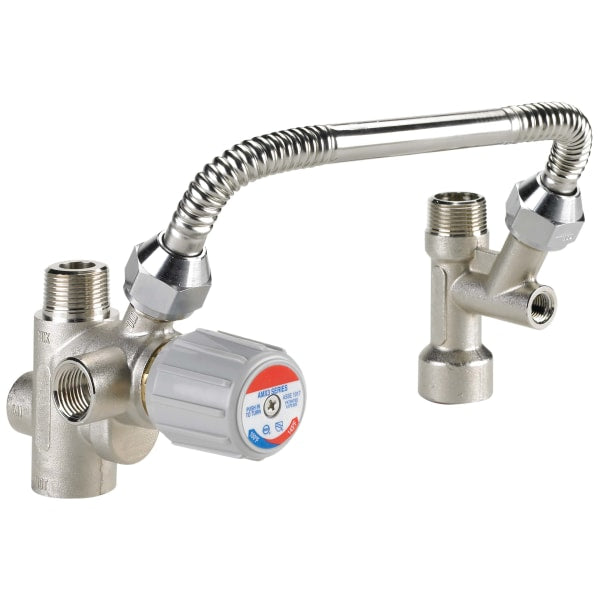

The Resideo AMX302TLF is a lead-free water heater mixing valve kit made up of a 3/4 in DirectConnect thermostatic mixing valve, a 3/4 in cold water tee and an 11 in stainless steel flex connector. The valve has a female NPT hot inlet and a male NPT mixed outlet, and blends hot and cold water to a mixed outlet temperature adjustable from 100 °F to 145 °F. Flow coefficient is 2.3 Cv, maximum operating pressure is 150 psi and minimum flow is 0.25 gpm.

Key Features

• Mixed outlet temperature adjustable from 100 °F to 145 °F with a handwheel
• Kit contents: 3/4 in mixing valve, 3/4 in cold water tee, 11 in stainless steel flex connector
• Check valves on the hot and cold inlets
• 1/2 in NPT recirculation port and 1/2 in NPT alternate hot port
• 2.3 Cv; minimum flow 0.25 gpm; maximum operating pressure 150 psi
• Teflon-coated, nickel-plated brass valve body with EPDM seals
• ASSE 1017 certified and CSA listed; lead free

Applications

• Domestic hot water tempering at a tank water heater
• Water heaters with 3/4 in NPT hot and cold connections
• Domestic hot water systems with a recirculation line, using the 1/2 in NPT recirculation port

Before You Order

• Water heater connections: 3/4 in NPT hot outlet and cold inlet
• Flex connector length: this kit has the 11 in connector (AMX300TLF has 8 in)
• Check what fittings are needed between the kit and the house piping
• Required mixed water temperature within 100 °F to 145 °F
• System pressure no higher than 150 psi
