Description

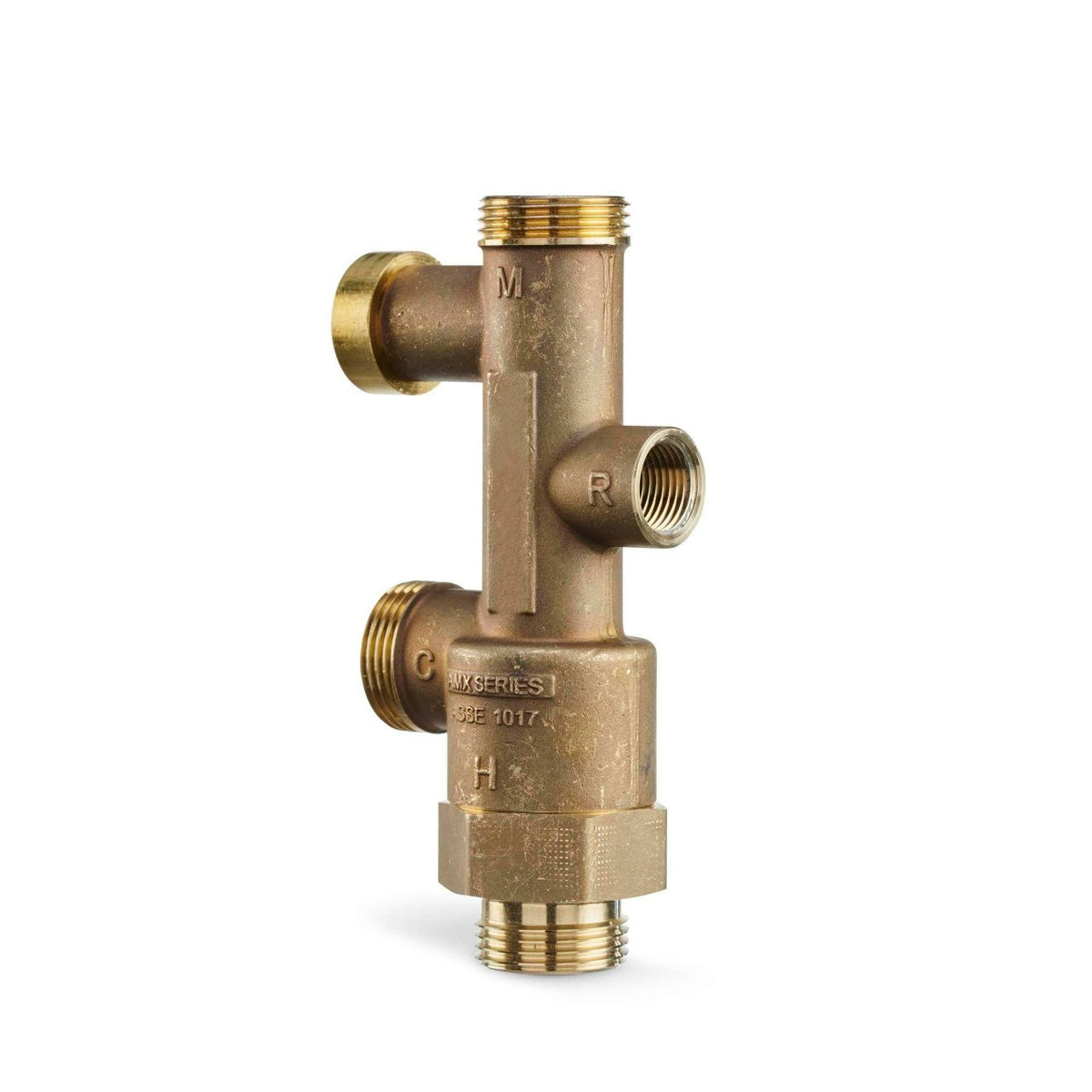

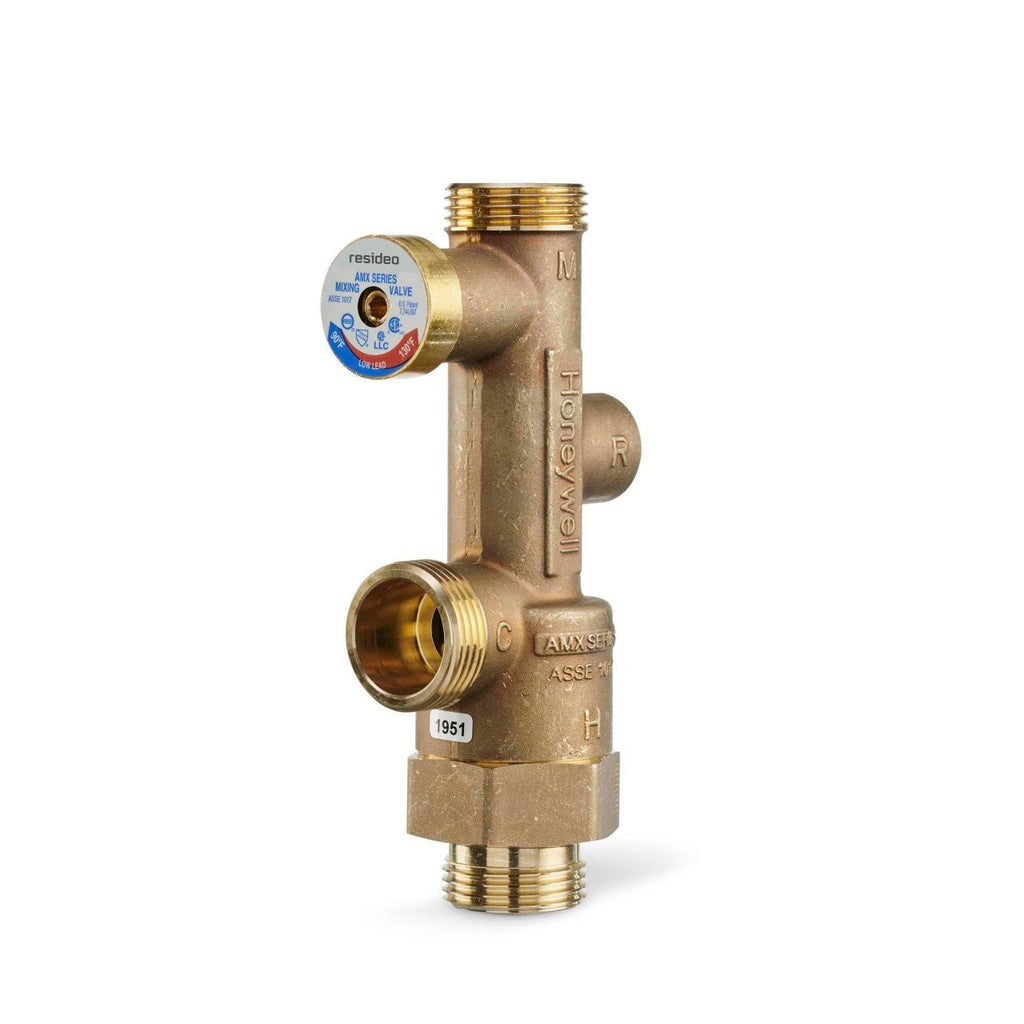

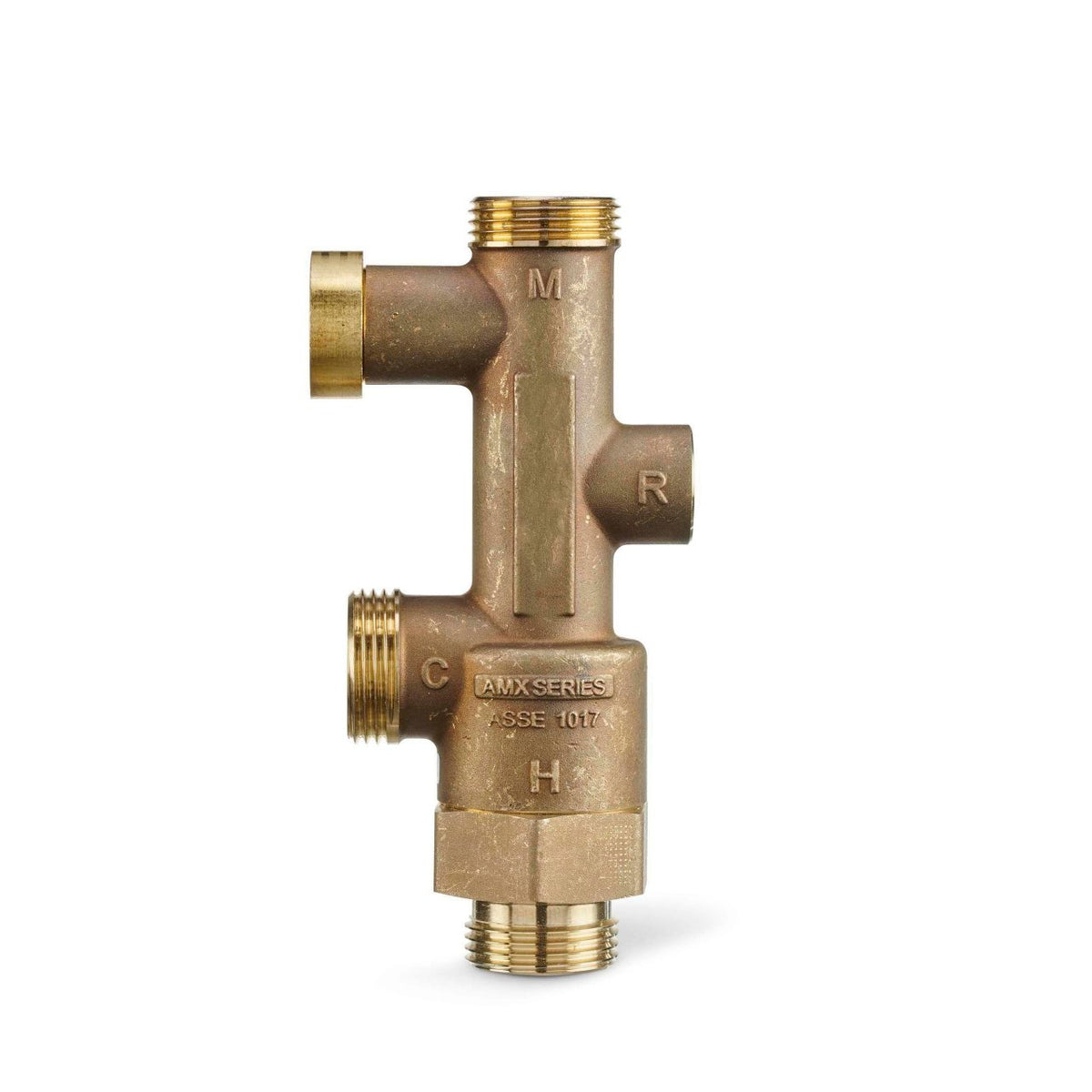

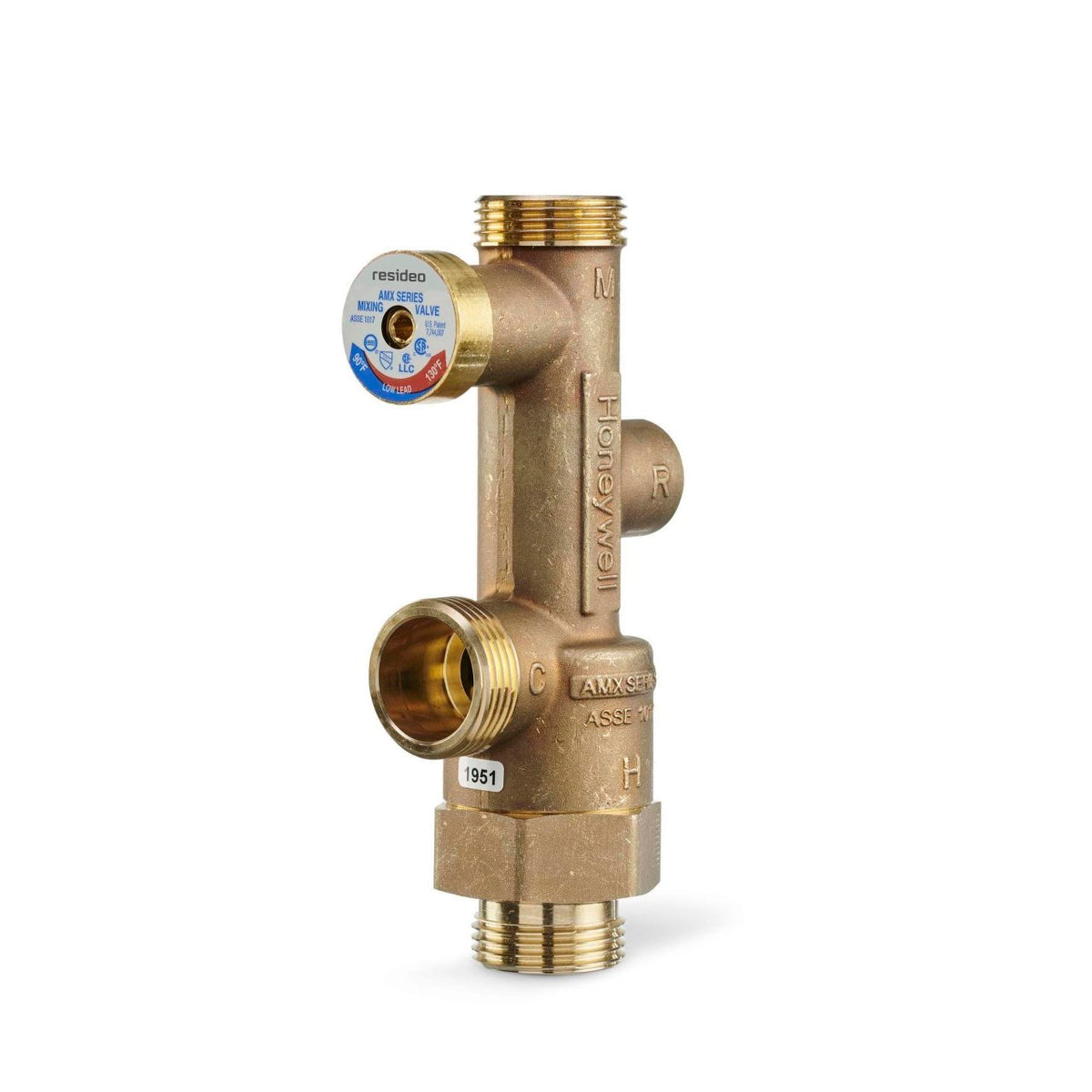

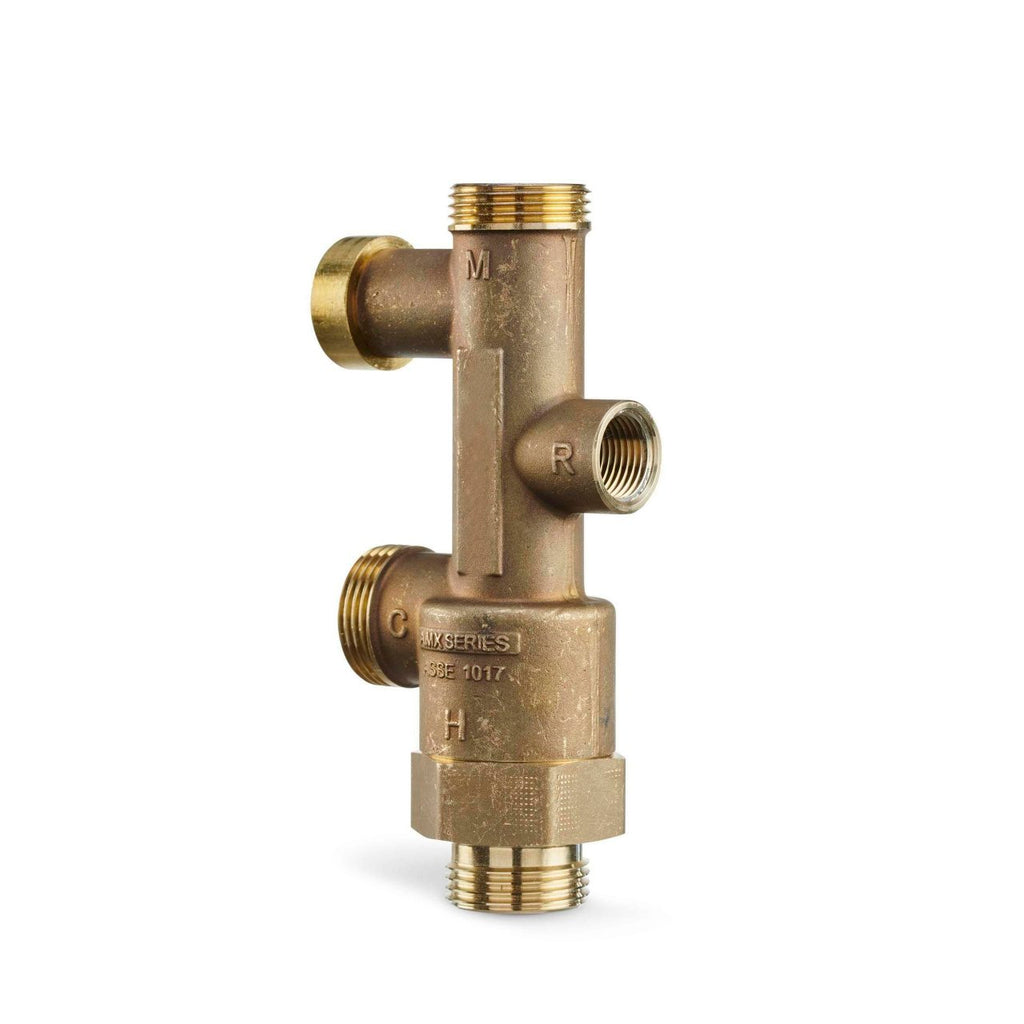

AMX lead free mixing valve, 3/4 in, with NPT union connections and a 90–130°F range.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AMX101-UT-1LF/U
- Controlled Media: Potable Water, Non Potable Water
- Re-Circulation: Yes
- Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed, The wettable surface of lead-free models contain less than 0.25% of lead by weighted average
- Color: Bronze
- Includes: 3/4 in FNPT Inlet, (2) 3/4 in Union Sweat Fittings, Check Valves cold water port
- Product Height: 9.69 in, 246.13 mm
- Product Length: 5 in, 127 mm
- Product Width: 5 in
- Warranty: 1 Year
- Adjustment Means: Handwheel
- Check Valve: Yes
- Cold Inlet Temperature (Min): 33 °F, 0.5 °C
- Cold Inlet Temperature (Max): 80 °F, 27 °C
- Differential Pressure (Max): 7 psi, 48.3 kPa
- Flex Connector Included: No
- Flow Coefficient: 4 Cv
- Flow Rate (Min): 0.50 gpm, 1.9 lpm
- Hot Inlet Temperature (Min): 100 °F, 38 °C
- Hot Inlet Temperature (Max): 180 °F, 82 °C
- Lead Free: Yes
- Media Temperature (Max): 200 °F, 93 °C
- Number of Check Valves: 2
- Operating Mixing Temperature (Min): 90 °F, 32 °C
- Operating Mixing Temperature (Max): 130 °F, 54 °C
- Operating Pressure (Max): 150 psi, 1034 kPa
- Seal Material: EPDM Rubber
- Valve Body Material: Nickel-plated Brass, Bronze
- Connection Size: 3/4 in
- Connection Type: Union NPT
- Nominal Diameter: DN20
- Number of Connections: 4
- UPC: 085267338103
- Country of Origin: MX
- Category: Water Heater Tank Mixers
