Description

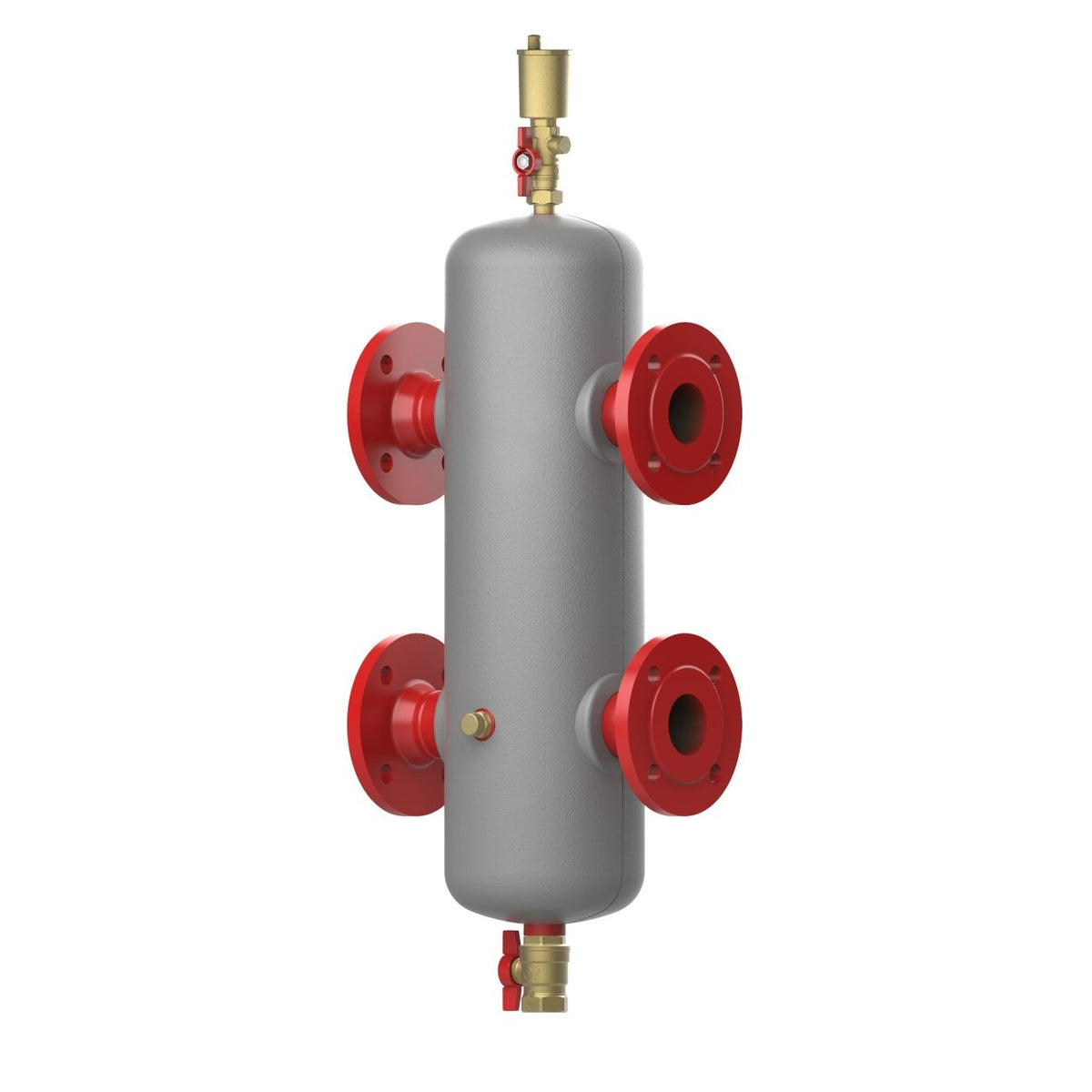

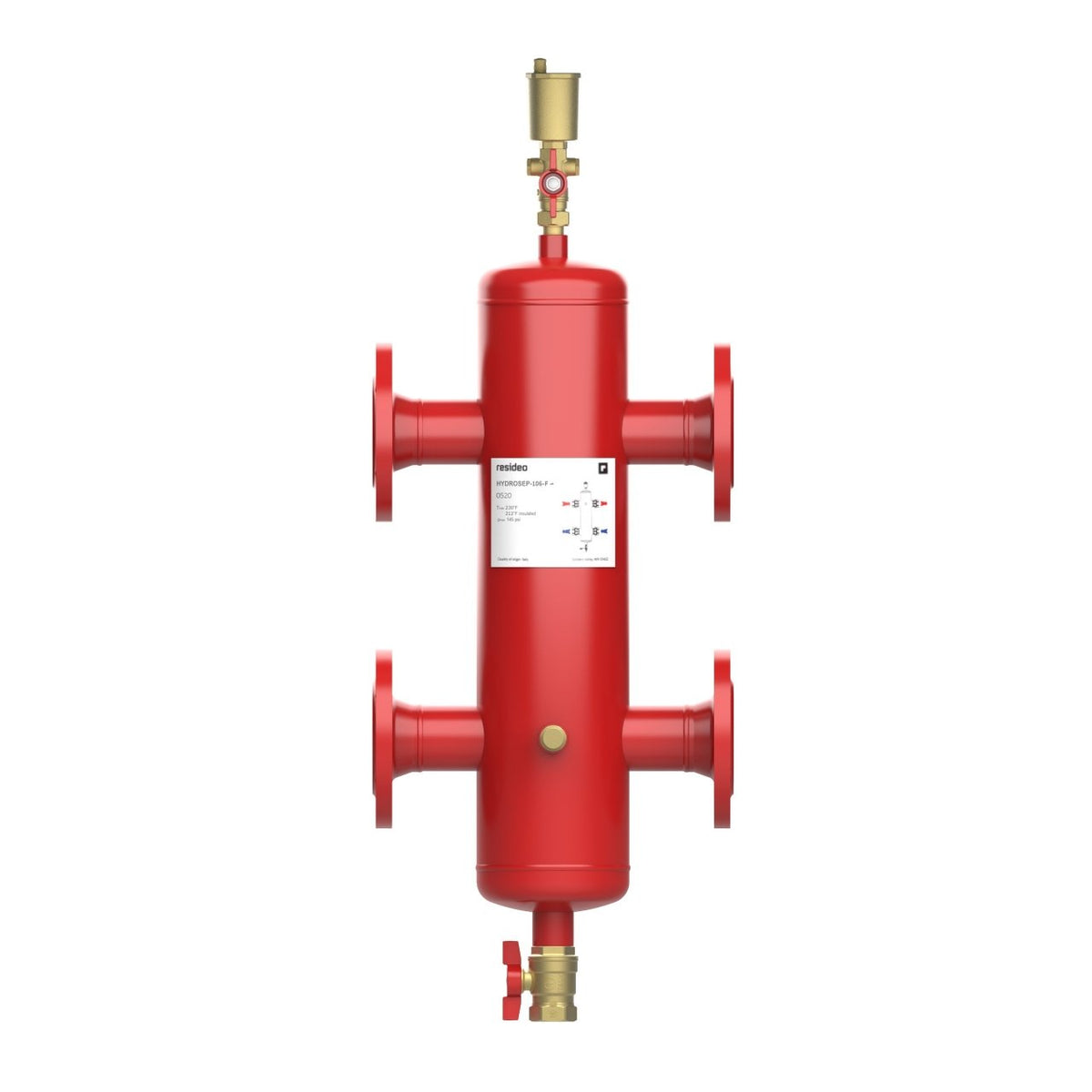

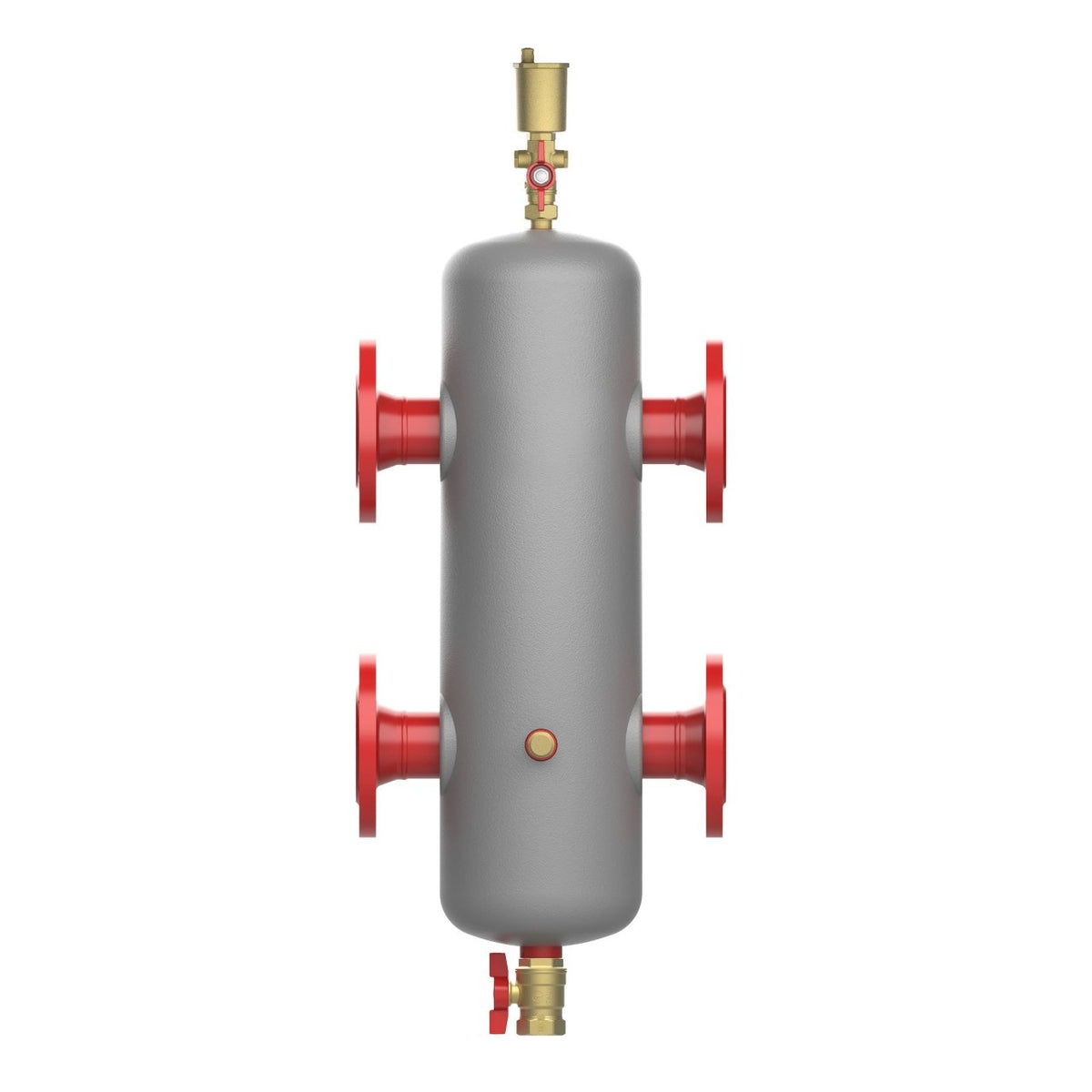

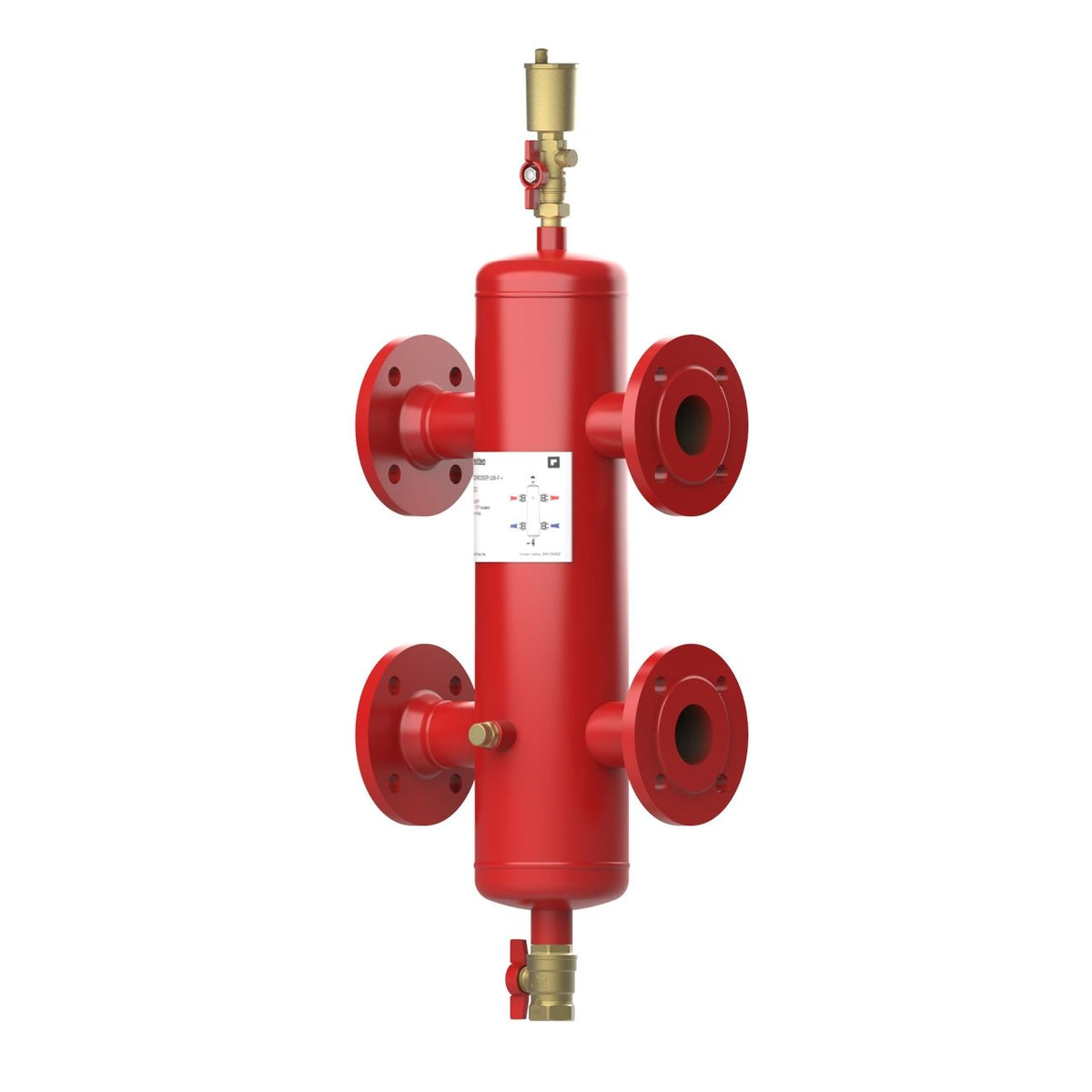

2 in hydraulic separator with flanged connections.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: HYDROSEP-105-F/U
- Controlled Media: Water, 50% (maximum) Glycol Mixture
- Pipe Size: 2 in.
- DN Size: DN50
- Separator Connection: ASME 150 lb flange
- Air Vent Valve Connection: 1/2 in
- Connection Type: Flanged
- Discharge Valve Connection: 1 in
- Flow Rate (Max): 46.23 gpm, 10.5 m3/h
- Warranty: 5 Years
- Operating Pressure (Max): 145 psi, 10 Bar
- Air Vent Operating Pressure (Max): 72 psi, 5 bar
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 230 °F, 110 °C
- Media Temperature (Min): 32 °F, 0 °C
- Media Temperature (Max): 266 °F, 130 °C
- Volume: 2.64 gal, 10 L
- Insulation Shell Thickness: 0.78 in, 20 mm
- Insulation Shell Material: Polypropylene
- Air Vent Material: ASTM B124 UNS C37700 (CW617N EN 12165) Brass
- Body Material: FE360 varnished Steel
- Drain Ball Valve Material: ASTM B124 UNS C37700 (CW617N EN 12165) brass
- UPC: 194159006614
- Country of Origin: IT
- Category: Hydro Separators
