Description

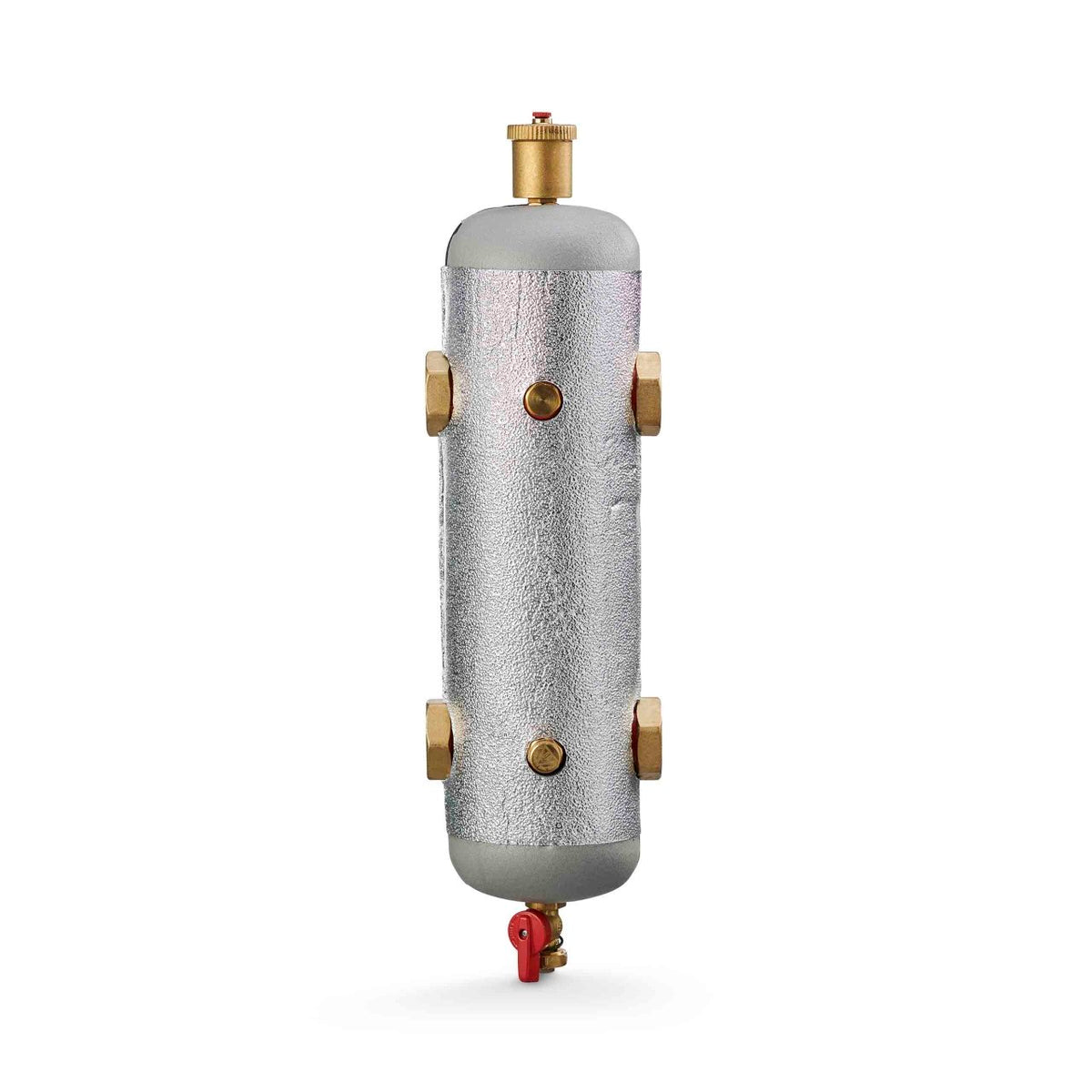

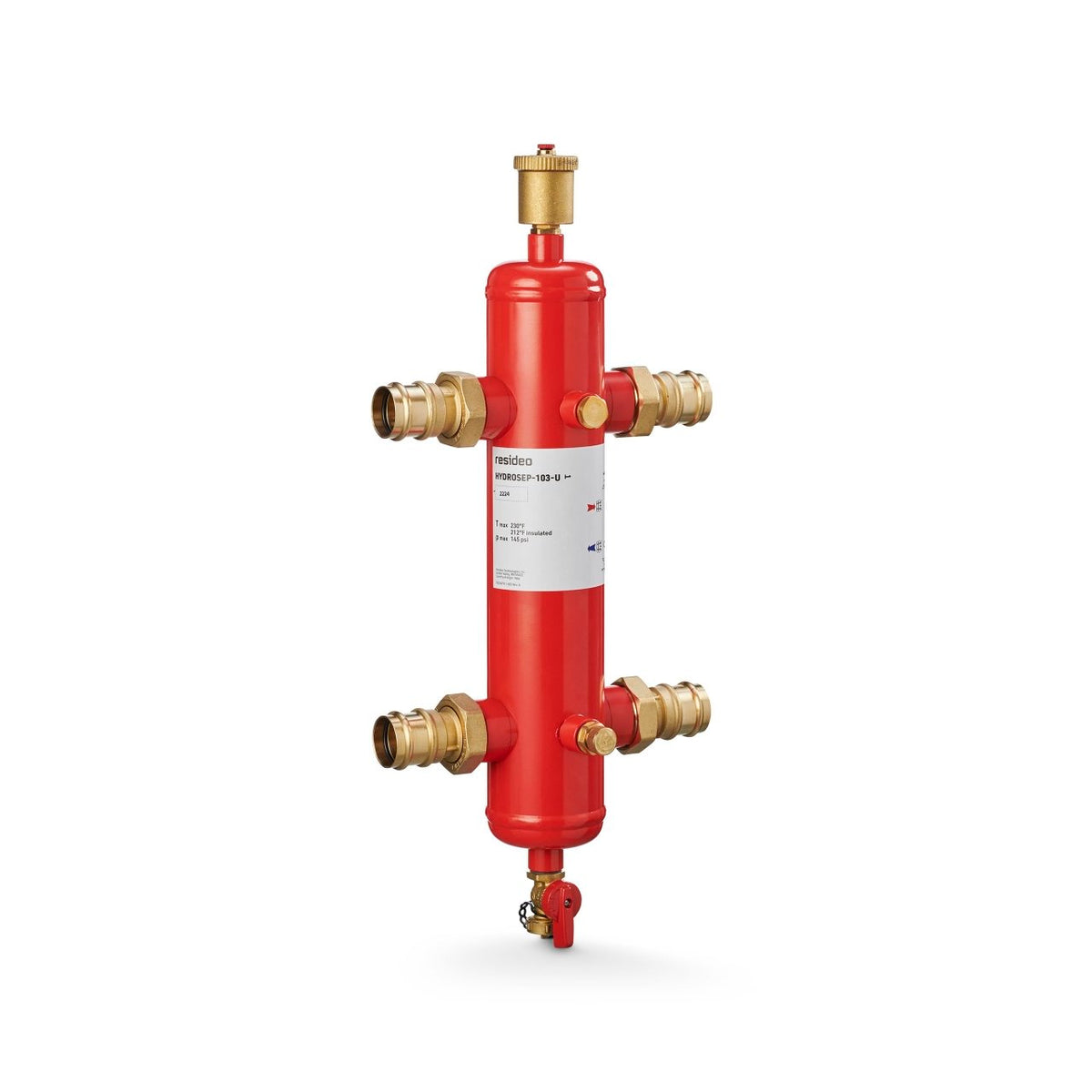

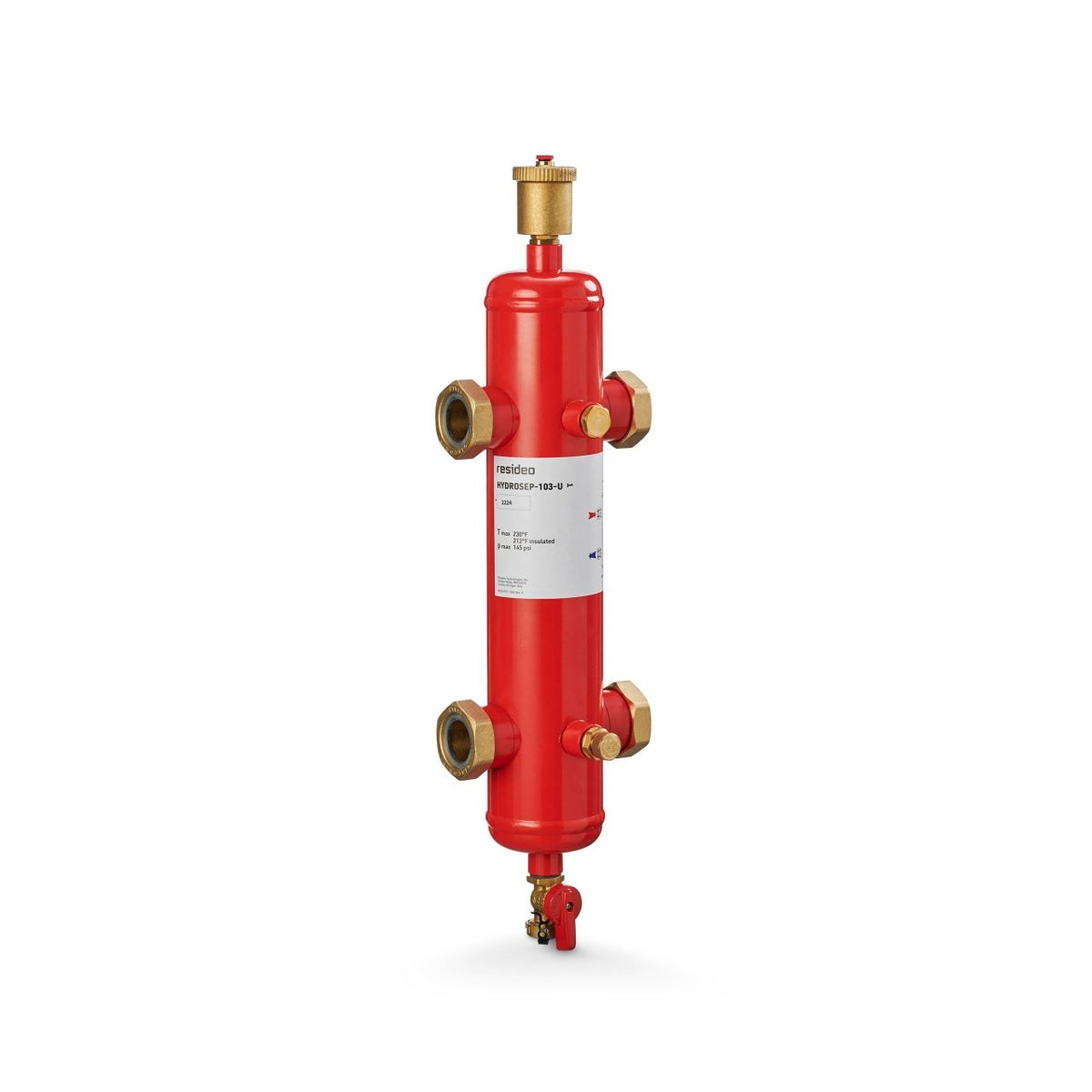

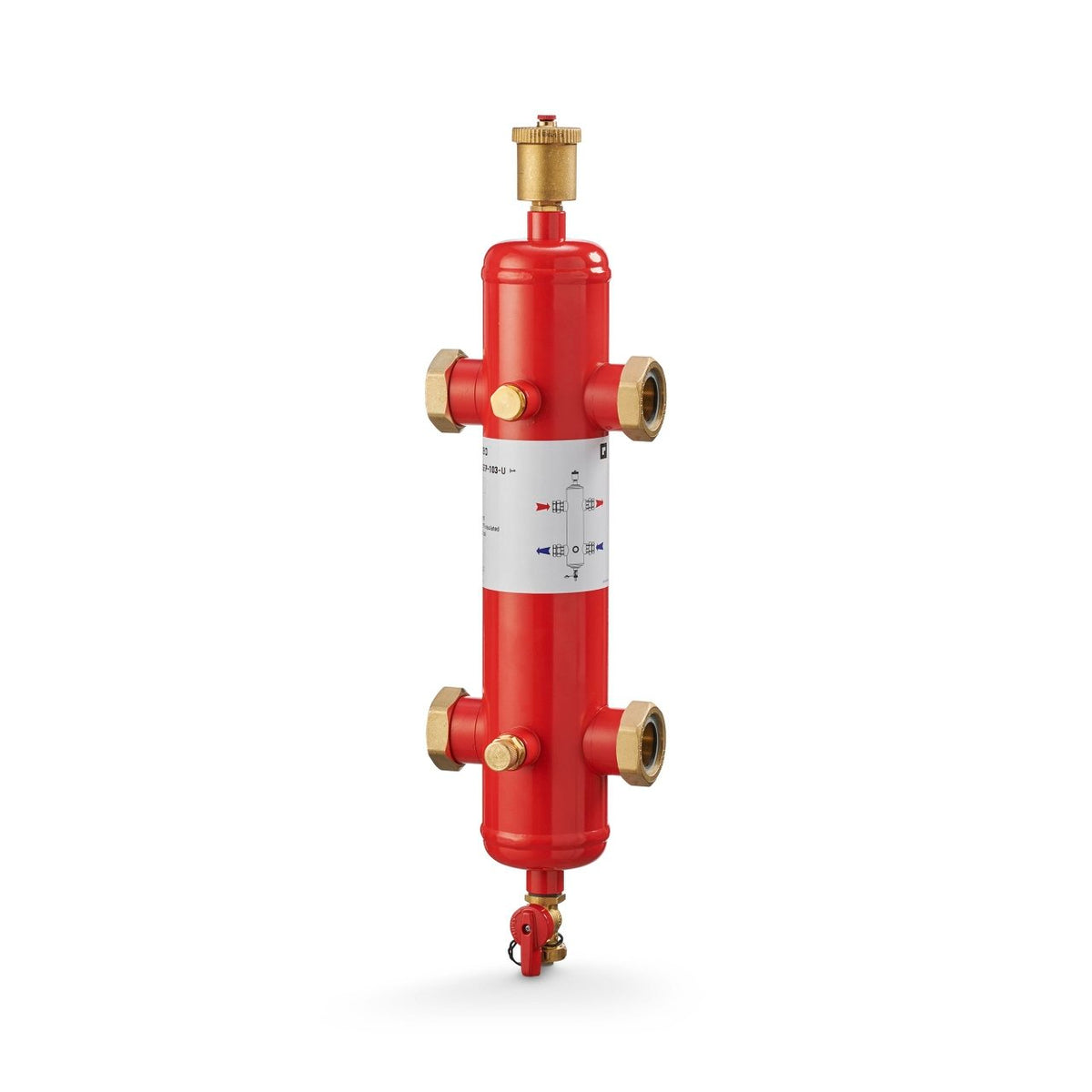

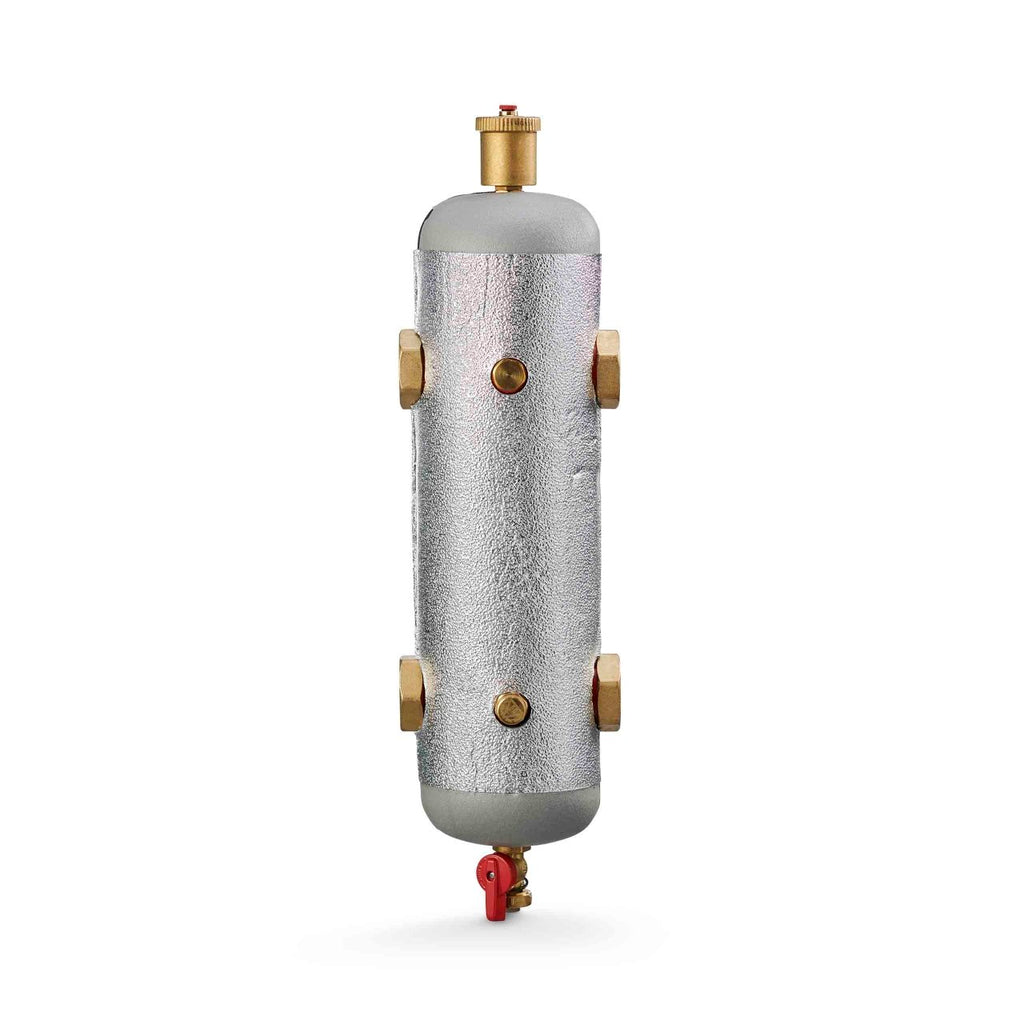

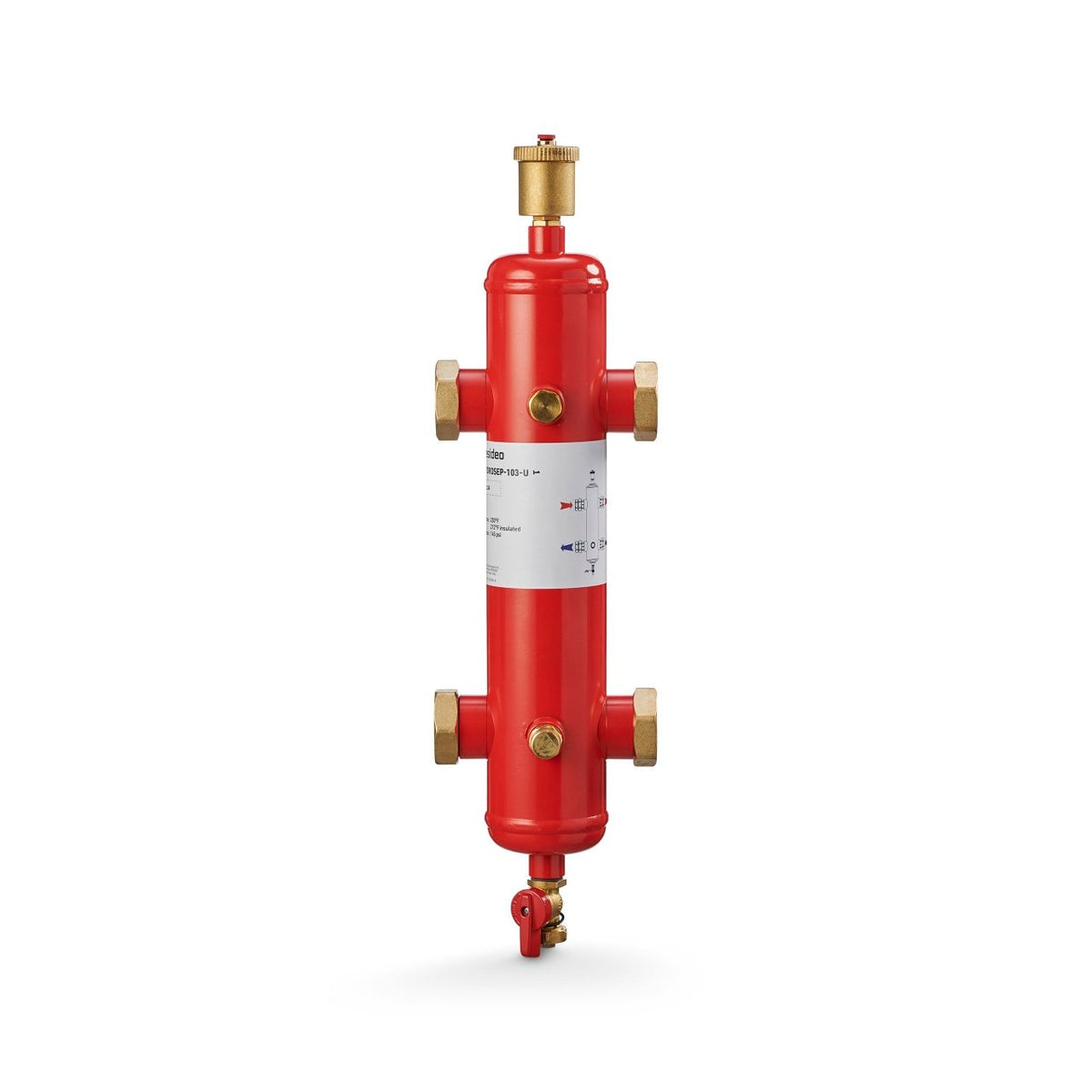

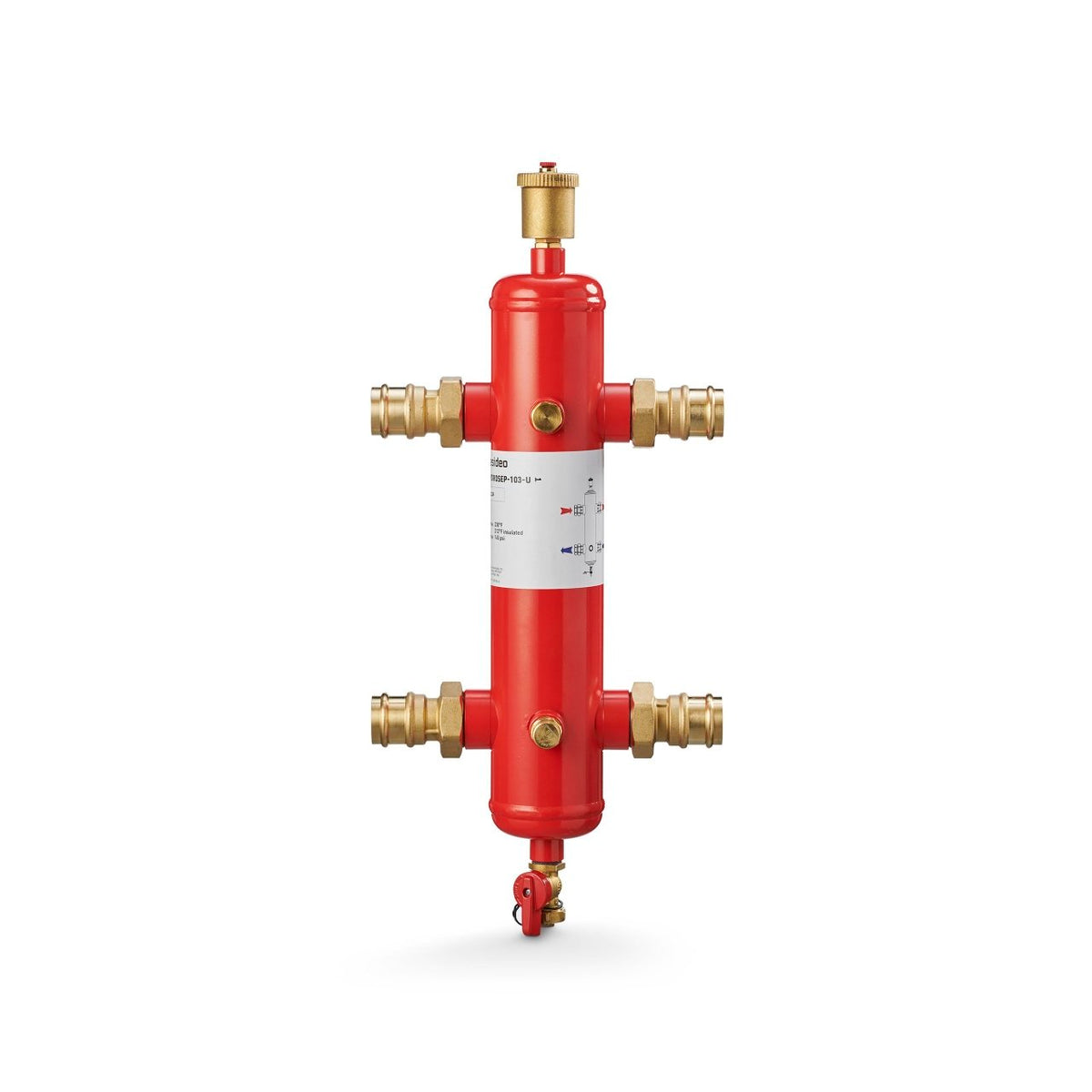

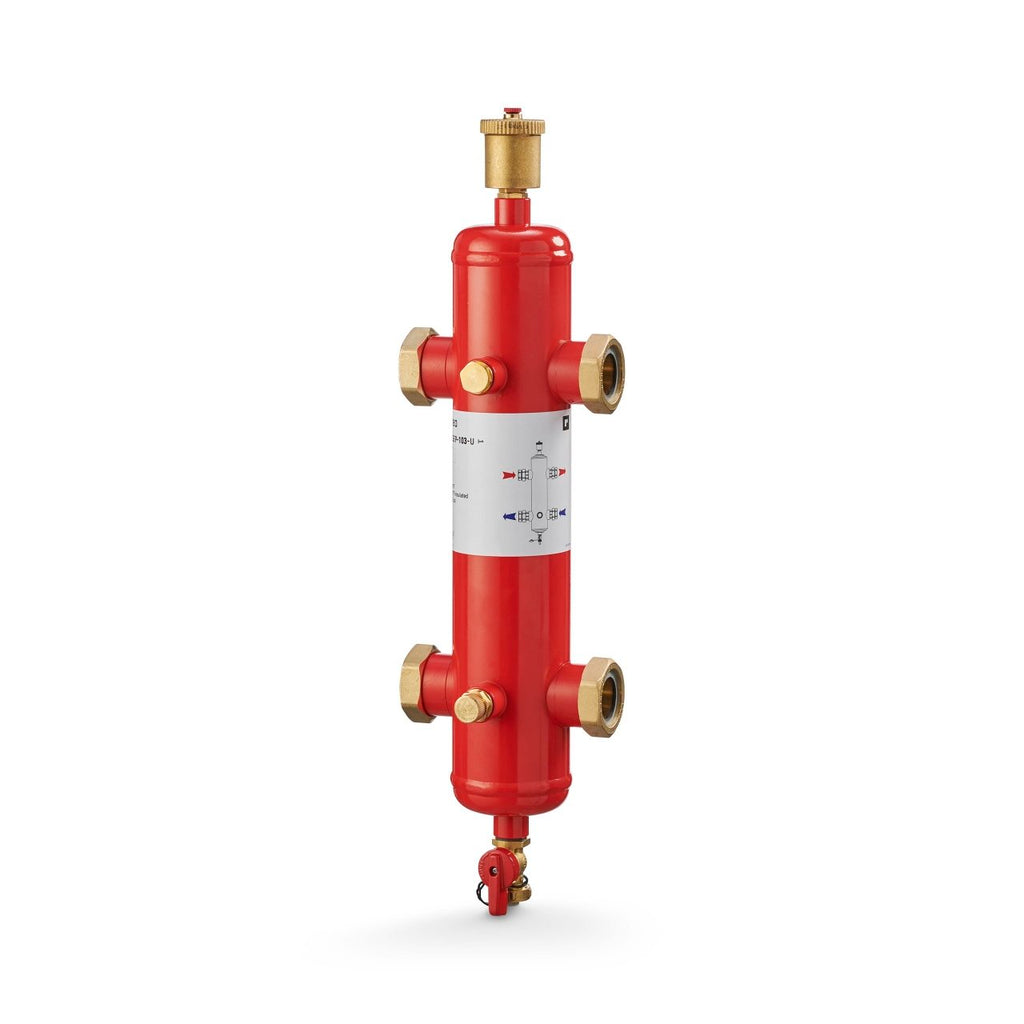

1.5 in hydraulic separator with union connections.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: HYDROSEP-104-U/U
- Controlled Media: Water, 50% (maximum) Glycol Mixture
- Pipe Size: 1-1/2 in
- DN Size: DN40
- Separator Connection: Use Required Adapters
- Air Vent Valve Connection: 1/2 in
- Flow Rate (Max): 26.41 gpm, 6 m3/h
- Warranty: 5 Years
- Operating Pressure (Max): 145 psi, 10 Bar
- Air Vent Operating Pressure (Max): 102 psi, 7 bar
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 230 °F, 110 °C
- Media Temperature (Min): 32 °F, 0 °C
- Media Temperature (Max): 266 °F, 130 °C
- Volume: 1.28 gal, 4.5 L
- Insulation Shell Thickness: 0.78 in, 20 mm
- Insulation Shell Material: Open cell PE foam with embossed aluminum lining
- Air Vent Material: ASTM B124 UNS C37700 (CW617N EN 12165) Brass
- Body Material: FE360 varnished Steel
- Drain Tap Material: ASTM B124 UNS C37700 (CW617N EN 12165) brass
- Drain Tap Connection: 3/4 GHT and threaded cap
- UPC: 194159006591
- Country of Origin: IT
- Category: Hydro Separators
