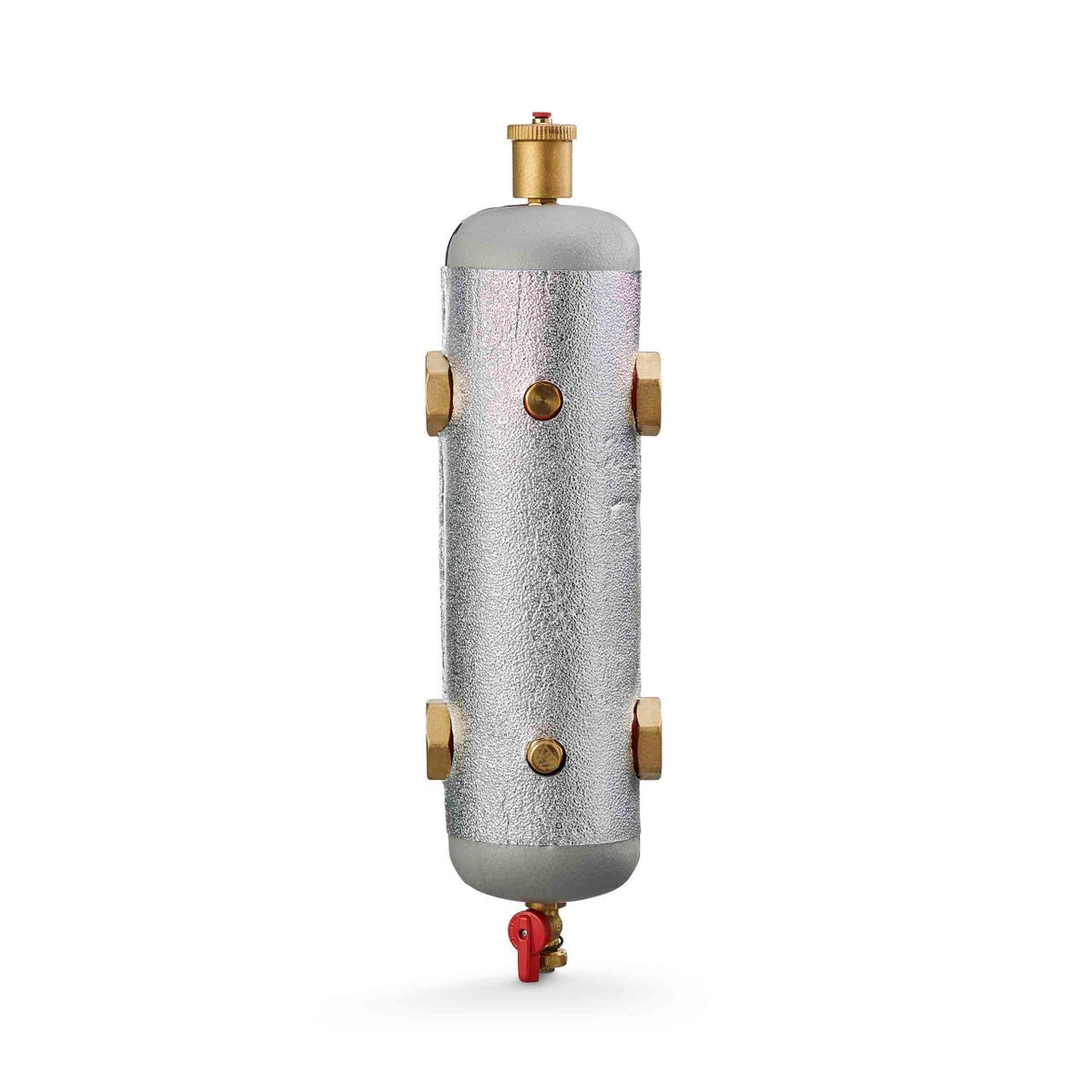

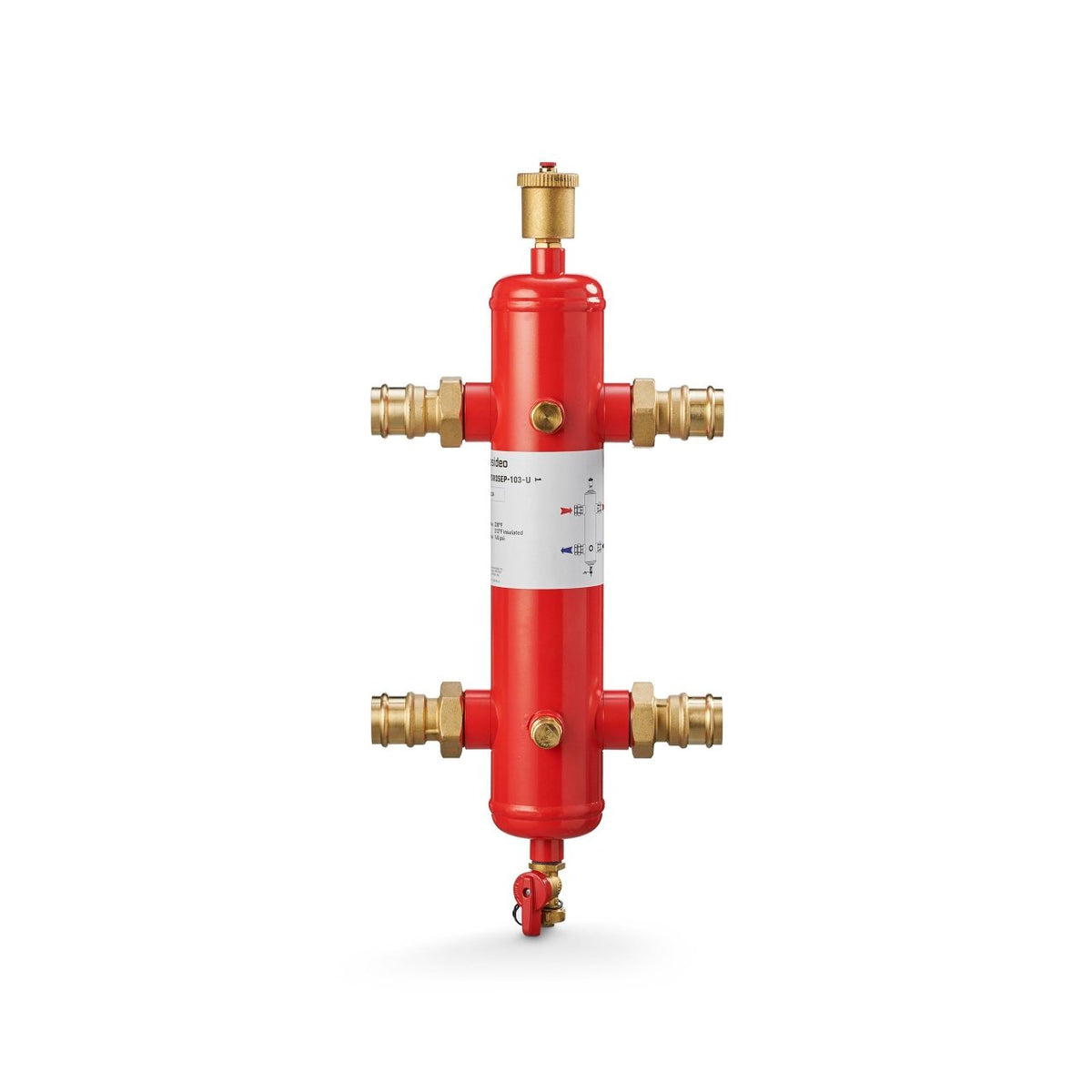

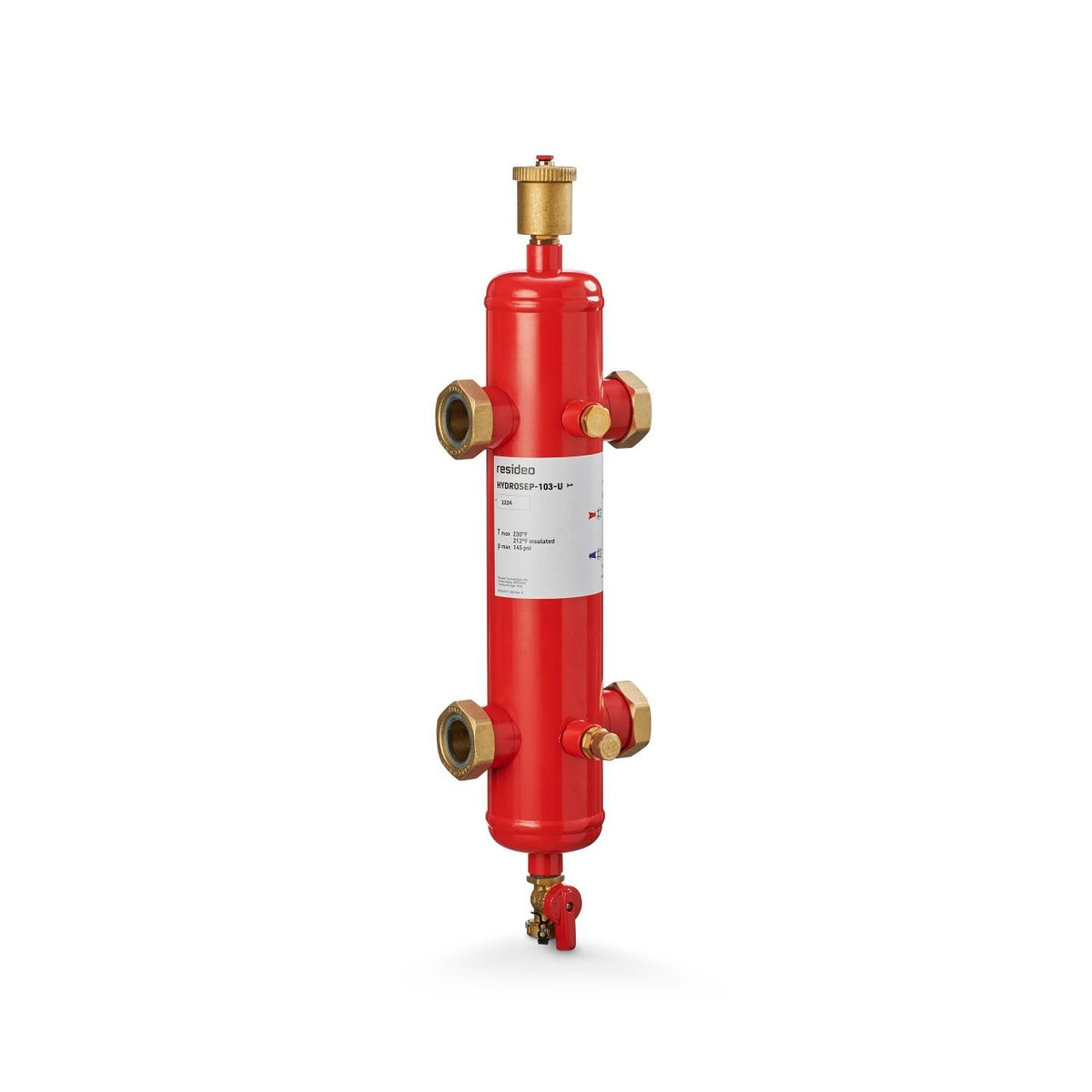

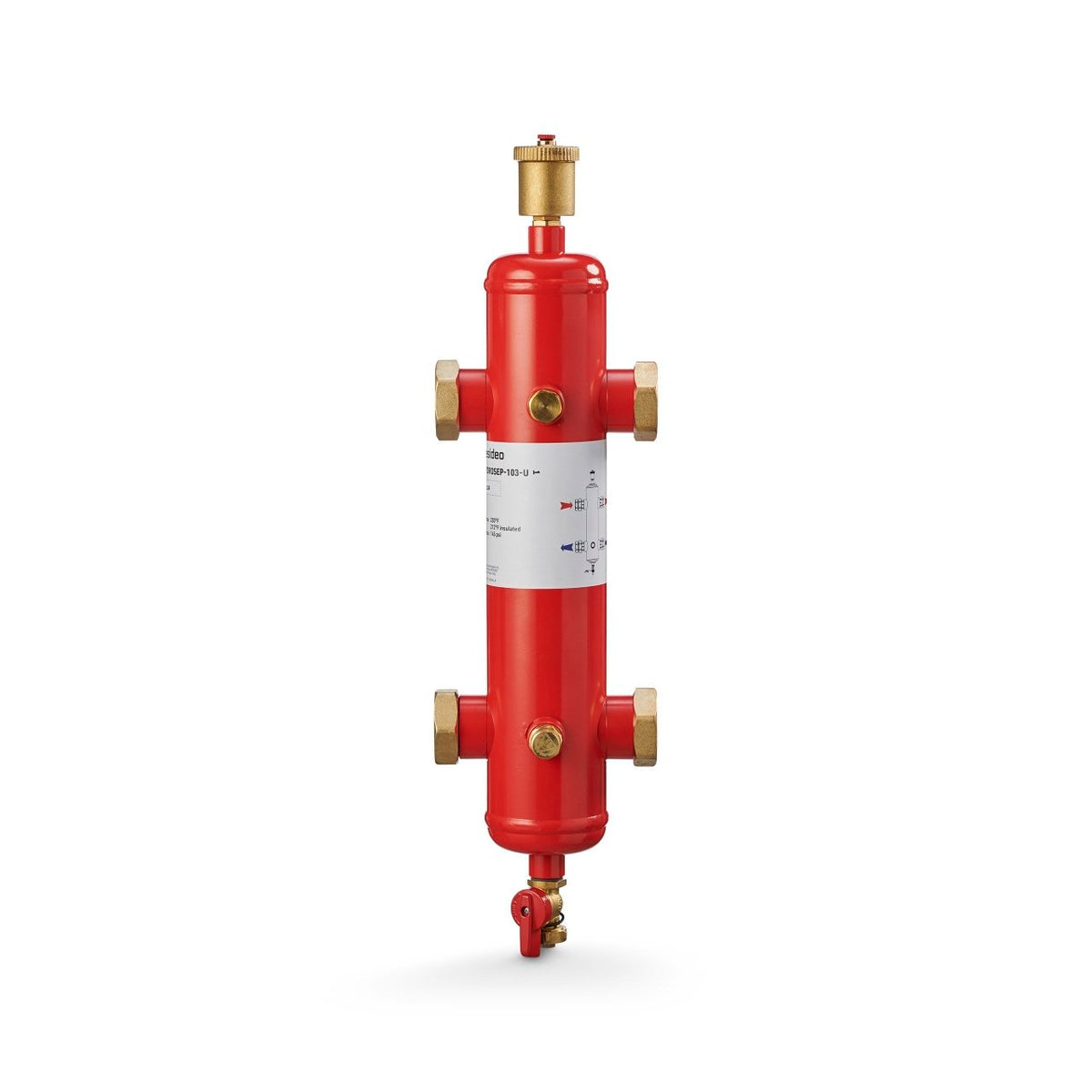

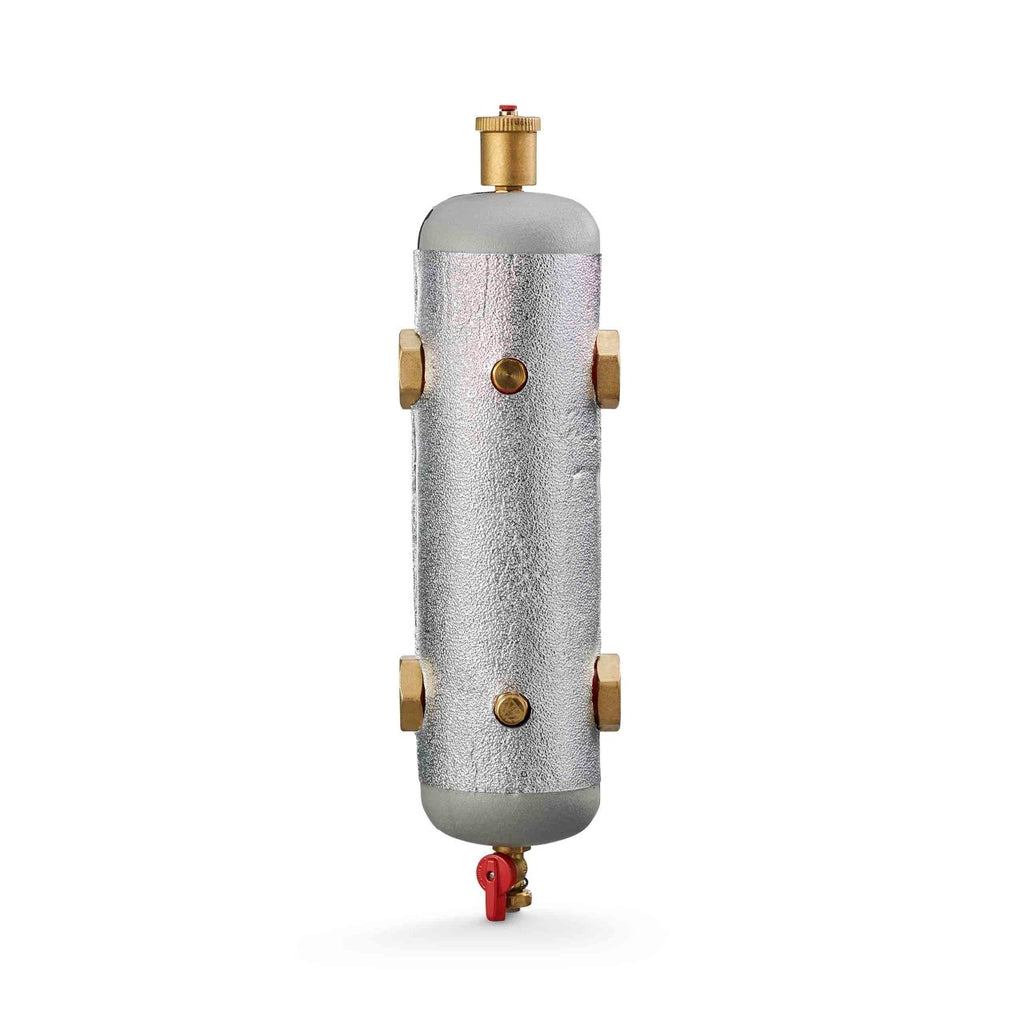

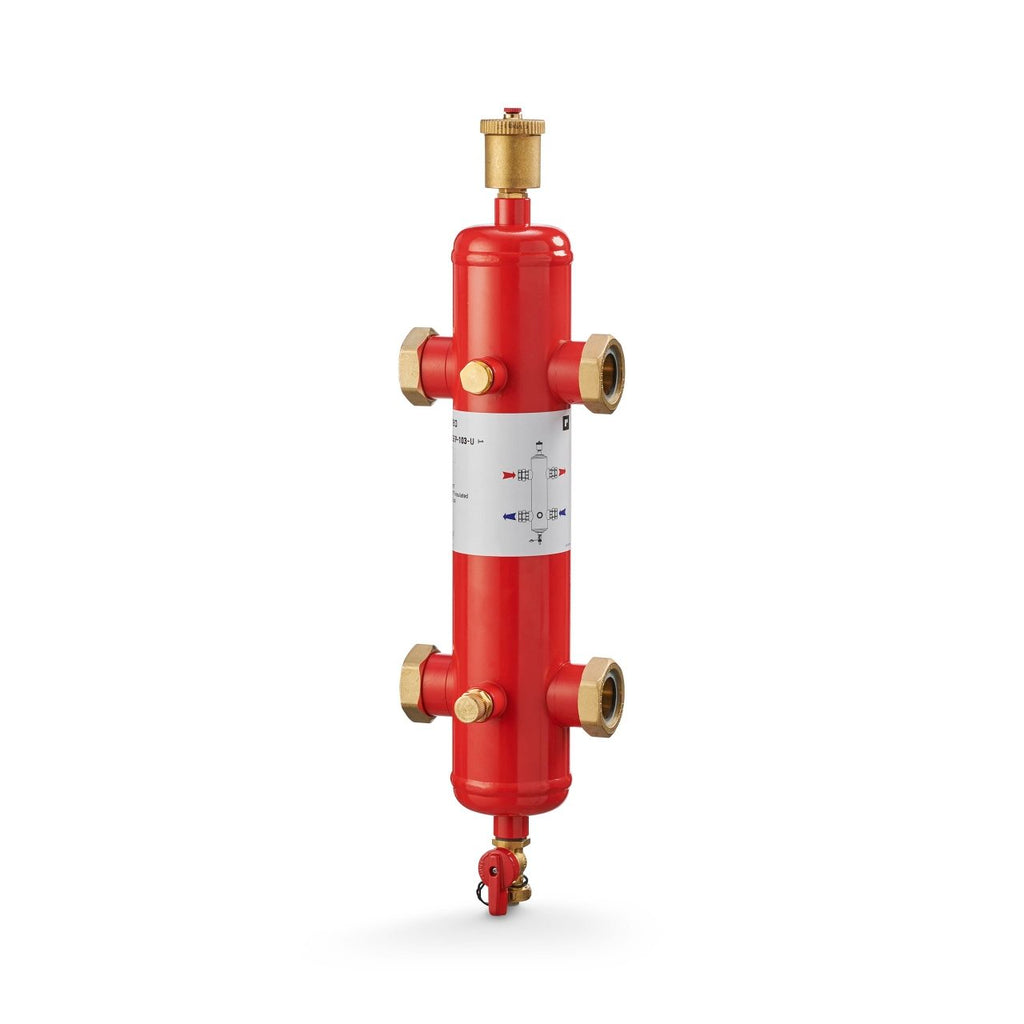

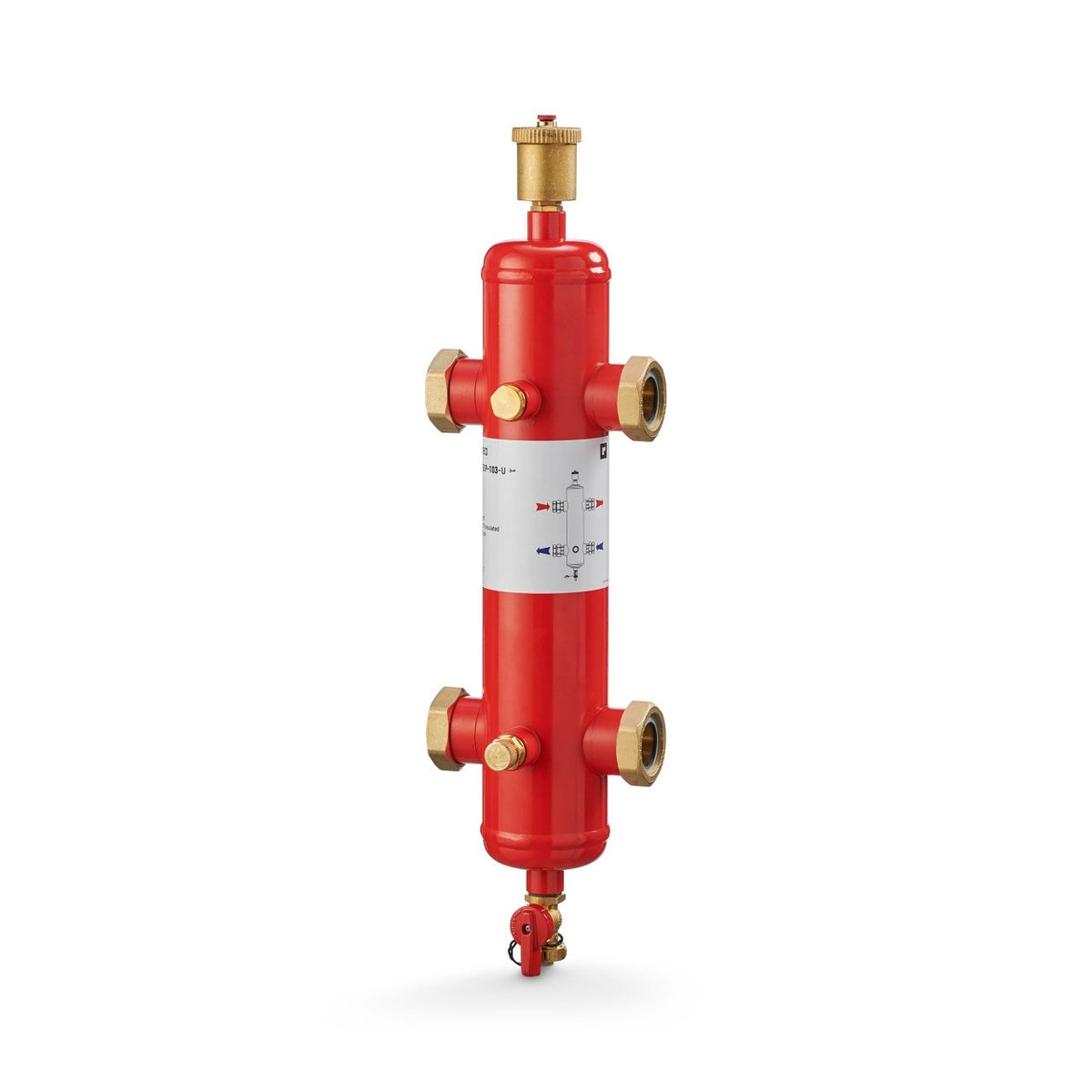

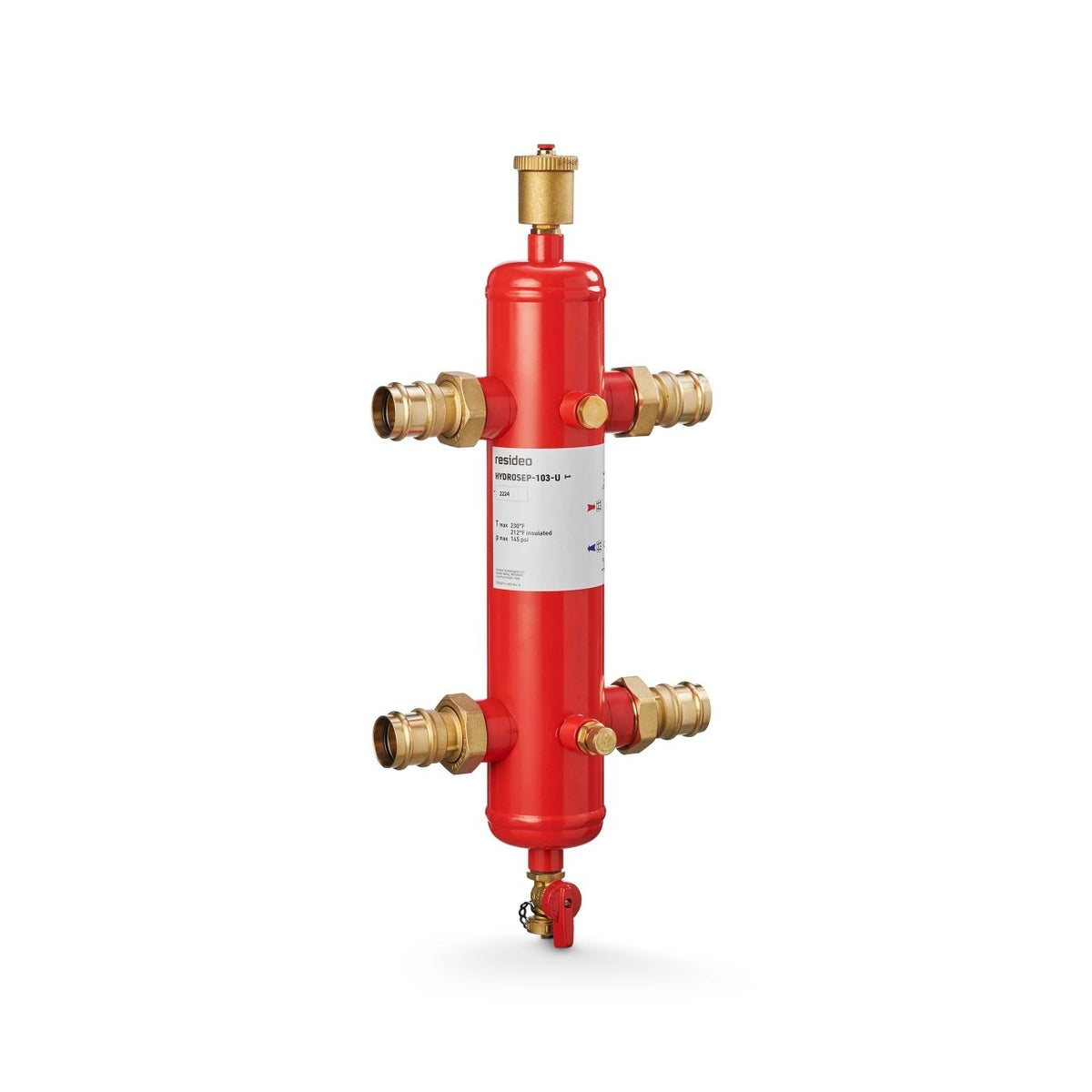

Resideo HYDROSEP-105-U/U Hydraulic Separator, Union, 2 in

2 in hydraulic separator with union connections.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: HYDROSEP-105-U/U
• Controlled Media: Water, 50% (maximum) Glycol Mixture
• Pipe Size: 2 in.
• DN Size: DN50
• Separator Connection: Use Required Adapters
• Air Vent Valve Connection: 1/2 in
• Flow Rate (Max): 39.62 gpm, 9 m3/h
• Warranty: 5 Years
• Operating Pressure (Max): 145 psi, 10 Bar
• Air Vent Operating Pressure (Max): 102 psi, 7 bar
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 230 °F, 110 °C
• Media Temperature (Min): 32 °F, 0 °C
• Media Temperature (Max): 266 °F, 130 °C
• Volume: 1.9 gal, 7.2 L
• Insulation Shell Thickness: 0.78 in, 20 mm
• Insulation Shell Material: Open cell PE foam with embossed aluminum lining
• Air Vent Material: ASTM B124 UNS C37700 (CW617N EN 12165) Brass
• Body Material: FE360 varnished Steel
• Drain Tap Material: ASTM B124 UNS C37700 (CW617N EN 12165) brass
• Drain Tap Connection: 3/4 GHT and threaded cap
• UPC: 194159006607
• Country of Origin: IT
• Category: Hydro Separators
