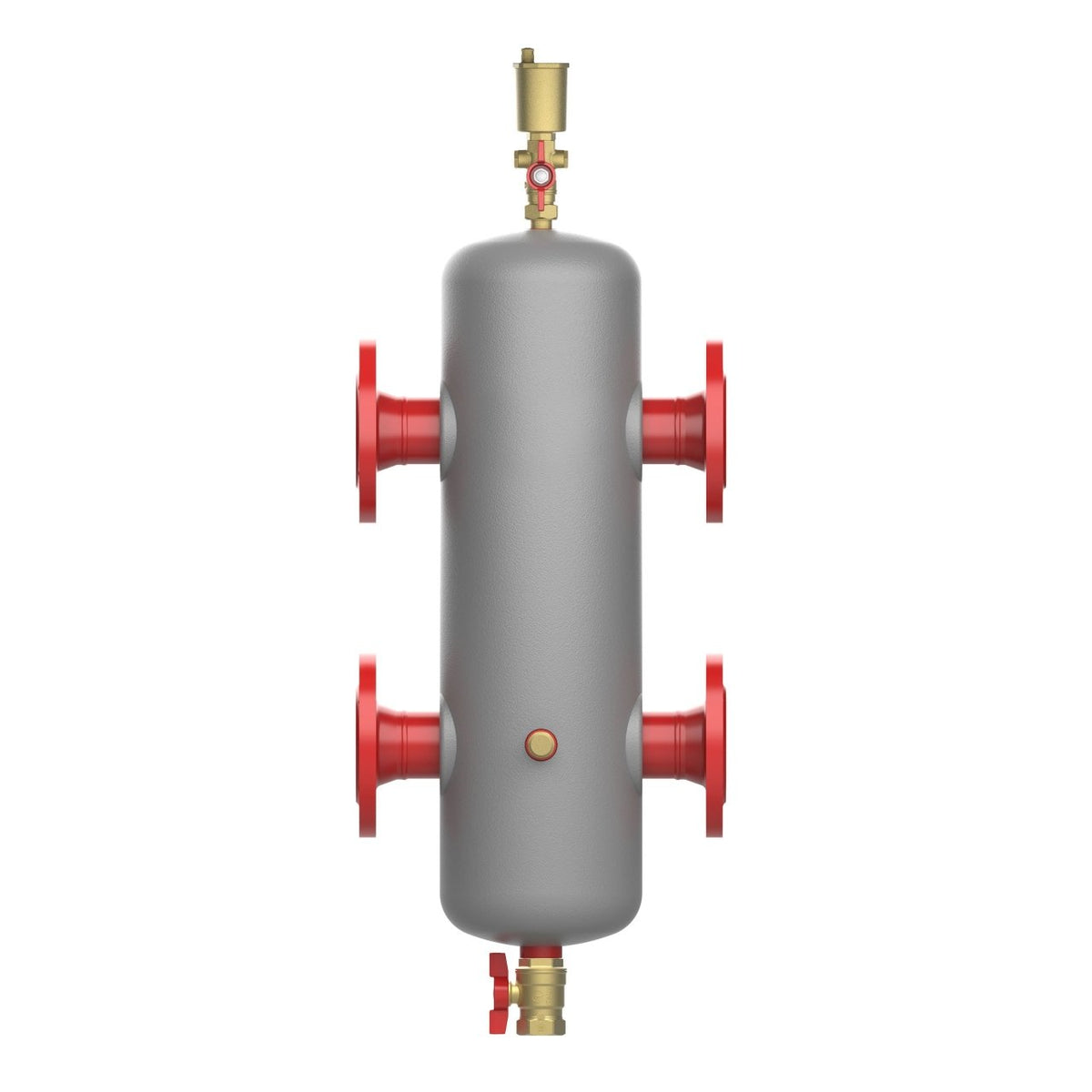

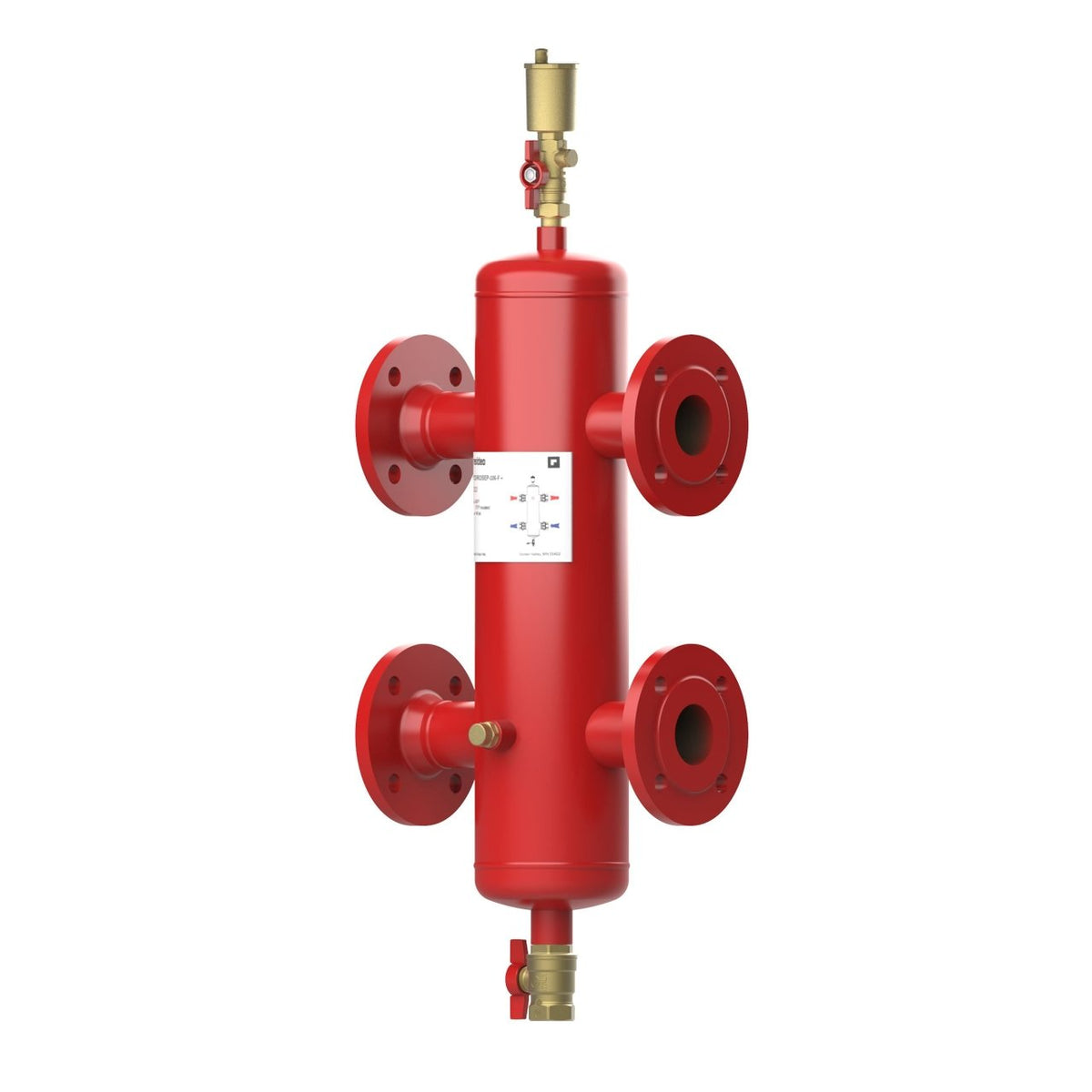

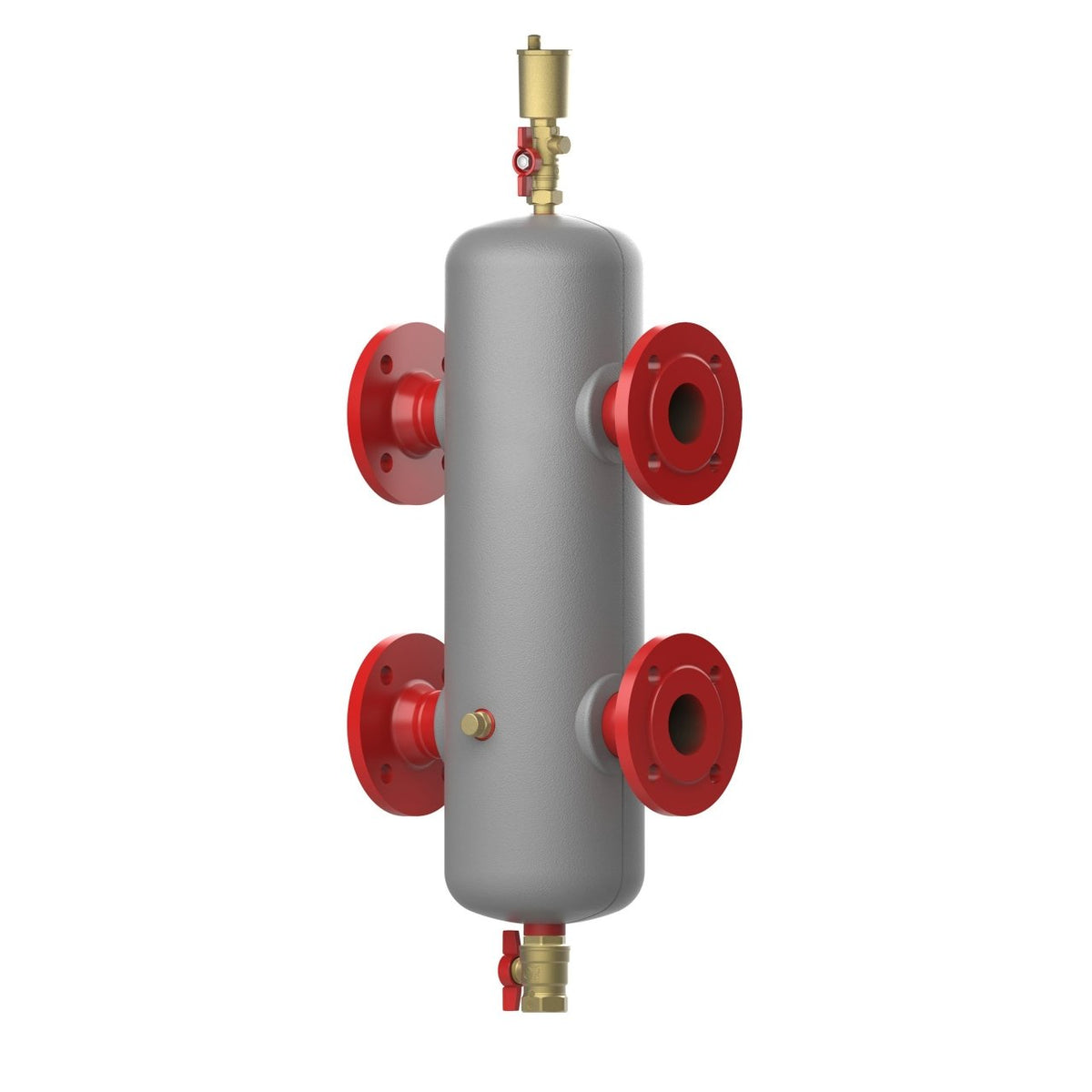

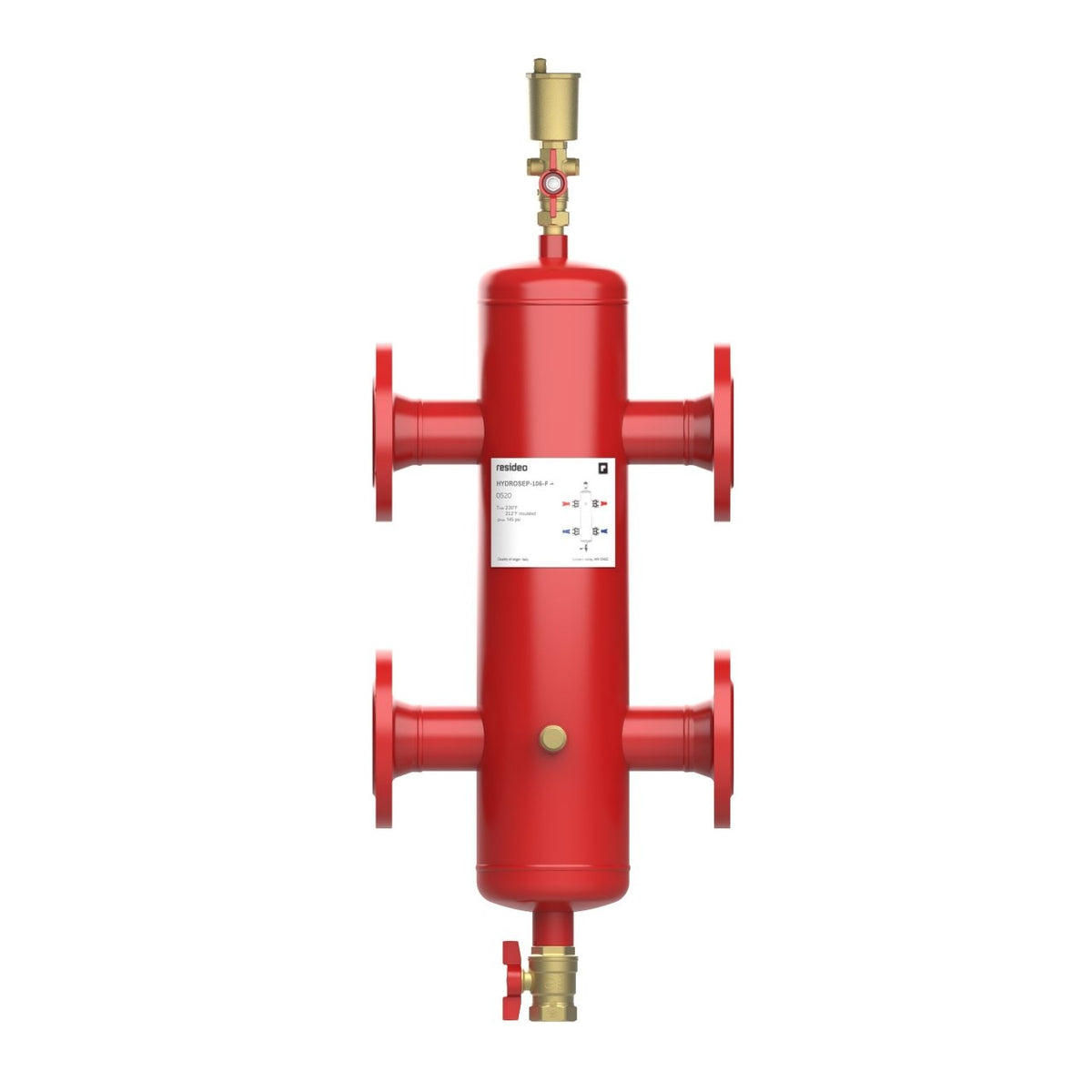

Resideo HYDROSEP-106-F/U Hydraulic Separator, Flanged, 2.5 in

2.5 in hydraulic separator with flanged connections.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: HYDROSEP-106-F/U
• Controlled Media: Water, 50% (maximum) Glycol Mixture
• Pipe Size: 2-1/2 in
• DN Size: DN65
• Separator Connection: ASME 150 lb flange
• Air Vent Valve Connection: 1/2 in
• Connection Type: Flanged
• Discharge Valve Connection: 1 in
• Flow Rate (Max): 77 gpm, 17.5 m3/h
• Warranty: 5 Years
• Operating Pressure (Max): 145 psi, 10 Bar
• Air Vent Operating Pressure (Max): 72 psi, 5 bar
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 230 °F, 110 °C
• Media Temperature (Min): 32 °F, 0 °C
• Media Temperature (Max): 266 °F, 130 °C
• Volume: 4.49 gal, 17 L
• Insulation Shell Thickness: 0.78 in, 20 mm
• Insulation Shell Material: Polypropylene
• Air Vent Material: ASTM B124 UNS C37700 (CW617N EN 12165) Brass
• Body Material: FE360 varnished Steel
• Drain Ball Valve Material: ASTM B124 UNS C37700 (CW617N EN 12165) brass
• UPC: 194159006621
• Country of Origin: IT
• Category: Hydro Separators
