Description

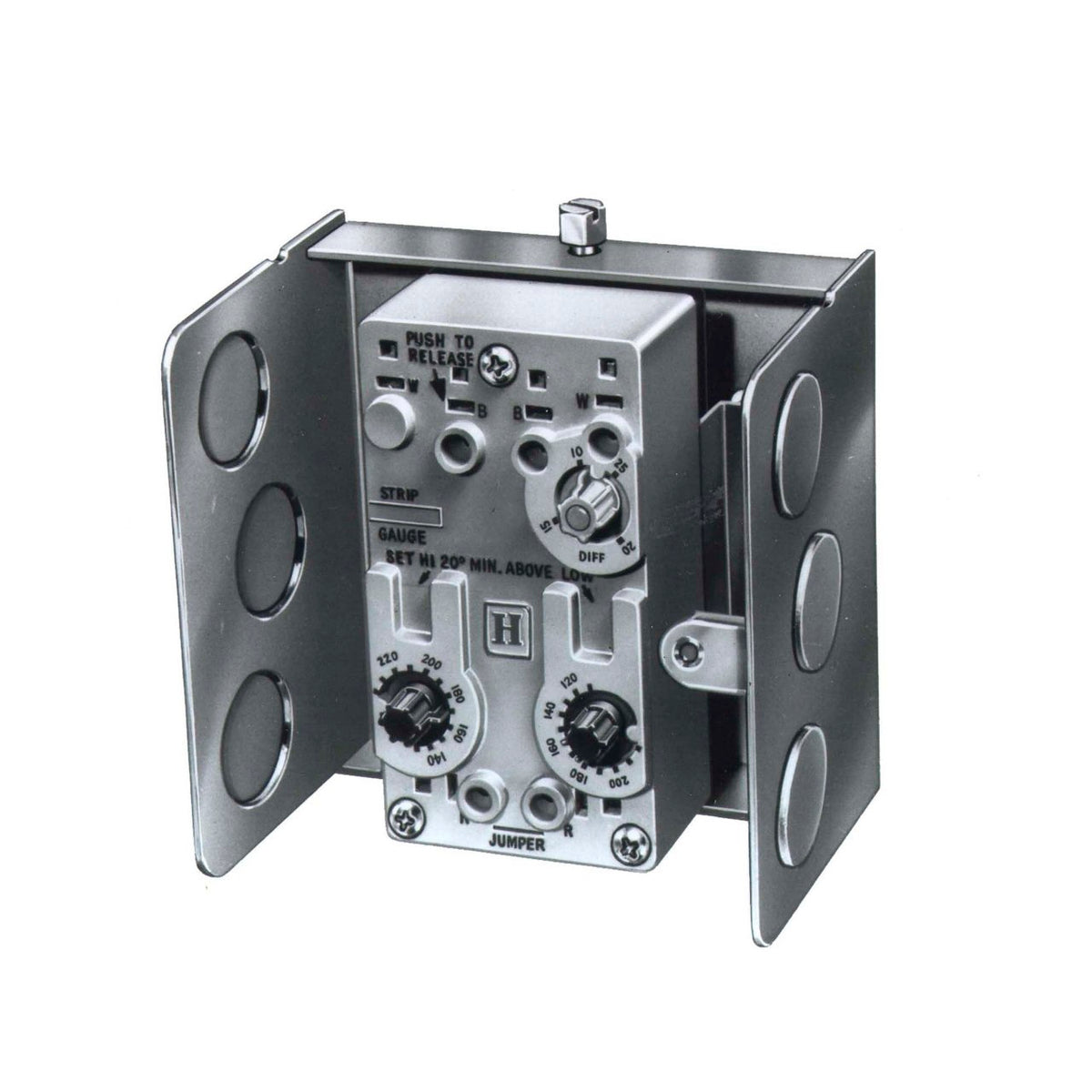

Dual aquastat with 130–240°F high limit and 10°F fixed differential plus 110–220°F circulator control, for 3 in insulation, supplied less well.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: L4081B1096/U
- Application: High and Low limit
- Approvals and Standards: UL Listed: File No. MP466, Vol. 12, Sec. 4, Guide No. MBPR2, CSA Certified: File No. LR95329-1
- Compatible With: Gas Hydronic Heating System, Oil-Fired Hydronic Heating System
- Mounting Type: Horizontal Mount
- Low Limit Set point Temperature (Min): 110 °F, 43 °C
- Low Limit Set point Temperature (Max): 220 °F, 104 °C
- High Limit Differential Temperature: 10 °F Fixed
- High Limit Set point Temperature (Min): 130 °F, 54 °C
- High Limit Set point Temperature (Max): 240 °F, 116 °C
- Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
- Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
- Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
- Switch Action: High Limit Switch breaks on temperature rise, Circulator Switch makes on temperature rise
- Switch Type: SPST High Limit & Circulator
- Insulation Depth: 3 in, 76 mm
- Product Height: 3.88 in, 98 mm
- Product Width: 4.13 in, 108 mm
- Ambient Temperature (Max): 150 °F at Switches, 66 °C at Switches, 265 ° F at Sensing Element, 129 °C at Sensing Element
- Operating Relative Humidity (Min): 0% RH, Non-condensing
- Operating Relative Humidity (Max): 95% RH, Non-condensing
- Hazmat Information: Dangerous Goods in Excepted Quantities
- UPC: 085267053440
- Country of Origin: US
- Category: Aquastats & Wells
