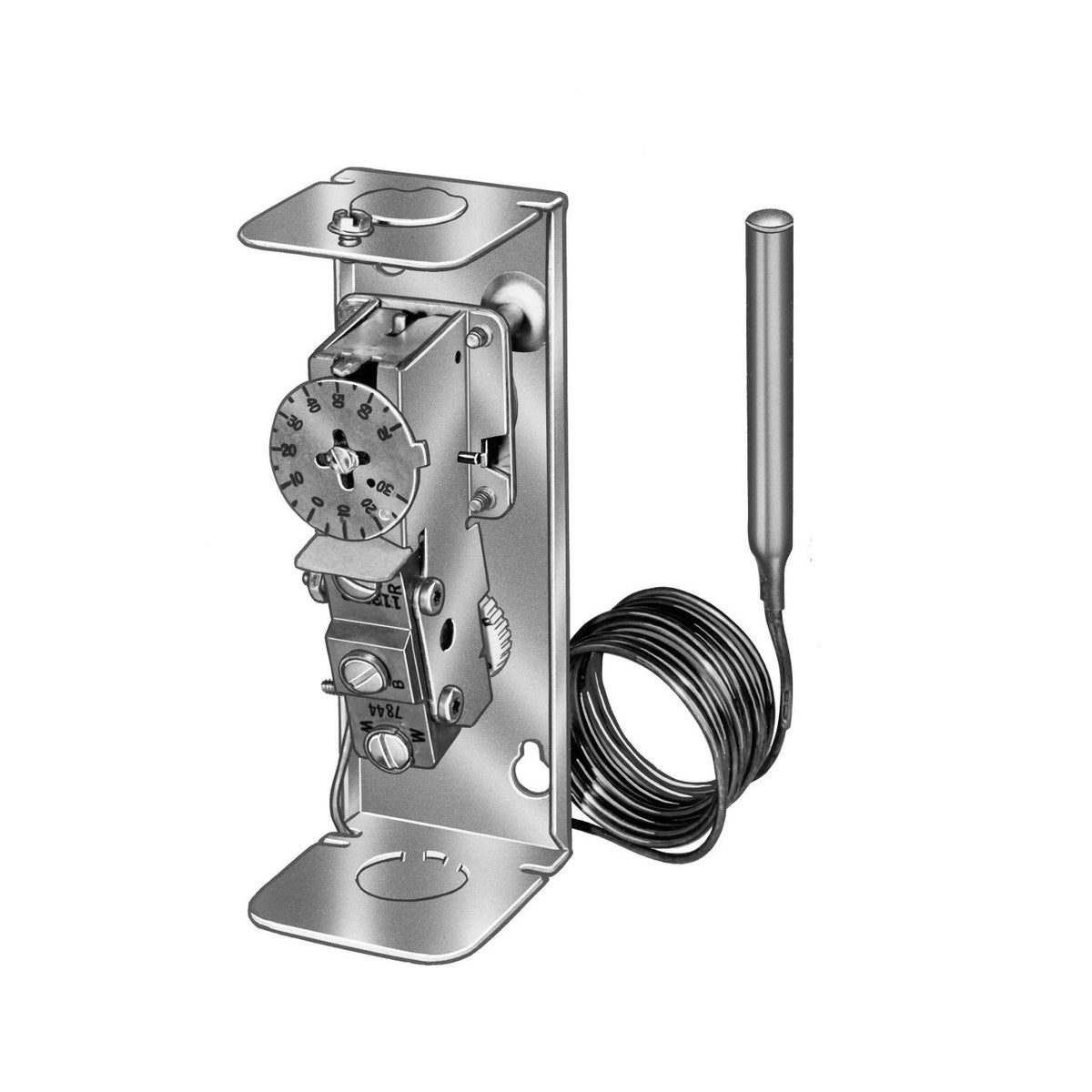

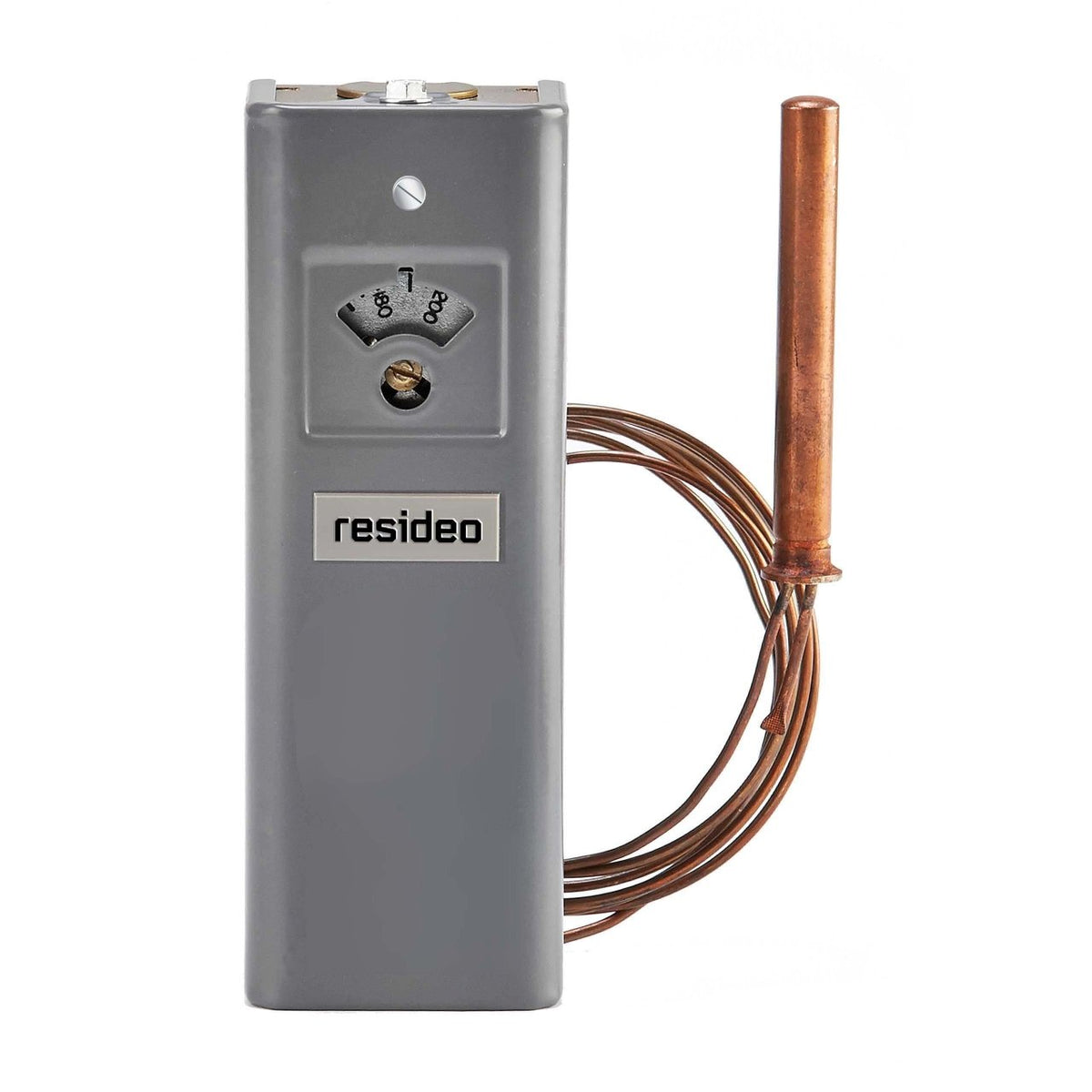

Resideo L4008E1305/U Manual Reset Aquastat, Breaks on Rise, 100–240°F, 66 in Capillary, Less Well

Manual reset aquastat that breaks on temperature rise, 100–240°F range with 240°F stop and 66 in capillary, supplied less immersion well.

Features

• Stop factory- Set at 240 °F
• Stop factory- Set at 116 °C

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L4008E1305/U
• Application: High Limit Control with Manual Reset
• Approvals and Standards: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1
• Color: Gray
• Compatible With: Hot Water, Hydronic Heating Systems
• Mounting Type: Horizontal Mount, Vertical Mount
• Differential Temperature: Manual Reset
• Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
• Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
• Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
• Switch Action: Contacts break on temperature rise
• Switch Type: SPST - NC
• Capillary Length: 66 in
• Bulb Diameter: 3/8 in, 10 mm
• Bulb Length: 2 7/8 in, 73 mm
• Bulb Material: Copper (Cu)
• Product Height: 5.63 in, 143 mm
• Product Width: 2 in, 51 mm
• Ambient Temperature (Max): 150 °F, 66 °C
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267136013
• Country of Origin: MX
• Category: Aquastats & Wells
