Name: Resideo L7224U1002/U Universal Electronic Oil Aquastat with EnviraCOM Communication
Brand: Resideo
SKU: HONE-L7224U1002/U
Price: 257.57 USD
Availability: InStock

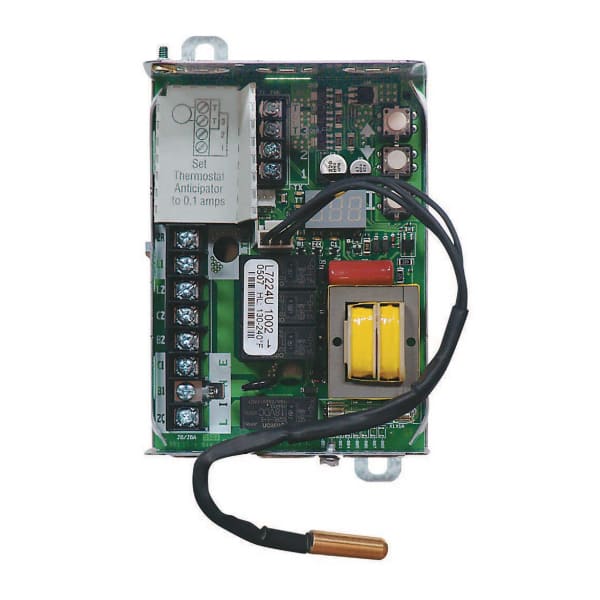

Universal Electronic Oil Aquastat with EnviraCOM communication

Roll over image to zoom in Click on image to zoom

Voltage	120 Vac
Frequency	60 Hz
Operating Temperature	High Limit-- 130 F to 240 F; Low Limit-- 110 F to 220 F
Operating Humidity	0 to 95% RH, non-condensing
Mounting	Well mount, horizontal or vertical position, or flush mounted remote from the well.
Application	Oil Aquastat Controller
Dimensions	7 1/8 in. high x 4 1/4 in. wide x 2 5/8 in. deep
UL	Recognized
Temperature Range (F)	-30 F to 150 F
Power Consumption	7 VA
Differential Temperature (F)	High limit : 5-20 F adj.; low limit: 10-25 F adj.
Electrical Ratings, Burner	At Full Load-- 7.4 A @ 120 Vac; At Locked Rotor-- 44.4 A inrush
Electrical Ratings, Circulator	At Full Load-- 7.4 A @ 120 Vac; At Locked Rotor-- 44.4 A inrush

The L7224U1002 is a universal electronic oil aquastat from Resideo (Honeywell Home). It replaces the mechanical high-limit and circulator controls on an oil-fired boiler with a single electronic control, and it speaks EnviraCOM, so the boiler can report to a compatible thermostat or service tool.

The advantage of an electronic aquastat over a bimetal control is that it can run a thermal targeting strategy: instead of holding the boiler at one high limit all winter, it lowers the target when the heating load is light and raises it when the house is actually calling hard. On an oil boiler that spends most of the season under part load, that is where the fuel saving comes from.

Universal means one control covers a range of applications that used to need different part numbers, which is worth as much to a service truck as it is to the installation.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: L7224U1002/U
Type: Electronic oil aquastat
Communication: EnviraCOM
UPC: 085267255431
Category: Aquastats & Wells

Full Specifications

Application	Oil Aquastat Controller
Product Features	Complies with 2012 Department of Energy Standards, Diagnostic updates through easy-to-read LED displays, ± 2° F accuracy and faster response times, Adjustable high- and low-limit differential, Outdoor reset functionality available with W8735S1000 and W8735Y1000, Provides multizone control, Thermowell horizontal or vertical and flush mounting, EnviraCOM™ communications enabled, Compatible with W8735S3000 Alarm Module
Approvals and Standards	UL Component Recognized, Canadian UL Component Recognized, 2012 Department of Energy Standards Compliant
Color	Gray
Compatible With	Hot Water, Hydronic Heating Systems
Mounting Type	Flush Mounted, Remote Mount, Well Mount, Horizontal Mount, Vertical Mount
Low Limit Differential Temperature	10 °F to 25 °F Adjustable
Low Limit Set point Temperature (Min)	110 °F, 43 °C
Low Limit Set point Temperature (Max)	220 °F, 104 °C
High Limit Differential Temperature	5 °F to 20 °F Adjustable
High Limit Set point Temperature (Min)	130 °F, 54 °C
High Limit Set point Temperature (Max)	240 °F, 116 °C
Electrical Ratings at Full Load	7.4 A at 120 V AC
Electrical Ratings at Locked Rotor	44.4 A Inrush
Operating Frequency	60 Hz
Operating Voltage	120 V AC
Type of Fuel	Oil
Switch Type	3 SPST: High and Low Limit, Circulator
Product Height	7.13 in, 181 mm
Product Length	4.25 in, 109 mm
Product Width	2.63 in, 67 mm
Operating Relative Humidity (Min)	0% Non-condensing
Operating Relative Humidity (Max)	95% Non-condensing
