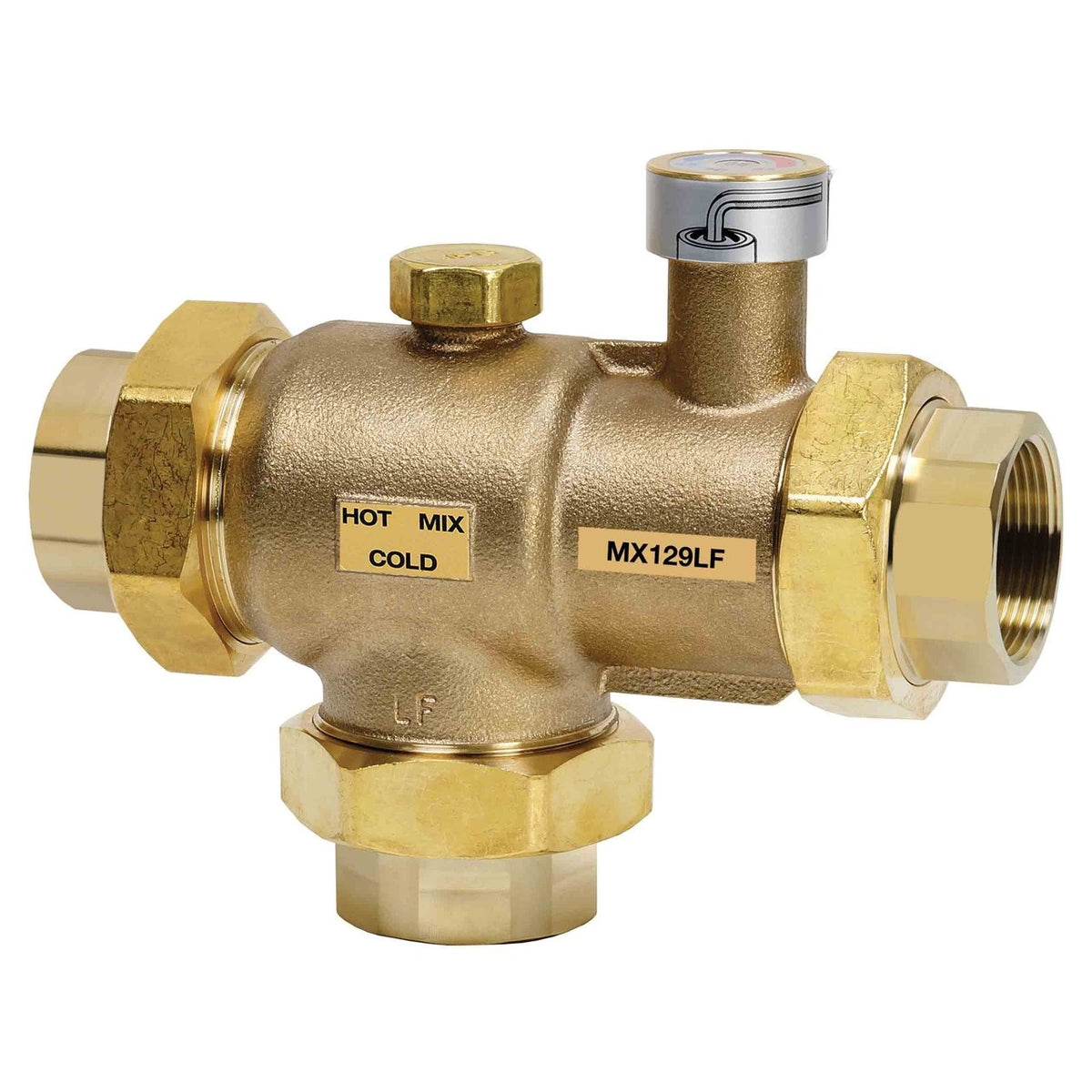

Resideo MX129LF/U MX Lead Free Mixing Valve, 1-1/2 in NPT Union, 113–149°F

Lead free MX mixing valve, 1-1/2 in, with NPT union connections and a 113–149°F range.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: MX129LF/U
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: Yes
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, NSF/ANSI 61 Certified
• Color: Metallic
• Includes: (3) 1 1/2 in Gaskets, 1/2 in BSP recirculation adapter, Check Valves on Hot and Cold Inlets
• Product Length: 8.6 in, 218 mm
• Product Weight: 8.4 lb, 3.8 kg
• Warranty: 1 Year
• Adjustment Means: Allen Key
• Differential Pressure (Max): 7 psi, 48.3 kPa
• Flex Connector Included: No
• Flow Coefficient: 13.5 Cv
• Flow Rate (Min): 3.5 gpm, 13.24 lpm
• Lead Free: Yes
• Media Temperature (Max): 221 °F, 105 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 113 °F, 45 °C
• Operating Mixing Temperature (Max): 149 °F, 65 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: Gun Metal
• Valve Body Material: Teflon-coated, Bronze
• Accessories: MX 050-RP/U
• Connection Size: 1 1/2 in
• Connection Type: NPT
• Nominal Diameter: DN40
• Number of Connections: 4
• UPC: 085267378109
• Country of Origin: CH
• Category: Mixing Valve - High Flow
