Description

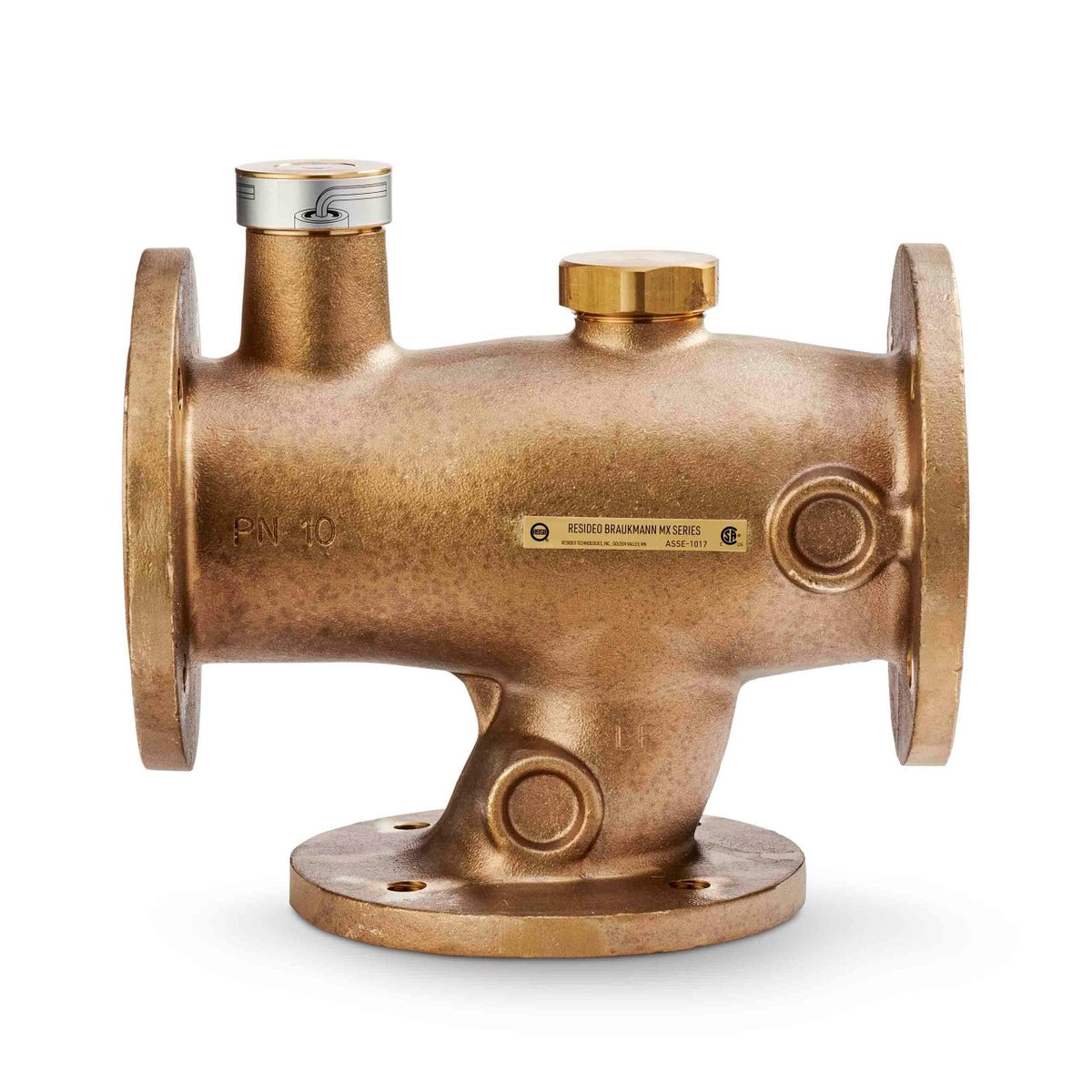

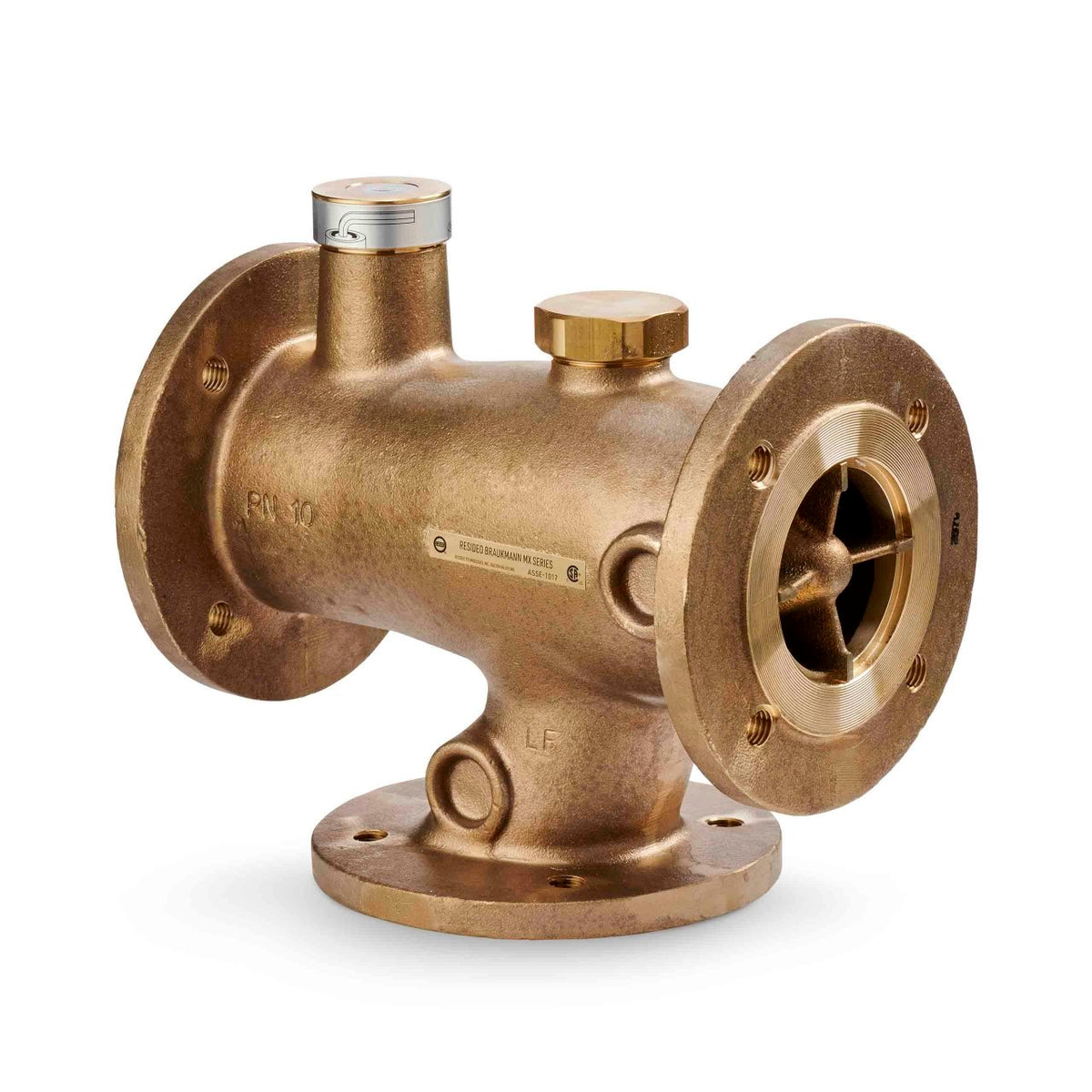

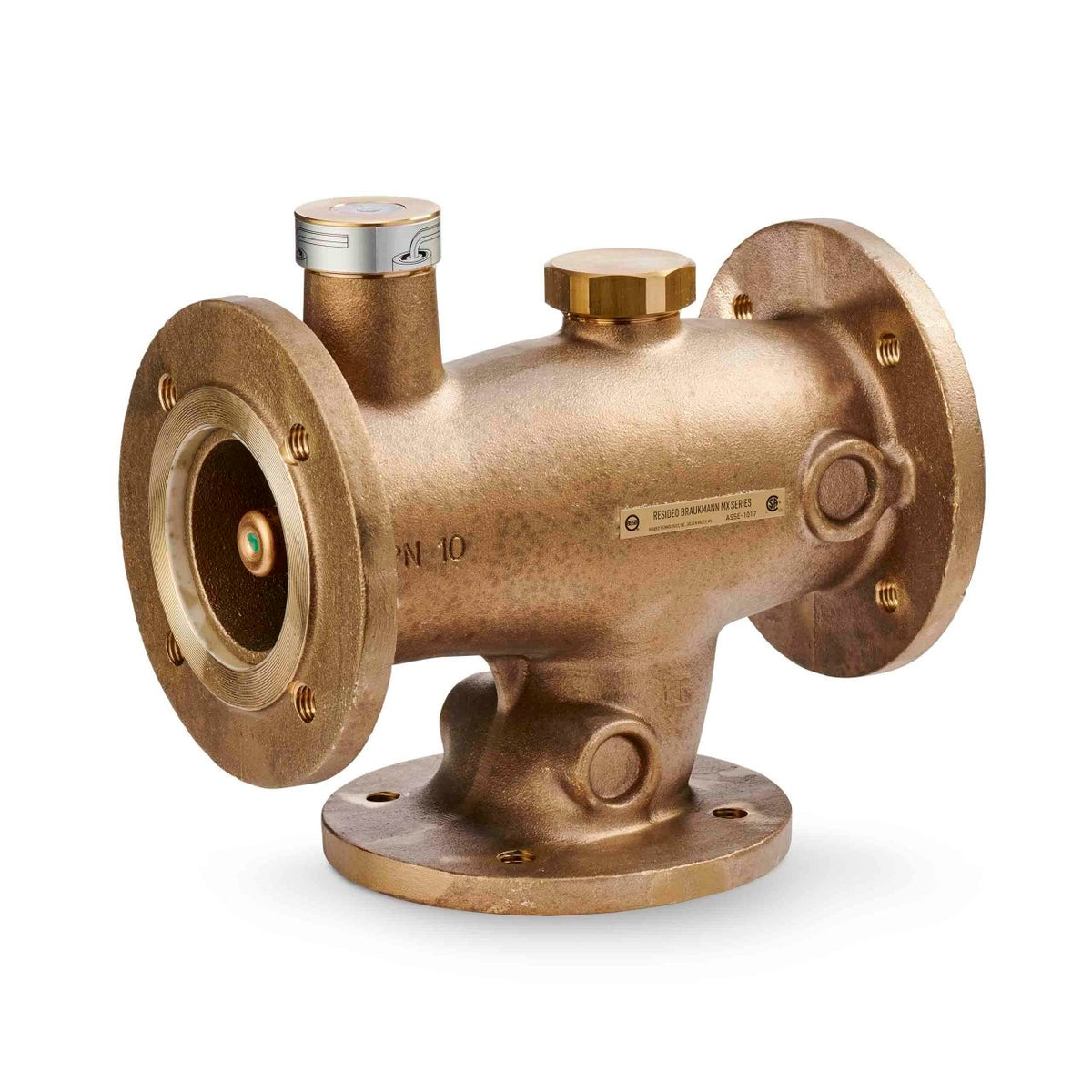

Lead free MX mixing valve, 2-1/2 in, with flanged connections and a 113–149°F range.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: MX131LF/U
- Controlled Media: Potable Water, Non Potable Water
- Re-Circulation: Yes
- Approvals and Standards: ASSE 1017 Certified, CSA Listed, NSF/ANSI 61 Certified
- Color: Metallic
- Includes: (3) 2 1/2 in Gaskets, Check Valves on Hot and Cold Inlets
- Product Length: 11.4 in, 289.6 mm
- Product Weight: 51 lb, 23.1 kg
- Warranty: 1 Year
- Adjustment Means: Allen Key
- Differential Pressure (Max): 7 psi, 48.3 kPa
- Flex Connector Included: No
- Flow Coefficient: 34 Cv
- Flow Rate (Min): 10.5 gpm, 39.75 lpm
- Lead Free: Yes
- Media Temperature (Max): 221 °F, 105 °C
- Number of Check Valves: 2
- Operating Mixing Temperature (Min): 113 °F, 45 °C
- Operating Mixing Temperature (Max): 149 °F, 65 °C
- Operating Pressure (Max): 150 psi, 1034 kPa
- Seal Material: Gun Metal
- Valve Body Material: Teflon-coated, Bronze
- Accessories: MX 050-RP/U
- Connection Size: 2 1/2 in
- Connection Type: Flanged
- Nominal Diameter: DN65
- Number of Connections: 4
- UPC: 085267542418
- Country of Origin: CH
- Category: Mixing Valve - High Flow
