Description

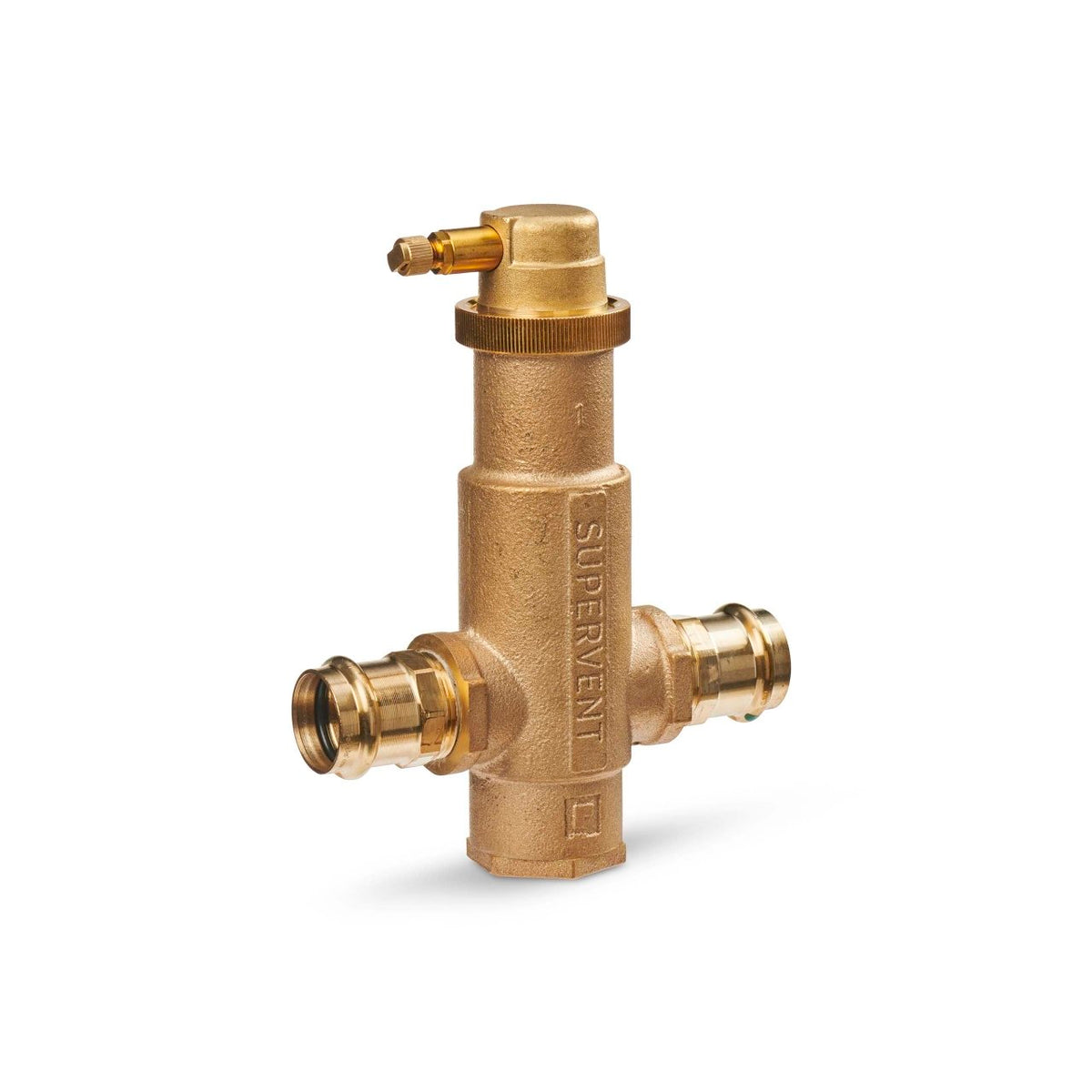

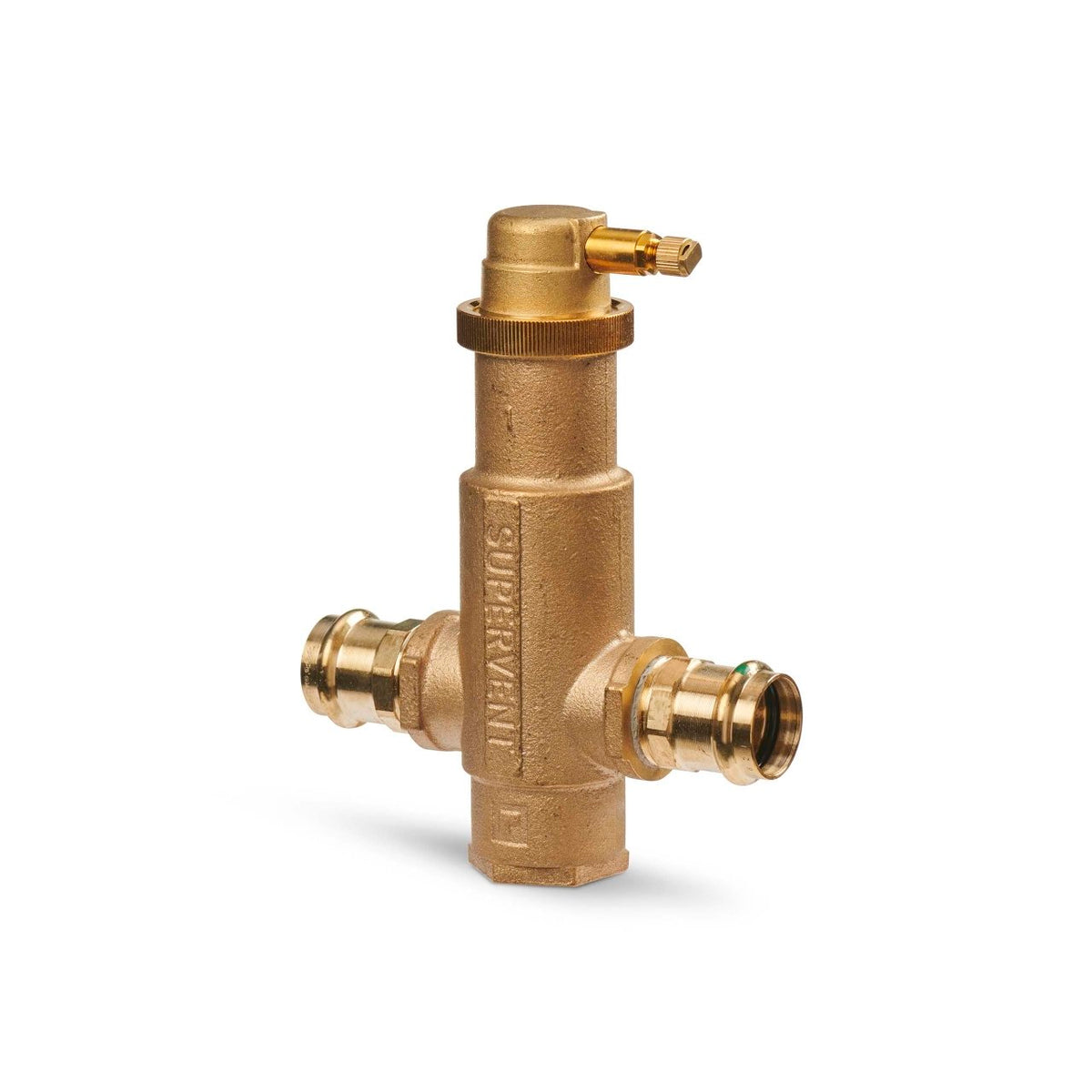

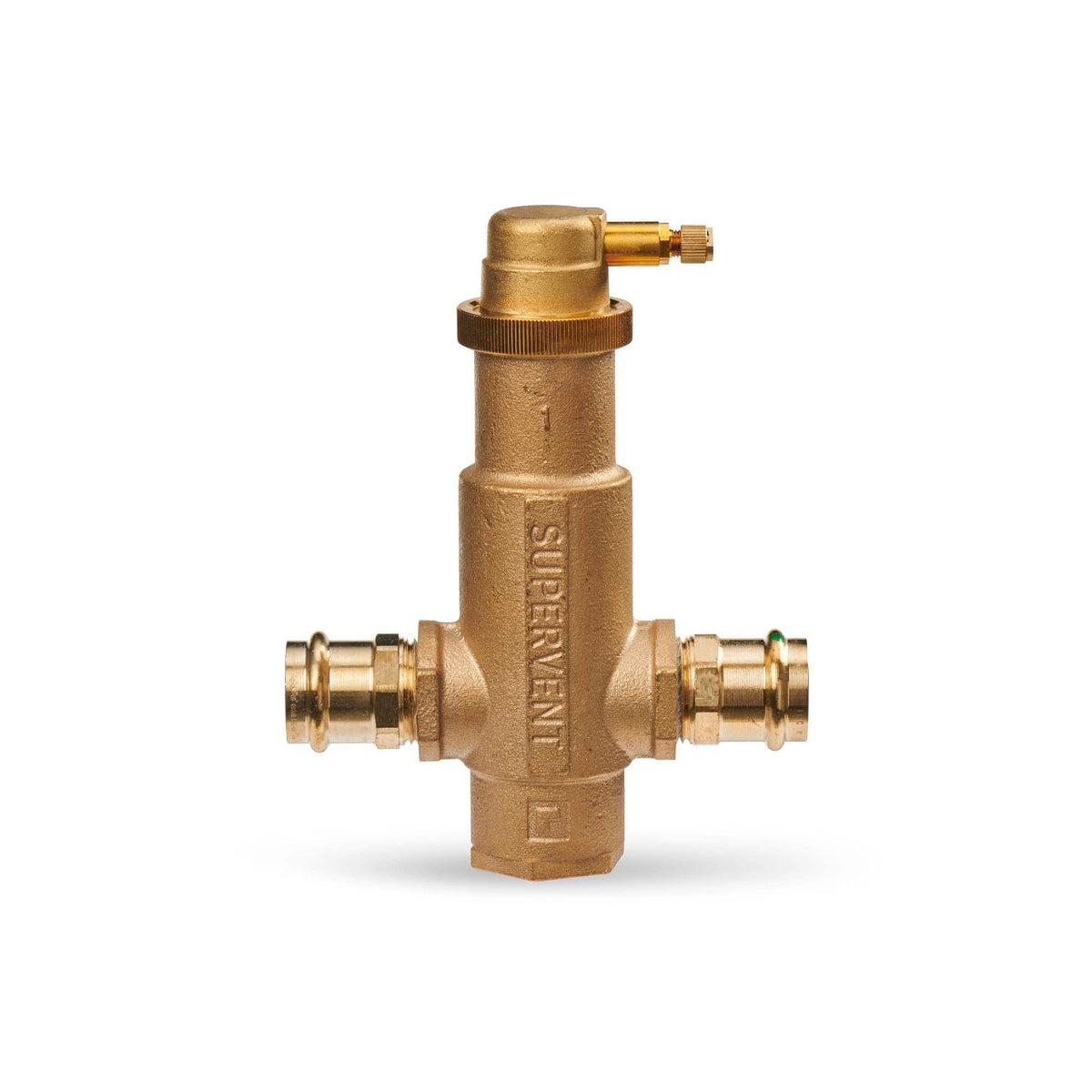

Supervent air eliminator with 3/4 in press connections.
Features
- Brass cap for system shutoff
- System can be air tested
- Adjustable Vent Top Collar Ring allows easier installation and application flexibility
- High Temperature Thermoplastic Float
- Stainless Steel Concentrator is a patented and more efficient way to eliminate air
- Brass Bottom Port for expansion tank mounting, ease of installation and maintenance
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: PV075P/U
- Application: Residential or Commercial closed loop hydronic heating or chilled water systems
- Controlled Media: Non Potable Water
- Flow Coefficient: 13 Cv
- Warranty: 1 Year
- Color: Brass
- Compatible With: Hydronic Heating and Cooling Systems
- For Use With: PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
- Bi-directional Flow: Yes
- Bottom Connection: Yes
- Connection Size: Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
- Connection Type: Pro Press
- Pipe Size: 3/4 in
- DN Size: DN20
- Operating Pressure (Max): 125 psi
- Product Diameter: 1.88 in maximum
- Product Height: 7.4 in, 188 mm
- Product Weight: 2.5 lb, 1.1 kg
- Product Width: 5.5 in, 140 mm
- Seal Material: EPDM Rubber
- Float Material: TPX® Polymethylpentene (PMP)
- Body Material: Bronze
- UPC: 194159014541
- Country of Origin: MX
- Category: Air Separators
