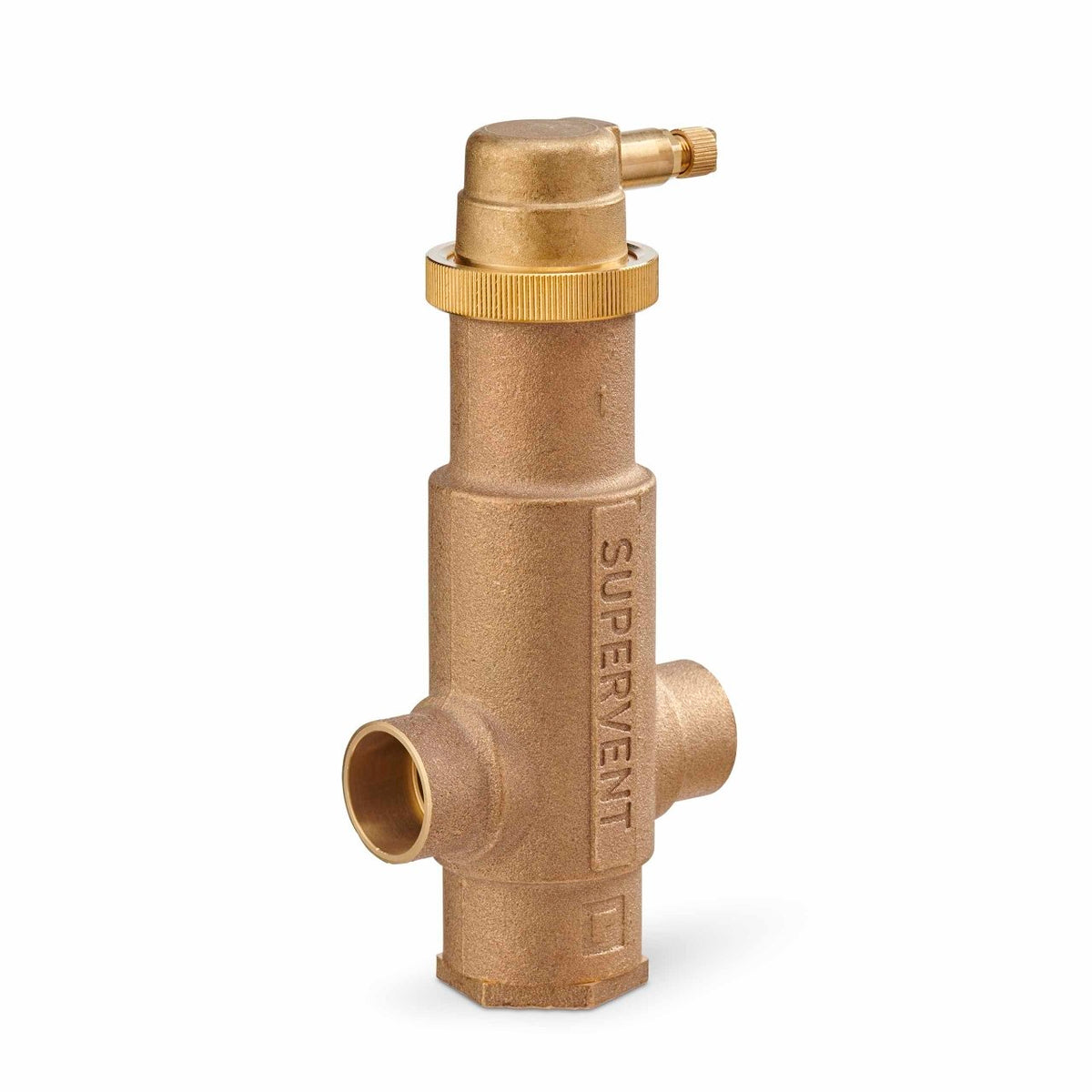

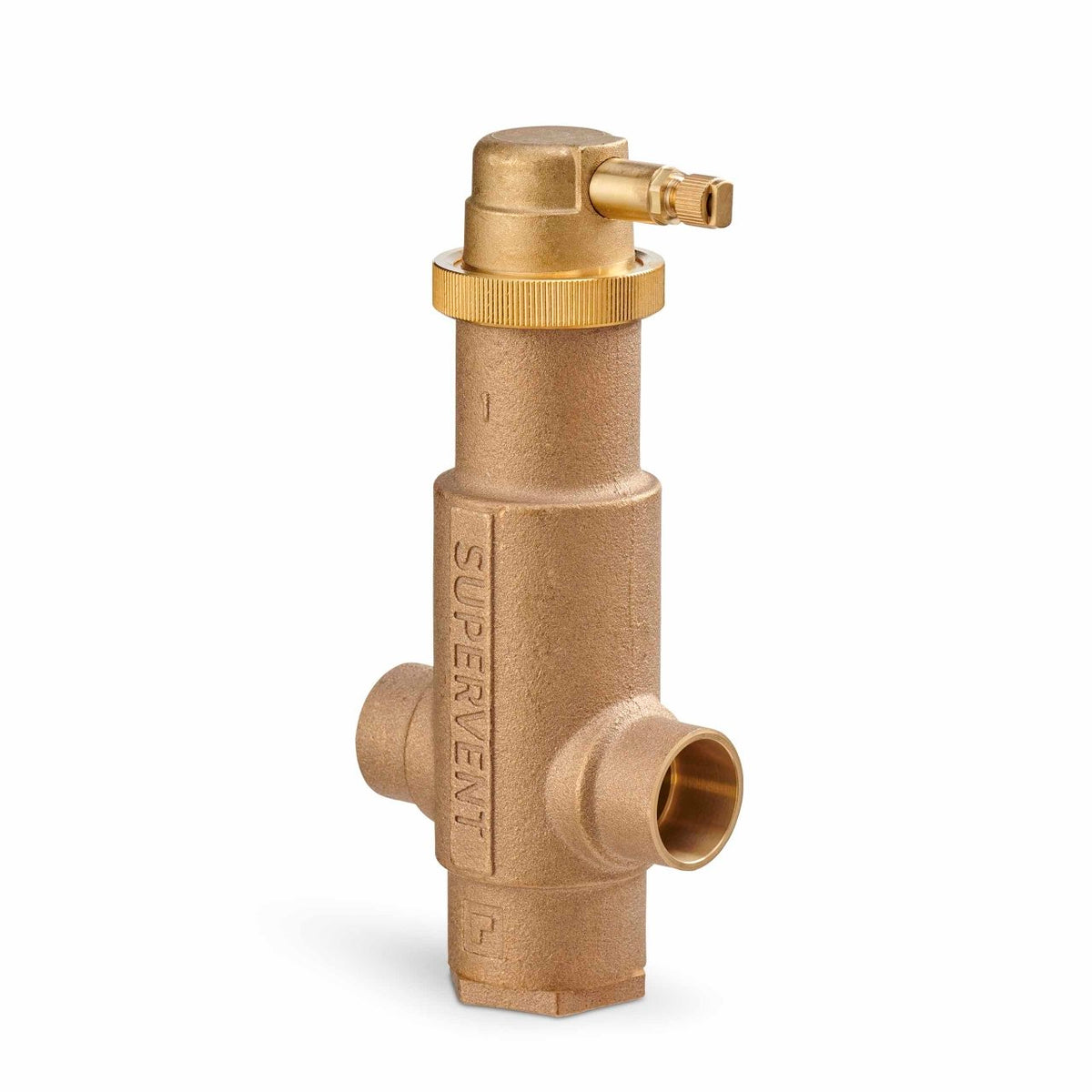

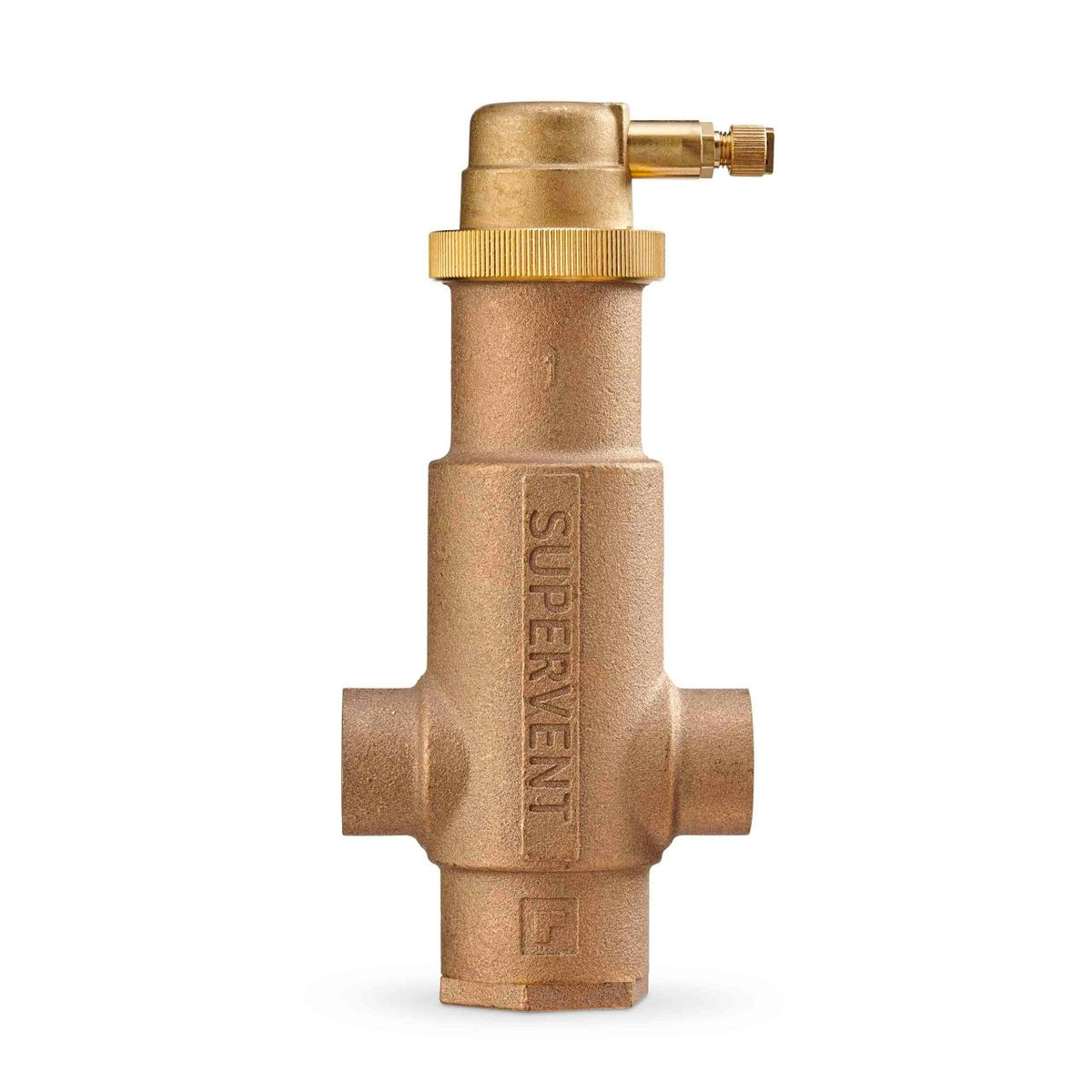

Resideo PV150S/U Supervent Air Eliminator, 1-1/2 in Sweat

Supervent air eliminator with 1-1/2 in sweat connections.

Features

• Brass cap for system shutoff
• System can be air tested
• Adjustable Vent Top Collar Ring allows easier installation and application flexibility
• High Temperature Thermoplastic Float
• Stainless Steel Concentrator is a patented and more efficient way to eliminate air
• Brass Bottom Port for expansion tank mounting, ease of installation and maintenance

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: PV150S/U
• Application: Residential or Commercial closed loop hydronic heating or chilled water systems
• Controlled Media: Non Potable Water
• Flow Coefficient: 53 Cv
• Warranty: 1 Year
• Color: Brass
• Compatible With: Hydronic Heating and Cooling Systems
• For Use With: PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
• Bi-directional Flow: Yes
• Bottom Connection: Yes
• Connection Size: Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
• Connection Type: Female Sweat
• Pipe Size: 1 1/2 in
• DN Size: DN40
• Operating Pressure (Max): 125 psi
• Product Diameter: 3.09 in maximum
• Product Height: 9.7 in, 246 mm
• Product Weight: 5.2 lb, 2.4 kg
• Product Width: 5.4 in, 137 mm
• Seal Material: EPDM Rubber
• Float Material: TPX® Polymethylpentene (PMP)
• Body Material: Bronze
• UPC: 085267788830
• Country of Origin: MX
• Category: Air Separators
