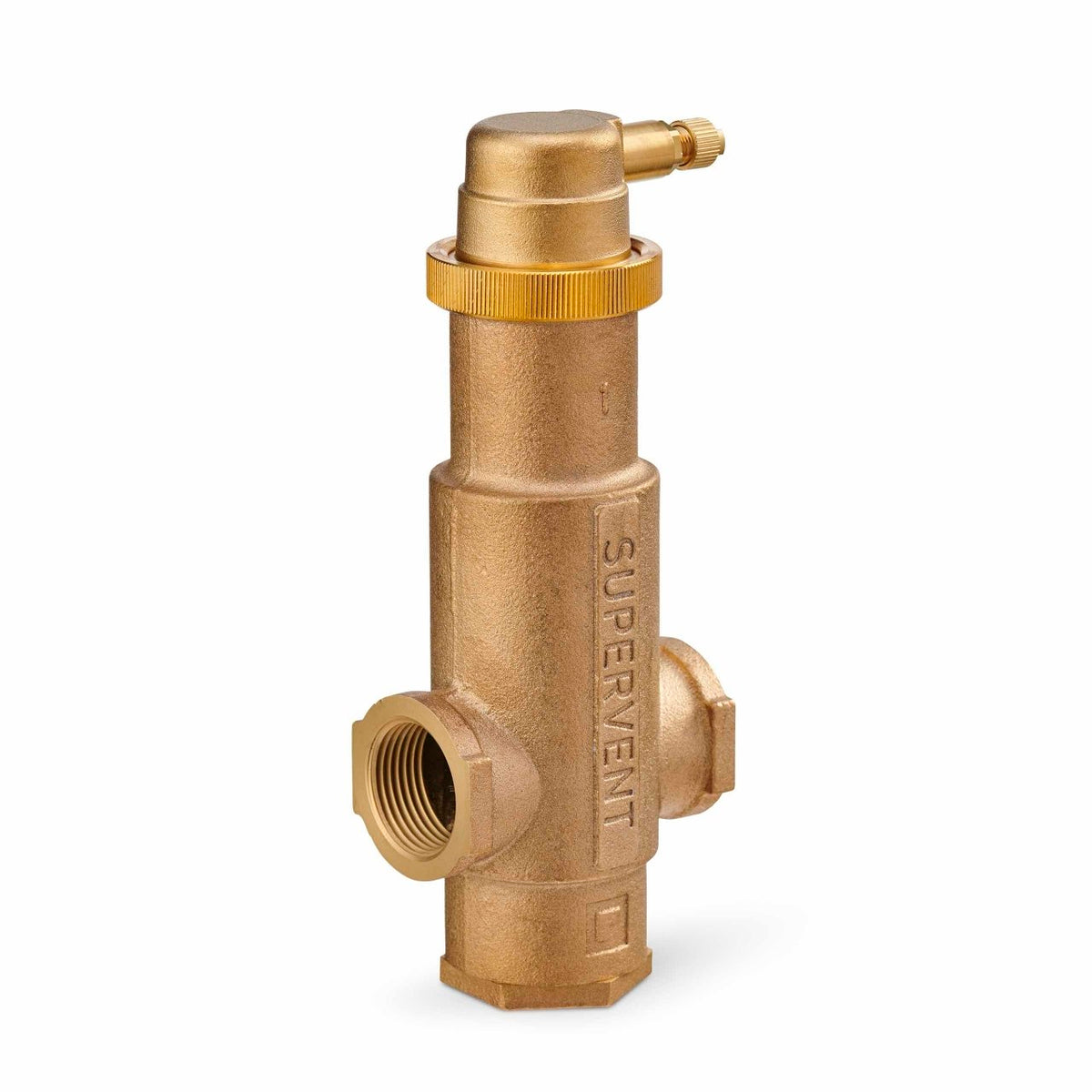

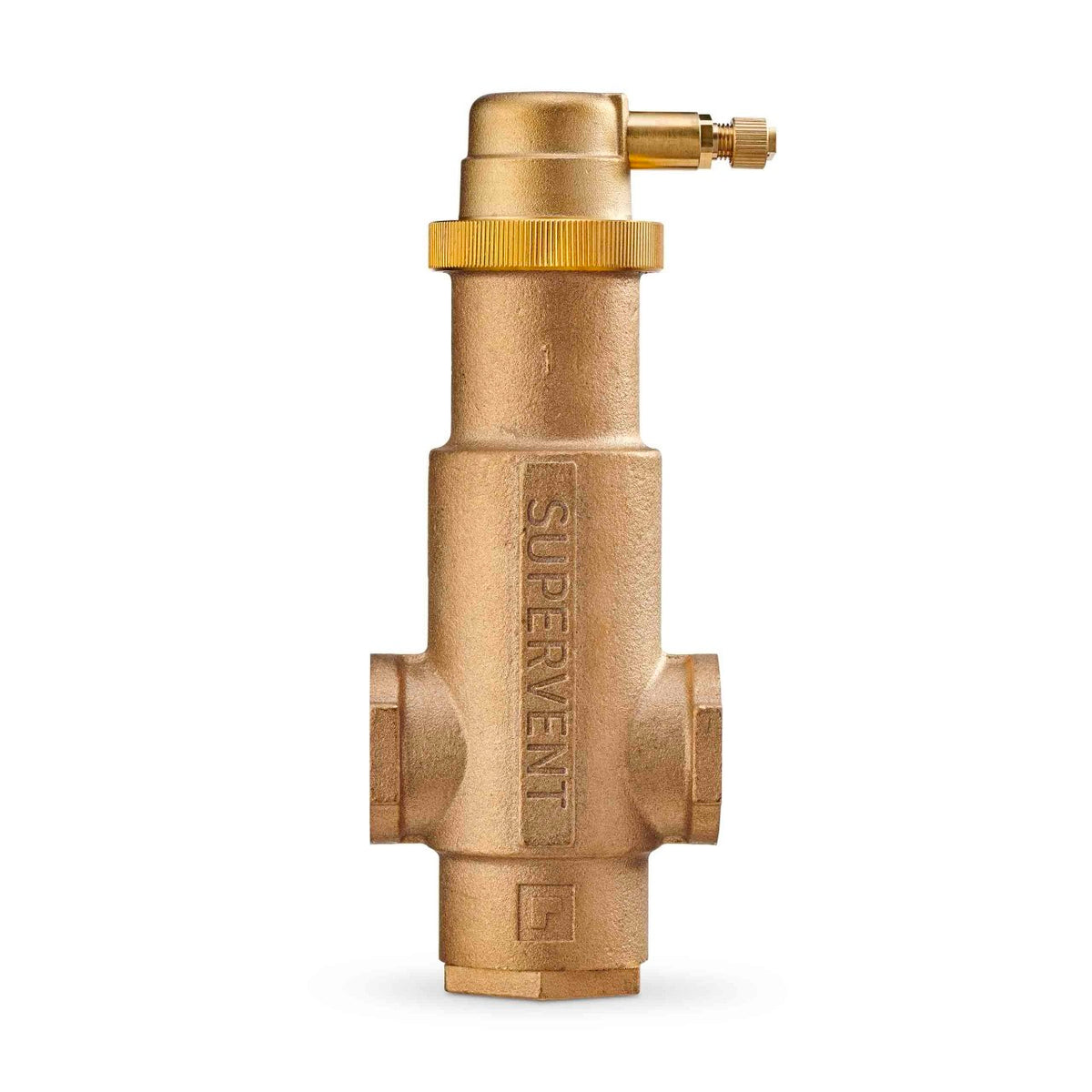

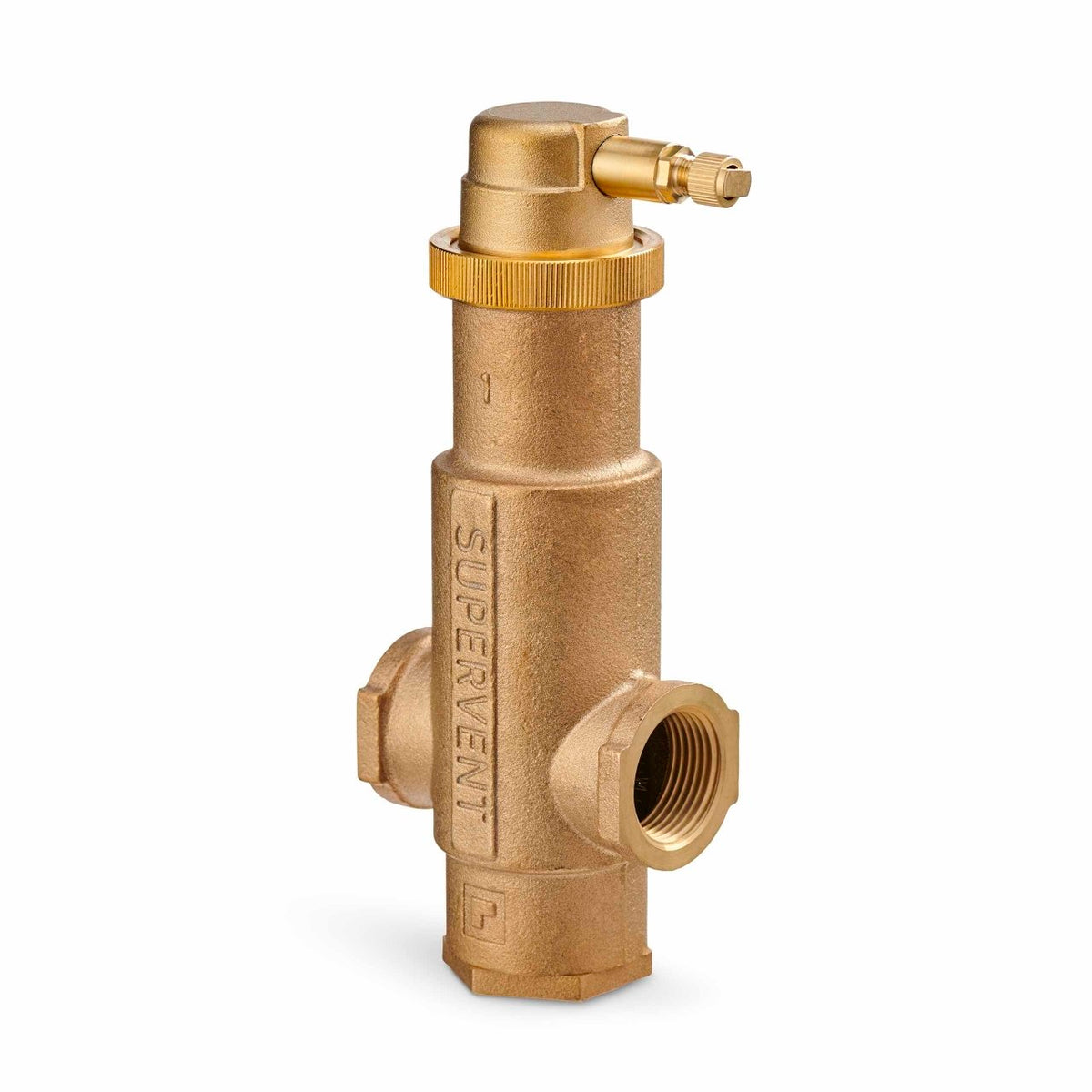

Resideo PV200/U Supervent Air Eliminator, 2 in NPT

Supervent air eliminator with 2 in NPT connections.

Features

• Brass cap for system shutoff
• System can be air tested
• Adjustable Vent Top Collar Ring allows easier installation and application flexibility
• High Temperature Thermoplastic Float
• Stainless Steel Concentrator is a patented and more efficient way to eliminate air
• Brass Bottom Port for expansion tank mounting, ease of installation and maintenance

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: PV200/U
• Application: Residential or Commercial closed loop hydronic heating or chilled water systems
• Controlled Media: Non Potable Water
• Flow Coefficient: 95 Cv
• Warranty: 1 Year
• Color: Brass
• Compatible With: Hydronic Heating and Cooling Systems
• For Use With: PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
• Bi-directional Flow: Yes
• Bottom Connection: Yes
• Connection Size: Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
• Connection Type: Female NPT
• Pipe Size: 2 in
• DN Size: DN50
• Operating Pressure (Max): 125 psi
• Product Diameter: 4 in maximum
• Product Height: 10.7 in, 272 mm
• Product Weight: 8 lb, 3.63 kg
• Product Width: 2.5 in, 63 mm
• Seal Material: EPDM Rubber
• Float Material: TPX® Polymethylpentene (PMP)
• Body Material: Bronze
• UPC: 085267827973
• Country of Origin: MX
• Category: Air Separators
