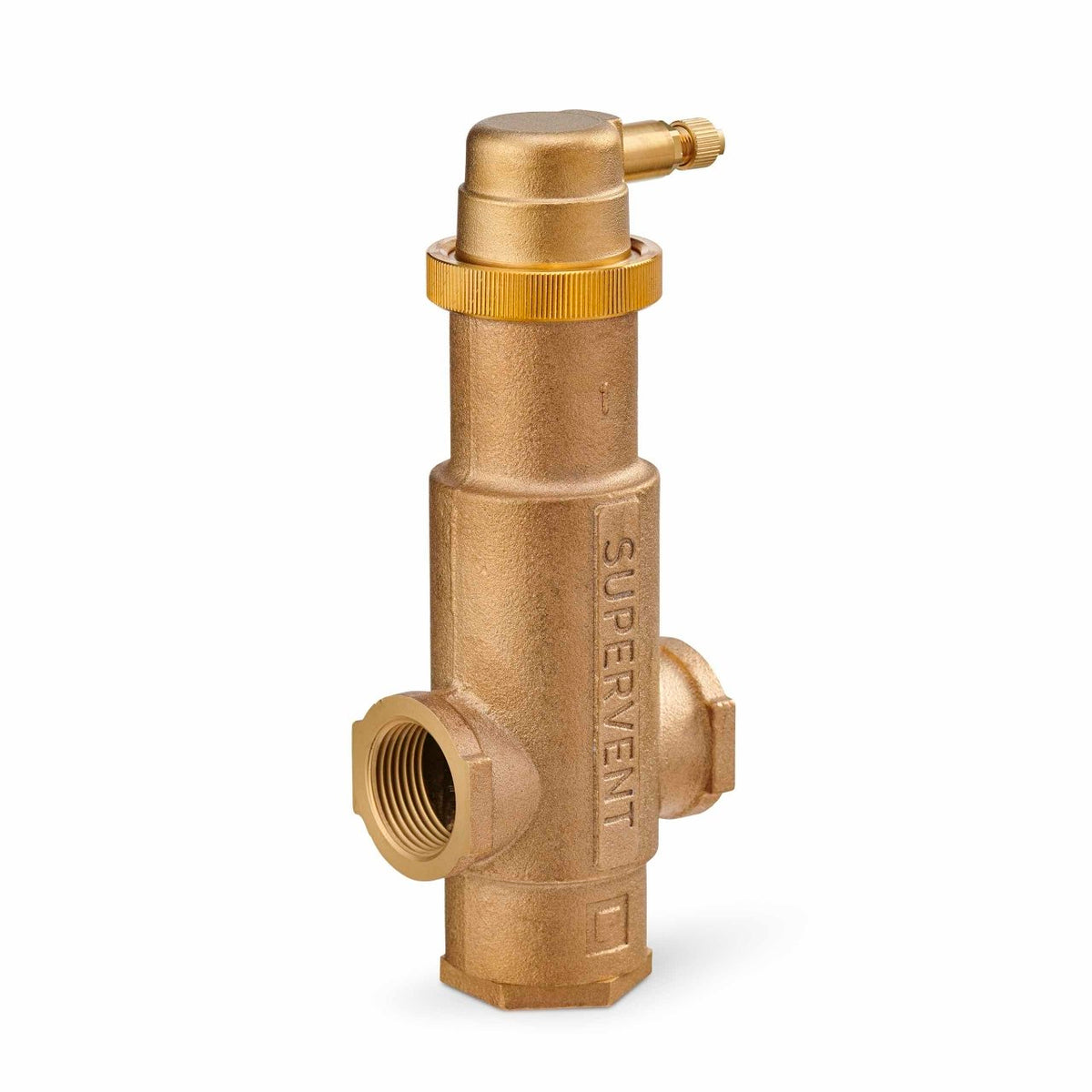

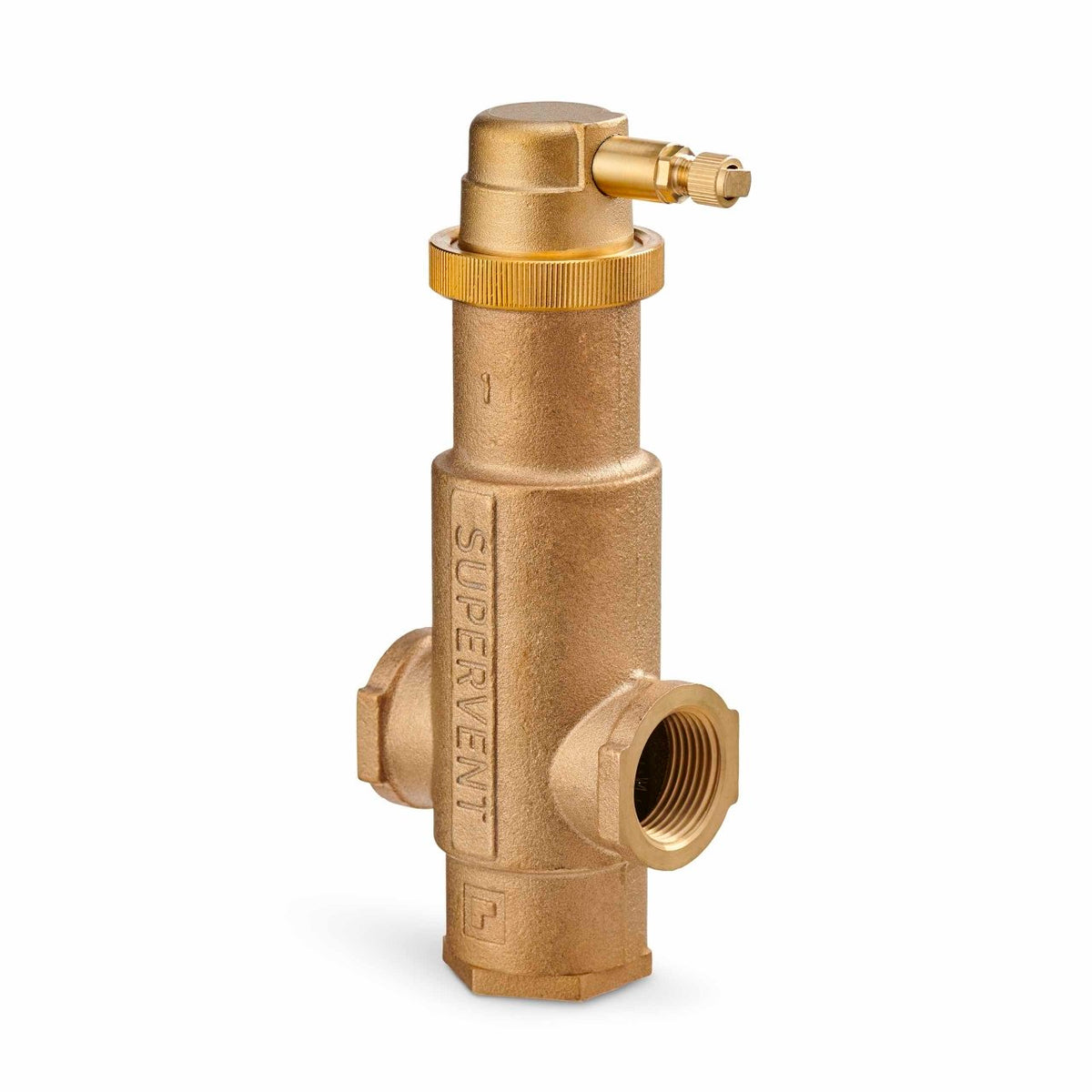

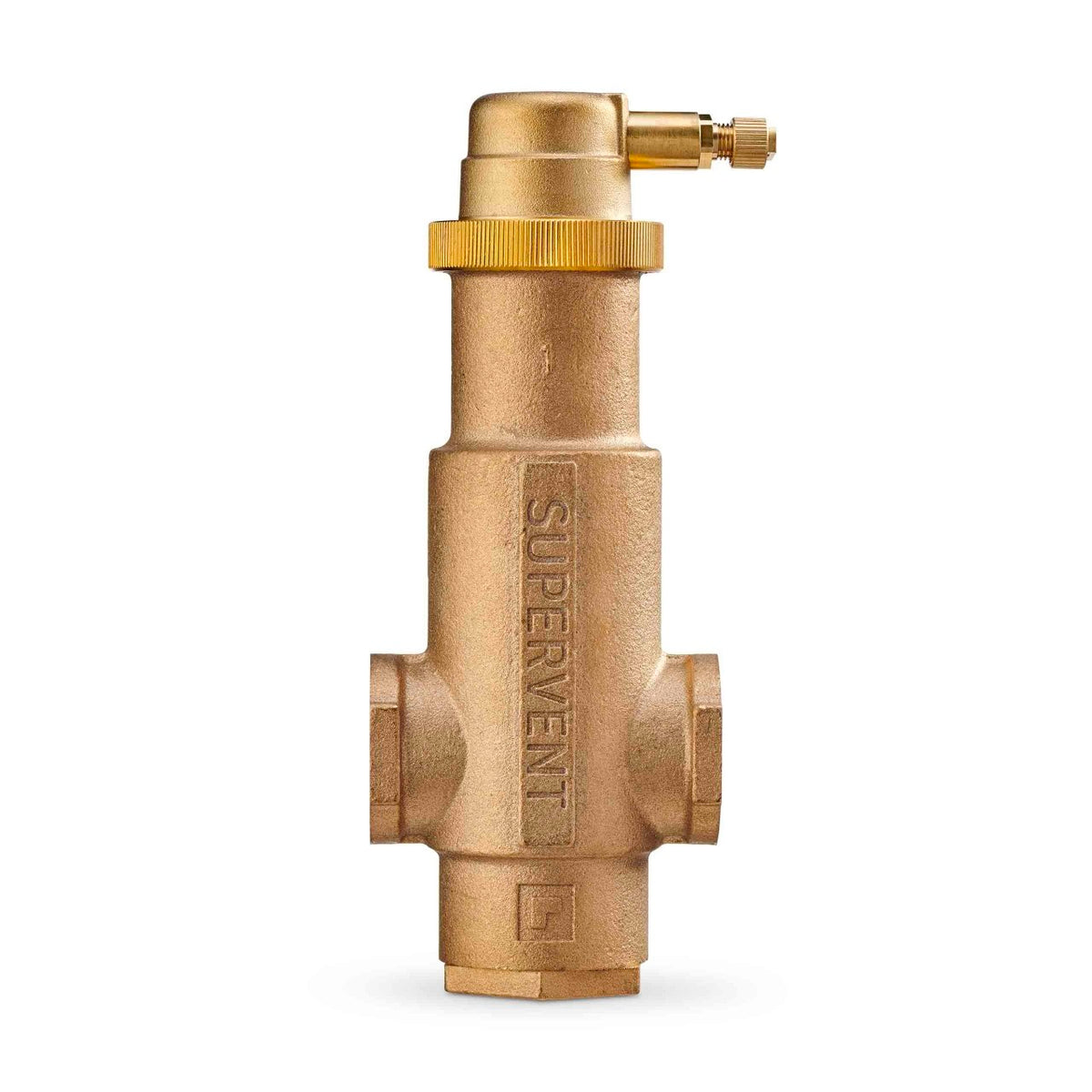

Resideo PVU100/U Supervent Universal Air Eliminator for Vertical Risers, 1 in NPT

Supervent Universal for vertical riser applications, 1 in NPT.

Features

• Brass cap for system shutoff
• System can be air tested
• Adjustable Vent Top Collar Ring allows easier installation and application flexibility
• High Temperature Thermoplastic Float
• Stainless Steel Concentrator is a patented and more efficient way to eliminate air

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: PVU100/U
• Application: Residential or Commercial closed loop hydronic heating or chilled water systems
• Controlled Media: Non Potable Water
• Flow Coefficient: 12 Cv
• Warranty: 1 Year
• Color: Brass
• Compatible With: Hydronic Heating and Cooling Systems
• For Use With: PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
• Bi-directional Flow: Yes
• Bottom Connection: Yes
• Connection Size: Bottom Inlet 1 in, Bottom Inlet 25.4 mm
• Connection Type: Female NPT
• Pipe Size: 1 in
• DN Size: DN25
• Operating Pressure (Max): 125 psi
• Product Diameter: 2.09 in maximum
• Product Height: 8.4 in, 213 mm
• Product Weight: 2.8 lb, 1.27 kg
• Product Width: 3.2 in, 81 mm
• Seal Material: EPDM Rubber
• Float Material: TPX® Polymethylpentene (PMP)
• Body Material: Bronze
• UPC: 085267828352
• Country of Origin: MX
• Category: Air Separators
