Description

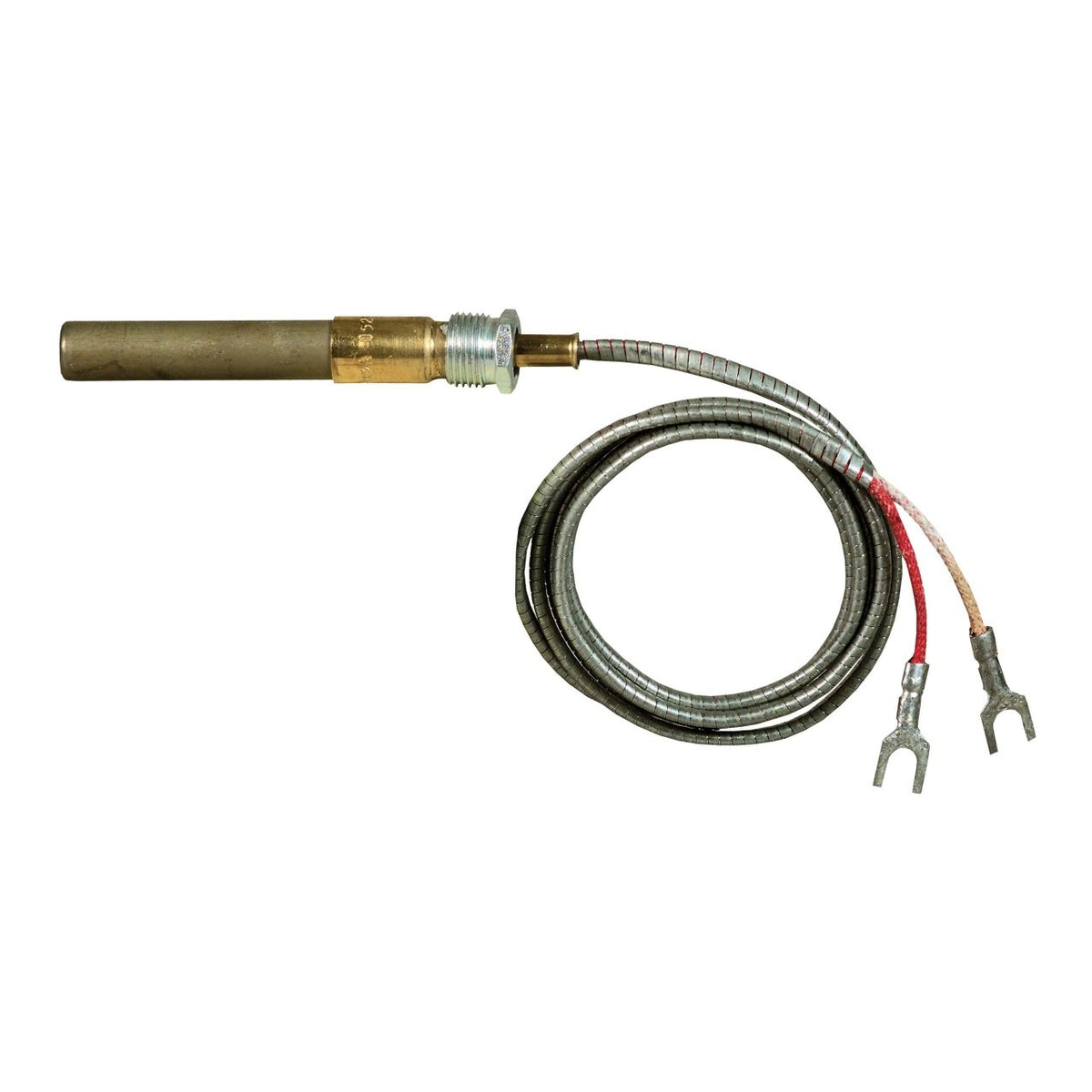

Thermopile with 47 in lead and split nut.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: Q313A1055/U
- Application: 750 mV Thermopile
- Prop 65 Warning: WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
- Compatible With: Gas-fired Systems
- For Use With: Q314 Pilot Burners, Q324 Pilot Burners, Q327 Pilot Burners, Q382 Pilot Burners (requires Q313 and Q335)
- Includes: Spade Terminals, 47 in Leads, Attaching Nut
- Lead Wire Length: 47 in, 1194 mm
- Cold Junction Temperature Rating (Max): 780 °F, 416 °C
- Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
- Connection Type: Spade Terminals
- Open Circuit Output (Max): 600 mV to 750 mV
- Open Circuit Output (Min): 540 mV
- Operating Voltage: 750 mV
- UPC: 085267000321
- Country of Origin: MX
- Category: Thermocouples & Thermopiles
