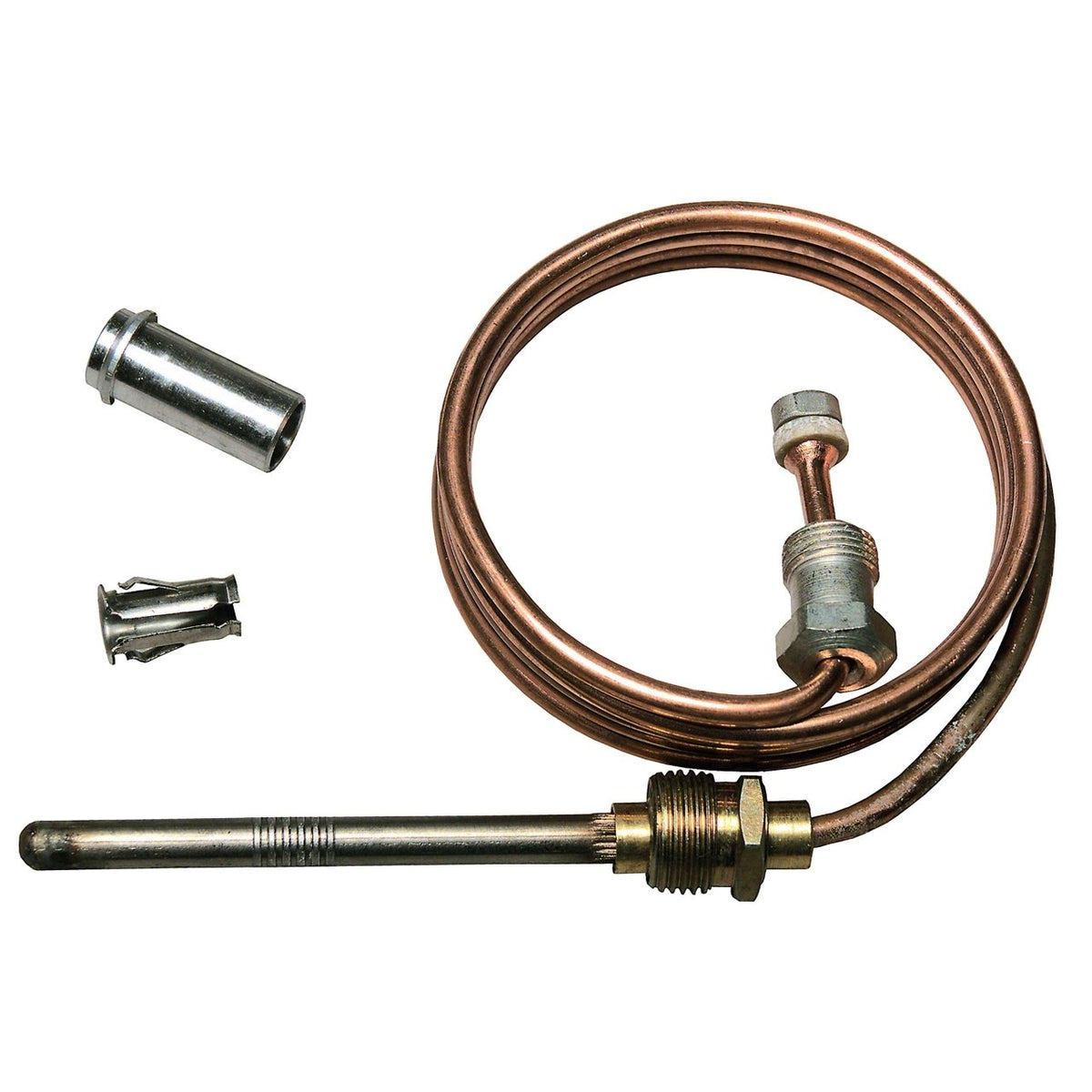

Resideo Q390A1103/U Thermocouple, 48 in Lead
Resideo

Resideo Q390A1103/U Thermocouple, 48 in Lead

Item #
HONE-Q390A1103/U
Mfr. part #
Q390A1103/U
UPC
085267069328
$12.94
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

5% off at checkout with code SAVE5

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.16 lb
  • Box size: 4.6 × 4.55 × 0.8 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #Q390A1103/U
UPC085267069328

Thermocouple with 48 in lead, includes adapter assembly and push-in clip. Sold in multiples of 10.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: Q390A1103/U
  • Application: 30 mV Thermocouple
  • Prop 65 Warning: WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
  • For Use With: Q303 Pilot Burners (with adapter), Q308 Pilot Burners (with adapter), Q314 Pilot Burners (with adapter), Q324 Pilot Burners (with adapter), Q327 Pilot Burners (with adapter)
  • Includes: 11/32-32 Male Connector Nut, 48 in Leads, Adapter, Push-in Clip
  • Lead Wire Length: 48 in, 1219 mm
  • Cold Junction Temperature Rating (Max): 780 °F, 416 °C
  • Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
  • Connection Type: 11/32 32 Male Connector Nut
  • Open Circuit Output (Max): 26 mV to 32 mV
  • Open Circuit Output (Min): 18 mV
  • Operating Voltage: 30 mV
  • UPC: 085267069328
  • Country of Origin: MX
  • Category: Thermocouples & Thermopiles

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
