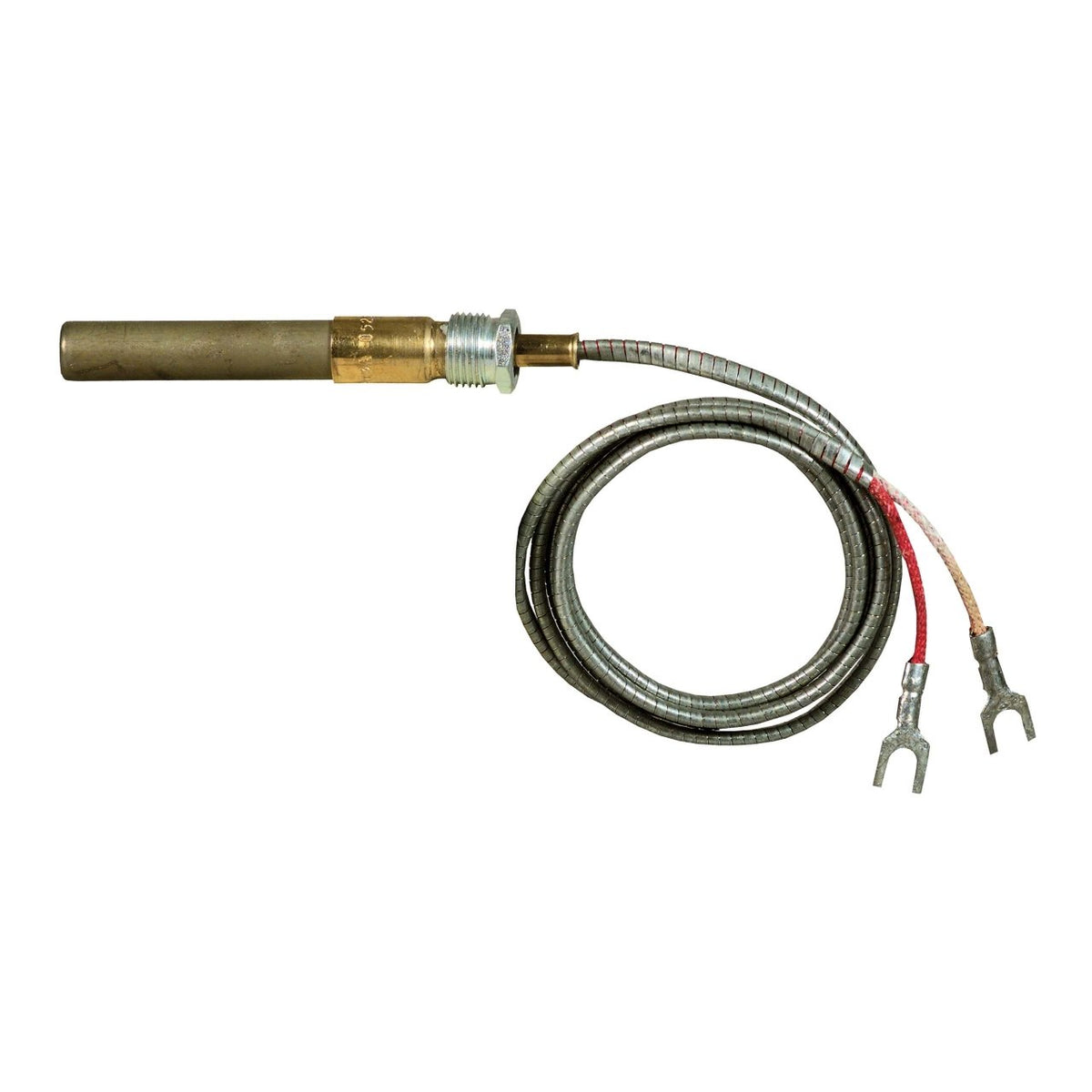

Resideo Q313B1005/U Thermopile, 35 in, with Terminal Block
Resideo

Resideo Q313B1005/U Thermopile, 35 in, with Terminal Block

Item #
HONE-Q313B1005/U
Mfr. part #
Q313B1005/U
UPC
085267066358
$104.29
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

5% off at checkout with code SAVE5

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.19 lb
  • Box size: 4 × 3.8 × 1.95 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #Q313B1005/U
UPC085267066358

35 in thermopile with terminal block.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: Q313B1005/U
  • Application: 750 mV Thermopile
  • Prop 65 Warning: WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
  • For Use With: Q314 Pilot Burners, Q324 Pilot Burners, Q327 Pilot Burners, Q382 Pilot Burners (requires Q313 and Q335)
  • Includes: Terminal Block
  • Lead Wire Length: 35 in, 889 mm
  • Cold Junction Temperature Rating (Max): 780 °F, 416 °C
  • Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
  • Connection Type: Spade Terminals
  • Open Circuit Output (Max): 600 mV to 750 mV
  • Open Circuit Output (Min): 540 mV
  • Operating Voltage: 750 mV
  • UPC: 085267066358
  • Country of Origin: MX
  • Category: Thermocouples & Thermopiles
