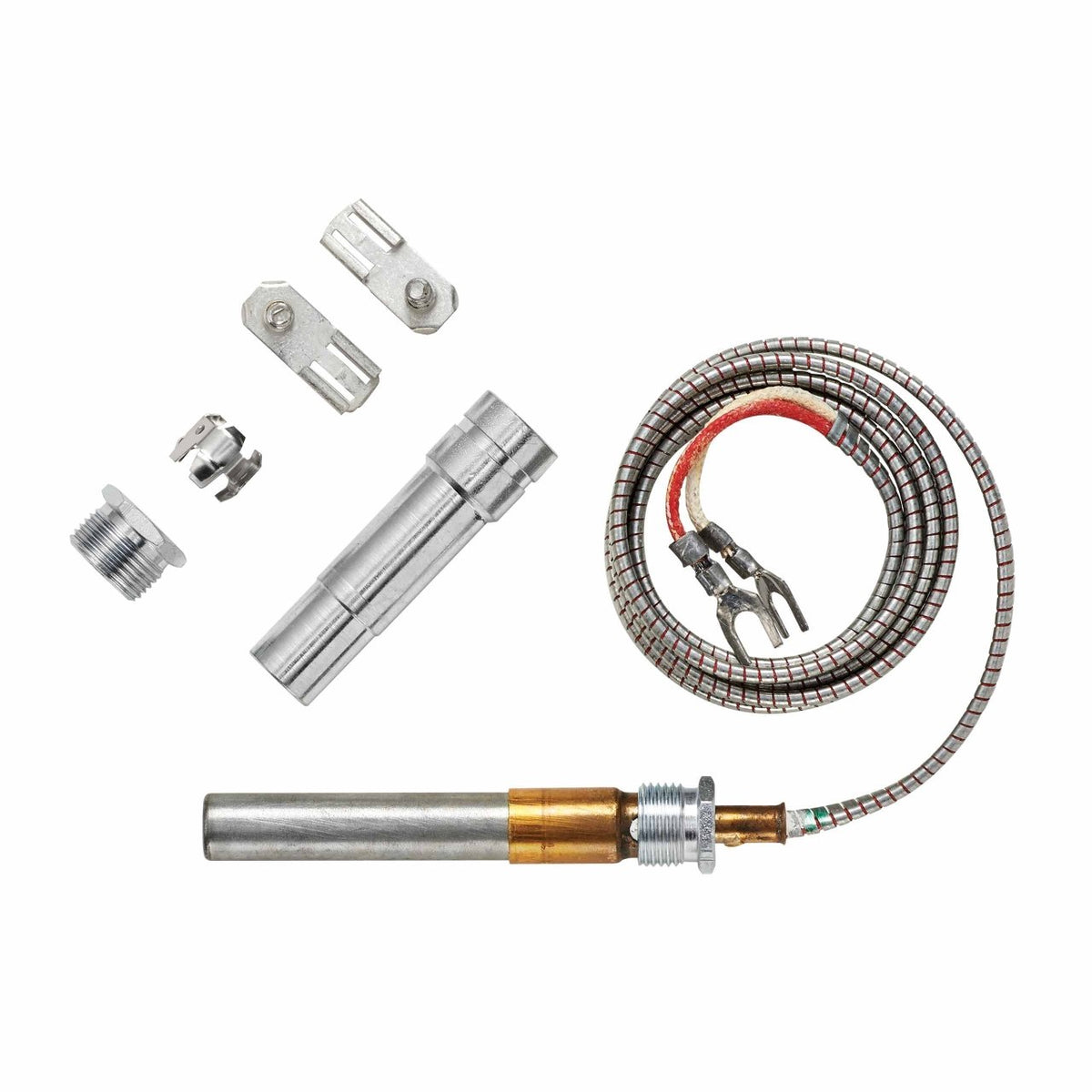

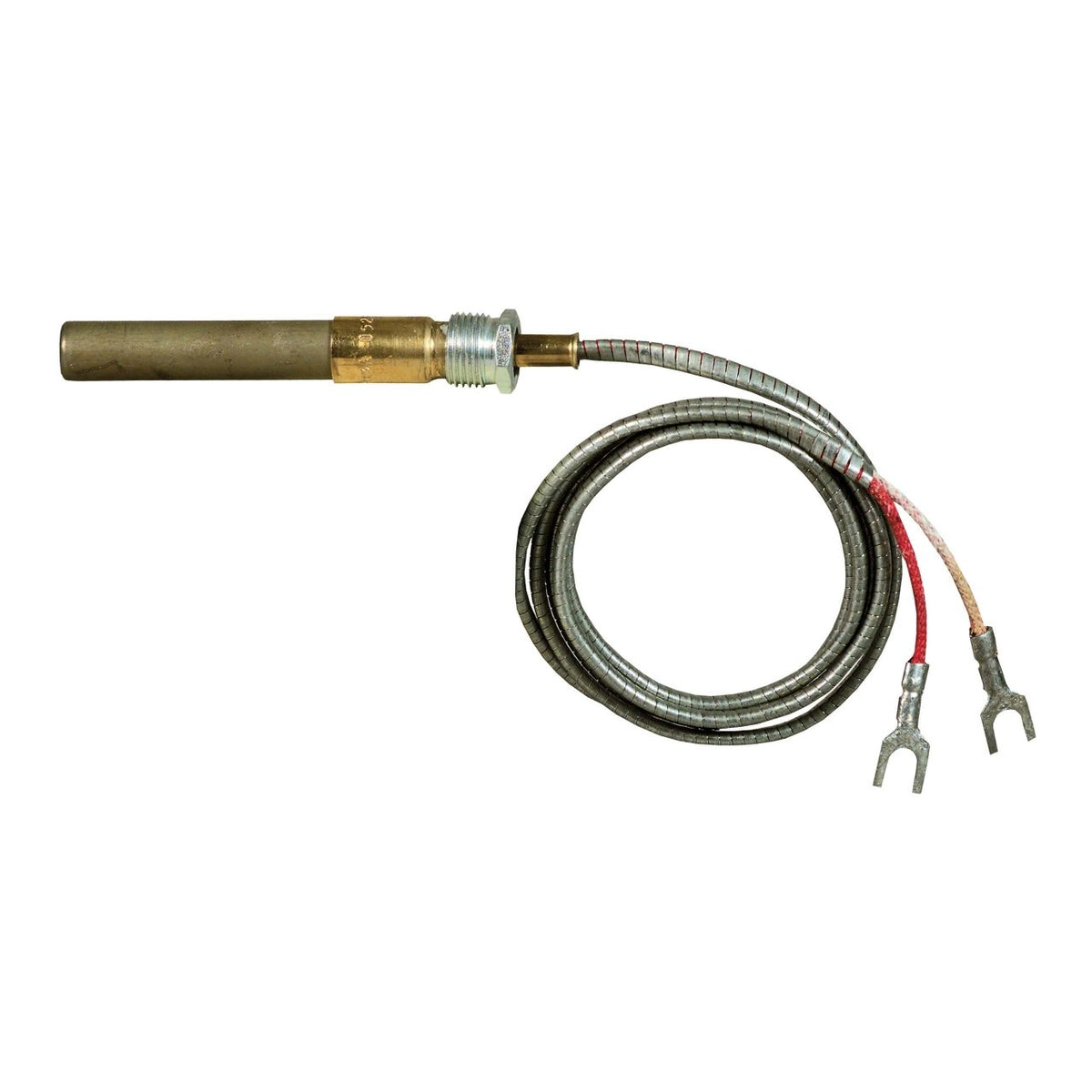

Resideo Q313A1402/U Tradeline Thermopile, 35 in Lead, with Adapter

Tradeline thermopile with 35 in lead, includes adapter.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: Q313A1402/U
• Application: 750 mV Thermopile
• Prop 65 Warning: WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
• Compatible With: Gas-fired Systems
• For Use With: Q314 Pilot Burners, Q324 Pilot Burners, Q327 Pilot Burners, Q382 Pilot Burners (requires Q313 and Q335)
• Includes: Push-in Clip, Split Nut, Adapter Assembly
• Lead Wire Length: 35 in, 889 mm
• Cold Junction Temperature Rating (Max): 780 °F, 416 °C
• Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
• Connection Type: Spade Terminals
• Open Circuit Output (Max): 600 mV to 750 mV
• Open Circuit Output (Min): 540 mV
• Operating Voltage: 750 mV
• UPC: 085267787062
• Country of Origin: MX
• Category: Thermocouples & Thermopiles
