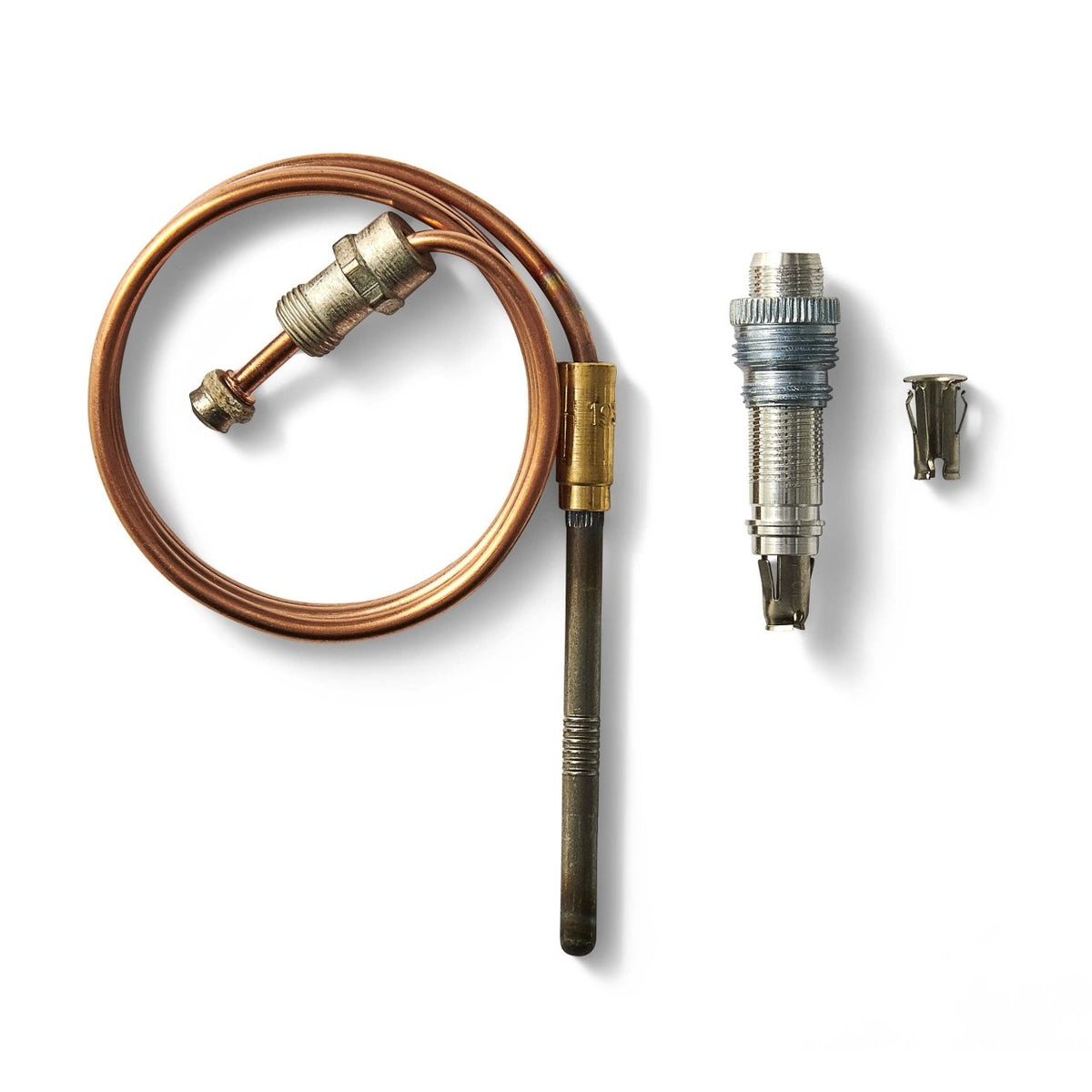

Resideo Q340A1074/U Universal Thermocouple, 24 in Lead

Universal thermocouple with 24 in lead, includes adapter assembly and push-in clip. Sold in multiples of 10.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: Q340A1074/U
• Application: 30 mV Thermocouple for Standing Pilot Applications
• Prop 65 Warning: WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
• Compatible With: Gas-fired Systems
• Universal: Yes
• For Use With: Q303 Pilot Burners (with adapter), Q308 Pilot Burners (with adapter), Q314 Pilot Burners (with adapter), Q324 Pilot Burners (with adapter), Q327 Pilot Burners (with adapter)
• Includes: Push-in Clip, Split Nut, Adapter Assembly
• Lead Wire Length: 24 in, 609 mm
• Cold Junction Temperature Rating (Max): 780 °F, 416 °C
• Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
• Connection Type: 11/32 32 Male Connector Nut
• Open Circuit Output (Max): 26 to 32 mV
• Open Circuit Output (Min): 18 mV
• Operating Voltage: 30 mV
• UPC: 085267067416
• Country of Origin: MX
• Category: Thermocouples & Thermopiles
