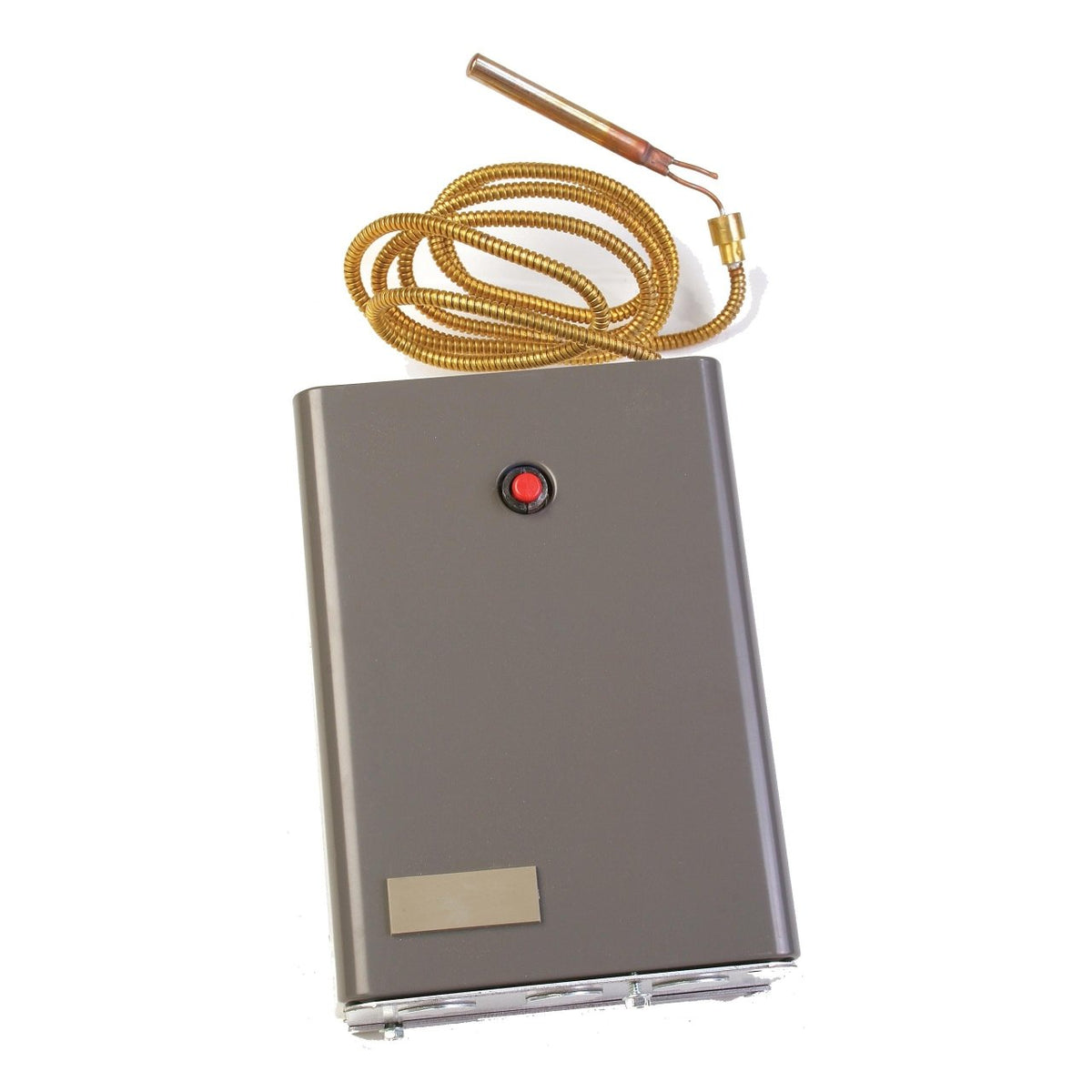

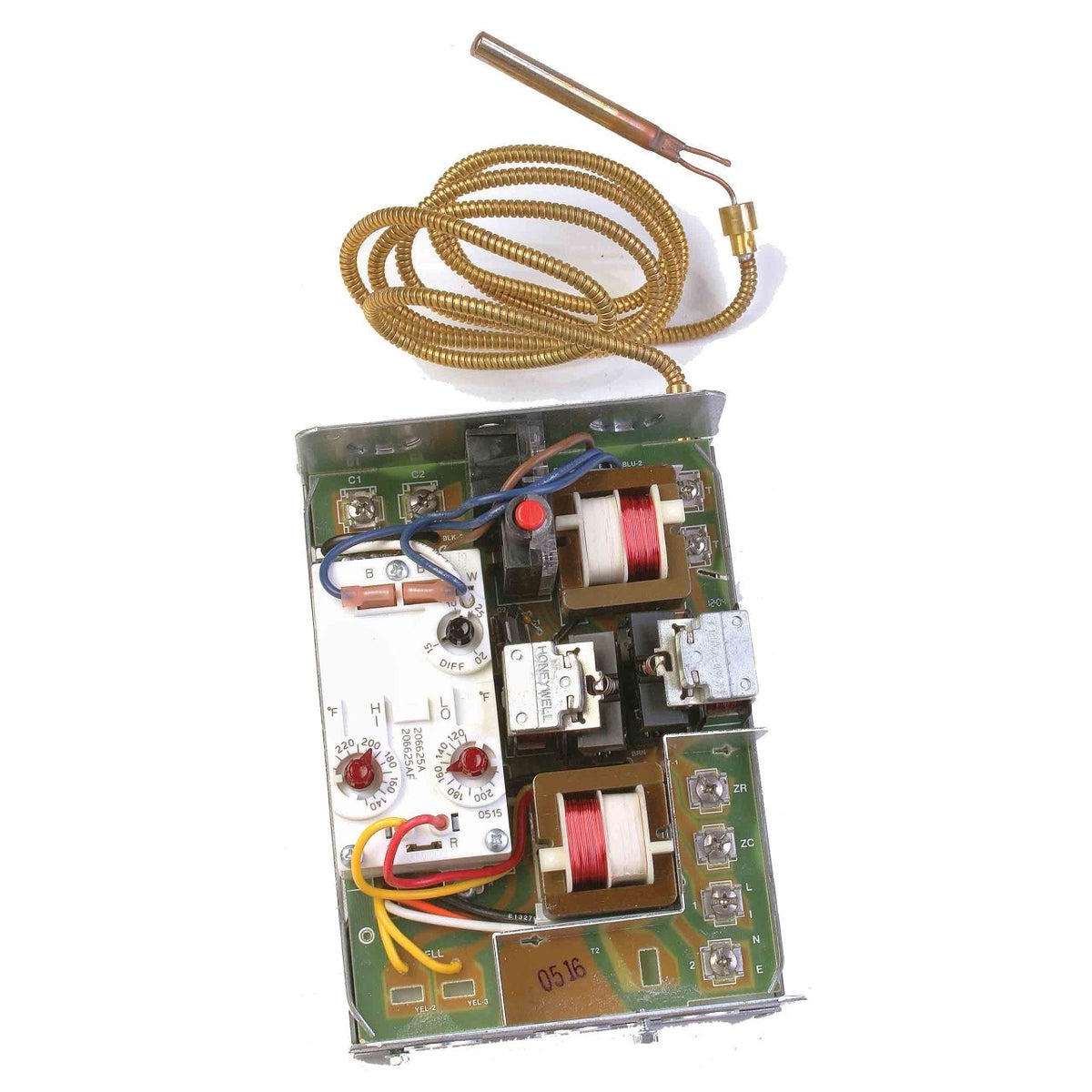

Resideo R8182D1079/U AquaStat Protectorelay, High Limit 130–240°F, Low Limit 110–220°F, Vertical Mount

AquaStat protector relay with 45-second safety switch timing, 130–240°F high limit, 110–220°F low limit, and vertical case mounting.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: R8182D1079/U
• Application: High or Low Limit Control
• Color: Black
• Includes: Auxiliary ZC and ZR terminals may be used to provide circulator zone control through an R845A Switching Relay, Heat Conductive Compound, Horizontal case
• Sensor Type: Remote Bulb
• Low Limit Set point Temperature (Min): 110 °F, 43 °C
• Low Limit Set point Temperature (Max): 220 °F, 104 °C
• High Limit Set point Temperature (Min): 130 °F, 54 °C
• High Limit Set point Temperature (Max): 240 °F, 116 °C
• Product Height: 7.13 in
• Product Length: 5.25 in
• Product Width: 3.44 in
• Operating Relative Humidity (Min): 0% Non-condensing
• Operating Relative Humidity (Max): 95% Non-condensing
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267078269
• Country of Origin: US
• Category: Oil Burner Controls
