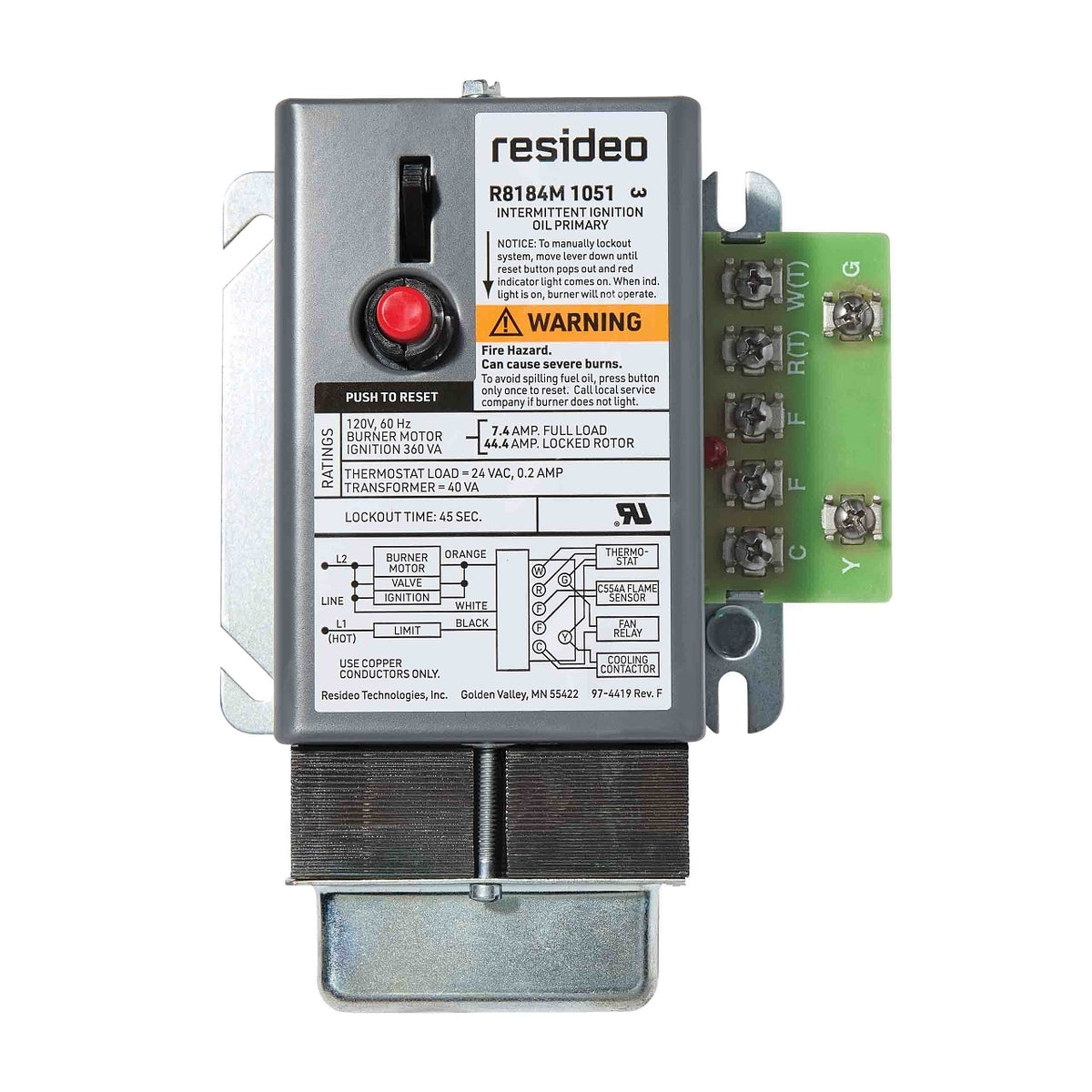

Resideo R8184M1051/U Protectorelay Oil Primary Control, 120 VAC, 45 Sec Safety Switch Timing
Resideo

Resideo R8184M1051/U Protectorelay Oil Primary Control, 120 VAC, 45 Sec Safety Switch Timing

Item #
HONE-R8184M1051/U
Mfr. part #
R8184M1051/U
UPC
085267078733
$264.33
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.9 lb
  • Box size: 7.3 × 5.15 × 5.1 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #R8184M1051/U
UPC085267078733

Protectorelay oil primary control rated 120 VAC, 60 Hz, with 45-second safety switch timing.

Features

  • Intermittent ignition is on while the burner is on
  • Enclosed safety switch must be manually reset after safety shutdown, 40 VA transformer and Y and G terminals for connection of cooling equipment
  • Mounts on standard 4 x 4 in. junction box

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: R8184M1051/U
  • Application: Operates oil burner or oil valve in response to a call for heat from a low voltage thermostat.
  • Approvals and Standards: UL Component Recognized; File no. MP268, guide no. MCCZ2
  • Compatible With: Low voltage control circuit
  • Ignition Type: Intermittent
  • Valve On Delay Timing: 45 sec.
  • Color: Gray
  • Product Height: 4.37 in
  • Product Length: 4.75 in
  • Product Width: 4.13 in
  • UPC: 085267078733
  • Country of Origin: US
  • Category: Oil Burner Controls

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$264.33
Backorder
