Name: Resideo C554A1463/U Cadmium-Sulfide Flame Detector with 60 in Leads, Type R Bracket and Higher Sensitivity Cad Cell
Brand: Resideo
SKU: HONE-C554A1463/U
Price: 38.34 USD
Availability: InStock

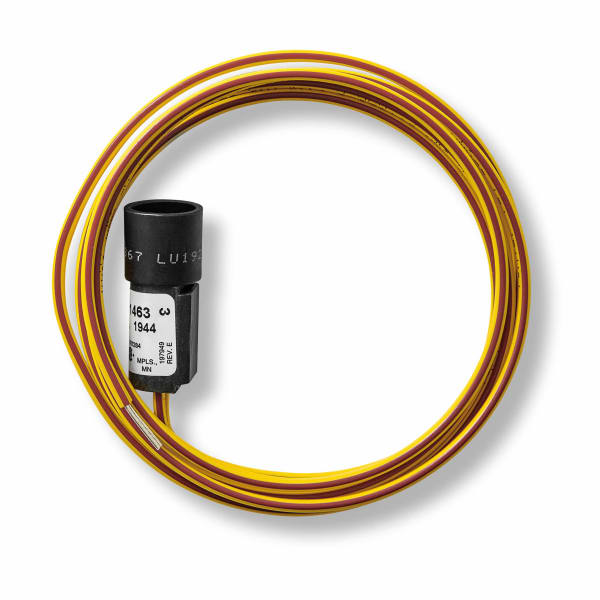

Cadmium-Sulfide Flame Detector with 60 in Leads, Type R Bracket and Higher Sensitivity Cad Cell

Resideo Cadmium-Sulfide Flame Detector with 60 in Leads, Type R Bracket and Higher Sensitivity Cad Cell

Roll over image to zoom in Click on image to zoom

Electrical Connections	lead wires: NEC Class 1; Includes 2 flag 1/4 in. quick connects.
Ambient Temperature	140 F maximum
Mounting	Type R bracket
Application	Oil fired burners
Used With	R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284
Includes	A, B, E, J and P mounting brackets and fuel line adaptor
Dimensions	1 7/8 in. high x 1 in. long x 1/2 in. wide
UL	UL Listed: File no. MP268, Vol. 39, Sec. 1, Guide MCCZ
CSA	CSA Component Listed: File no. LR95329-1
Replacement Parts	120320 Replacement Cad Cell. 7.5 mA minimum sensitivity at 2 ft. candles; 130367 Replacement Cad Cell. 12.0 mA minimum sensitivity at 2 ft. candles.
Power Consumption	12 mA
Lead Length (in.)	60 in.
Sensitivity	Minimum sensitivity at 2 ft candles

Product Data for C554A Cadmium Sulfide Flame Detector (English) PDF ↗

The C554A1463 is a cadmium sulfide flame detector from Resideo (Honeywell Home), type R bracket.

The cad cell is the eye of an oil burner. Its resistance falls when it sees flame, and the primary control reads that to know whether the fire lit. No flame signal inside the safety timing and the primary shuts the oil off.

Mounting matters as much as the cell. It has to see the flame and only the flame — aimed at the fire, not at the ignition arc and not at daylight through the inspection port, either of which makes the control believe in a fire that is not there.

Ships with A, B, E, J and P mounting brackets and fuel line adaptor, so it fits across the bracket styles rather than committing you to one burner.

Works with the R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284 primaries.

Goes with: R8184G4009, R7284B1024.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: C554A1463/U
Type: Cadmium sulfide flame detector
Mounting: Type R bracket
Includes: A, B, E, J and P mounting brackets and fuel line adaptor
Used with: R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284
Maximum ambient: 140 F
Shipping weight: 0.2 lb
Category: Oil Burner Controls

Full Specifications

Application	Oil Fired Burners
Approvals and Standards	UL Listed: File No. MP268, Guide No. MCCZ, CSA Component Listed: File No. LR1620, Guide No. 300
Compatible With	Oil Burner Systems
For Use With	R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284
Includes	A, B, E, J and P Mounting Brackets, Fuel Line Adapter
Mounting Bracket Type	Type R bracket
Color	Yellow
