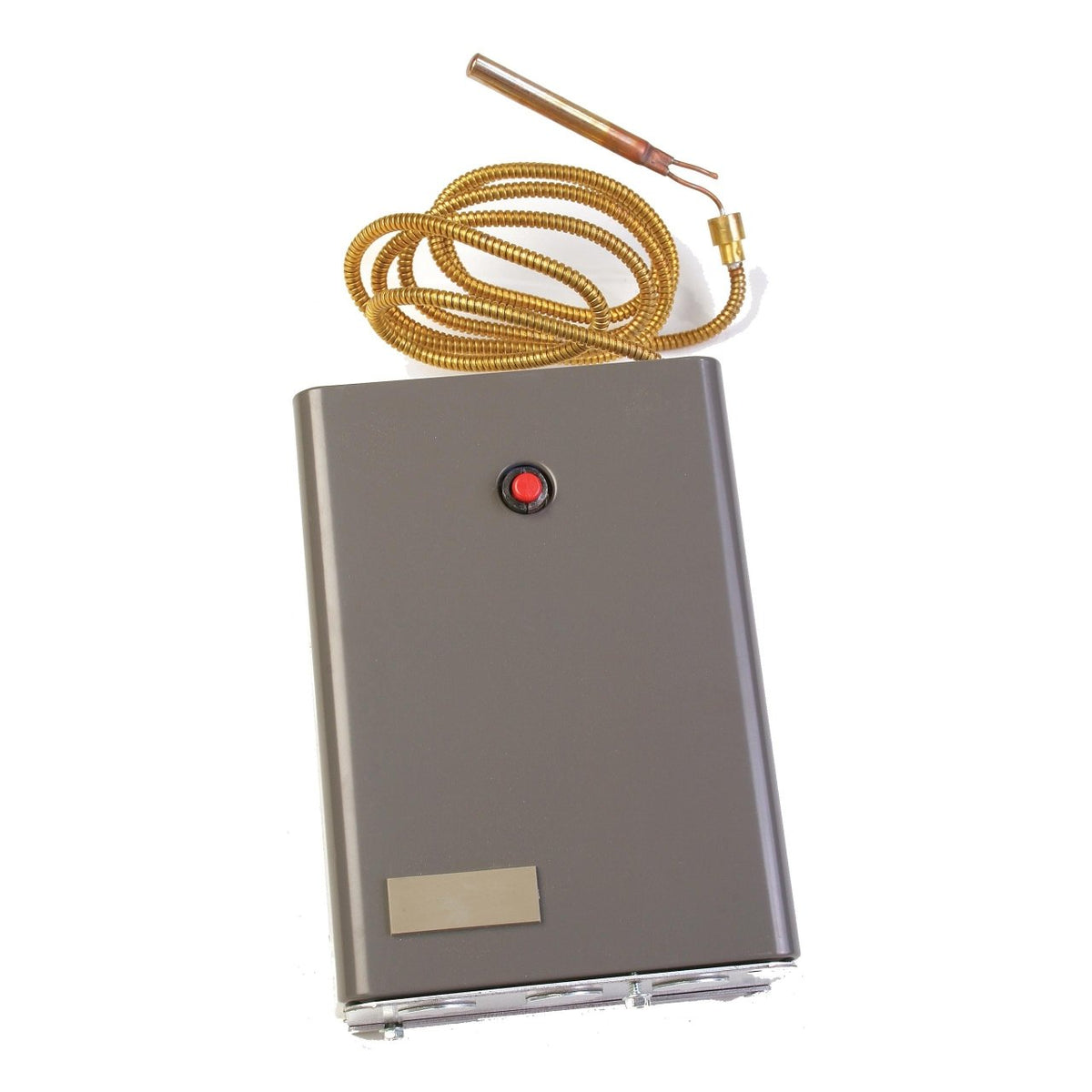

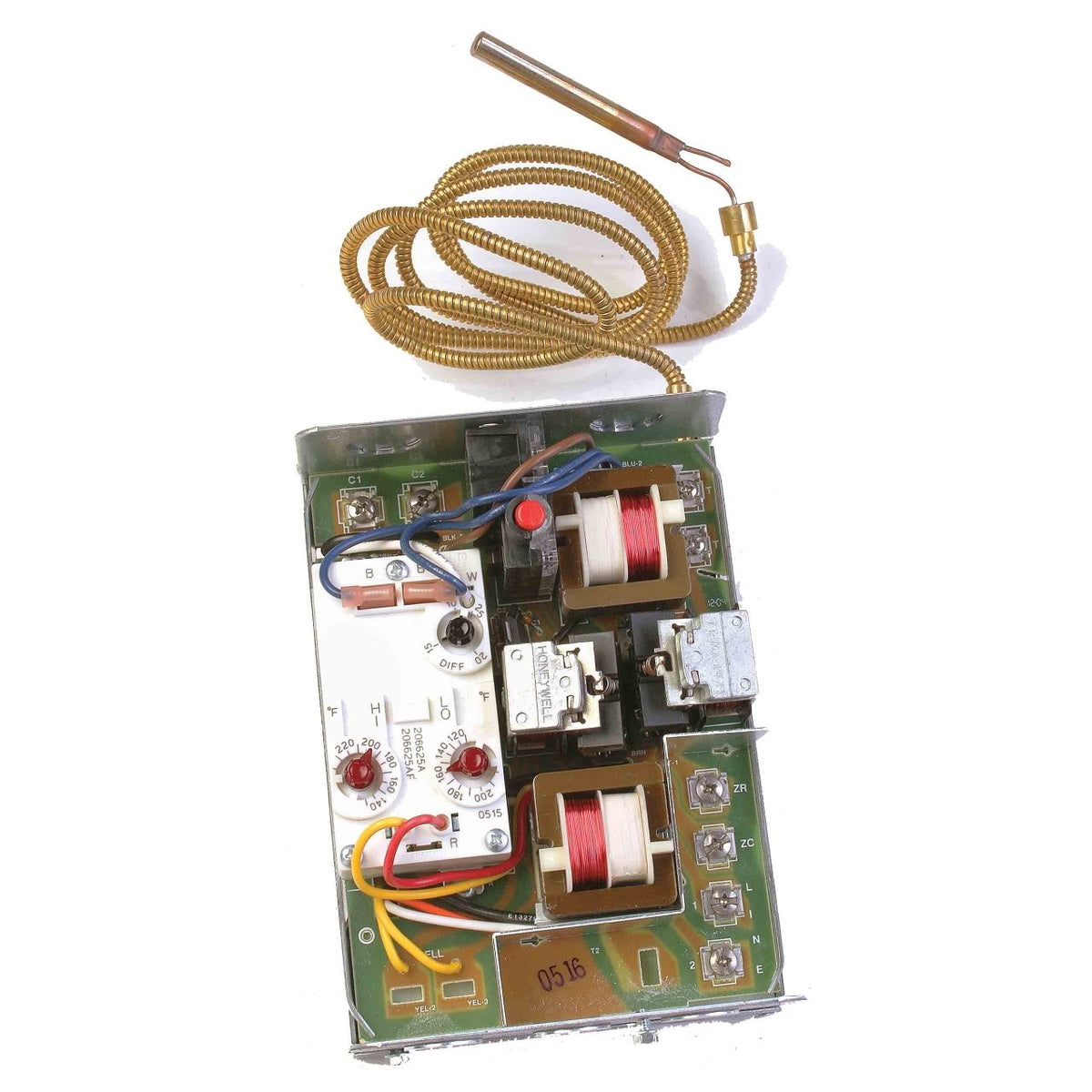

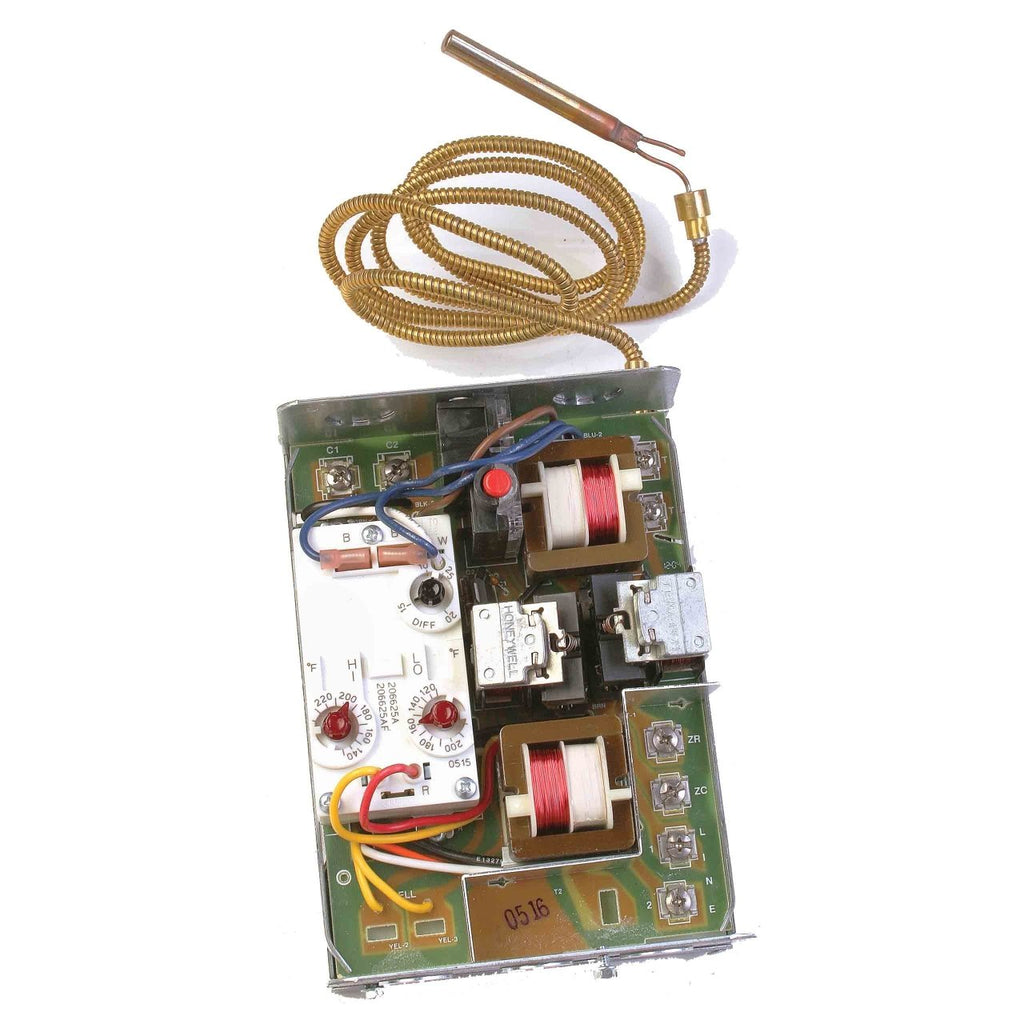

Resideo R8182H1070/U AquaStat Protectorelay, High Limit 130–240°F, Low Limit 110–220°F, J-Box Mount

AquaStat protector relay with 45-second safety switch timing, 130–240°F high limit, 110–220°F low limit, and J-box mounting.

Features

• Use in intermittent ignition applications
• Capable of zone control with zone valves
• Circulator zone control with ZC and ZR terminals on R8182D,E,H,J. 8, *Flame failure during the running cycle results in a 45 second attempt to restart. If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: R8182H1070/U
• Approvals and Standards: Canadian Standards Association Certified: File No. LR95329-1, UL Listed: File No. listed: MP268, Vol. 37, Sec. 1.
• Color: Aluminum
• For Use With: R845A Switching Relay, Requires C554A Cadmium Sulfide Flame Detector (ordered separately), 24V, 2-wire Thermostat such as the T87F, 125026AAJ, 4074BRR Dial Stop Replacement
• Includes: Auxiliary ZC and ZR terminals may be used to provide circulator zone control through an R845A Switching Relay, Heat Conductive Compound, Horizontal case
• Sensor Type: Remote Bulb
• Mounting Type: Exposed Junction Box
• Low Limit Differential Temperature: 10 °F to 25 °F adj
• Low Limit Set point Temperature (Min): 110 °F, 43 °C
• Low Limit Set point Temperature (Max): 220 °F, 104 °C
• High Limit Differential Temperature: 10 °F fixed
• High Limit Set point Temperature (Min): 130 °F, 54 °C, Adjustable
• High Limit Set point Temperature (Max): 240 °F, 116 °C, Adjustable
• Electrical Ratings at Full Load: 4.4A at 120 Vac
• Electrical Ratings at Locked Rotor: 26.4A at 120 Vac
• Operating Pressure (Max): 200 psi on immersion well, 100 psi direct immersion, 1378 kPa on immersion well, 90 kPa direct immersion
• Power Supply: 120 Vac
• Power Supply Frequency: 60 Hz
• End Switch Function and Capacity: SPST
• Switch Action: SPST
• Insulation Depth: 1-1/2 in, 38 mm
• Element Insertion Length: 3-3/8 in, 86 mm
• Capillary Length: 5 ft, 1.5 m
• Product Height: 7.13 in, 181 mm
• Product Length: 5.25 in, 133 mm
• Product Width: 3.44 in, 87 mm
• Operating Relative Humidity (Min): 0% Non-condensing
• Operating Relative Humidity (Max): 95% Non-condensing
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267078399
• Country of Origin: US
• Category: Oil Burner Controls
