Description

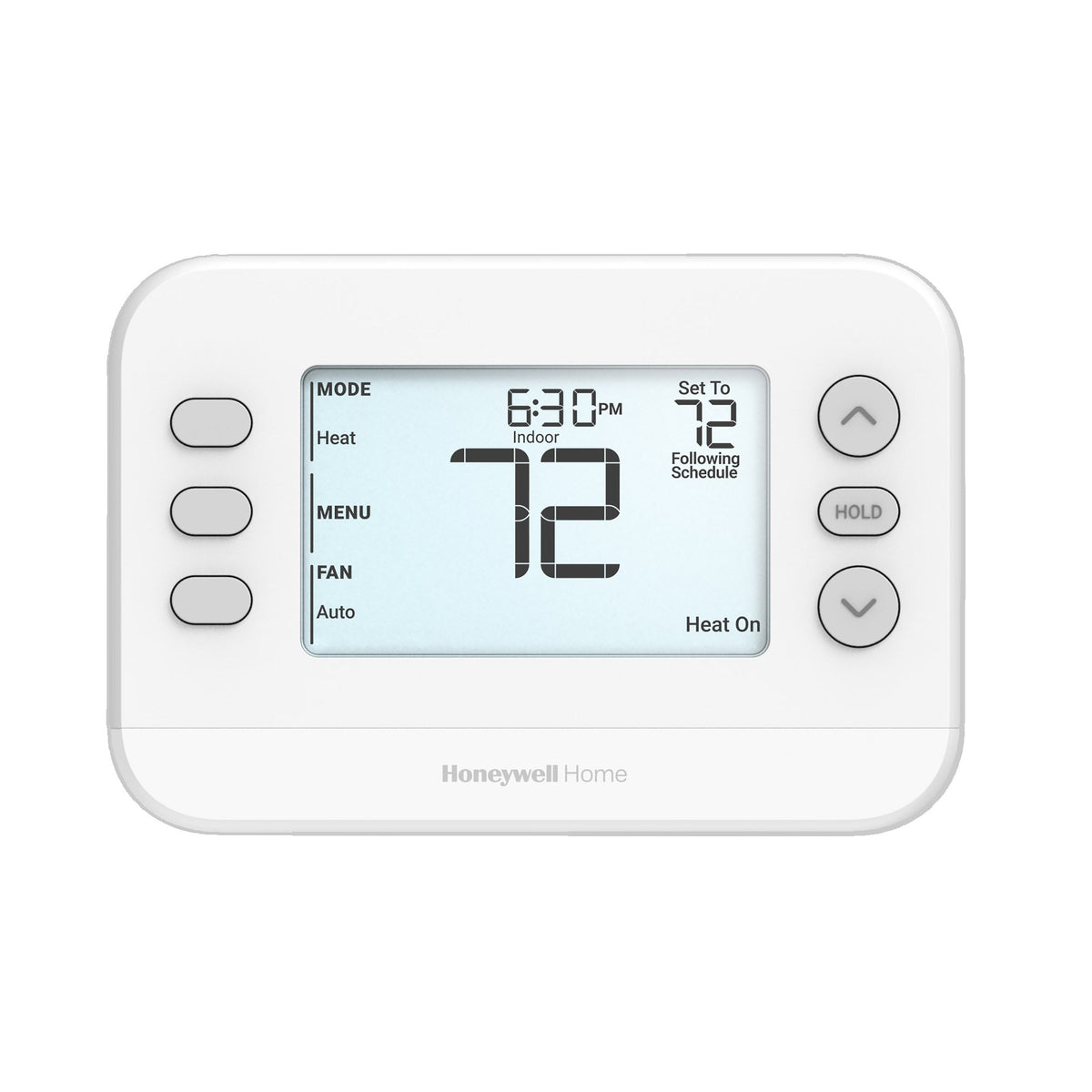

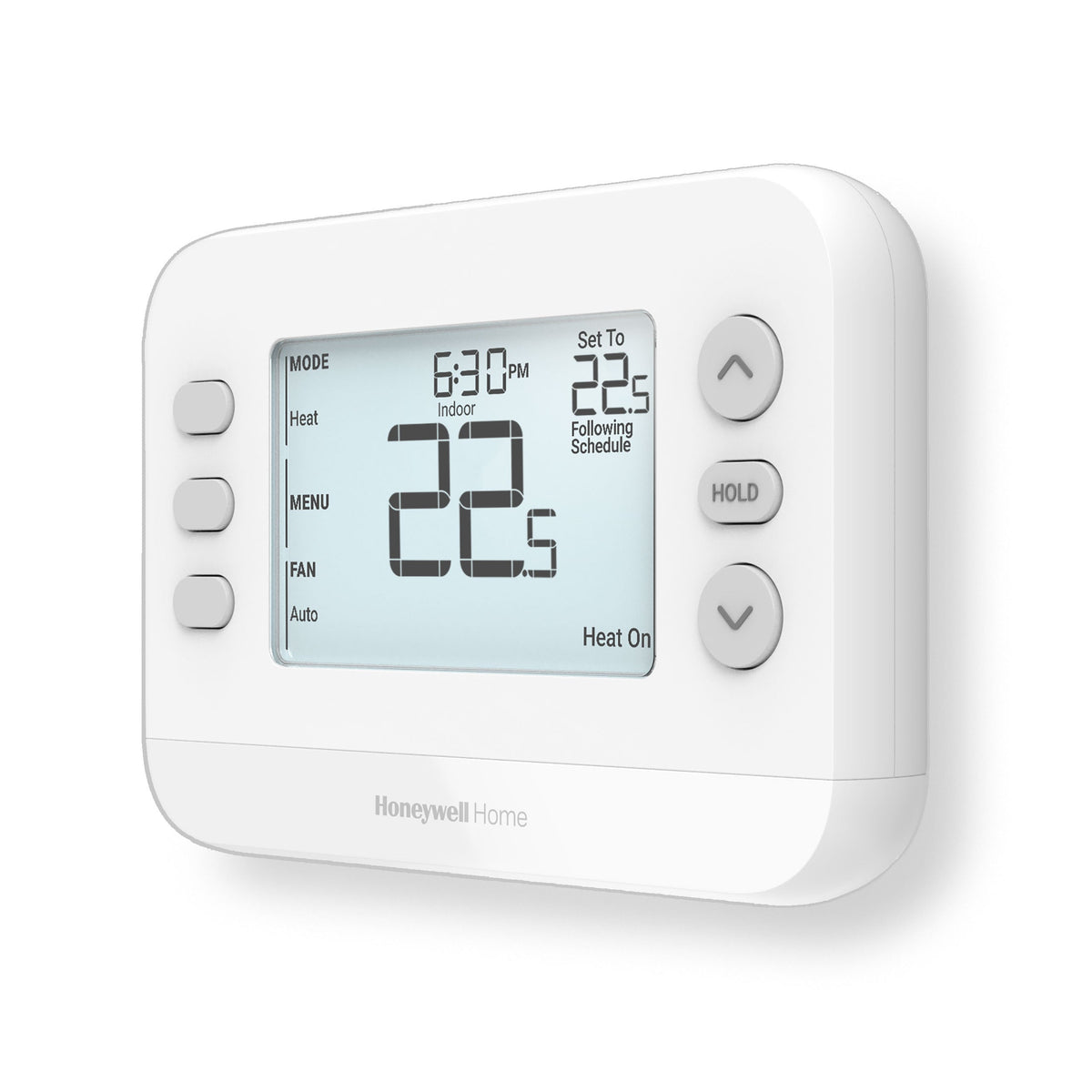

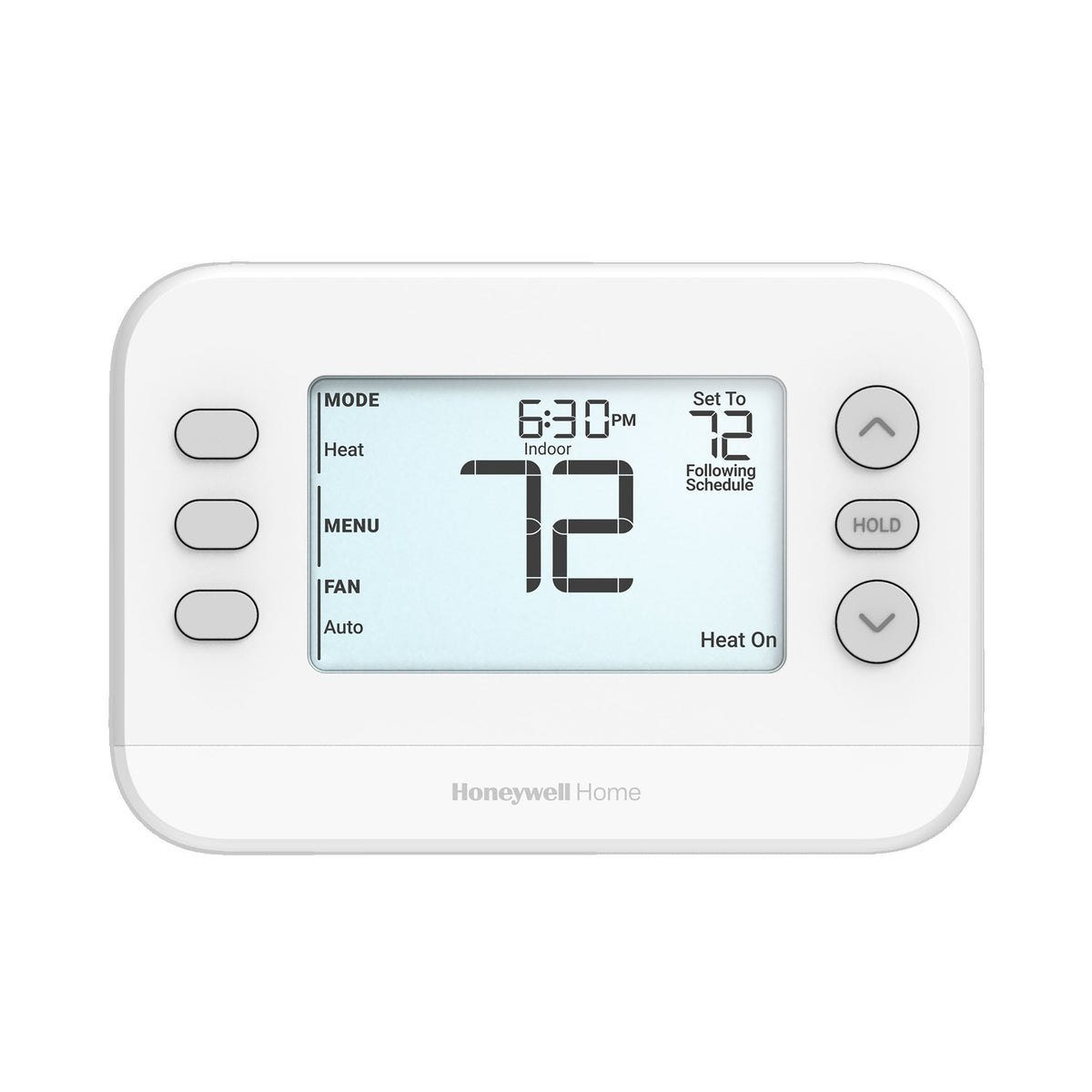

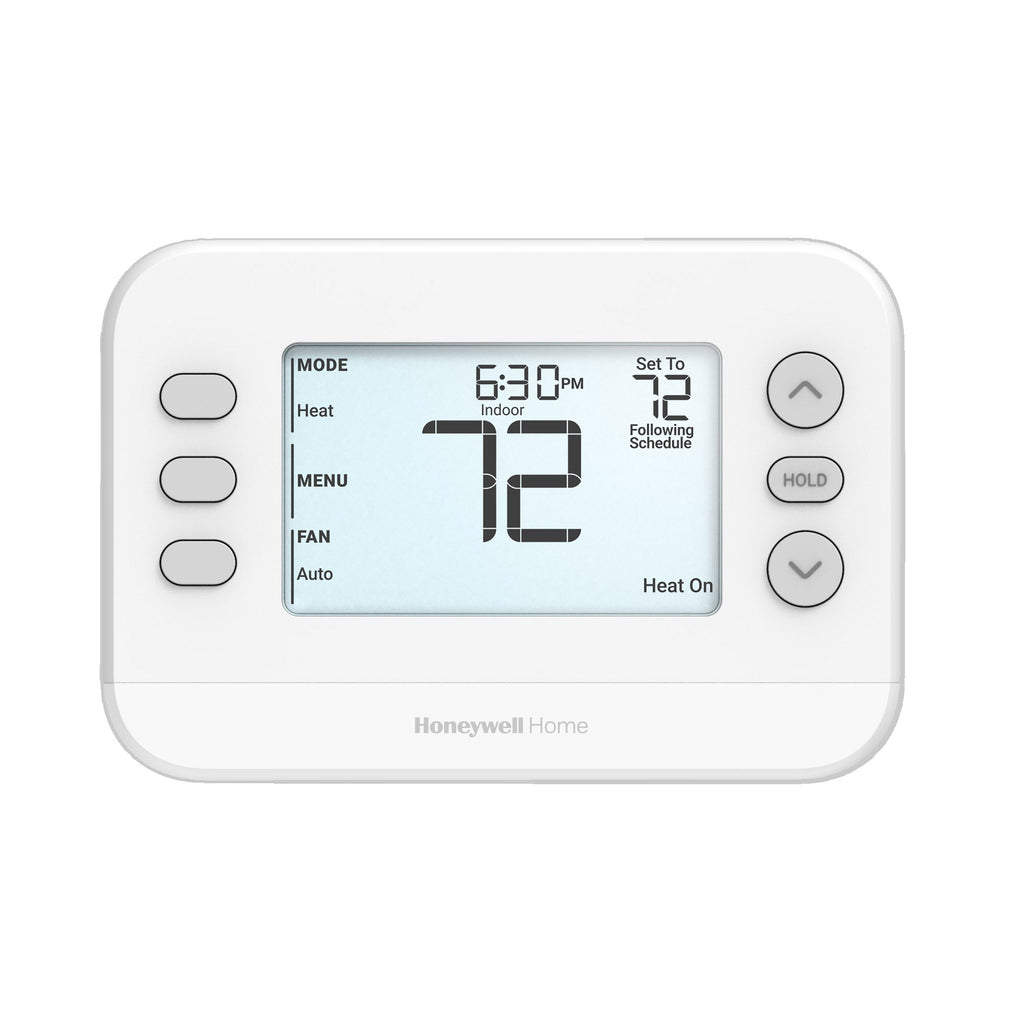

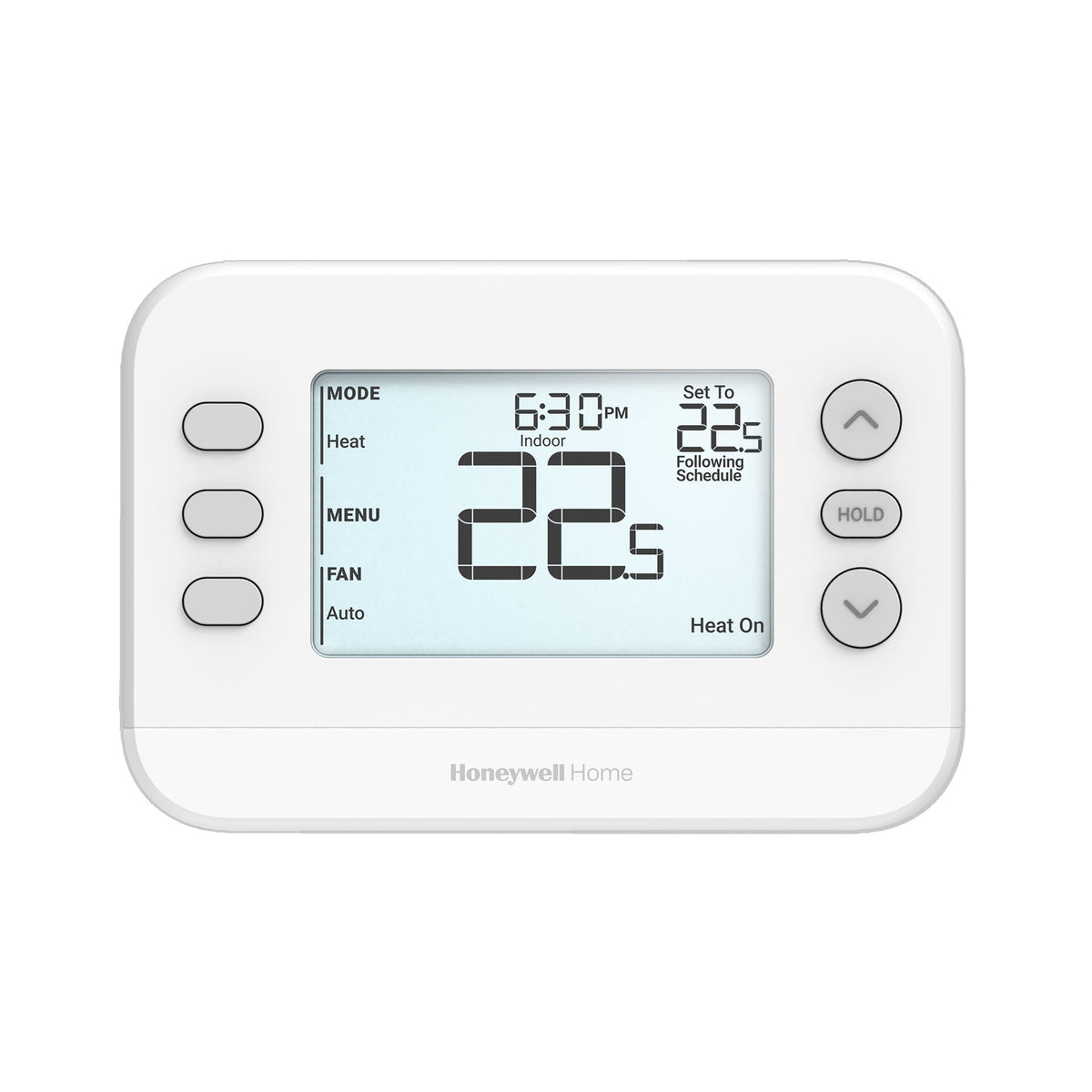

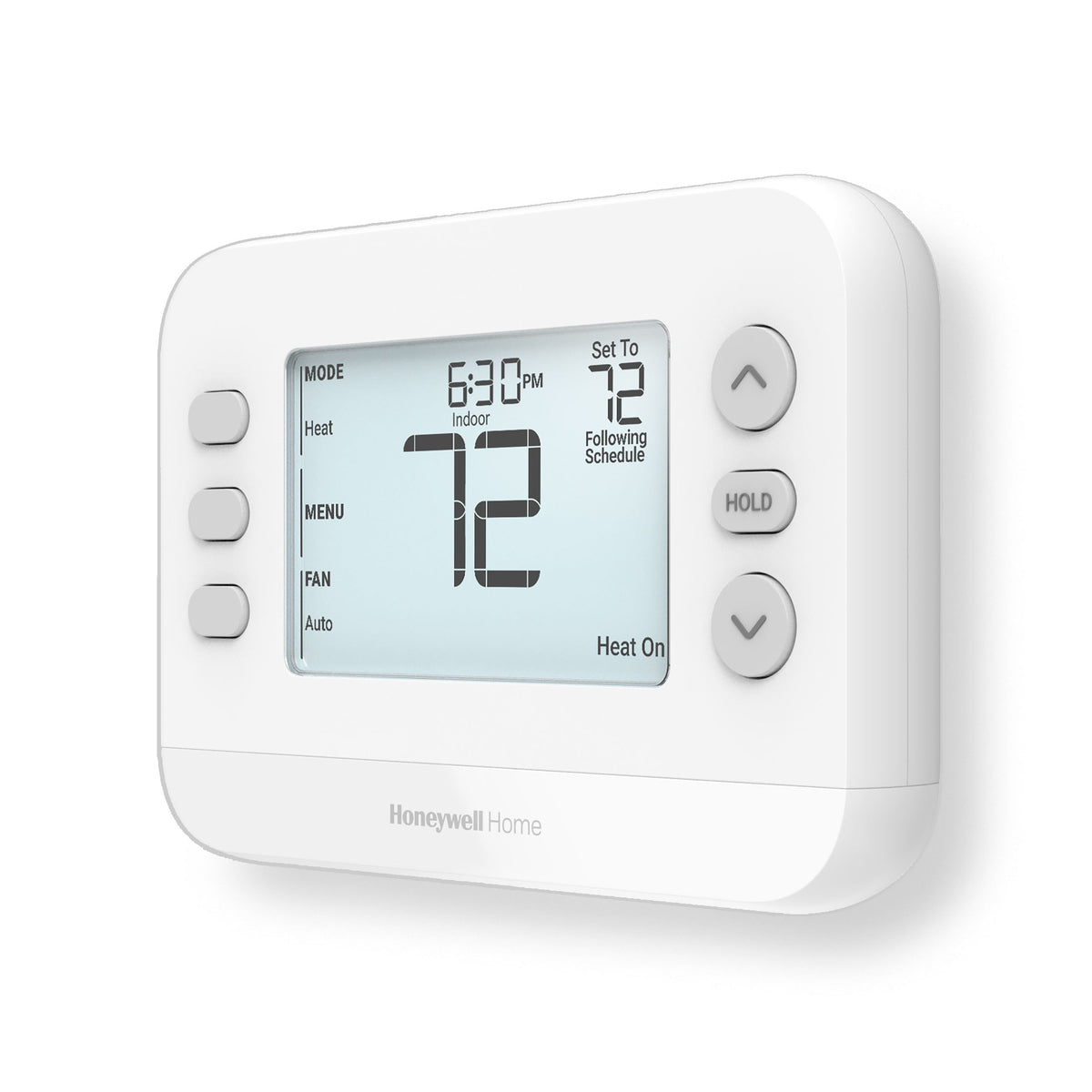

FocusPRO 200 programmable thermostat for 3 heat/2 cool systems.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH2320U4006/U
- Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems, Heat pumps with Auxiliary Heat, 750 Millivolt
- Thermostat Type: Programmable, Digital
- Stages: Up to 3 Heat/2 Cool Heat Pumps, Up to 2 Heat/2 Cool Conventional Systems
- Display Type: LCD Screen
- Display Size: 4.84 sq. in.
- Display Language: English
- Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan, Time
- Modes of Operation: Heat, Off, Cool, Auto
- Program Type: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week
- Alerts and Reminders: Heat Pump Failure, Filter Change
- Heat-Cool Changeover: Auto or Manual
- Power Supply: Battery, Hardwired
- Power Source: Hardwired, Battery Operated
- Frequency: 60 Hz
- Number of Batteries: 2
- Warranty: 5 years
- Includes: Thermostat, UWP mounting plate, Decorative cover plate with J-box adaptor, Mounting hardware, AA batteries, Literature
- For Use With: C7089U1006 wired outdoor sensor
- Color: Premier White®
- Ambient Operating Temperature (Max): 120 °F, 49 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Operating Relative Humidity (Max): 90% RH, non-condensing
- Operating Relative Humidity (Min): 5% RH, non-condensing
- Temperature Accuracy: 1 °F, 0.5 °C
- Electrical Connection Type: UWP Mounting System
- Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
- Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Switch Type: Relay
- Product Height: 3.44 in, 87 mm
- Product Width: 5.13 in, 130 mm
- Product Depth: 1.13 in, 29 mm
- Hazmat Information: NOT RESTRICTED - SPECIAL PROVISION A123
- Features: Backlit Display, Filter Change Reminder
- UPC: 194159017443
- Country of Origin: MX
- Category: Programmable Thermostats
