Description

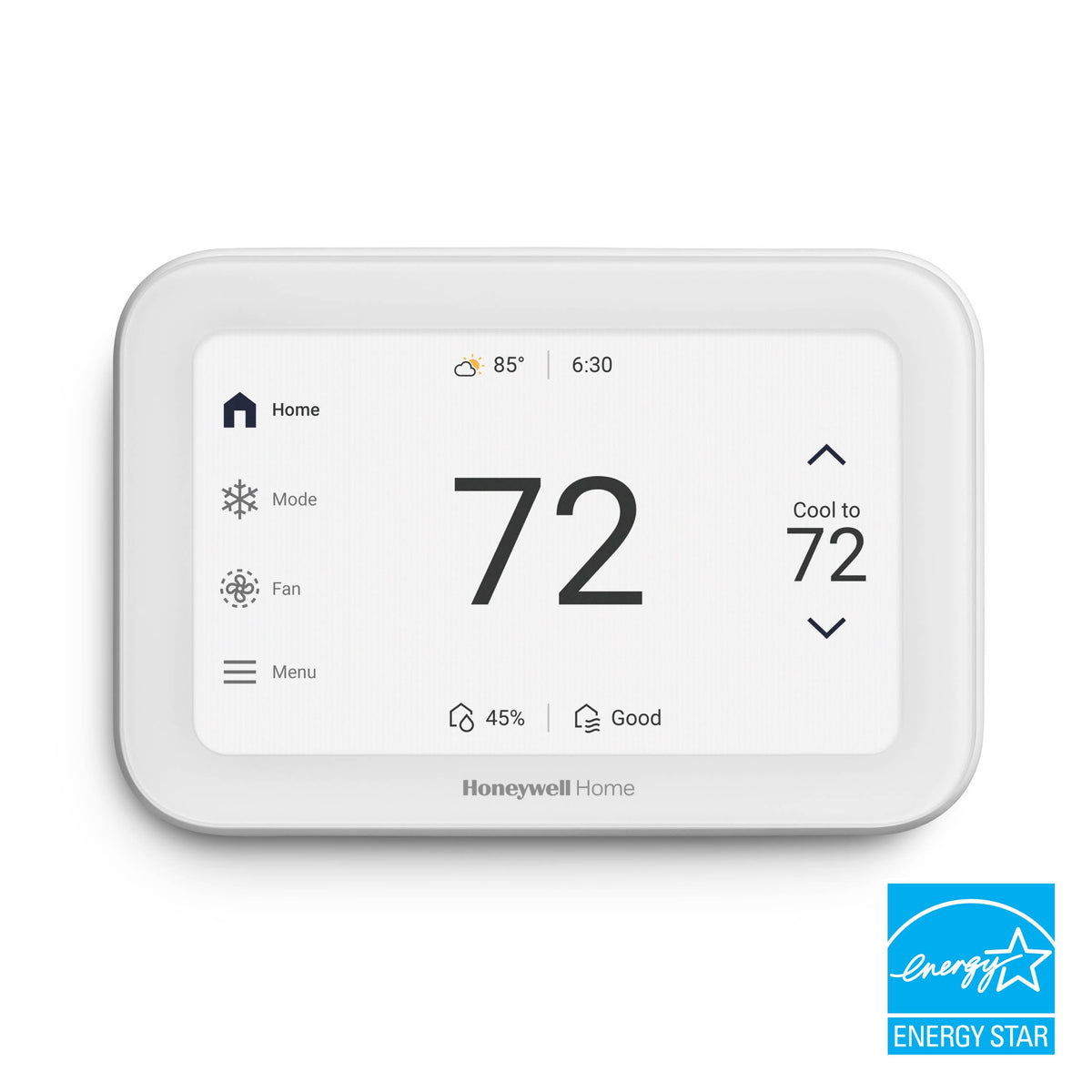

ElitePRO S1100 thermostat, 5 in, in white.
Features
- Time-Based or Smart Away programming for energy efficency
- Includes Onboard Radar Sensor
- Allows Air quality monotoring
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: THX1100W3/U
- Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
- Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 3 Heat/3 Cool for conventional systems
- Smart Home Integration: Yes
- Display Size: 5 in diagonal
- Touchscreen: Yes
- Display Language: Display selectable for English, French, or Spanish
- Display Time Format: 12 Hour (AM/PM)
- Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls, Down Arrow, Up Arrow
- Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
- Program Type: Time-Based or Smart Away, Residential or Commercial
- Energy Star Certified: Yes
- Heat-Cool Changeover: Auto or Manual
- Power Supply: Hardwired
- Power Source: Hardwired
- Warranty: 5 Years
- Includes: ElitePRO S1100 Series Thermostat in White, UWP® Wall Plate, Decorative Cover Plate with J-Box Adapter, Mounting hardware, Literature
- For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor
- Bluetooth Specifications: BLE 2.4 GHz
- WiFi: Yes
- WiFi Specifications: 2.4 & 5GHz
- RedLINK: Yes, 3.0
- Color: White
- Ambient Operating Temperature (Max): 102 °F, 39 °C
- Ambient Operating Temperature (Min): 37 °F, 3 °C
- Operating Relative Humidity (Max): 90 % RH
- Operating Relative Humidity (Min): 5 % RH
- Compatible Sensor: Room Temperature Sensor
- Auto Changeover: Yes
- Humidity Set point (Max): 90 % RH
- Humidity Set point (Min): 0 % RH
- Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
- Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
- Power Supply Frequency: 60 Hz
- Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
- Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10°C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Mounting Location: Wall, Junction Box
- Product Height: 3.54 in, 90 mm
- Product Width: 5.25 in, 133 mm
- Product Weight: 0.91 lb
- Product Depth: 0.96 in, 24 mm
- Features: Digital Display, ENERGY STAR Certified, Utility Rewards, Air Quality Monitoring, WiFi Connection, Touchscreen Display
- UPC: 194159018945
- Country of Origin: MX
- Category: Programmable Thermostats
