Honeywell Home YTH6320R1023/U Wireless Zoning Adapter Kit with Wireless FocusPRO 5-1-1 Programmable Thermostat

Wireless zoning adapter kit containing a wireless FocusPRO 5-1-1 programmable thermostat and a wireless adapter.

Features

• WIRELESS FOCUSPRO® THERMOSTAT: Same great features of the FocusPRO® thermostat - now wireless. Installs in minutes. Displays outdoor temperature and humidity. 1 year battery life. 2 month low battery warning. Dual Fuel enabled
• EQUIPMENT INTERFACE MODULE(EIM): All HVAC equipment is wired to the module. Module receives communication from the wireless devices
• RETURN AIR SENSOR: Works with the Equipment Interface Module to maintain safe indoor temperatures if power is lost at the wireless thermostat. Maintains 62 F for heating and 82 F for cooling
• REDLINK® WIRELESS TECHNOLOGY: Powered by RedLINK™ reliability. No interference with other wireless devices in the home

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: YTH6320R1023/U
• Application: Conventional Systems, Heat Pumps with Auxiliary Heat
• Thermostat Type: Programmable, Low Voltage, Digital, RedLINK
• Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
• Smart Home Integration: Yes
• Display Size: 2.67 sq in
• Touchscreen: No
• Display Language: English
• Displayed Information: Indoor Humidity, Indoor Temperature, Outdoor Humidity, Outdoor Temperature, Status Display
• Modes of Operation: Heat, Cool, Auto, Off, Emergency Heat
• Program Type: 5-1-1 Programmable, 5-2 Programmable
• Energy Star Certified: No
• Alerts and Reminders: Battery Replacement, High Indoor Temperature, Low Indoor Temperature
• Power Supply: Battery
• Warranty: 5 Years

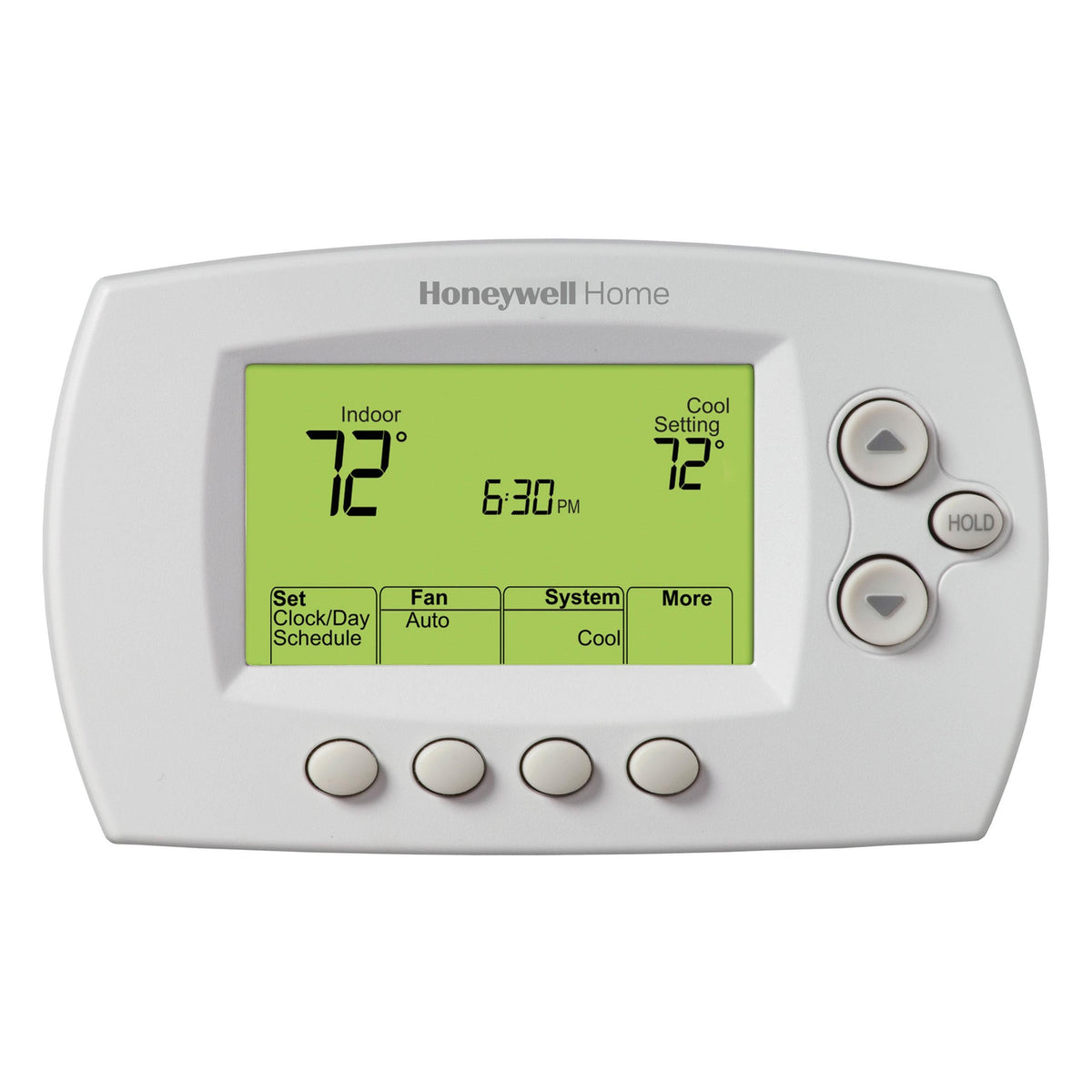

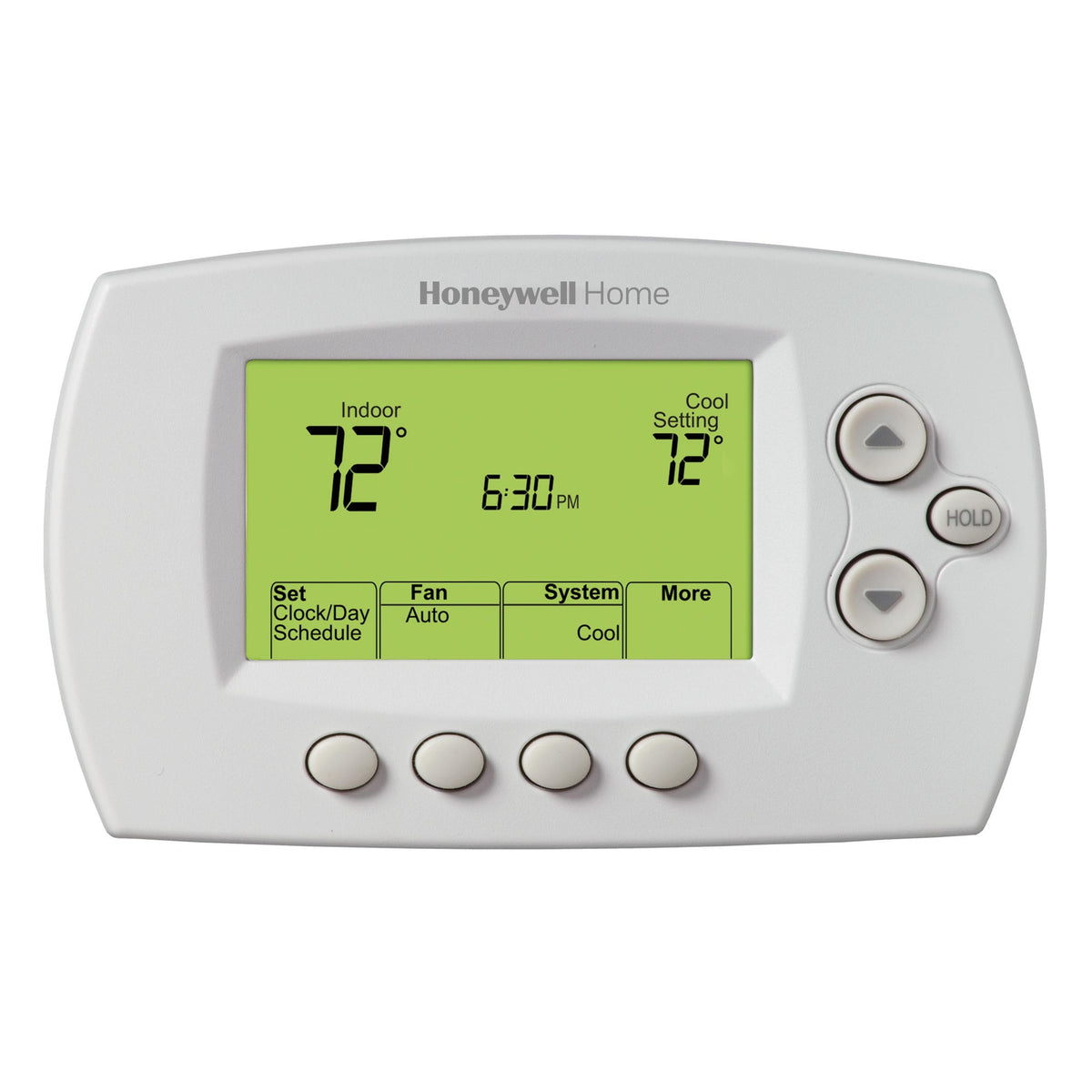

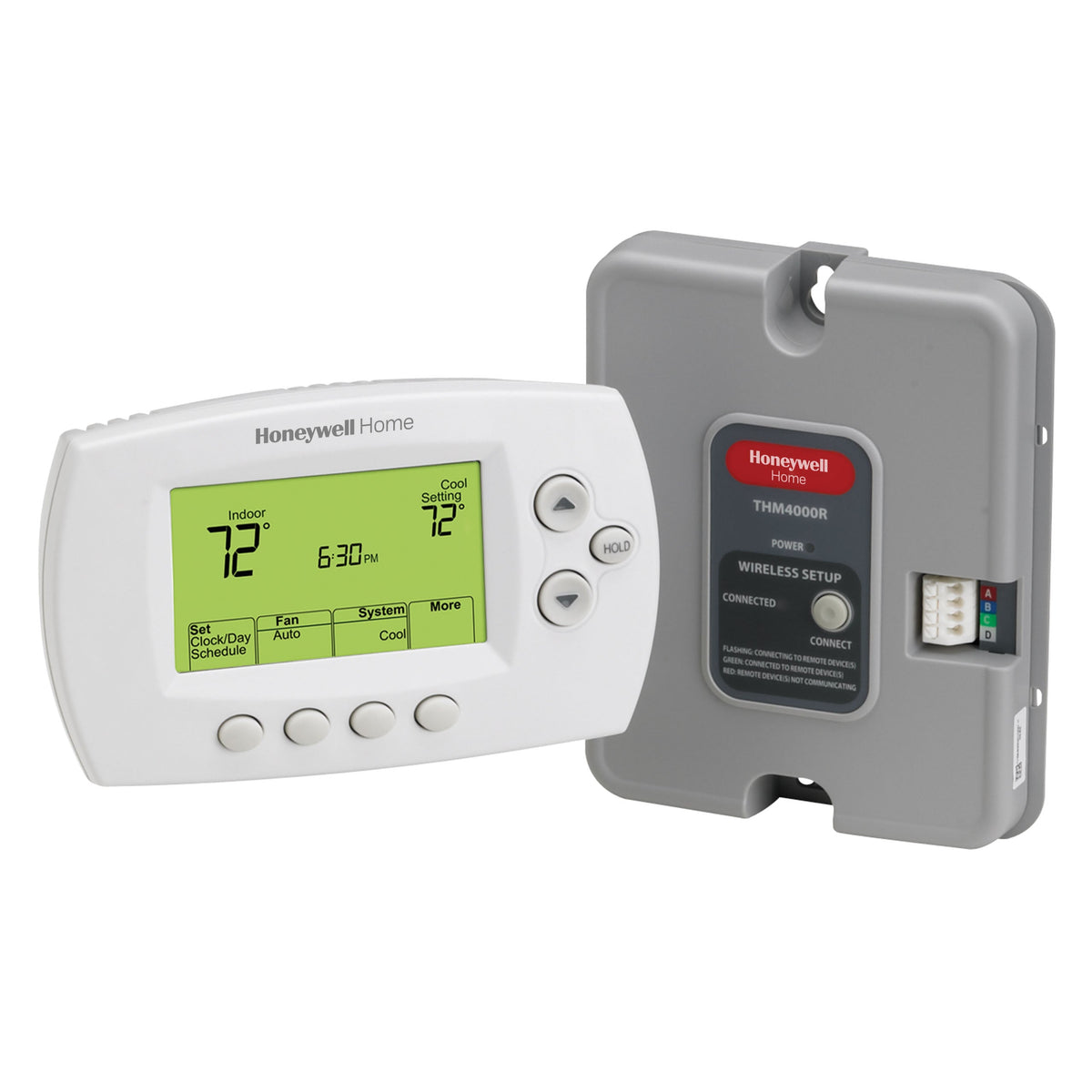

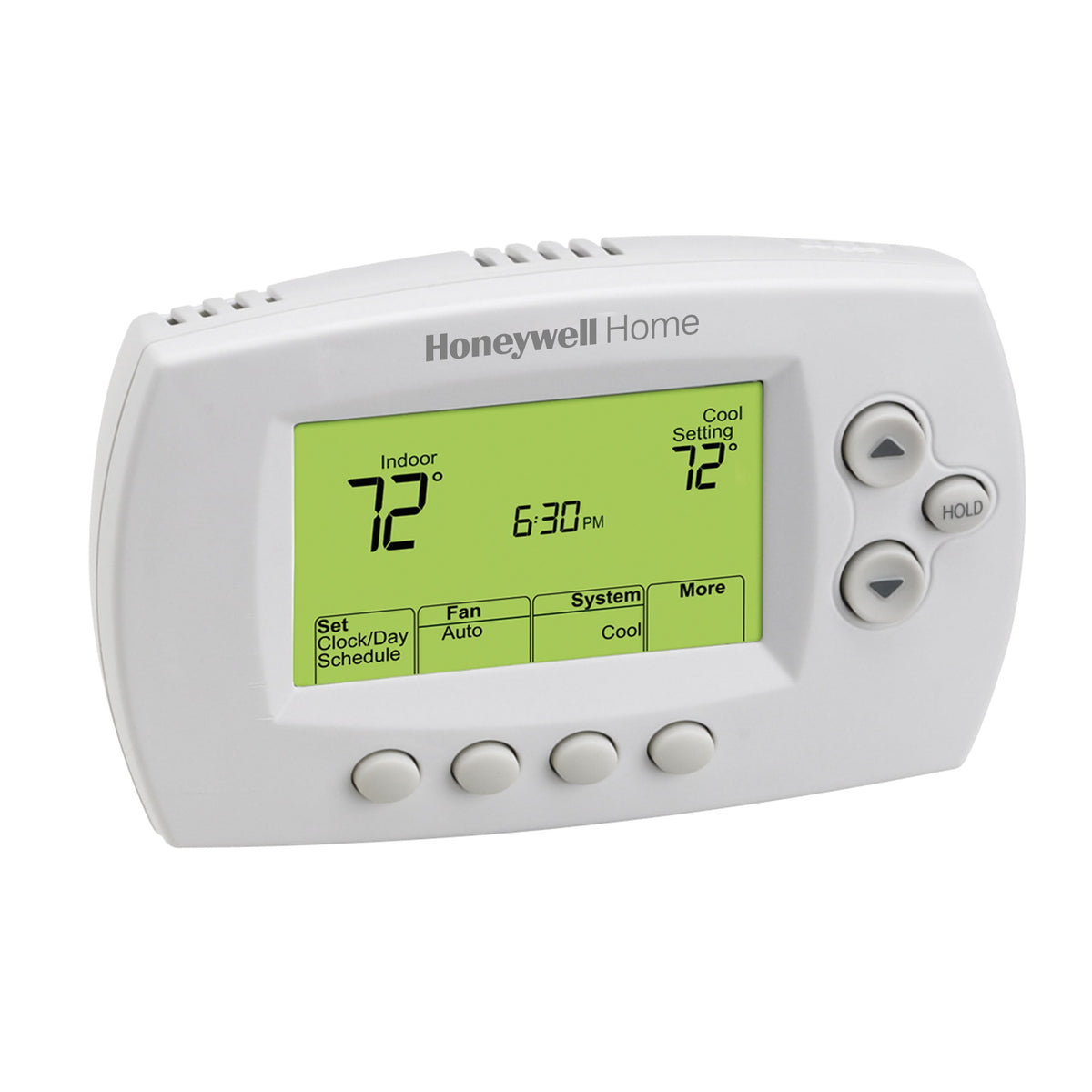

• Includes: TH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat, THM4000R1000 Wireless Adapter
• For Use With: HZ322 or HZ432 TrueZONE® Panels
• Communication Type: RedLINK
• WiFi: No
• WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
• Z-Wave: No
• RedLINK: Yes
• Color: Premier White®
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Ambient Relative Humidity (Max): 90% RH, Non-Condensing
• Ambient Relative Humidity (Min): 5% RH, Non-Condensing
• Demand Response: No
• Electrical Connection Type: Screw terminals
• Interstage Differential Temperature: 1 to 1.5 °F
• Mounting Type: Horizontal Mount
• Number of Fan Speeds: 1
• Operating Voltage (Max): 24 Vac
• Scale Markings: Not Applicable
• Set point Temperature (Max): Heating: 90 °F, Cooling: 99 °F, Heating: 32 °C, Cooling: 37 °C
• Set point Temperature (Min): Heating: 40 °F, Cooling: 50 °F, Heating: 4.5 °C, Cooling: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall, Internal
• Product Height: 3.56 in, 91 mm
• Product Width: 5.81 in, 147 mm
• Product Depth: 1.5 in, 38 mm
• Bulb Diameter: Not Applicable
• Bulb Length: Not Applicable
• UPC: 085267331258
• Country of Origin: MX
• Category: Programmable Thermostats
