Honeywell Home THX1200B6/U ElitePRO 1200 Thermostat, 5 in, Black

Honeywell Home THX1200B6/U ElitePRO S1200 Smart Thermostat, 5 in, Black

Item #: HONE-THX1200B6/U
Mfr. part #: THX1200B6/U
UPC: 194159018464

Key specifications

Display Size5 in diagonal
Energy Star CertifYes
Power SupplyHardwired, C-Wire required
Power SourceHardwired, C-Wire required
For Use WithC7189R3010-2 room sensor

View all specifications

$215.61

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	THX1200B6/U
Application	Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
Stages	Up to 4H/2C Heat Pump or 3H/3C Conventional
Display Size	5 in diagonal
Modes of Operation	Heat, Off, Cool, Auto, Emergency Heat
Energy Star Certified	Yes
Power Supply	Hardwired, C-Wire required
Power Source	Hardwired, C-Wire required
Warranty	5 Years
Includes	ElitePRO™ S1200 Smart Thermostat in Black, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
For Use With	C7189R3010-2 room sensor
WiFi	Yes
RedLINK	Yes, 3.0
Ambient Operating Temperature (Max)	102 °F, 38.9 °C
Ambient Operating Temperature (Min)	37 °F, 2.8 °C
Power Supply Frequency	60 Hz
Set point Temperature (Max)	Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
Product Height	3.54 in, 90 mm
Product Width	5.25 in, 133 mm
Product Weight	0.91 lb
Product Depth	0.96 in, 24 mm
UPC	194159018464

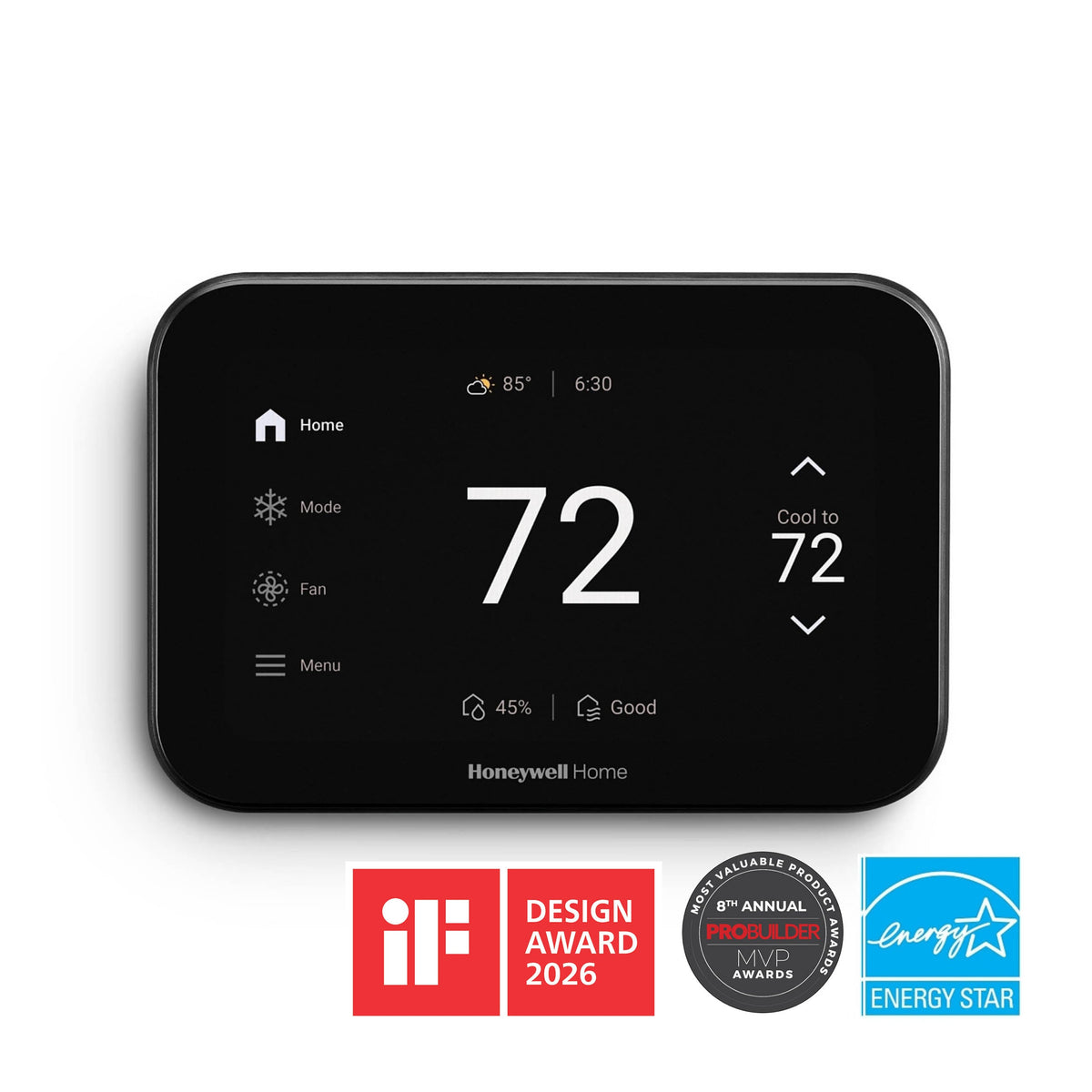

ElitePRO 1200 thermostat, 5 in, in black.

Features

Time-Based or Smart Away programming for energy efficency
Includes Onboard Radar Sensor
Allows Air quality monotoring

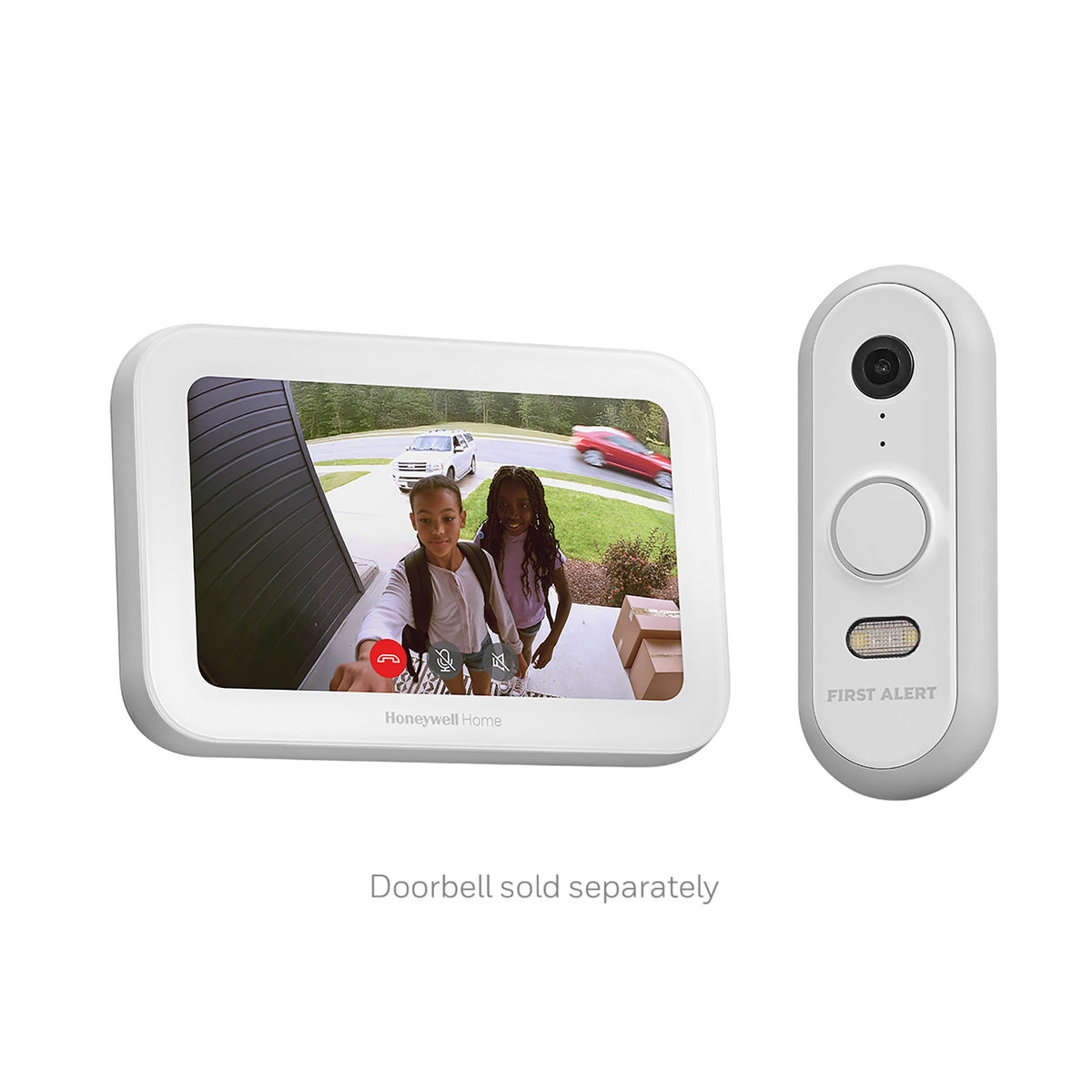

VX1 or Ring Doorbell Compatibility

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: THX1200B6/U
Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
Stages: Up to 4H/2C Heat Pump or 3H/3C Conventional
Smart Home Integration: Yes
Display Size: 5 in diagonal
Touchscreen: Yes
Display Language: Display selectable for English, French, or Spanish
Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
Energy Star Certified: Yes
Heat-Cool Changeover: Auto or Manual
Power Supply: Hardwired, C-Wire required
Power Source: Hardwired, C-Wire required
Warranty: 5 Years
Includes: ElitePRO™ S1200 Smart Thermostat in Black, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
For Use With: C7189R3010-2 room sensor
WiFi: Yes
RedLINK: Yes, 3.0
Color: Black
Ambient Operating Temperature (Max): 102 °F, 38.9 °C
Ambient Operating Temperature (Min): 37 °F, 2.8 °C
Operating Relative Humidity (Max): 90 % RH
Operating Relative Humidity (Min): 5 % RH
Auto Changeover: Yes
Humidity Set point (Max): 90% RH
Humidity Set point (Min): 0% RH
Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
Power Supply Frequency: 60 Hz
Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10 °C
Shipping and Storage Temperature (Max): 120 °F, 49 °C
Shipping and Storage Temperature (Min): -20 °F, -29 °C
Mounting Location: J-Box, Horizontal Mount to wall
Product Height: 3.54 in, 90 mm
Product Width: 5.25 in, 133 mm
Product Weight: 0.91 lb
Product Depth: 0.96 in, 24 mm
Features: Video Doorbell Integration, Customizable Touchscreen Display, IAQ Monitoring and Control, Smart Home Enabled, ENERGY STAR Certified, Utility Rewards, WiFi
UPC: 194159018464
Country of Origin: MX
Category: Programmable Thermostats
