Description

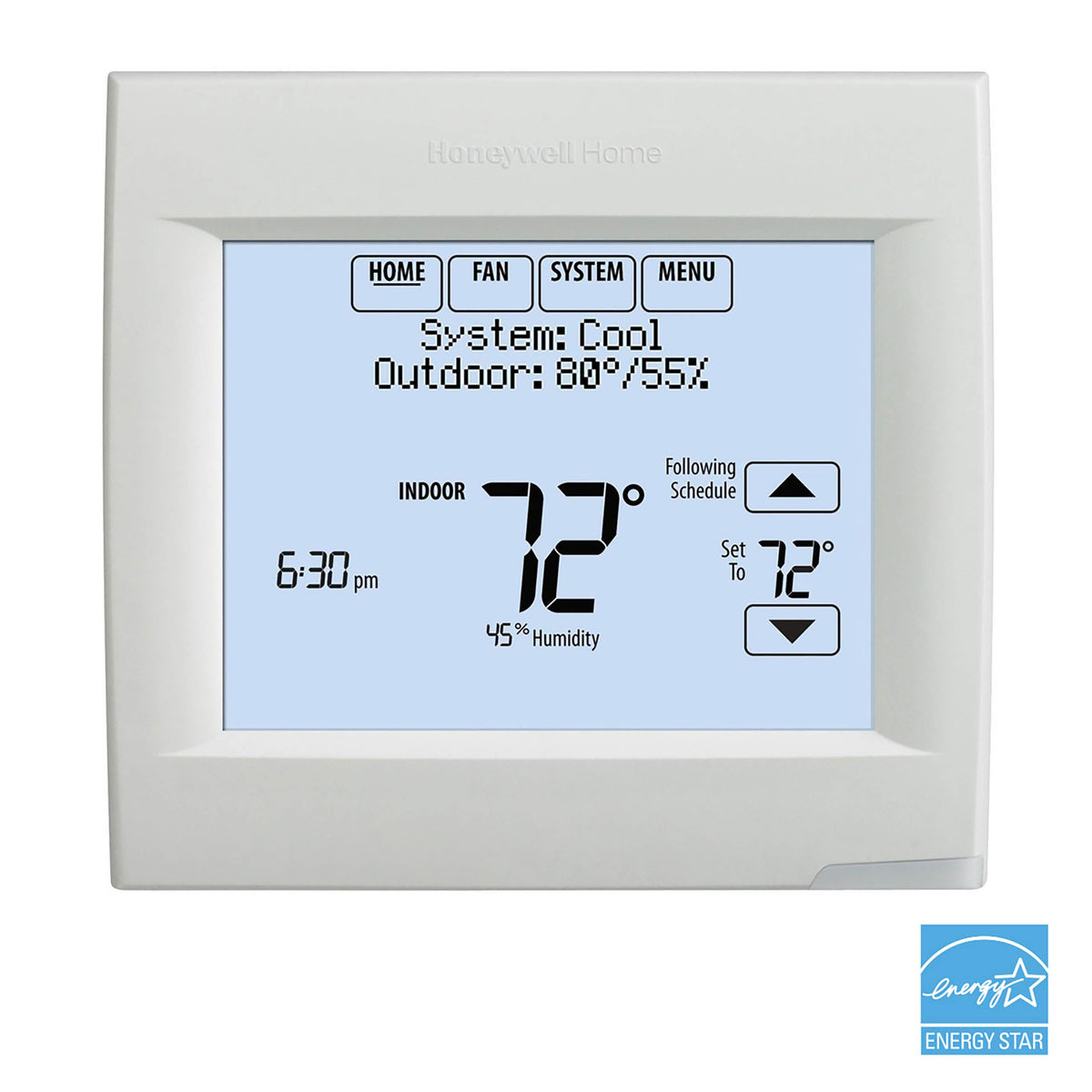

VisionPRO 8000 thermostat with RedLINK technology for residential or commercial use, 7-day programmable, up to 3H/2C heat pump or 2H/2C conventional.
Features
- Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter
- Smart Schedule - programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLINK® wireless communication.ENERGY STAR® Certified
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH8320R1003/U
- Application: 2H/2C Conventional Systems, 3H/2C Heat Pumps with auxiliary heat, Dual Fuel
- Thermostat Type: Programmable, Digital, Low Voltage, RedLINK
- Stages: Up to 3 Heat/2 Cool Heat Pump Systems when used standalone, Up to 2 Heat/2 Cool Conventional Systems when used standalone, Up to 4 Heat/2 Cool Heat Pump Systems when used with the Equipment Interface Module, Up to 3 Heat/2 Cool Conventional Systems when used with the Equipment Interface Module
- Smart Home Integration: No
- Display Type: Touch Screen
- Display Size: 10 sq in
- Touchscreen: Yes
- Display Language: English
- Displayed Information: Indoor Temperature, Indoor Humidity, Outdoor Temperature, Outdoor Humidity, Time, Status Display
- IAQ Capability: No
- Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat except model TH8110R1008
- Program Type: 7-Day Programmable, Manual / Not Programmed
- Energy Star Certified: Yes
- Alerts and Reminders: Customizable Service Reminders
- Power Supply: Battery, Hardwired
- Battery Type: Alkaline
- Power Source: Hardwired, Battery Operated
- Number of Batteries: 4
- Battery Life: 1 Years
- Battery Size: AA
- Warranty: 5 Years
- Includes: VisionPRO® 8000 Thermostat, Wall anchors, Screws
- For Use With: Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK® 2.0 accessories
- Communication Type: RedLINK, WiFi
- WiFi: No
- WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
- Z-Wave: No
- Z-Wave Specifications: Not Applicable
- RedLINK: Yes
- Color: Arctic White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 120 °F, 49 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Operating Relative Humidity (Max): 90% Non-condensing
- Operating Relative Humidity (Min): 5% Non-condensing
- Backlight Options: Adjustable
- Fan Function: On, Auto, Circulating
- Clock Type: Year Clock
- Demand Response: No
- Electrical Connection Type: Screw terminals
- Mounting Type: Horizontal Mount
- Power Supply Frequency: 50 Hz, 60 Hz
- Set point Temperature (Max): Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
- Set point Temperature (Min): Heat: 40 °F, Heat: 5 °C, Cool: 50 °F, Cool: 10 °C
- Mounting Location: Wall
- Product Height: 4.63 in, 118 mm
- Product Width: 4.94 in, 126 mm
- Product Depth: 1.13 in, 29 mm
- Hazmat Information: Lithium metal button cells only contained in equipment, Excepted per PI970
- Features: ENERGY STAR Certified, Backlit Display, Filter Change Reminder, Touchscreen Display
- UPC: 085267707183
- Country of Origin: MX
- Category: Programmable Thermostats
