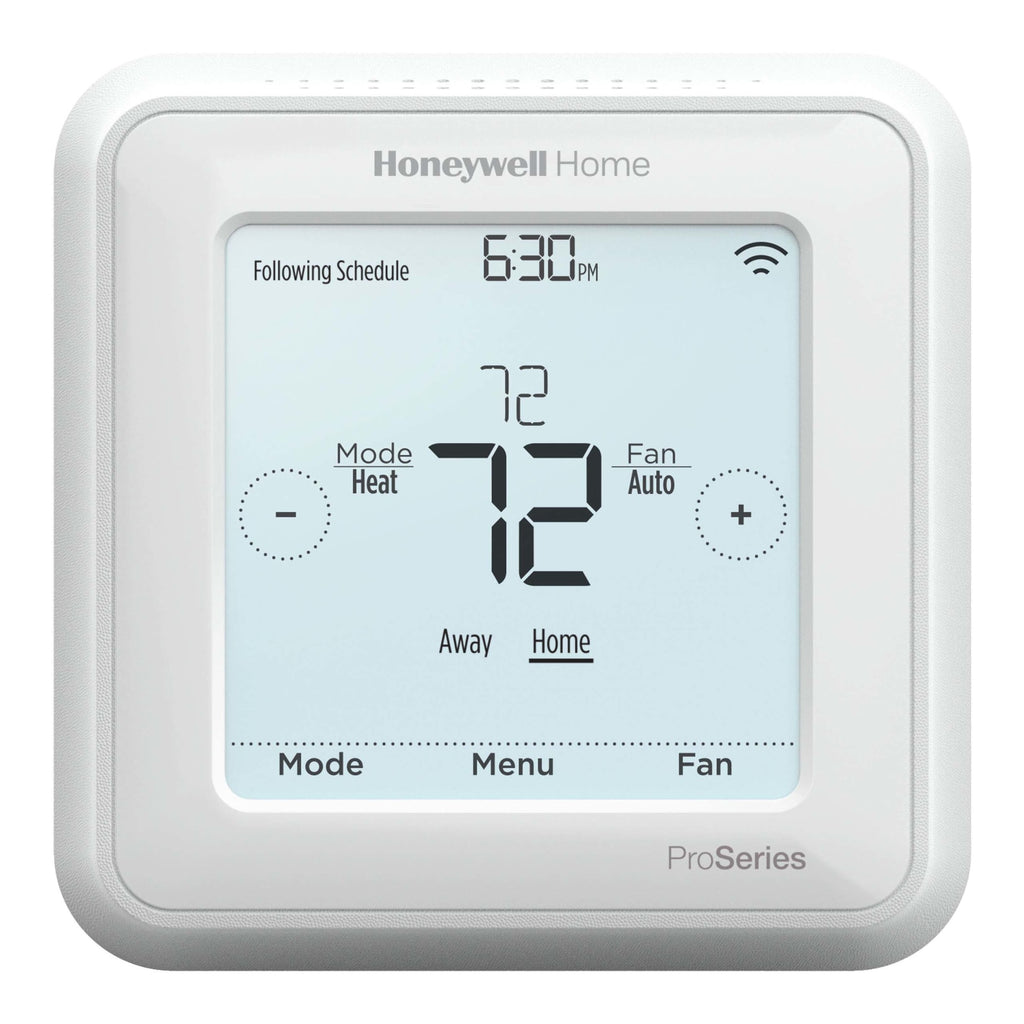

Resideo TH6320ZW2003/U T6 Pro Z-Wave Programmable Thermostat, Up to 3H/2C Heat Pump or 2H/2C Conventional

Resideo TH6320ZW2003/U is a T6 Pro Z-Wave programmable thermostat that can be battery powered, hardwired or both, and used with a Z-Wave controller. It works with 3H/2C heat pump or 2H/2C conventional systems.

It is compatible with Z-Wave and Z-Wave Plus gateways, hubs and controllers, with Z-Wave 5.0 chipset encryption and extended wireless range. Schedules can be set as 7-day, 5-1-1 or 5-2 day programmable, nonprogrammable, or occupancy controlled through the Z-Wave panel or app. The touchscreen shows temperature in F or C and humidity, and the UWP Mounting System keeps wiring simple. With an outdoor sensor it supports dual fuel and auxiliary heat lockout. Power comes from 3 AA batteries, a C-wire, or both, and it carries a 5-year warranty.

Before ordering, confirm you have, or will add, a Z-Wave or Z-Wave Plus compliant controller; this thermostat does not use Wi-Fi. The optional outdoor sensor C7089U1006 and indoor remote sensor C7189U1005 are sold separately.

Specifications

• Brand: Resideo
• Manufacturer Part #: TH6320ZW2003/U
• Series: T6 Pro Z-Wave
• Color: White
• Thermostat Type: Programmable, Digital, Low Voltage, Z-Wave
• System Compatibility: Up to 3H/2C heat pump or 2H/2C conventional
• Application: 24 Vac systems; gas, oil, electric warm air, hot water coil; gas, oil, electric hydronic, or steam/gravity systems
• Program Modes: 7-Day, 5-1-1, 5-2, Nonprogrammable, Occupancy through app
• Display: Touchscreen, adjustable backlight
• Fan Function: On, Auto, Circulating
• Power: 3 AA batteries, hardwired (C-wire), or both
• Wi-Fi: No
• Compatible Third Party Applications: Samsung SmartThings
• Temperature Accuracy: 1°F (0.5°C)
• For Use With: Optional Outdoor Sensor C7089U1006; Optional Indoor Remote Sensor C7189U1005
• Includes: T6 Pro Z-Wave Thermostat; UWP Mounting System; Decorative Cover Plate; Screws and anchors; Literature
• Warranty: 5 Years
• UPC: 085267422499
• Category: Programmable Thermostats

Documents

• Getting Started Guide for T6 Pro Z-Wave Programmable Thermostat (English, French, Spanish) (PDF)
• Getting Started Guide for the T6 Pro Z-Wave Thermostat (English, French, Spanish) (PDF)
• Guía de instalación profesional - Termostato programable T6 Pro Z-Wave (Spanish) (PDF)
• Guide dinstallation professionnelle - Thermostat programmable Z-Wave Pro T6 (French) (PDF)

See also: programmable thermostats.
