Description

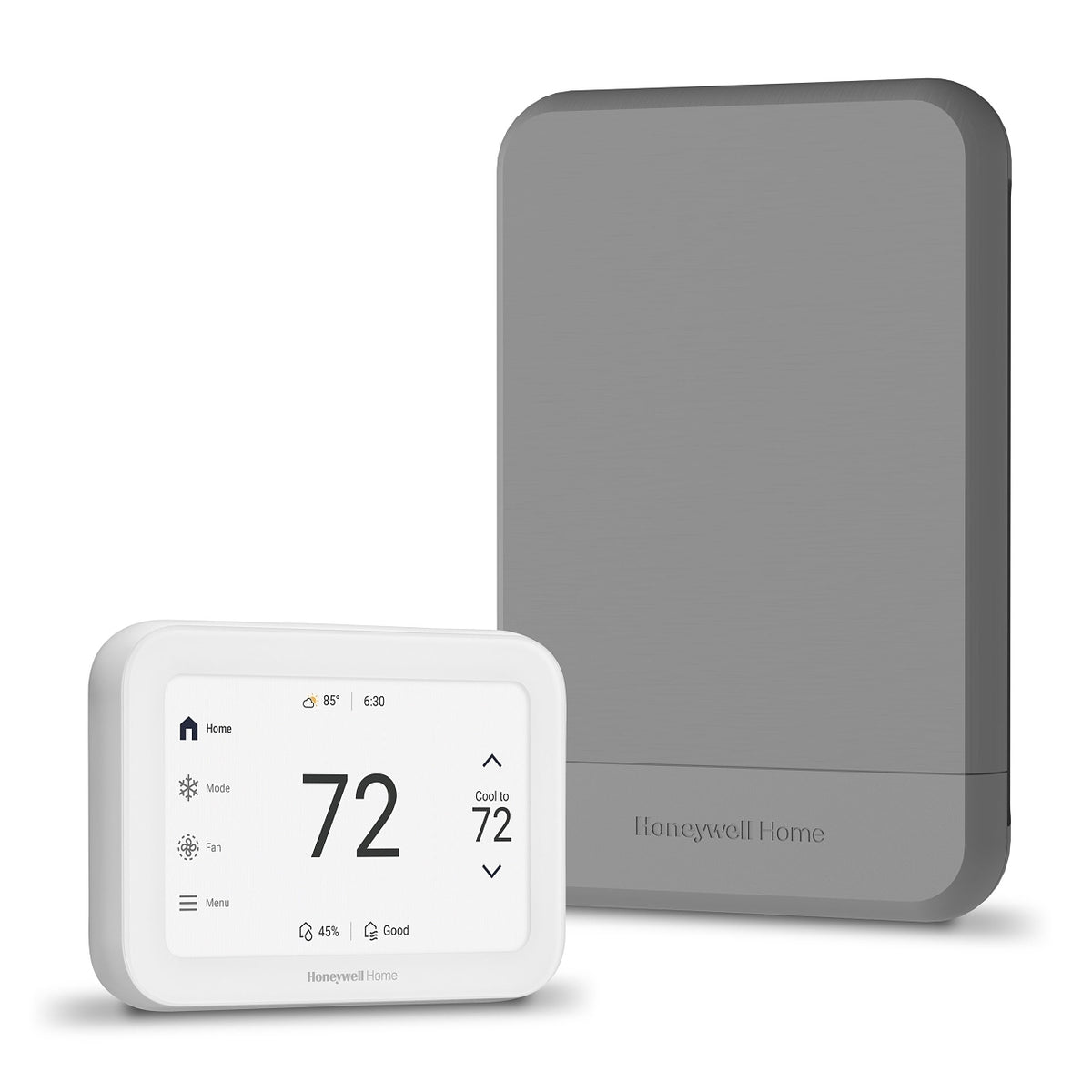

ElitePRO 1200 thermostat EIM kit in white.
Features
- Time-Based or Smart Away programming for energy efficency
- Includes Onboard Radar Sensor

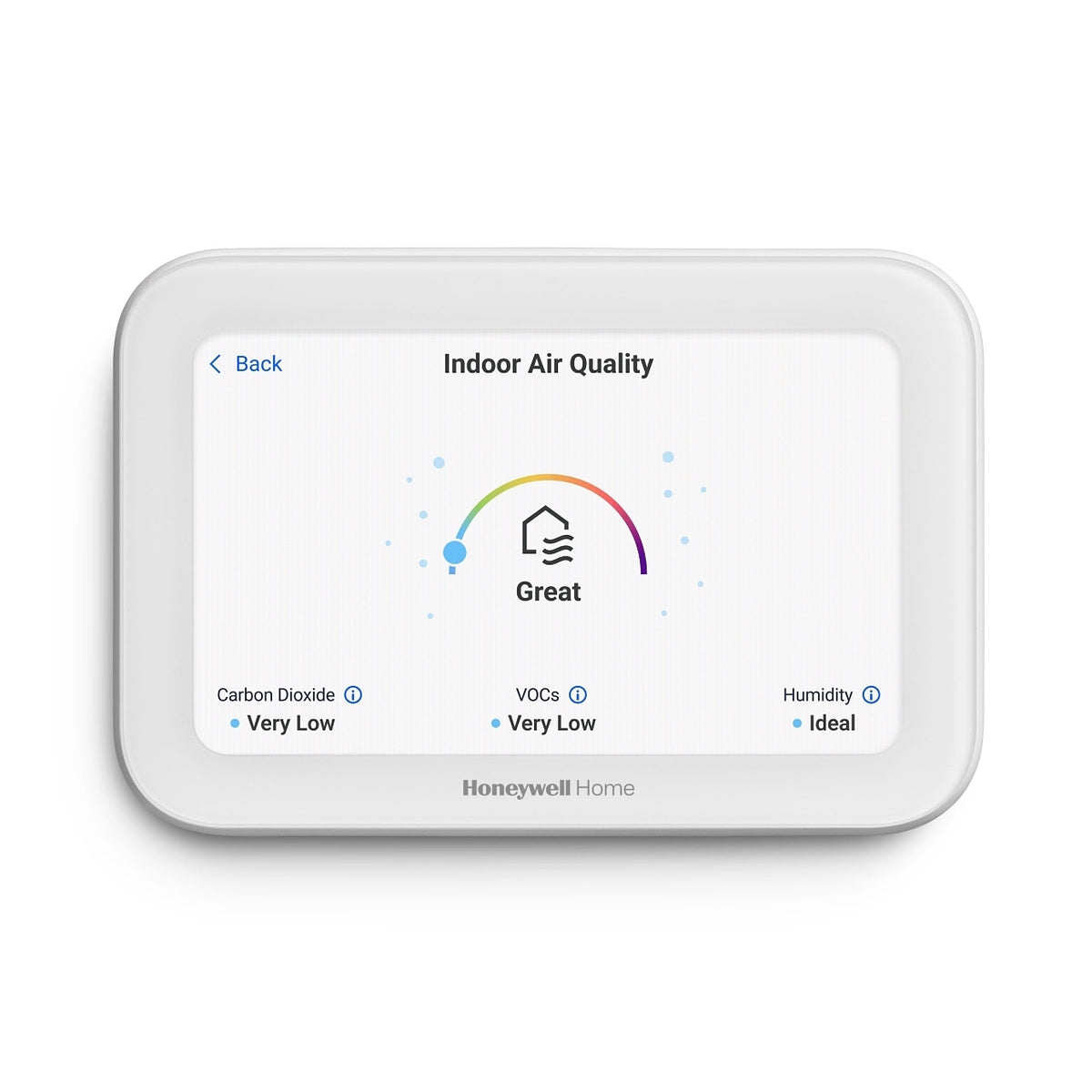

- Allows Air quality monotoring

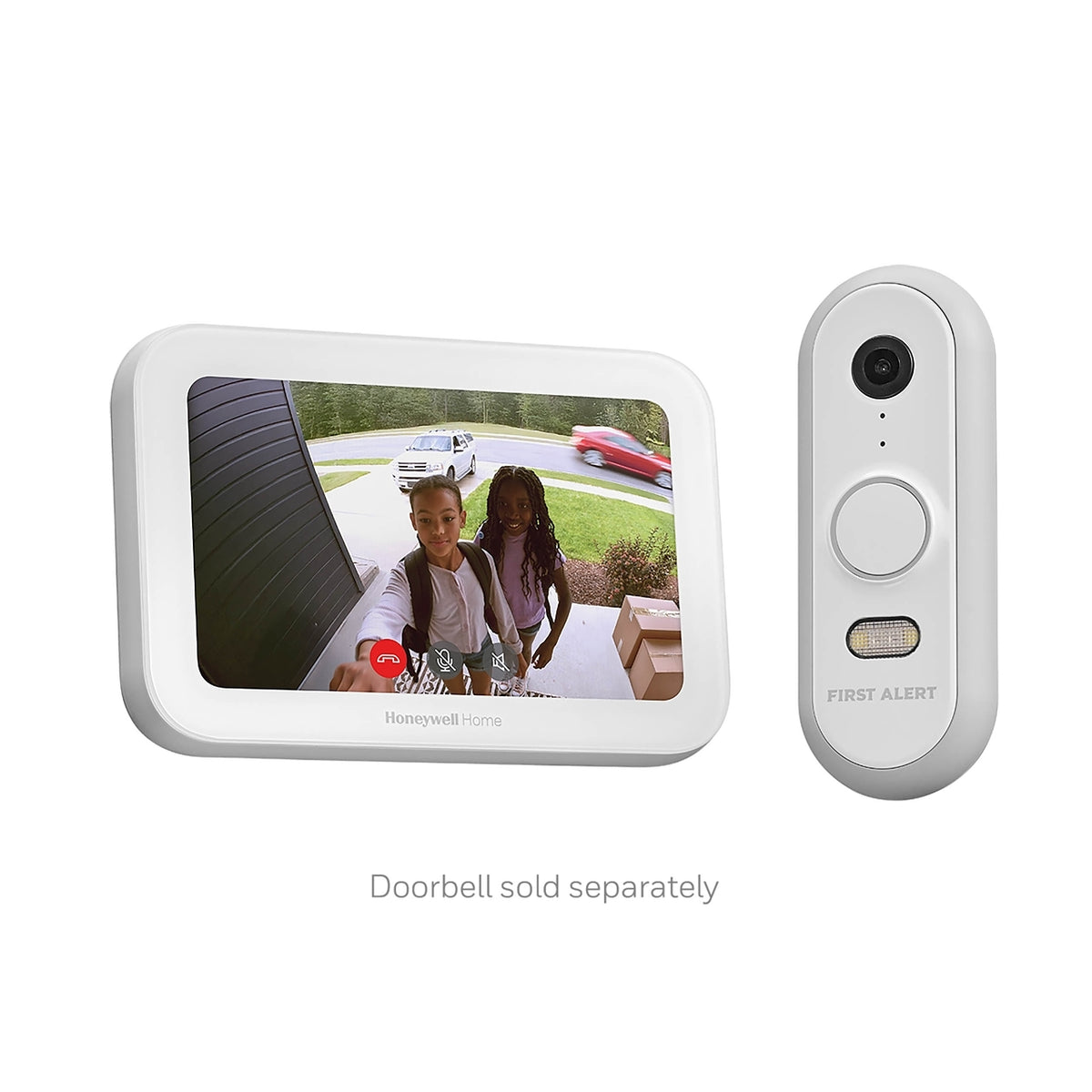

- VX1 or Ring Doorbell Compatibility
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: YTHX1200W7/U
- Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
- Stages: Up to 4H/2C Heat Pump or 3H/3C Conventional
- Smart Home Integration: Yes
- Display Size: 5 in diagonal
- Touchscreen: Yes
- Display Language: Display selectable for English, French, or Spanish
- Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat

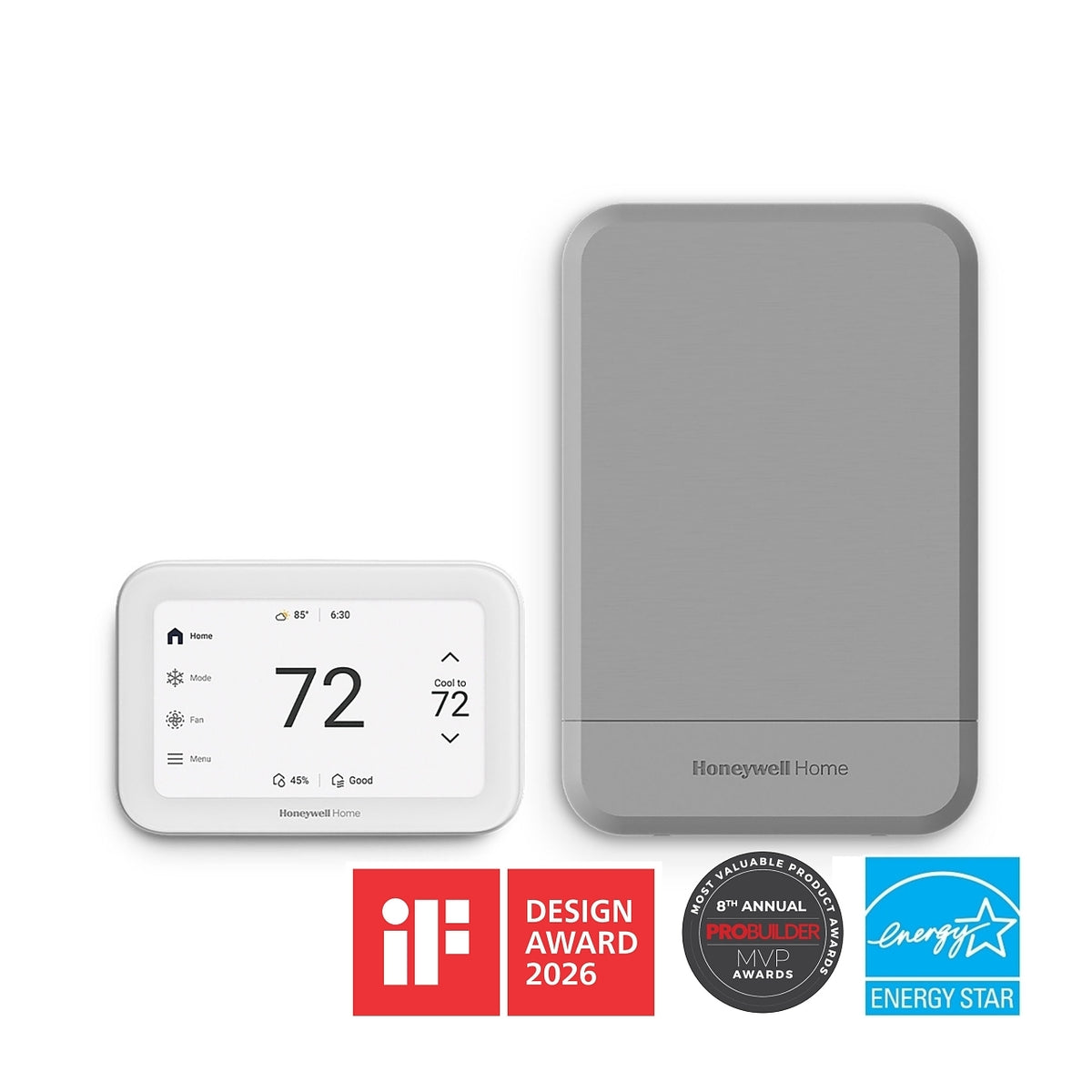

- Energy Star Certified: Yes
- Heat-Cool Changeover: Auto or Manual
- Power Supply: Hardwired, C-Wire required
- Power Source: Hardwired, C-Wire required
- Warranty: 5 Years

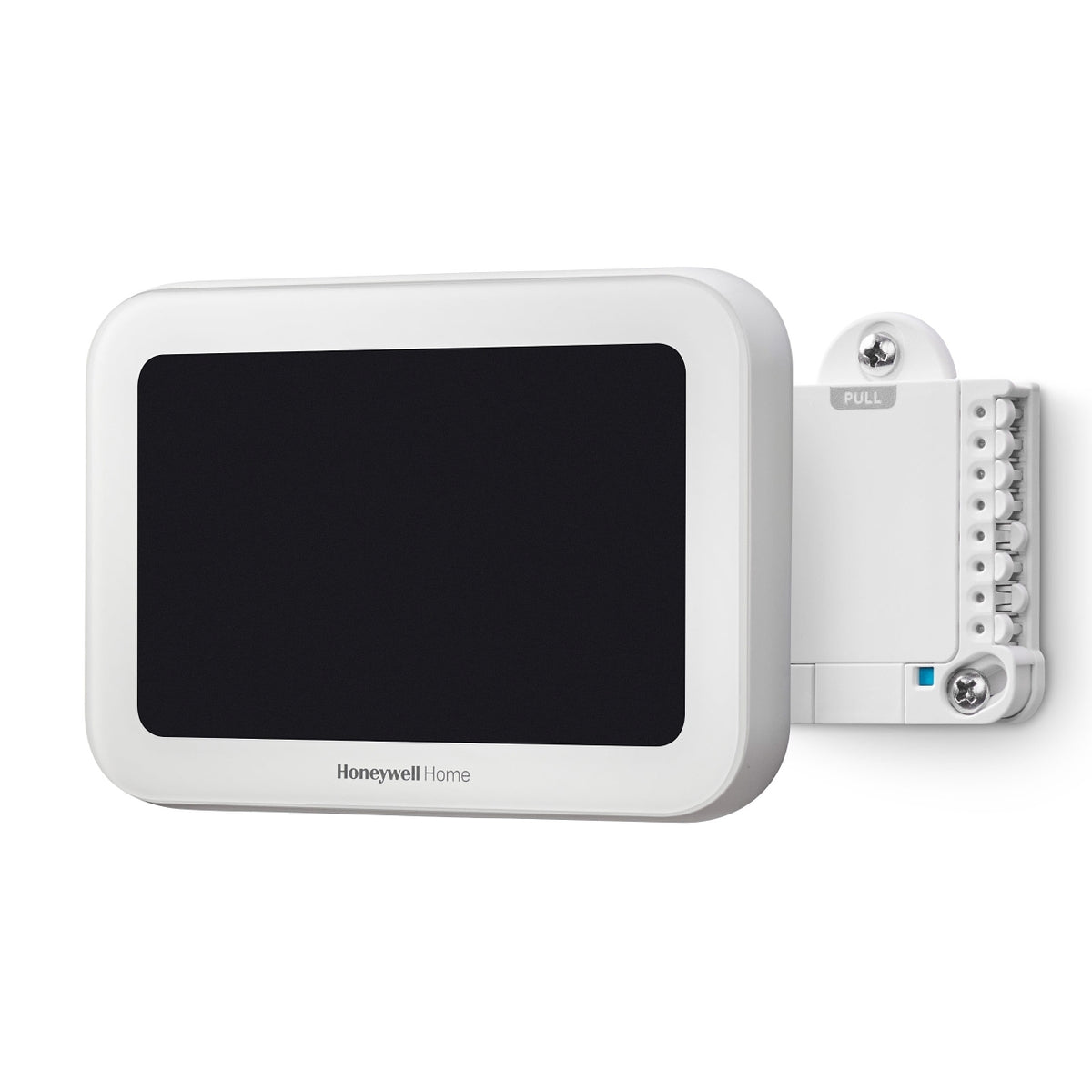

- Includes: ElitePRO™ S1200 Smart Thermostat in White, Equipment Interface Module (EIM), UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
- For Use With: C7189R3010-2 room sensor
- WiFi: Yes
- RedLINK: Yes, 3.0
- Color: White
- Ambient Operating Temperature (Max): 102 °F, 38.9 °C
- Ambient Operating Temperature (Min): 37 °F, 2.8 °C
- Operating Relative Humidity (Max): 90 % RH
- Operating Relative Humidity (Min): 5 % RH
- Auto Changeover: Yes
- Humidity Set point (Max): 90% RH
- Humidity Set point (Min): 0% RH
- Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
- Power Supply Frequency: 60 Hz
- Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
- Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10 °C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Mounting Location: J-Box, Horizontal Mount to wall
- Product Height: 3.54 in, 90 mm
- Product Width: 5.25 in, 133 mm
- Product Weight: 0.91 lb
- Product Depth: 0.96 in, 24 mm
- Features: Video Doorbell Integration, Customizable Touchscreen Display, IAQ Monitoring and Control, Smart Home Enabled, ENERGY STAR Certified, Utility Rewards, WiFi
- UPC: 194159018549
- Country of Origin: MX
- Category: Programmable Thermostats
