Honeywell Home YTHX1200W5/U ElitePRO 1200 Thermostat IAS Kit, White

Honeywell Home YTHX1200W5/U ElitePRO S1200 Smart Thermostat IAS Kit, White

Item #: HONE-YTHX1200W5/U
Mfr. part #: YTHX1200W5/U
UPC: 194159018471

Key specifications

Display Size5 in diagonal
Energy Star CertifYes
Power SupplyHardwired, C-Wire required
Power SourceHardwired, C-Wire required
For Use WithC7189R3010-2 room sensor

View all specifications

$236.47

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	YTHX1200W5/U
Application	Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
Stages	Up to 4H/2C Heat Pump or 3H/3C Conventional
Display Size	5 in diagonal
Modes of Operation	Heat, Off, Cool, Auto, Emergency Heat
Energy Star Certified	Yes
Power Supply	Hardwired, C-Wire required
Power Source	Hardwired, C-Wire required
Warranty	5 Years

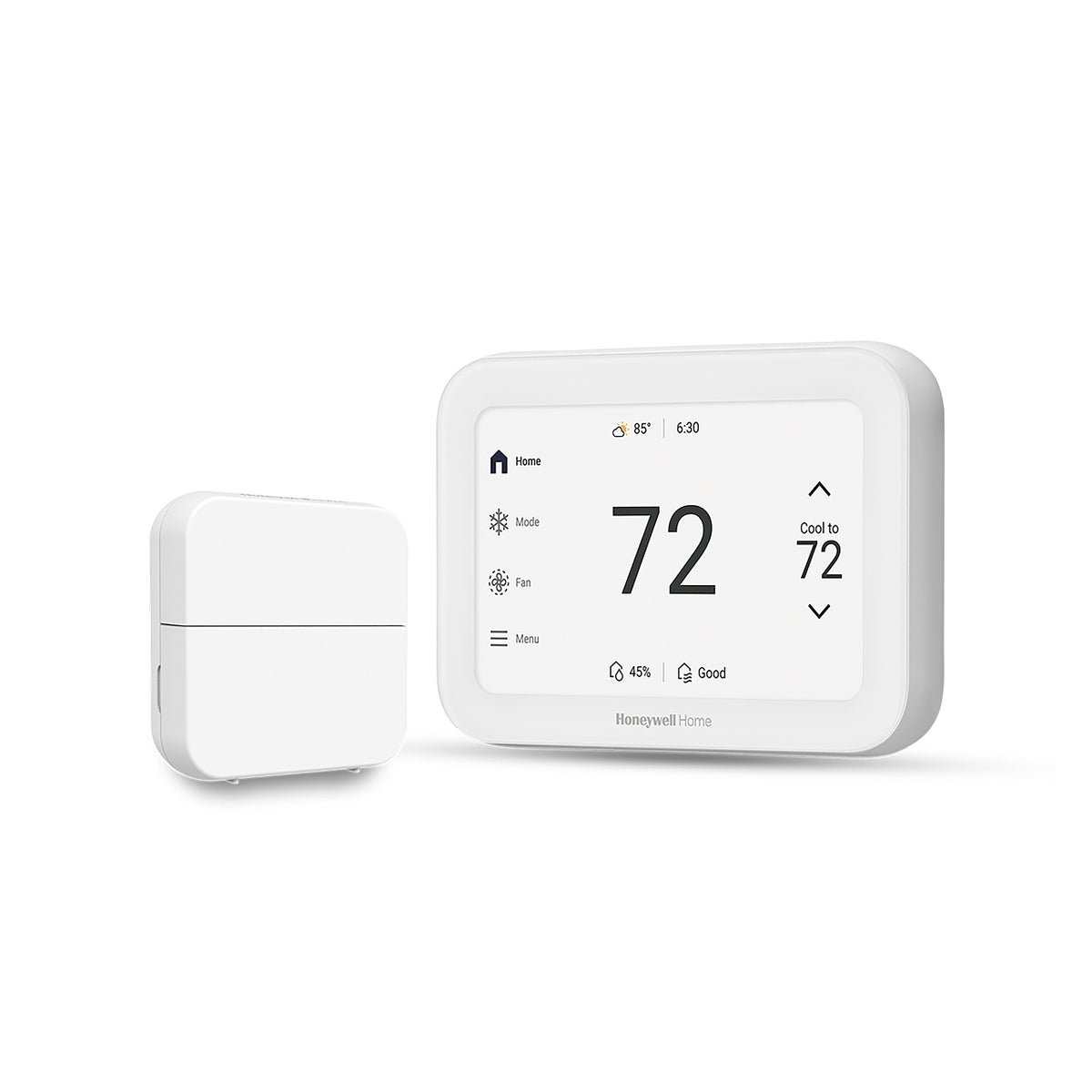

Includes	ElitePRO™ S1200 Smart Thermostat in White, Wireless indoor sensor, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
For Use With	C7189R3010-2 room sensor
WiFi	Yes
RedLINK	Yes, 3.0
Ambient Operating Temperature (Max)	102 °F, 38.9 °C
Ambient Operating Temperature (Min)	37 °F, 2.8 °C
Power Supply Frequency	60 Hz
Set point Temperature (Max)	Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
Product Height	3.54 in, 90 mm
Product Width	5.25 in, 133 mm
Product Weight	0.91 lb
Product Depth	0.96 in, 24 mm
UPC	194159018471

ElitePRO 1200 thermostat IAS kit in white.

Features

Time-Based or Smart Away programming for energy efficency
Includes Onboard Radar Sensor

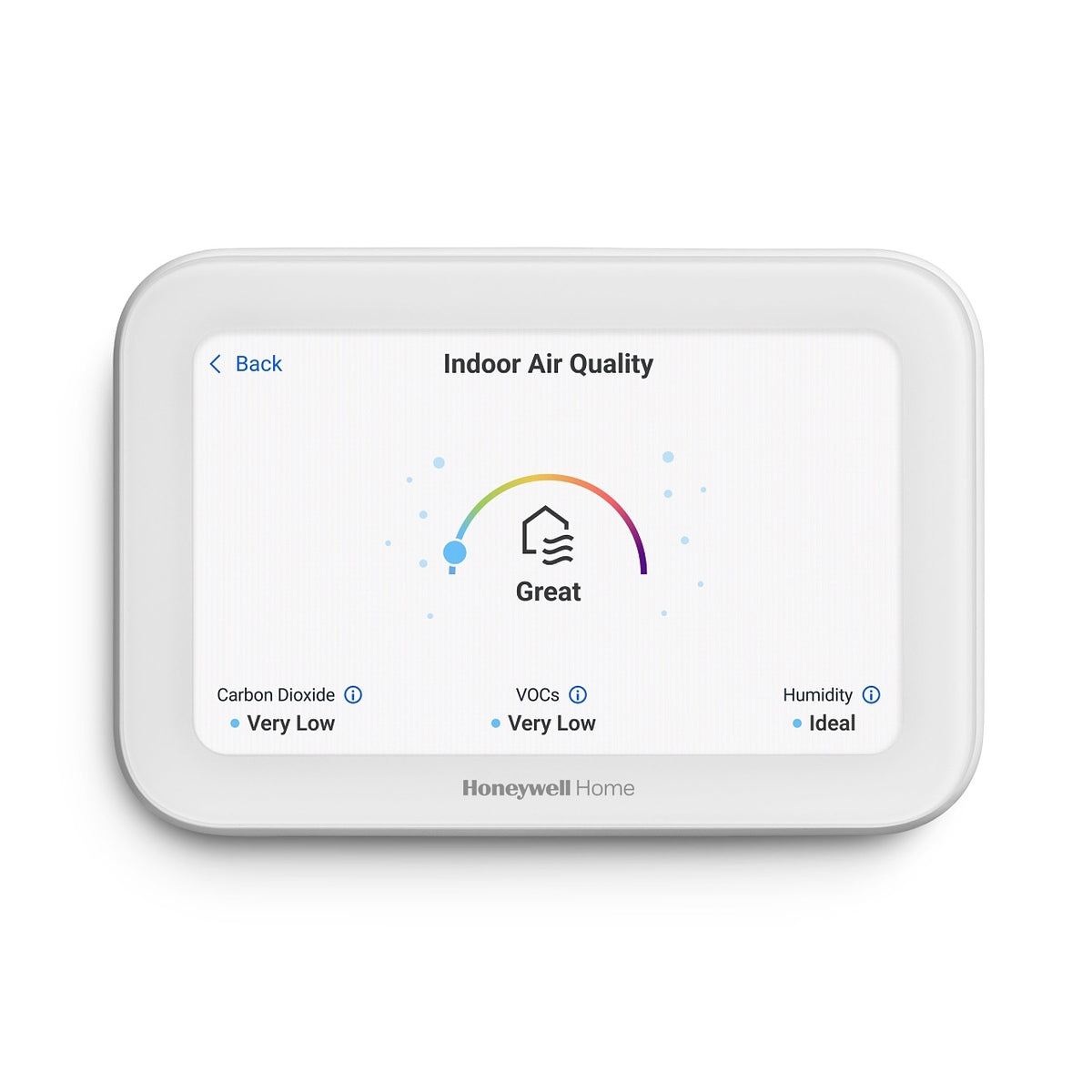

Allows Air quality monotoring

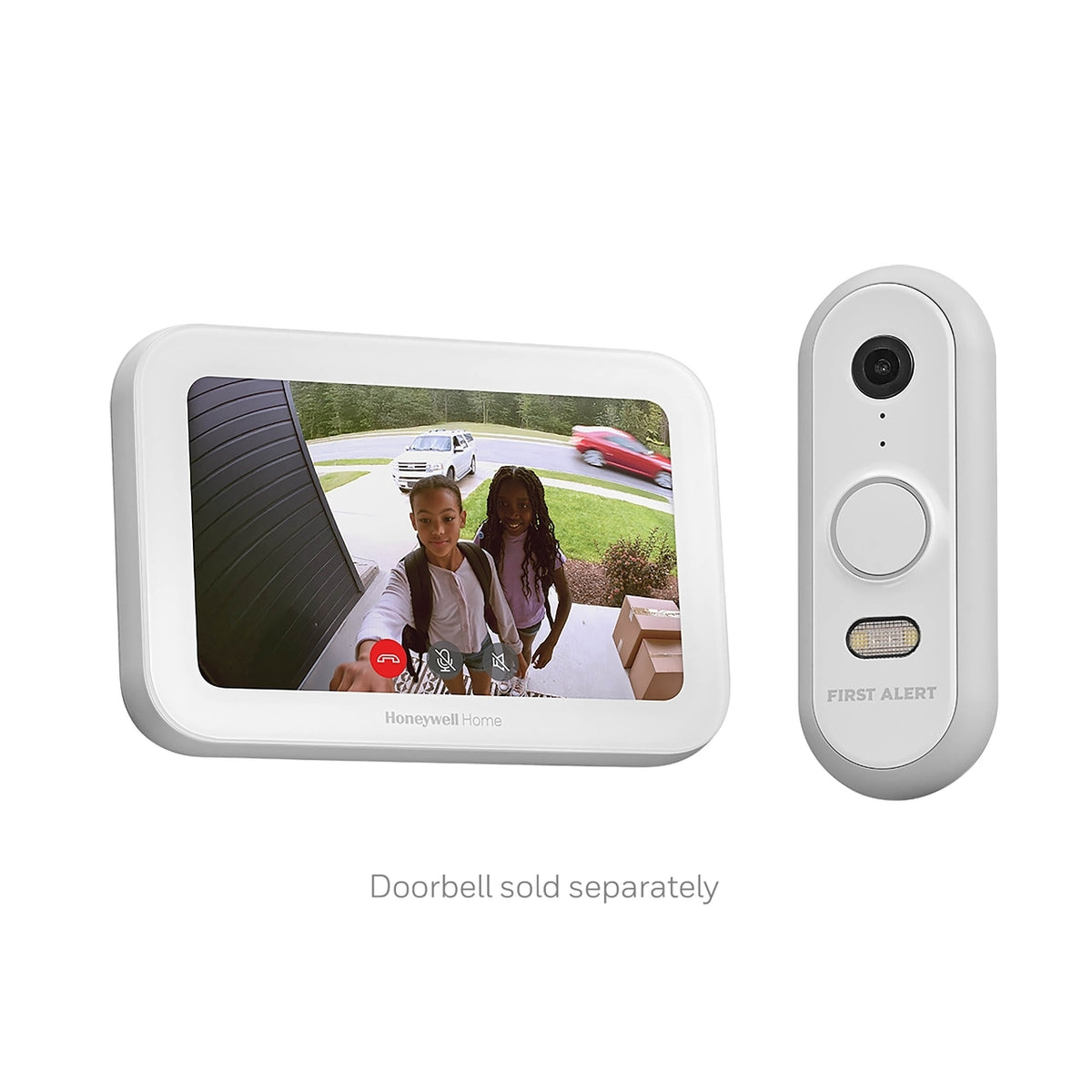

VX1 or Ring Doorbell Compatibility

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: YTHX1200W5/U
Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
Stages: Up to 4H/2C Heat Pump or 3H/3C Conventional
Smart Home Integration: Yes
Display Size: 5 in diagonal
Touchscreen: Yes
Display Language: Display selectable for English, French, or Spanish
Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
Energy Star Certified: Yes
Heat-Cool Changeover: Auto or Manual
Power Supply: Hardwired, C-Wire required
Power Source: Hardwired, C-Wire required
Warranty: 5 Years
Includes: ElitePRO™ S1200 Smart Thermostat in White, Wireless indoor sensor, UWP® Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
For Use With: C7189R3010-2 room sensor
WiFi: Yes
RedLINK: Yes, 3.0
Color: White
Ambient Operating Temperature (Max): 102 °F, 38.9 °C
Ambient Operating Temperature (Min): 37 °F, 2.8 °C
Operating Relative Humidity (Max): 90 % RH
Operating Relative Humidity (Min): 5 % RH
Auto Changeover: Yes
Humidity Set point (Max): 90% RH
Humidity Set point (Min): 0% RH
Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
Power Supply Frequency: 60 Hz
Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10 °C
Shipping and Storage Temperature (Max): 120 °F, 49 °C
Shipping and Storage Temperature (Min): -20 °F, -29 °C

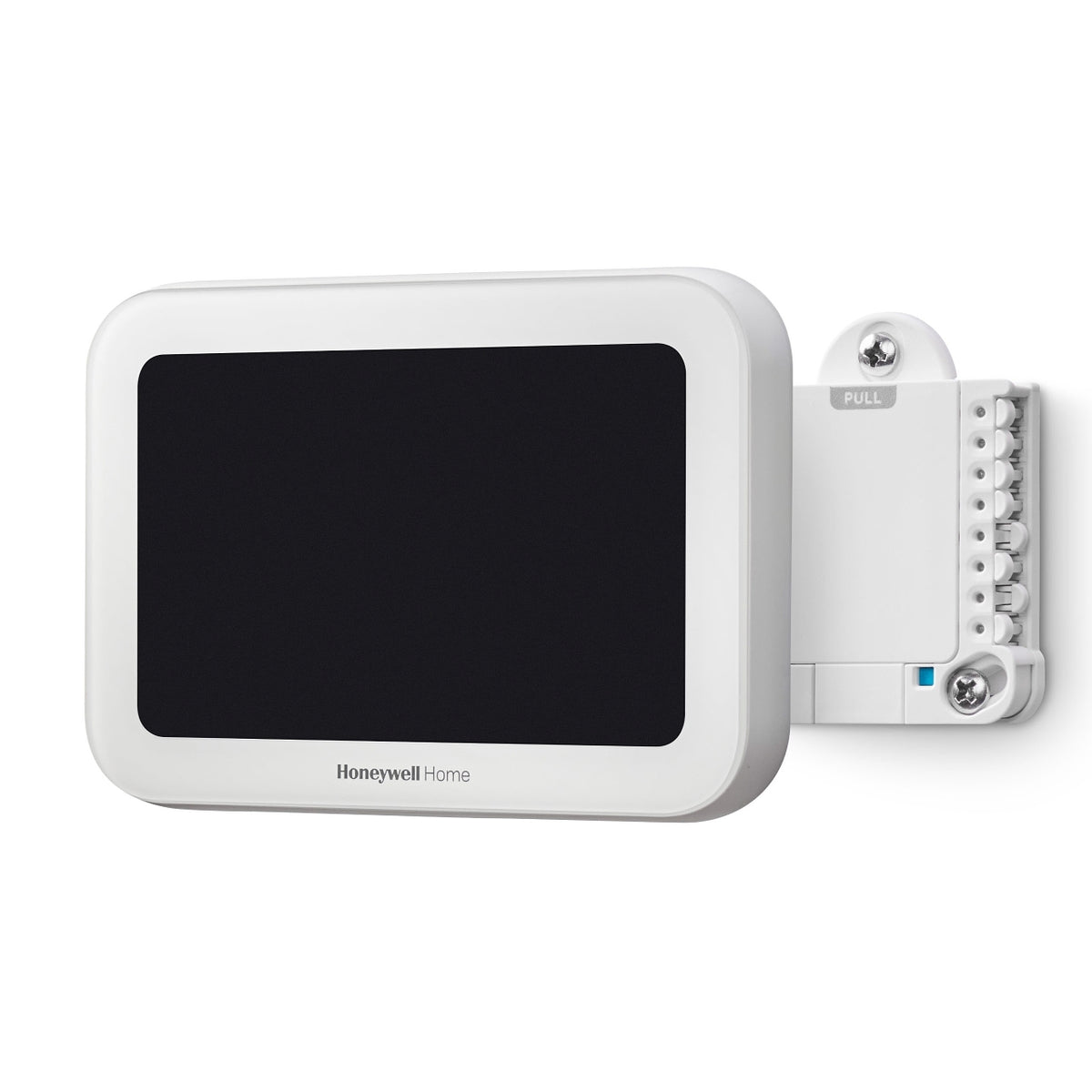

Mounting Location: J-Box, Horizontal Mount to wall
Product Height: 3.54 in, 90 mm
Product Width: 5.25 in, 133 mm
Product Weight: 0.91 lb
Product Depth: 0.96 in, 24 mm
Features: Video Doorbell Integration, Customizable Touchscreen Display, IAQ Monitoring and Control, Smart Home Enabled, ENERGY STAR Certified, Utility Rewards, WiFi
UPC: 194159018471
Country of Origin: MX
Category: Programmable Thermostats
