Description

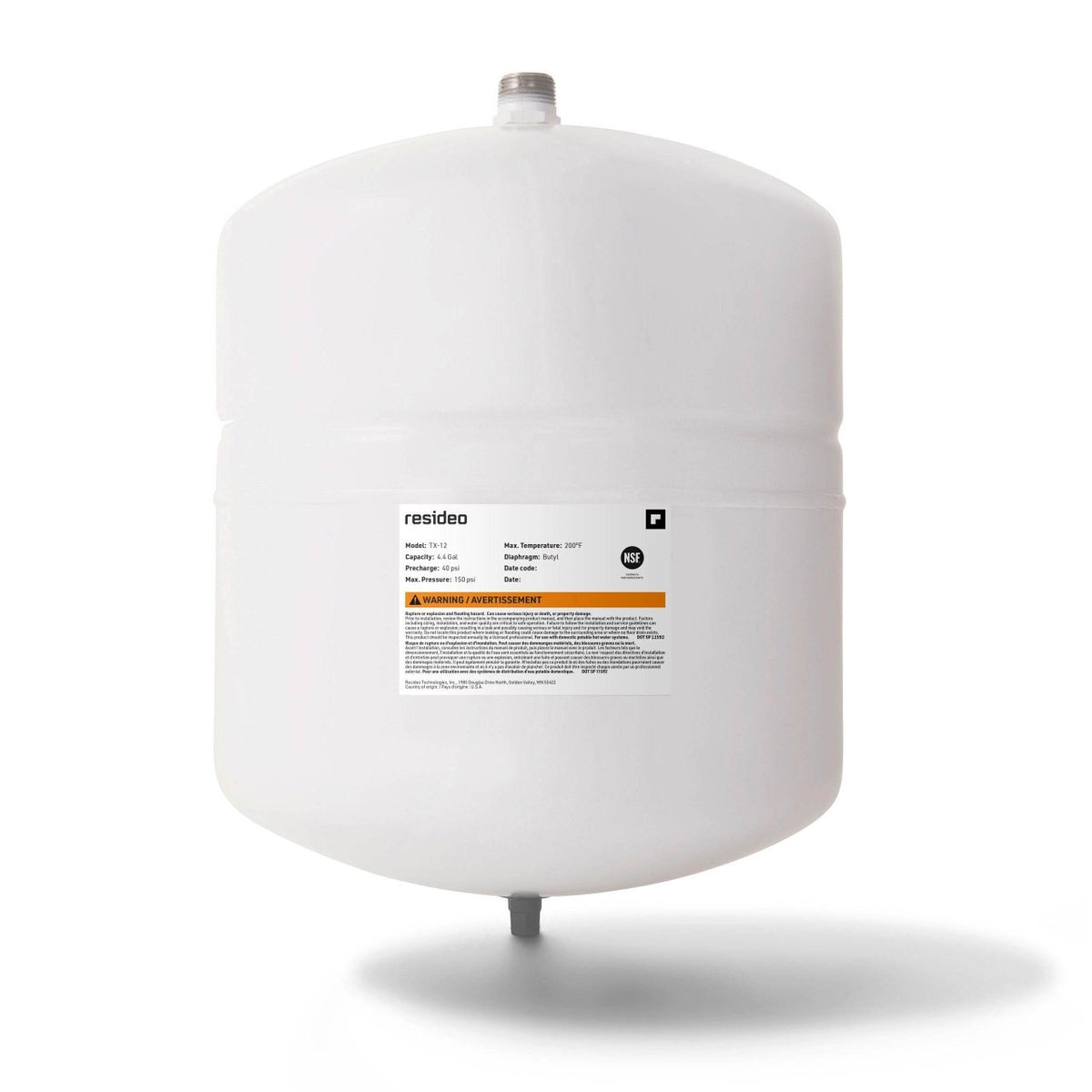

Potable water expansion tank with 4.4-gallon volume and 3/4 in external male NPT connection, rated to 150 psi and 200°F maximum.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TX-12/U
- Application: Hydronic Volume Expansion
- Approvals and Standards: SBCCI, NSF/ANSI 61, City of Los Angeles, IAPMO listed
- Compatible With: Potable Hot Water Systems
- Operating Temperature (Max): 200 °F, 93 °C
- Tank Safe Operating Pressure (Max): 150 psi, 1034 kPa
- Connection Size: 3/4 in
- Connection Type: NPT
- Connector Type: Male
- Warranty: 7 Years
- Color: White
- Body Material: Steel
- Diaphragm Material: Butyl/EPDM Compound
- Surface Protection: Polypropylene
- Maximum Acceptance Volume: 3.2 gal
- Product Height: 12.63 in, 321 mm
- Product Weight: 9 lb, 4.1 kg
- Pre-Charge Pressure: 40 psi, 276 kPa
- Hazmat Information: UN 1002, AIR, COMPRESSED, 2.2
- UPC: 085267830041
- Country of Origin: US
- Category: System Fill Tanks & Autofills
