Name: Resideo VF06-100-SUSUT/U 1/2 in Union Sweat and NPT Pressure-Reducing Valve (PRV)
Brand: Resideo
SKU: HONE-VF06-100-SUSUT/U
Price: 105.20 USD
Availability: InStock

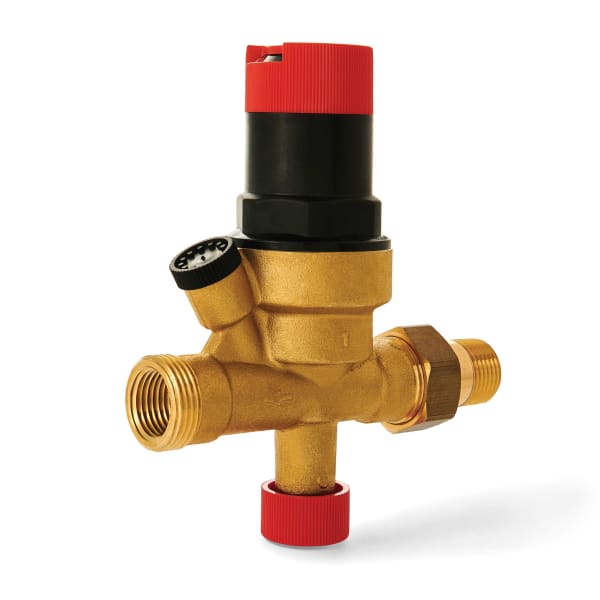

1/2 in Union Sweat and NPT Pressure-Reducing Valve (PRV)

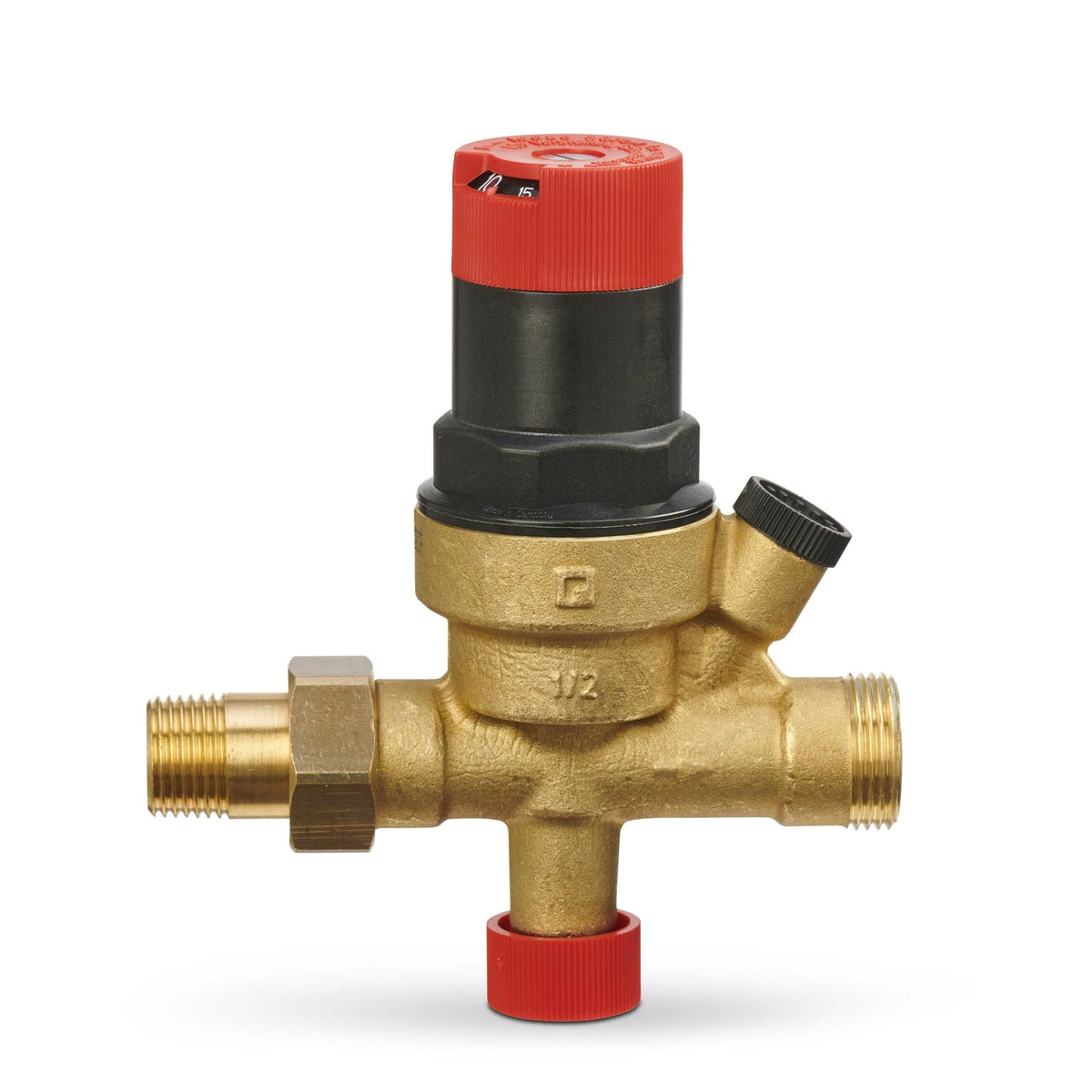

Resideo 1/2 in Union Sweat and NPT Pressure-Reducing Valve (PRV)

Roll over image to zoom in Click on image to zoom

Pipe Size	1/2 in. Inlet Size-- 1/2 in.
Connection Type	NPT; Inlet--Sweat or Threaded
Valve Type	Fast Fill
Ambient Temperature	212 F Maximum
Materials (Body)	Brass
Application	Fast fill pressure regulating boiler feed valve with check valve.
Dimensions	4 1/8 in. high x 5 5/16 in. long
Maximum Safe Operating Pressure (psi)	150 psi
Weight (lb)	1.8 lb
Weight (kg)	0.8 kg
Pressure Range (psi)	4 psi to 60 psi

Submittal Sheet for Dialset Boiler Fill Valve, FM911 = VF06 + BP900 (English) PDF ↗
Installation Instructions for Braukmann Dialset Boiler Fill Valve VF06-100-SUSUT (English) PDF ↗

The VF06-100-SUSUT is a fast fill pressure-reducing boiler feed valve from Resideo (Honeywell Home), 1/2 in, 4 psi to 60 psi adjustable.

The reducing valve is what decides the cold fill pressure of the system, and cold fill pressure is what decides whether the top of the building has water in it. Too low and the upper floor is air; too high and the relief valve weeps every time the boiler comes up to temperature.

Set it to the static head plus a margin — roughly one psi for every 2.3 feet from the valve to the highest point, plus about 4 psi so the top is still under pressure when hot. The factory setting suits a two-story house and nothing else.

Fast fill lets it be opened wide to charge a dry system and then returned to regulating.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VF06-100-SUSUT/U
Type: Fast fill pressure-reducing boiler feed valve
Pipe size: 1/2 in
Connection: NPT; Inlet: Sweat or Threaded
Valve type: Fast Fill
Pressure range: 4 psi to 60 psi
Body material: Brass
Maximum pressure: 150 psi
Dimensions: 4 1/8 in high x 5 5/16 in long
UPC: 085267168175
Shipping weight: 1.76 lb
Category: Boiler Fill Valves

Full Specifications

Application	Fast fill pressure regulating boiler feed valve with check valve
Valve Type	Boiler Valve
Compatible With	Especially constructed for expansion tank mounting.
Warranty	5 years
Inlet Connection Size	1/2 in
Inlet Connection Type	NPT
Outlet Connection Size	1/2 in
Outlet Connection Type	NPT
Operating Pressure (Max)	150 psi, 1034 kPa
Outlet Pressure (Min)	8 psi
Outlet Pressure (Max)	50 psi
Color	Black, Brass, Red
Valve Body Material	Brass
Valve Seal Material	NBR
Ambient Operating Temperature (Max)	212 °F, 100 °C
Product Height	4.13 in
Product Length	5.31 in
Product Weight	0.8 kg, 1.8 lb
