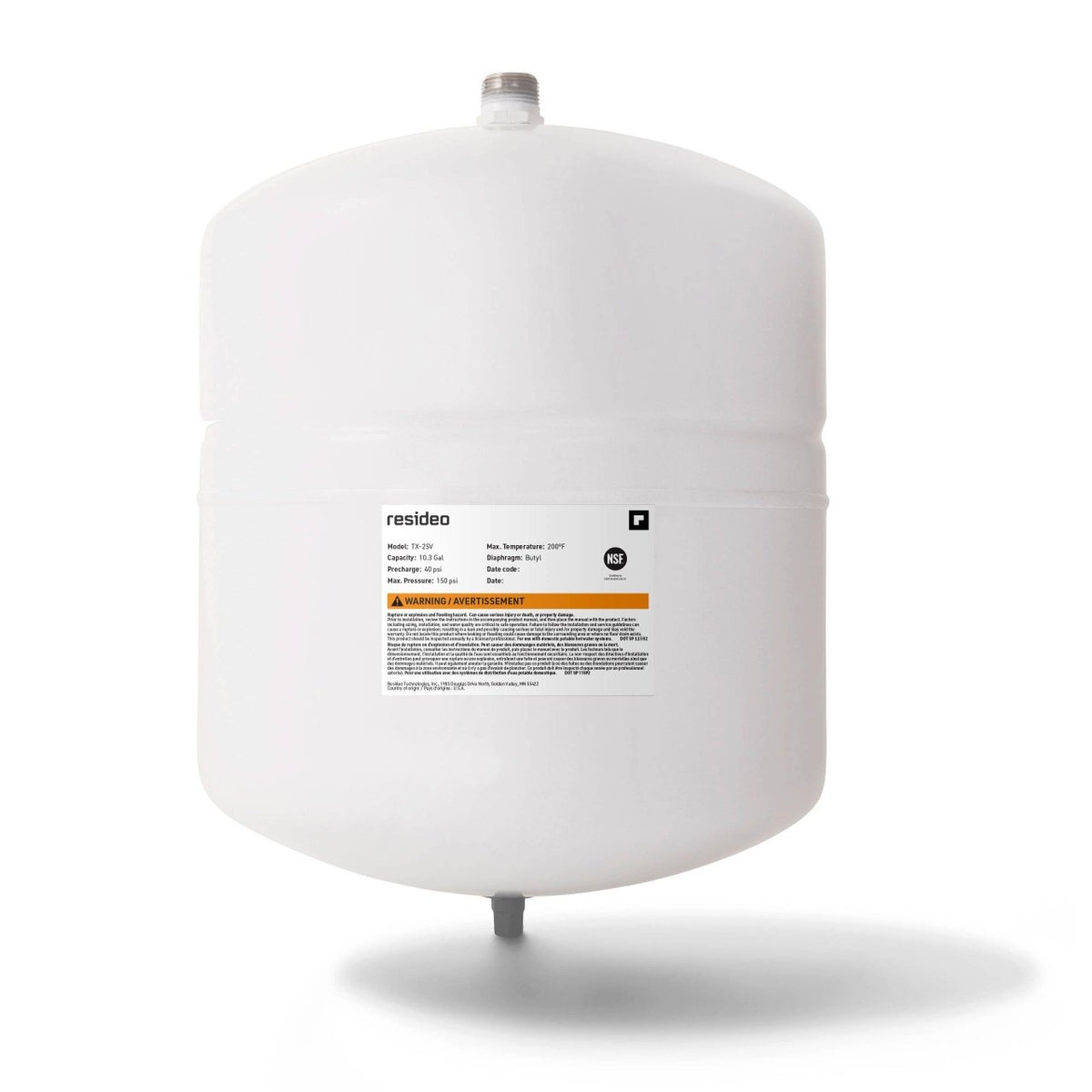

Resideo TX-25V/U Potable Water Expansion Tank, 10.3 Gallon, 1 in Female NPT

Potable water expansion tank with 10.3-gallon volume and 1 in internal female NPT connections, rated to 150 psi and 200°F maximum.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TX-25V/U
• Application: Hydronic Volume Expansion
• Approvals and Standards: SBCCI, NSF/ANSI 61, City of Los Angeles, IAPMO listed
• Compatible With: Potable Hot Water Systems
• Operating Temperature (Max): 200 °F, 93 °C
• Tank Safe Operating Pressure (Max): 150 psi, 1034 kPa
• Connection Size: 3/4 in
• Connection Type: NPT
• Connector Type: Male
• Warranty: 7 Years
• Color: White
• Body Material: Steel
• Diaphragm Material: Butyl/EPDM Compound
• Surface Protection: Polypropylene
• Maximum Acceptance Volume: 10.3 gal
• Product Height: 19.25 in, 489 mm
• Product Weight: 23 lb, 10.4 kg
• Pre-Charge Pressure: 40 psi, 276 kPa
• Hazmat Information: Dangerous Goods In Excepted Quantities
• UPC: 085267830140
• Country of Origin: US
• Category: System Fill Tanks & Autofills
