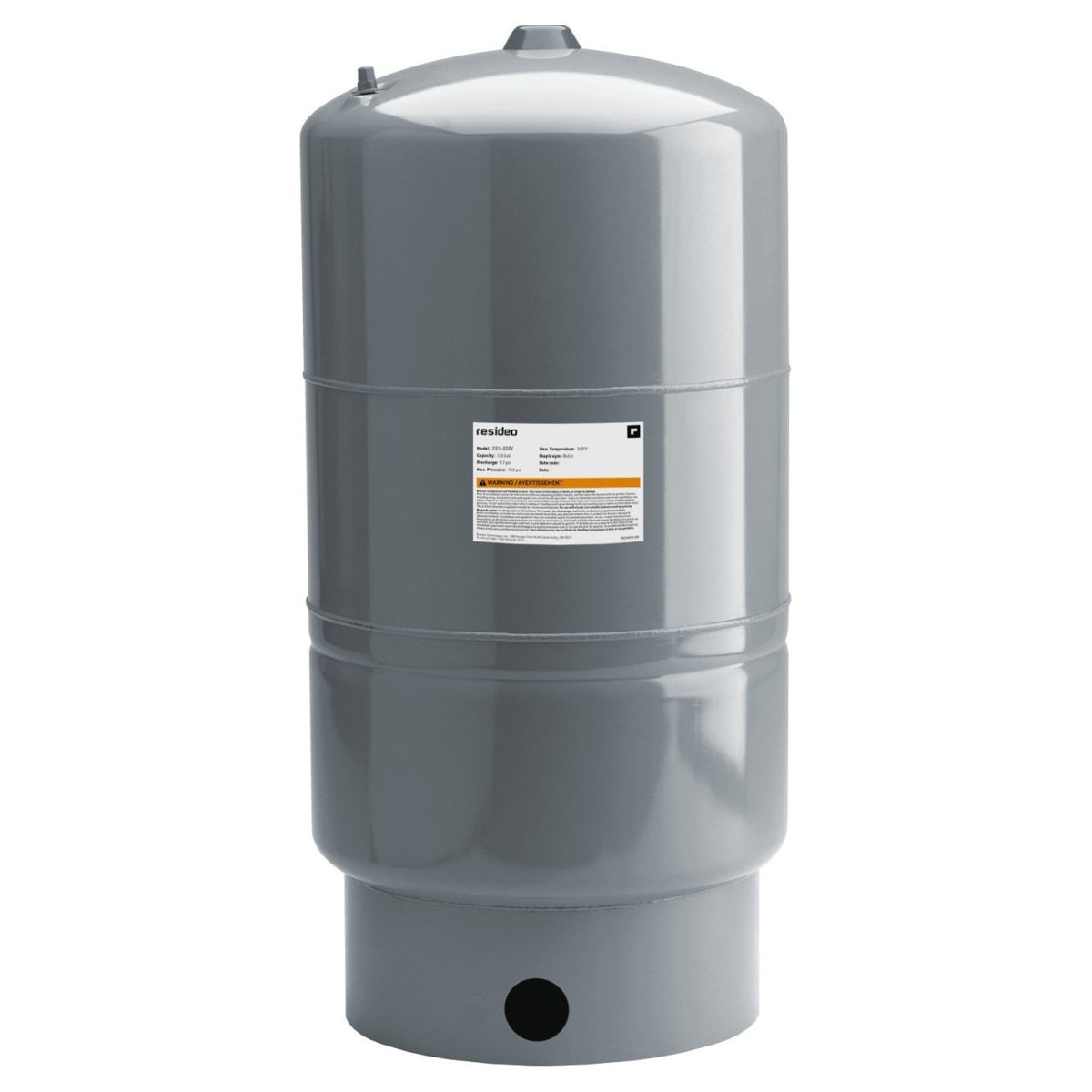

Resideo XPS-040V/U XPS Series Thermal Expansion Tank, 20 Gallon Vertical, 1 in Female NPT

XPS Series vertical thermal expansion tank with 20-gallon capacity and a 1 in female NPT connection, non-ASME construction, for closed heating systems only.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: XPS-040V/U
• Application: Hydronic Volume Expansion
• Compatible With: Closed Heating Systems
• Operating Temperature (Max): 240 °F, 115 °C
• Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
• Connection Size: 1 in
• Connection Type: Female NPT
• Connector Type: Female
• Warranty: 1 Year
• Color: Gray
• Body Material: Steel
• Diaphragm Material: Butyl/EPDM Compound
• Maximum Acceptance Volume: 11.3 gal, 42.8 L
• Product Height: 31.63 in, 803 mm
• Product Weight: 33 lb, 15 kg
• Pre-Charge Pressure: 12 psi, 83 kPa
• UPC: 085267260558
• Country of Origin: US
• Category: System Fill Tanks & Autofills
