Description

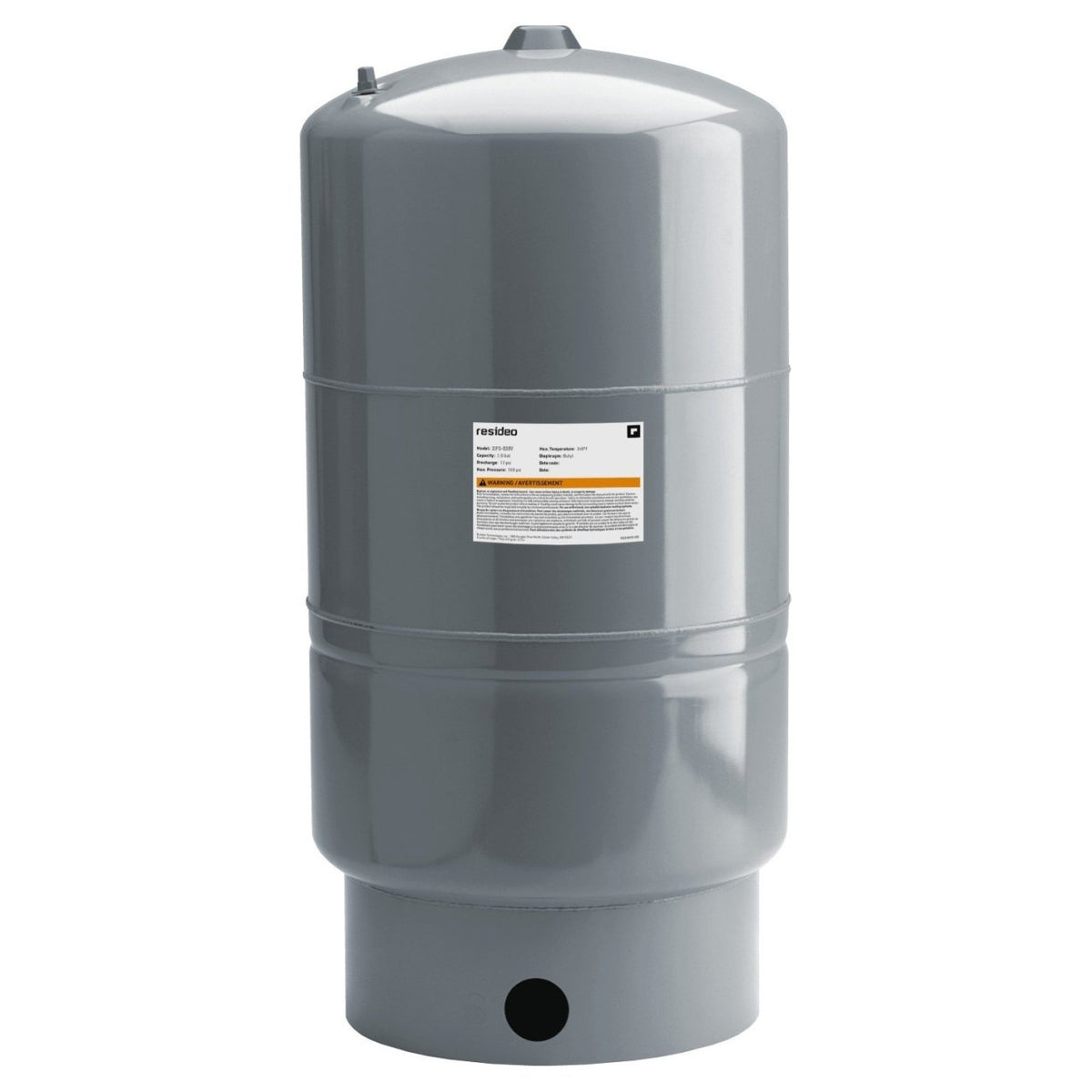

XPS Series vertical thermal expansion tank with 86-gallon capacity and a 1 1/4 in female NPT connection, non-ASME construction, for closed heating systems only.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: XPS-160V/U
- Application: Hydronic Volume Expansion
- Compatible With: Closed Heating Systems
- Operating Temperature (Max): 240 °F, 115 °C
- Tank Safe Operating Pressure (Max): 100 psi, 689 kPa
- Connection Size: 1 1/4 in
- Connection Type: Female NPT
- Connector Type: Female
- Warranty: 1 Year
- Color: Gray
- Body Material: Steel
- Diaphragm Material: Butyl/EPDM Compound
- Maximum Acceptance Volume: 46 gal, 174.3 L
- Product Height: 47.25 in, 1200 mm
- Product Weight: 123 lb, 55.9 kg
- Pre-Charge Pressure: 12 psi, 83 kPa
- UPC: 085267260596
- Country of Origin: US
- Category: System Fill Tanks & Autofills
