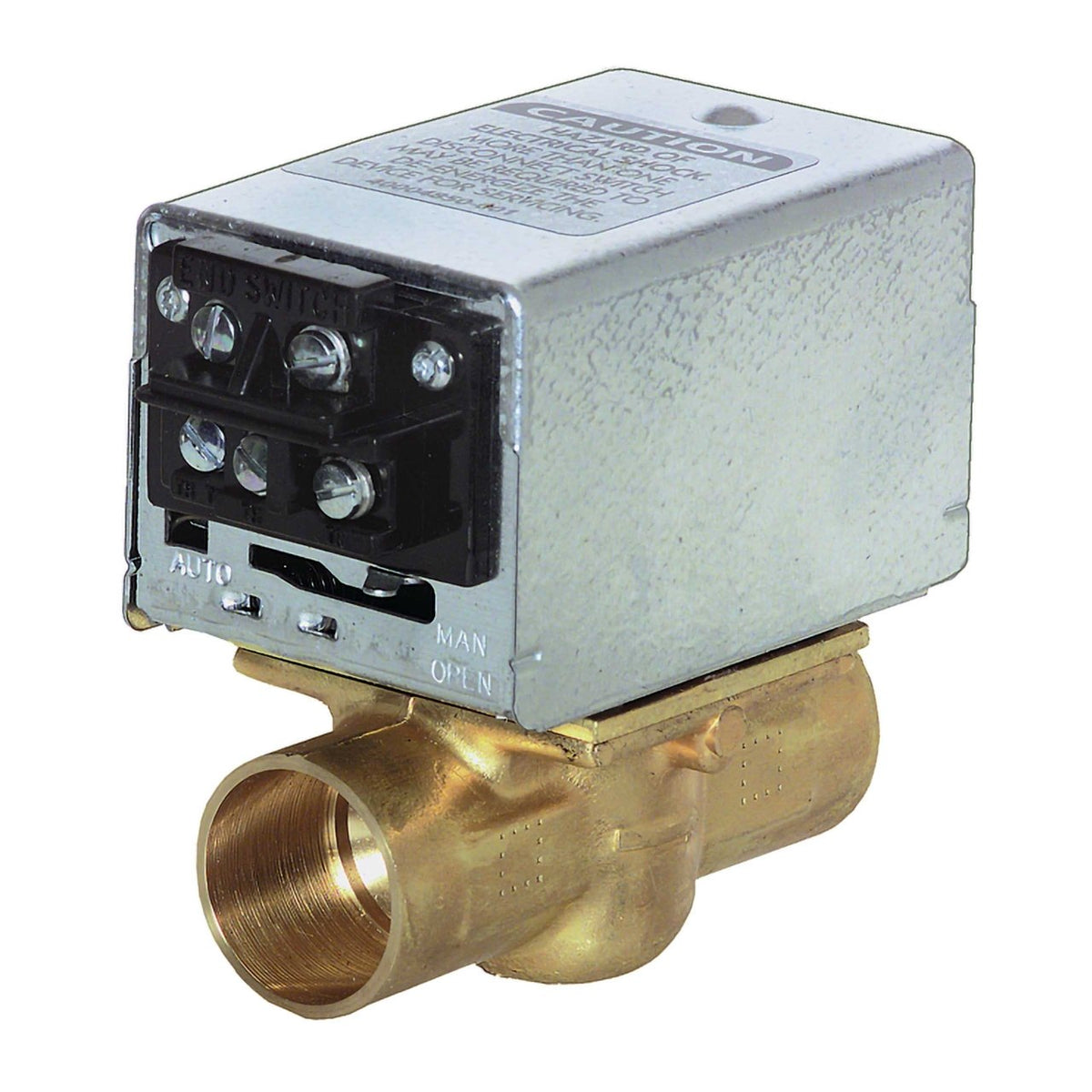

Honeywell Home V8043F1036/U Zone Valve, 3/4 in Sweat, 3.5 Cv, 24 VAC, Screw Terminal

24 V/60 Hz zone valve with 3/4 in sweat connection, 3.5 Cv and screw terminal wiring.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: V8043F1036/U
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Approvals and Standards: UL Recognized: File MH11826
• Color: Brass, Black
• Includes: End switch enclosure, Manual Opener
• Product Height: 4 in, 102 mm
• Product Length: 2.38 in, 60 mm
• Product Width: 3.69 in, 89 mm
• Warranty: 1 Year
• Ambient Operating Temperature (Max): 125 °F, 52 °C
• Connection Type: Sweat
• Differential pressure for close-off (Max): 20 psi, 138 kPa
• Fail-Safe Operation Type: Spring return to close
• Flow Coefficient: 3.5 Cv, 3 Kvs
• Media Temperature (Min): 50 °F, 10 °C
• Media Temperature (Max): 200 °F, 93 °C
• Actuator Control Signal: Two position
• Actuator Opening Time: 15 seconds
• Static Pressure Rating: 125 psi, 862 kPa
• Valve Body Material: Brass
• Valve Body Pattern: Two-way, Straight Through
• Valve Plug Material: Buna-N (NBR) Rubber
• Valve Seat Material: Brass
• Valve Start Position: Closed
• Valve Stem Material: Stainless Steel
• UPC: 085267000765
• Country of Origin: HU
• Category: 2-Way Zone Valve
