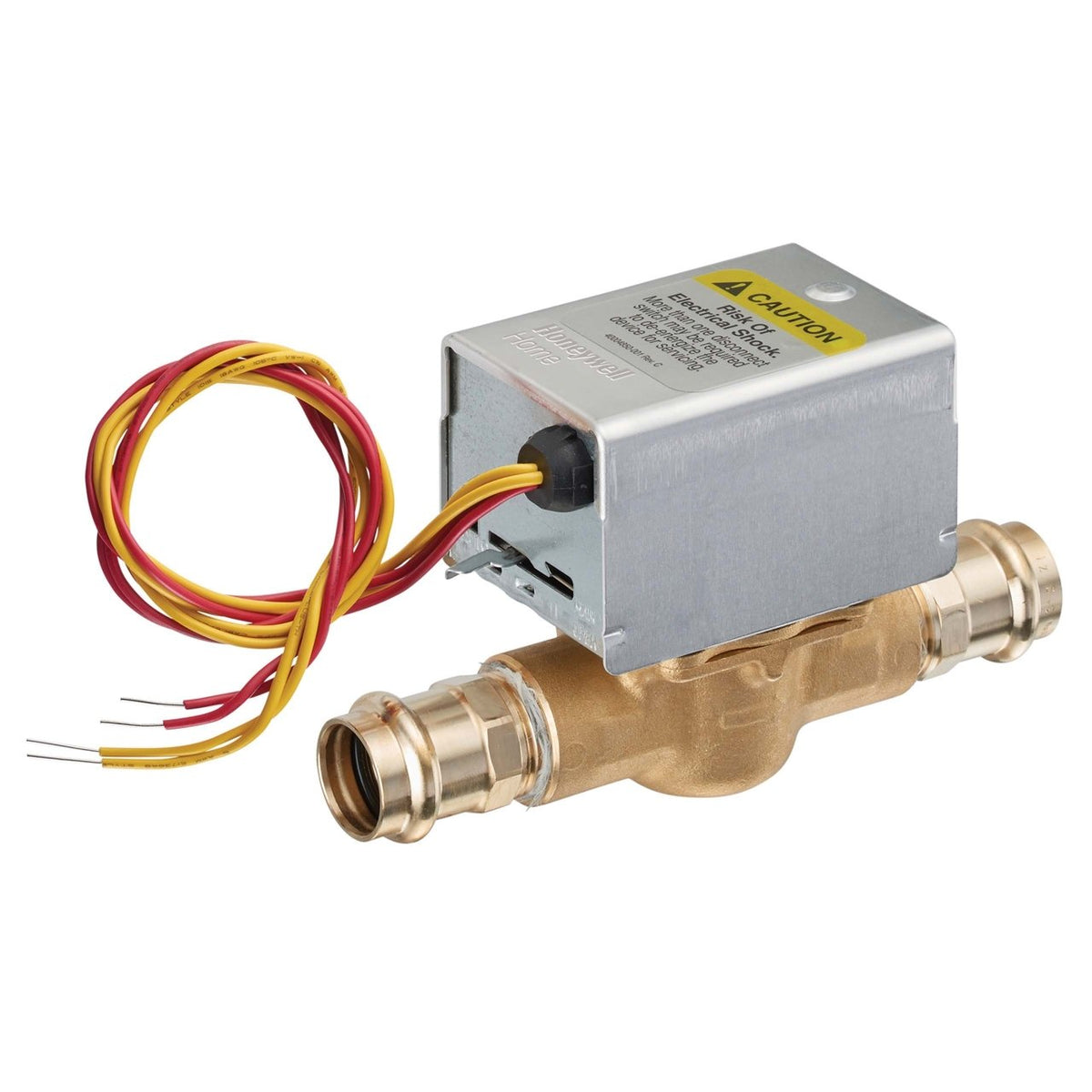

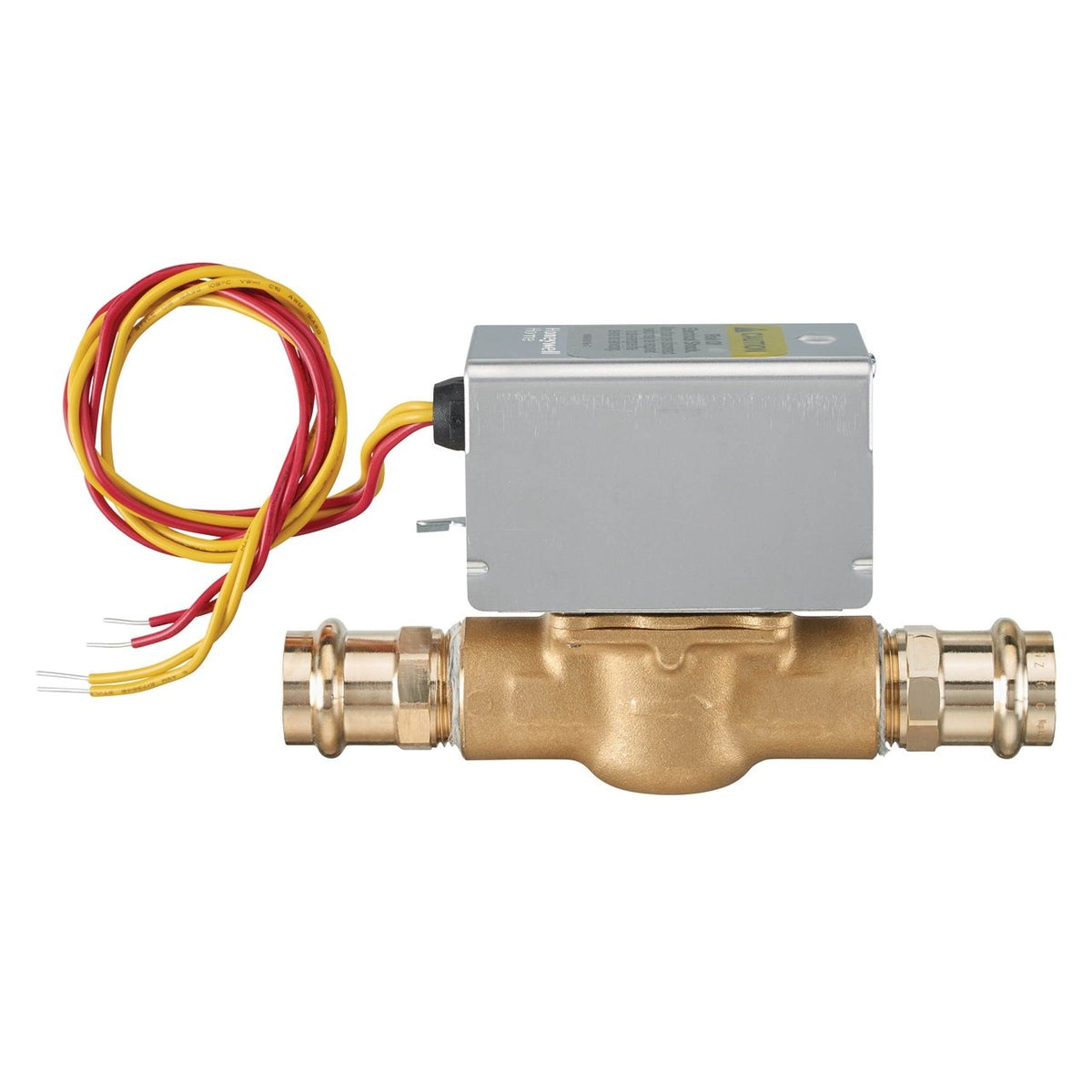

Honeywell Home V8043E1712/U 3/4 in Press Zone Valve, 8 Cv
Honeywell Home

Honeywell Home V8043E1712/U 3/4 in Press Zone Valve, 8 Cv

Item #
HONE-V8043E1712/U
UPC
5059087021649
Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.
$175.36
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandHoneywell Home
UPC5059087021649

3/4 in press-connection zone valve with 8 Cv.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: V8043E1712/U
  • Power Loss Action: Valve Closed
  • Valve Ball Material: Buna-N (NBR) Rubber
  • Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
  • Color: Brass
  • Includes: End switch enclosure, Manual Opener
  • Product Height: 4 in
  • Product Length: 6.78 in
  • Product Width: 2.37 in
  • Warranty: 1 Year
  • Ambient Operating Temperature (Max): 125 °F, 52 °C
  • Connection Type: Pro Press
  • Differential pressure for close-off (Max): 20 psi, 138 kPa
  • Fail-Safe Operation Type: Spring return to close
  • Flow Coefficient: 8.0 Cv, 8.0 Kv
  • Media Temperature (Min): 40 °F, 4 °C
  • Media Temperature (Max): 200 °F, 93 °C
  • Static Pressure Rating: 120 psi, 827 kPa
  • Valve Body Material: Brass
  • Valve Body Pattern: Two-way, Straight Through
  • Valve Plug Material: Buna-N (NBR) Rubber
  • Valve Seat Material: Brass
  • Valve Start Position: Closed
  • Valve Stem Material: Stainless Steel
  • UPC: 5059087021649
  • Country of Origin: HU
  • Category: 2-Way Zone Valve
