Description

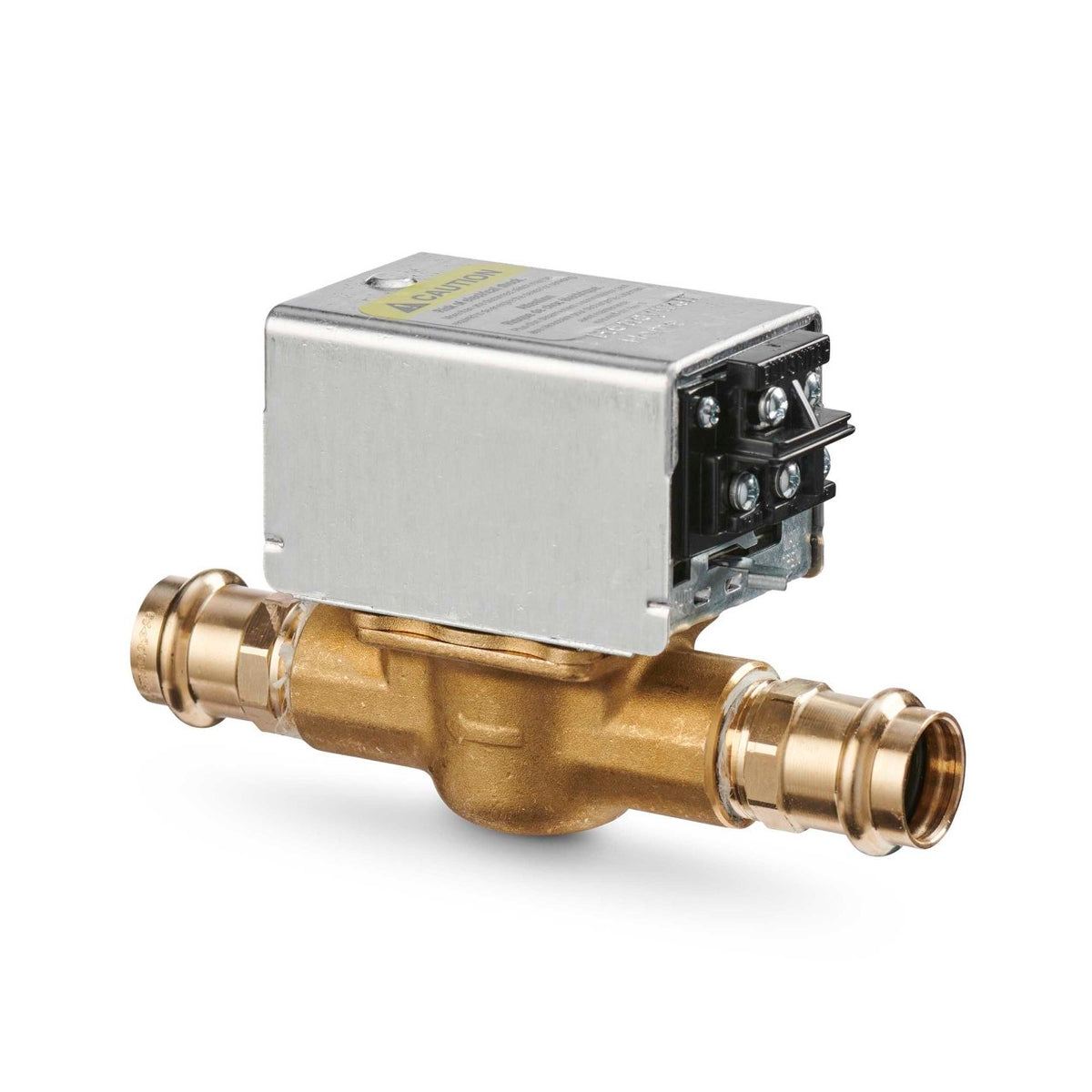

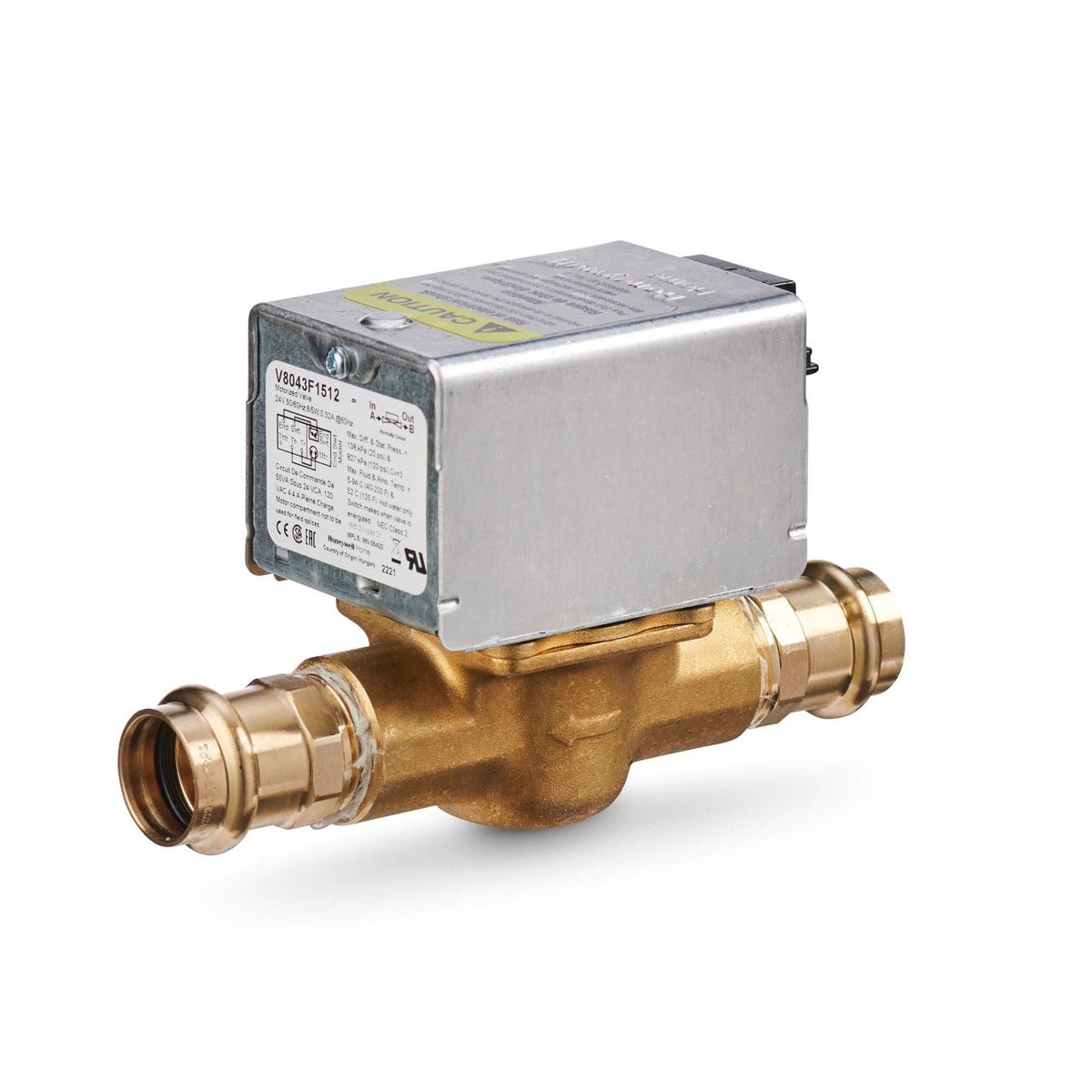

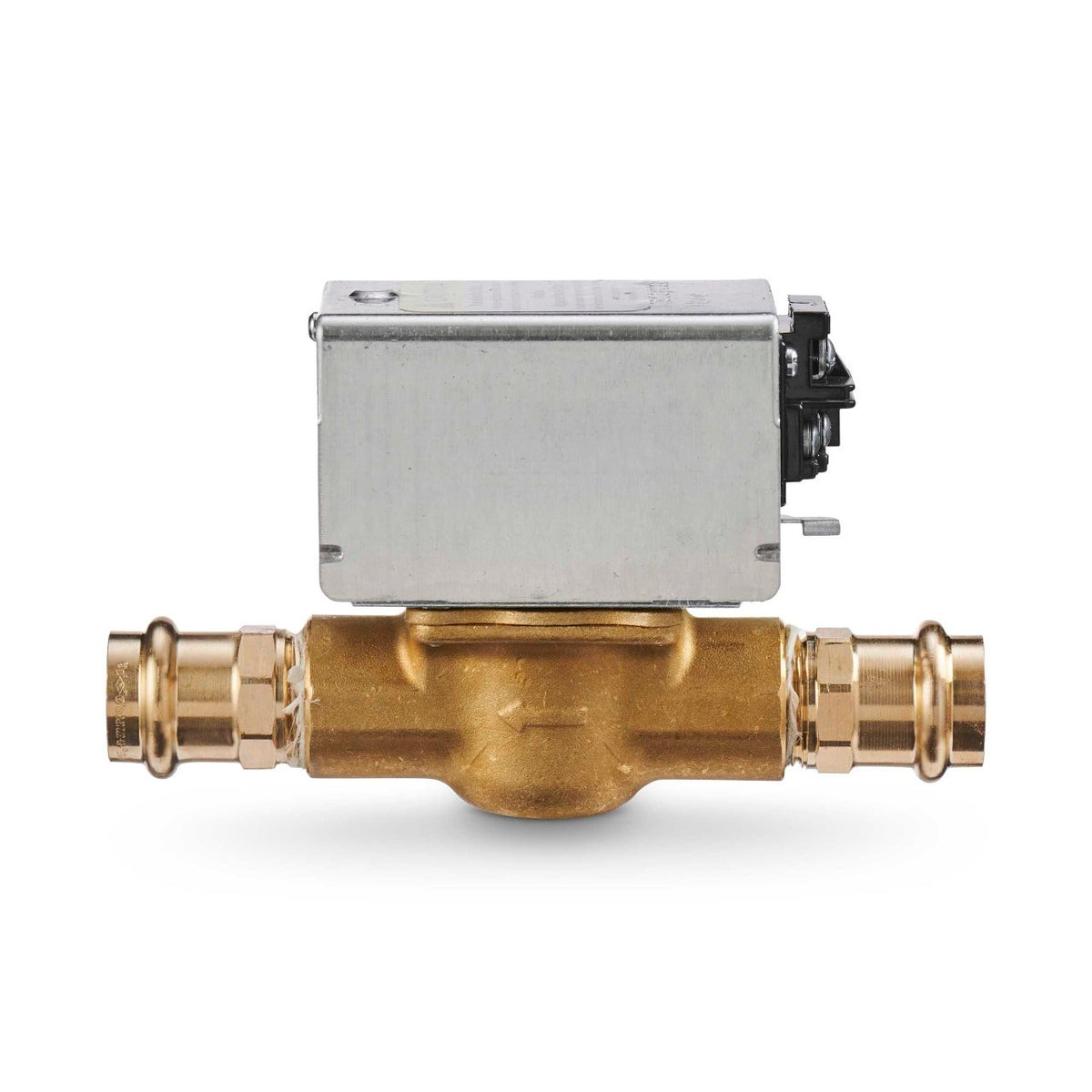

3/4 in press-connection zone valve with 8 Cv.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V8043F1812/U
- Power Loss Action: Valve Closed
- Valve Ball Material: Buna-N (NBR) Rubber
- Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
- Color: Brass
- Includes: End switch enclosure, Manual Opener
- Product Height: 4 in
- Product Length: 6.88 in
- Product Width: 2.37 in
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: Pro Press
- Differential pressure for close-off (Max): 20 psi, 138 kPa
- Fail-Safe Operation Type: Spring return to close
- Flow Coefficient: 8.0 Cv, 8.0 Kv
- Media Temperature (Min): 40 °F, 4 °C
- Media Temperature (Max): 200 °F, 93 °C
- Static Pressure Rating: 120 psi, 827 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Plug Material: Buna-N (NBR) Rubber
- Valve Seat Material: Brass
- Valve Start Position: Closed
- Valve Stem Material: Stainless Steel
- UPC: 5059087021656
- Country of Origin: HU
- Category: 2-Way Zone Valve
