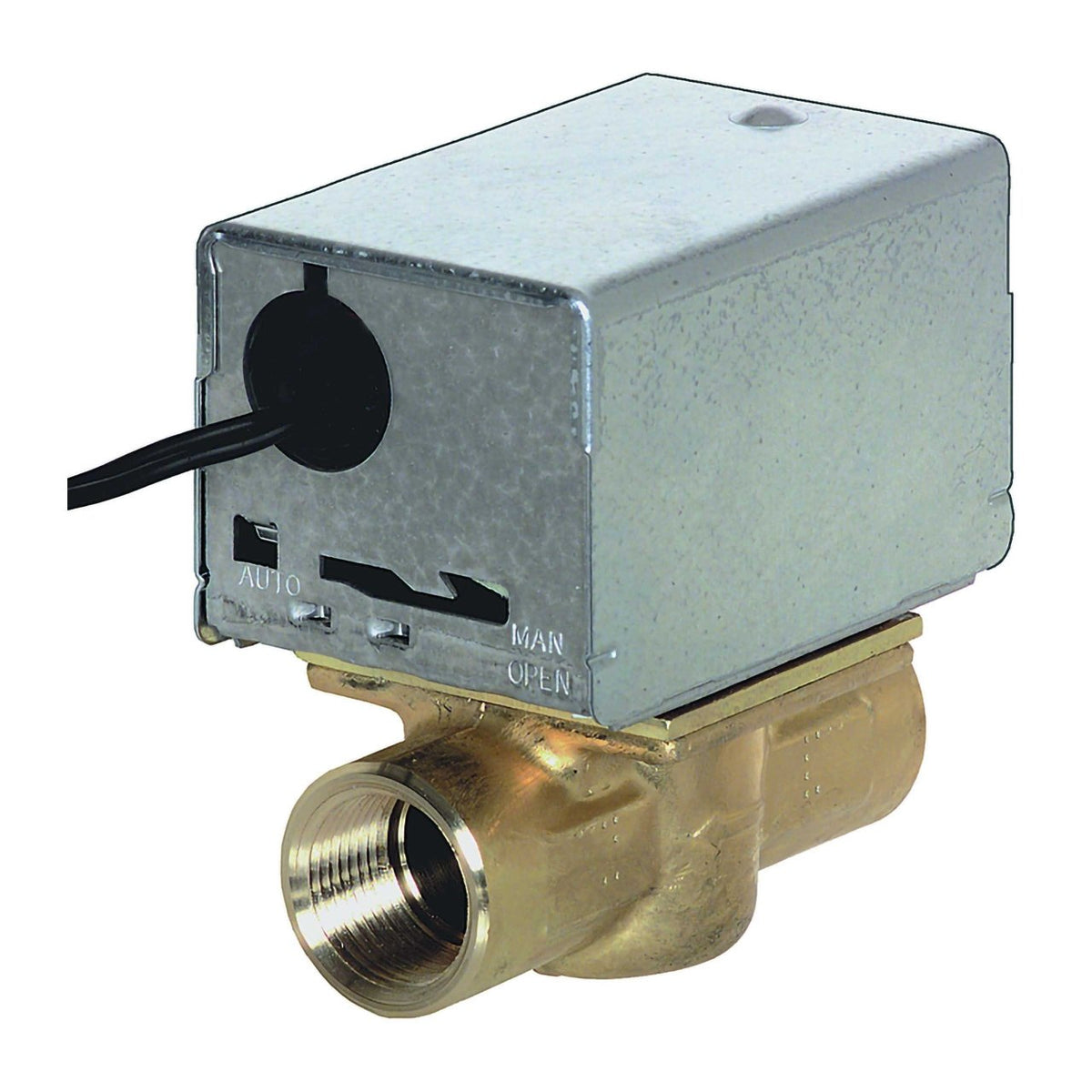

Honeywell Home V8043J1037/U Normally Open Zone Valve for 15 psi Steam, 3/4 in NPT, 24 VAC
Honeywell Home

Honeywell Home V8043J1037/U Normally Open Zone Valve for 15 psi Steam, 3/4 in NPT, 24 VAC

Item #
HONE-V8043J1037/U
Mfr. part #
V8043J1037/U
UPC
085267812368
Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.
$173.34
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.3 lb
  • Box size: 5.05 × 4.55 × 3.6 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandHoneywell Home
Manufacturer part #V8043J1037/U
UPC085267812368

Normally open 24 V/60 Hz zone valve with 3/4 in NPT connection for 15 psi steam.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: V8043J1037/U
  • Valve Ball Material: EPDM
  • Approvals and Standards: UL Listed: File MH11826
  • Color: Brass
  • Product Height: 4 in, 102 mm
  • Product Length: 2.38 in, 60 mm
  • Product Width: 3.75 in, 94 mm
  • Warranty: 1 Year
  • Ambient Operating Temperature (Max): 125 °F, 52 °C
  • Connection Type: NPT
  • Differential pressure for close-off (Max): 20 psi, 138 kPa
  • Flow Coefficient: 3.5 Cv; 3 Kvs
  • Media Temperature (Min): 50 °F, 10 °C
  • Media Temperature (Max): 240 °F, 116 °C
  • Static Pressure Rating: 125 psi, 862 kPa
  • Valve Body Material: Brass
  • Valve Body Pattern: Two-way, Straight Through
  • Valve Plug Material: EPDM Rubber Ball
  • Valve Seat Material: Brass
  • Valve Start Position: Open
  • Valve Stem Material: Stainless Steel
  • UPC: 085267812368
  • Country of Origin: HU
  • Category: 2-Way Zone Valve

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
