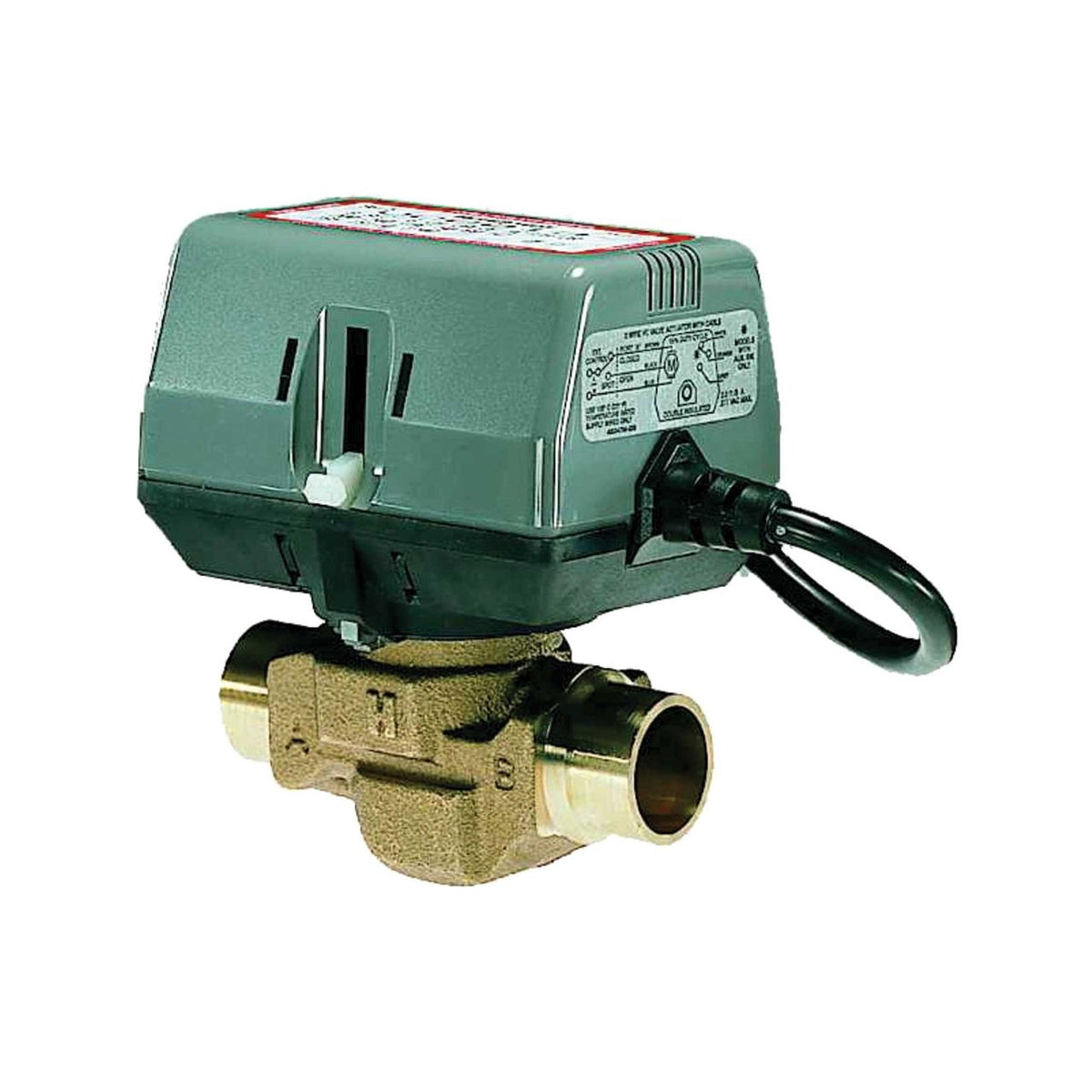

Honeywell Home VC8715AM1000/U VC 2-Way Valve and Actuator, 3/4 in Sweat, 5.8 Cv, 24 VAC 60 Hz, SPDT End Switch

VC 2-way valve with 24 V 60 Hz actuator, 6 sec timing, 3-wire plus common for SPST controller, SPDT end switch, 1 m cable; 3/4 in sweat, 5.8 Cv.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VC8715AM1000/U
• Color: Bronze
• Includes: Valve VCZAM1100, Actuator VC8715ZZ11, Aux Switch
• Product Height: 2.38 in, 113 mm
• Product Length: 3.5 in, 94 mm
• Product Width: 2.75 in, 68 mm
• Warranty: 5 years
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Connection Type: Sweat
• Differential pressure for close-off (Max): 60 psi, 400 kPa
• Fail-Safe Operation Type: Stays in place
• Flow Coefficient: 5.8 Cv; 5.0 Kvs
• Media Temperature (Min): 34 °F, 1 °C
• Media Temperature (Max): 203 °F, 95 °C
• Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Valve Body Material: Bronze
• Valve Body Pattern: Three-way
• Valve Flow Characteristic: Quick Opening
• Valve Seat Material: EPDM
• Valve Stem Length: 10 mm
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• UPC: 085267819657
• Country of Origin: HU
• Category: 2-Way Zone Valve
