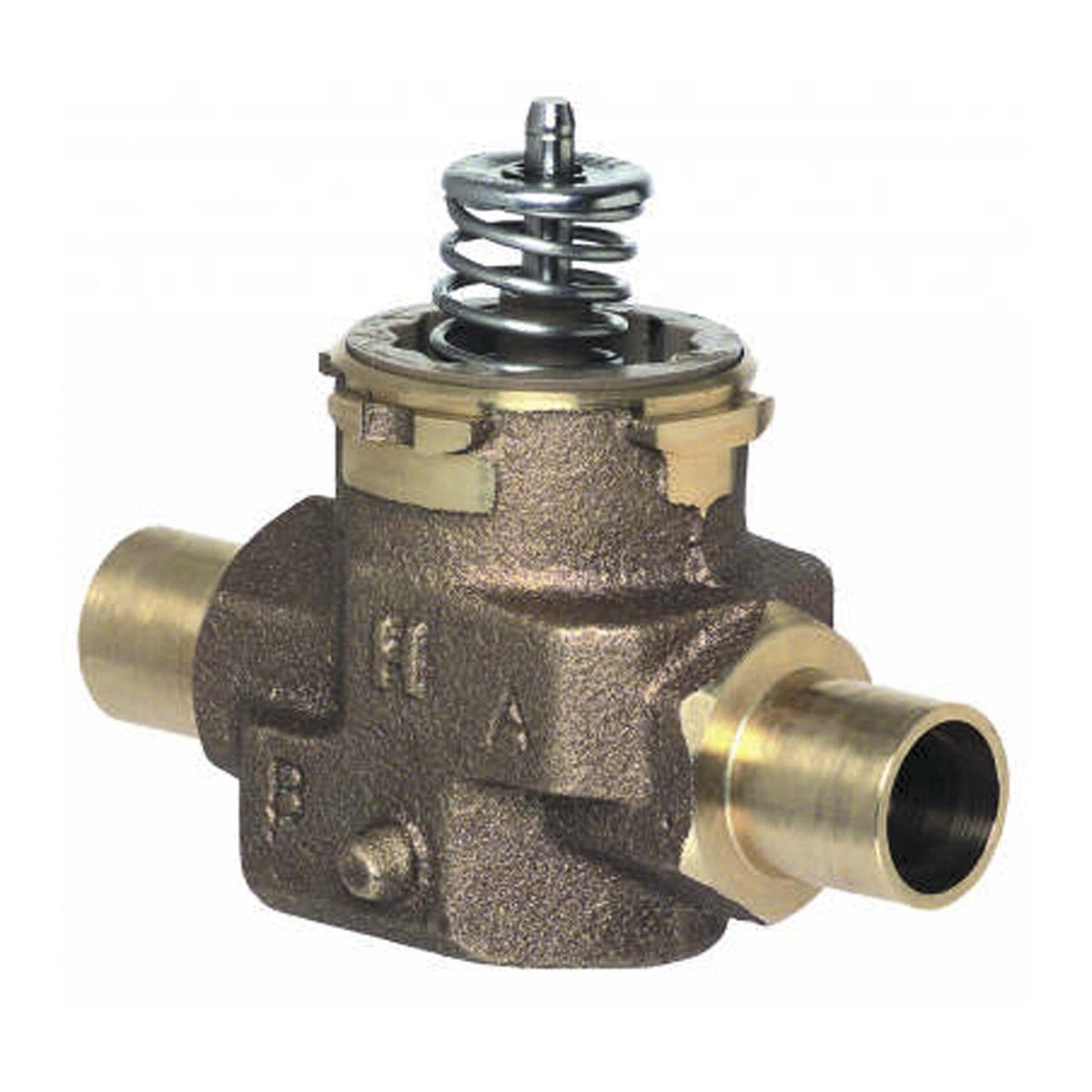

Honeywell Home VC6930BB1832/U VC 2-Way Valve, 1/2 in, 24 VAC 50/60 Hz, 120 Sec

VC 2-way valve, 1/2 in, 24 V 50/60 Hz, 3-wire, 120 sec timing.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VC6930BB1832/U
• Controlled Media: 50% (maximum) Glycol Mixture
• Approvals and Standards: CSA Certified
• Color: Bronze
• Includes: Trane label
• Warranty: 1 Year
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Connection Type: Female NPT
• Differential pressure for close-off (Max): 60 psi, 400 kPa
• Flow Coefficient: 1.9 Cv; 1.63 Kvs
• Media Temperature (Min): 34 °F, 1 °C
• Media Temperature (Max): 203 °F, 95 °C
• Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Valve Body Material: Bronze
• Valve Body Pattern: Two-way, Straight Through
• Valve Flow Characteristic: Equal percentage
• Valve Seat Material: EPDM
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• UPC: 085267832946
• Country of Origin: HU
• Category: 2-Way Zone Valve
