Description

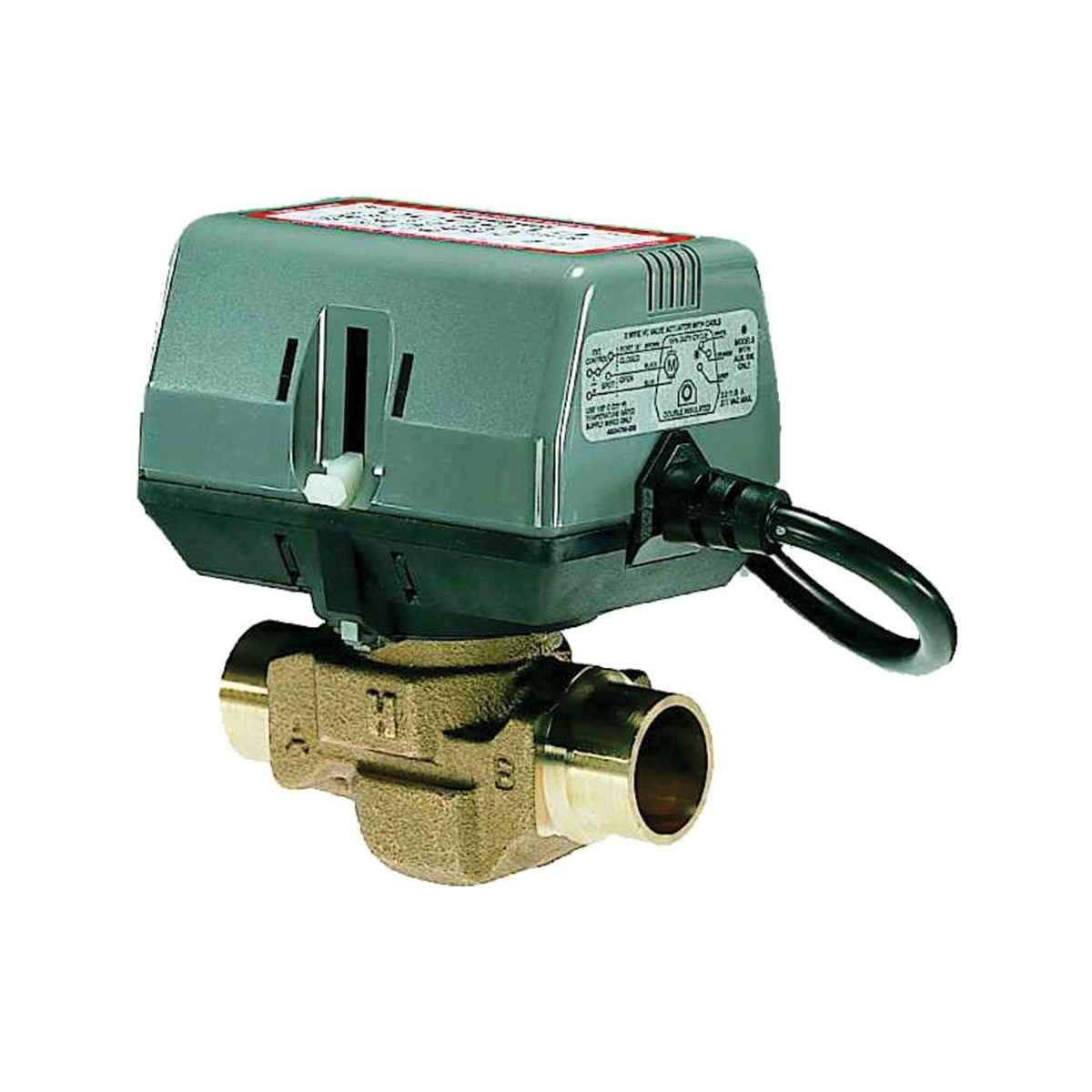

VC valve and actuator assembly, 1/2 in, 24 V 50/60 Hz, 3-wire, 120 sec timing.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VC6930AA1132/U
- Controlled Media: 50% (maximum) Glycol Mixture
- Approvals and Standards: CSA Certified
- Color: Bronze
- Includes: Trane label
- Warranty: 1 Year
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 150 °F, 65 °C
- Connection Type: Sweat
- Differential pressure for close-off (Max): 60 psi, 400 kPa
- Flow Coefficient: 3.2 Cv; 2.7 Kvs
- Media Temperature (Min): 34 °F, 1 °C
- Media Temperature (Max): 203 °F, 95 °C
- Shipping and Storage Temperature (Min): -40 °F, -40 °C
- Valve Body Material: Bronze
- Valve Flow Characteristic: Linear
- UPC: 085267833882
- Country of Origin: HU
- Category: 2-Way Zone Valve
