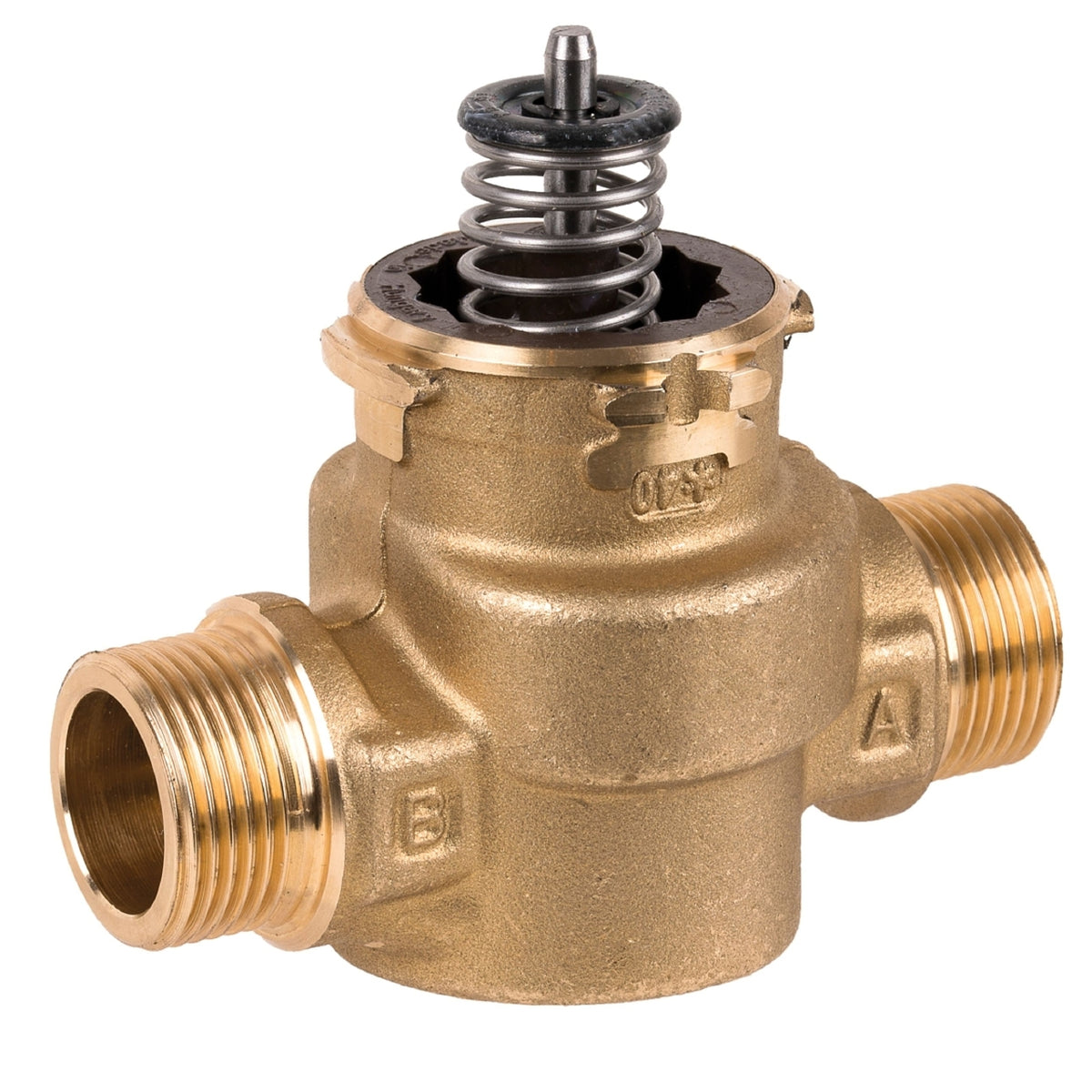

Honeywell Home VCZAA1632/U VC 2-Way Equal Percentage Valve, 1/2 in, Trane

Trane 2-way equal percentage VC valve, 1/2 in (Trane ref. X13680553030).

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VCZAA1632/U
• Cartridge Material: Ryton and Noryl Plastic
• Controlled Media: Water with max. 50 % glycol according to VDI 2035
• Color: Bronze
• Includes: Valve, Cartridge Installation Wrench
• Product Weight: 0.5 lb
• Warranty: 5 years
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Connection Type: Sweat
• Differential pressure for close-off (Max): 60 psi, 414 kPa (4 bar)
• Flow Coefficient: 1.3 Cv; 1.1 Kvs
• Media Temperature (Min): 34 °F, 1 °C
• Media Temperature (Max): 203 °F, 95 °C
• Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Static Pressure Rating: 300 psi, 2068 kPa (20 Bar)
• Valve Body Material: Bronze
• Valve Body Pattern: Two-way, Straight Through
• Valve Cartridge: Yes
• Valve Flow Characteristic: Equal percentage
• Valve Seat Material: EPDM
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• UPC: 085267832342
• Country of Origin: HU
• Category: 2-Way Zone Valve
