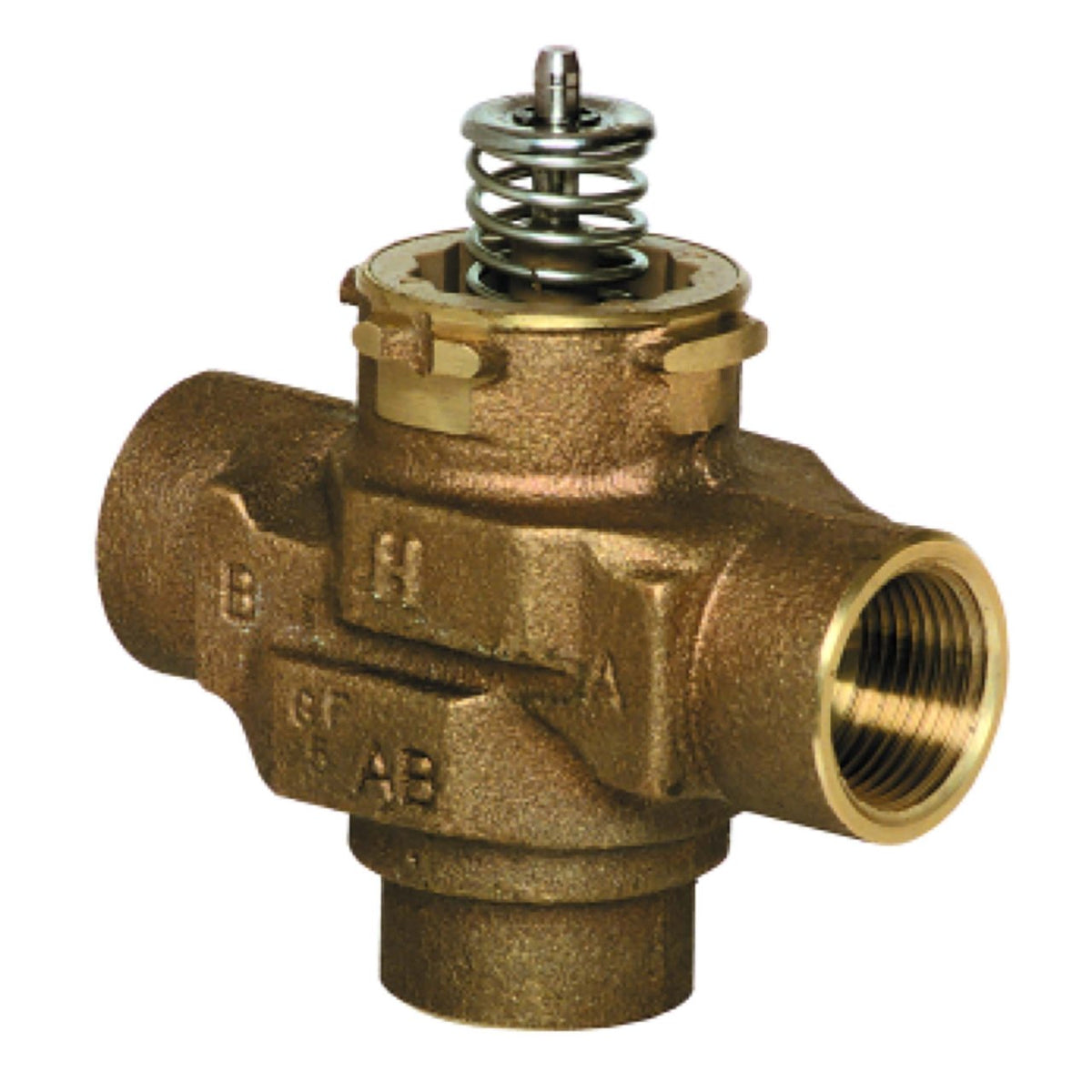

Honeywell Home VCZMK6100/E VC 3-Way Valve Assembly, 3/4 in FNPT, 6.6 Cv, Linear

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home VCZMK6100/U VC 3-Way Valve Body, 3/4 in NPT, 6.6 Cv, Linearized Cartridge.

3-way VC valve assembly for hydronic systems with 3/4 in FNPT connection, 6.6 Cv, and linear flow.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VCZMK6100/E
• Controlled Media: Water with max. 50 % glycol according to VDI 2035
• Approvals and Standards: CSA Certified
• Color: Bronze
• Product Weight: 0.5 lb
• Warranty: 5 years
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Connection Type: Female NPT
• Differential pressure for close-off (Max): 60 psi, 414 kPa (4 bar)
• Flow Coefficient: 6.6 Cvs; 5.7 Kvs
• Media Temperature (Min): 34 °F, 1 °C
• Media Temperature (Max): 203 °F, 95 °C
• Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Shipping and Storage Temperature (Max): 150 °F, 65 °C
• Static Pressure Rating: 300 psi, 2068 kPa (20 Bar)
• Valve Body Material: Brass
• Valve Body Pattern: Three-way, A-AB-B
• Valve Cartridge: Yes
• Valve Flow Characteristic: Linear
• Valve Seat Material: EPDM O-ring seals on Noryl piston
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• Country of Origin: HU
• Category: 3-Way Zone Valve
