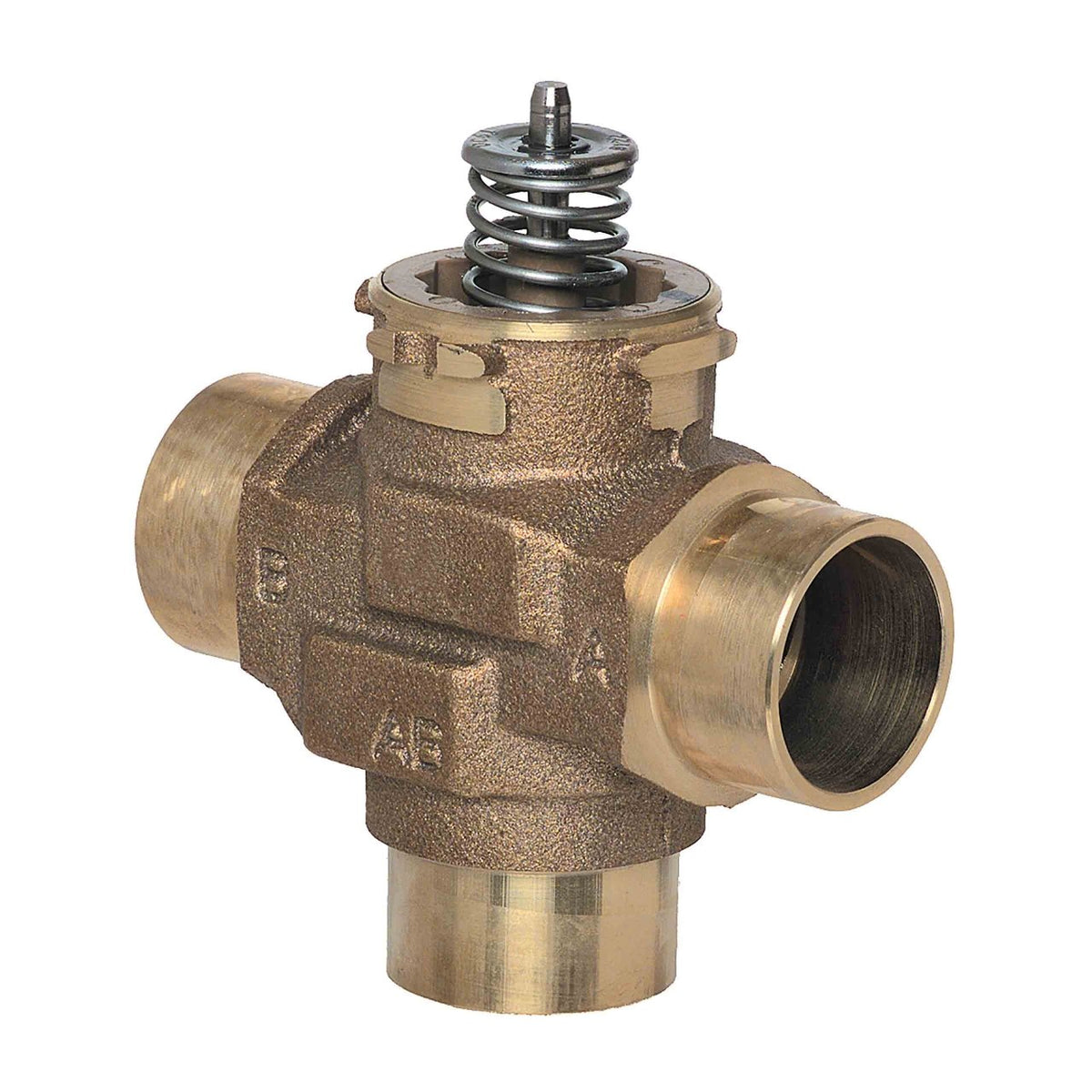

Honeywell Home VCZND6100/U VC 3-Way Valve Assembly, 1 1/4 in FNPT, 9 Cv, Linear

3-way VC valve assembly for hydronic systems with 1 1/4 in FNPT connection, 9 Cv, and linear flow.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VCZND6100/U
• Cartridge Material: Ryton and Noryl Plastic
• Controlled Media: 50% (maximum) Glycol Mixture
• Approvals and Standards: CSA Certified
• Color: Bronze
• Includes: Valve, Cartridge Changing Tool
• Product Weight: 0.95 lb
• Warranty: 5 years
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Connection Type: Female NPT
• Differential pressure for close-off (Max): 60 psi, 414 kPa (4 bar)
• Flow Coefficient: 9.0 Cv; 7.7 Kvs
• Media Temperature (Min): 34 °F, 1 °C
• Media Temperature (Max): 203 °F, 95 °C
• Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Static Pressure Rating: 300 psi, 2068 kPa (20 Bar)
• Valve Body Material: Bronze
• Valve Body Pattern: Three-way, A-AB-B
• Valve Cartridge: Yes
• Valve Flow Characteristic: Linear
• Valve Seat Material: EPDM O-ring seals on Noryl piston
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• UPC: 085267832038
• Country of Origin: HU
• Category: 3-Way Zone Valve
