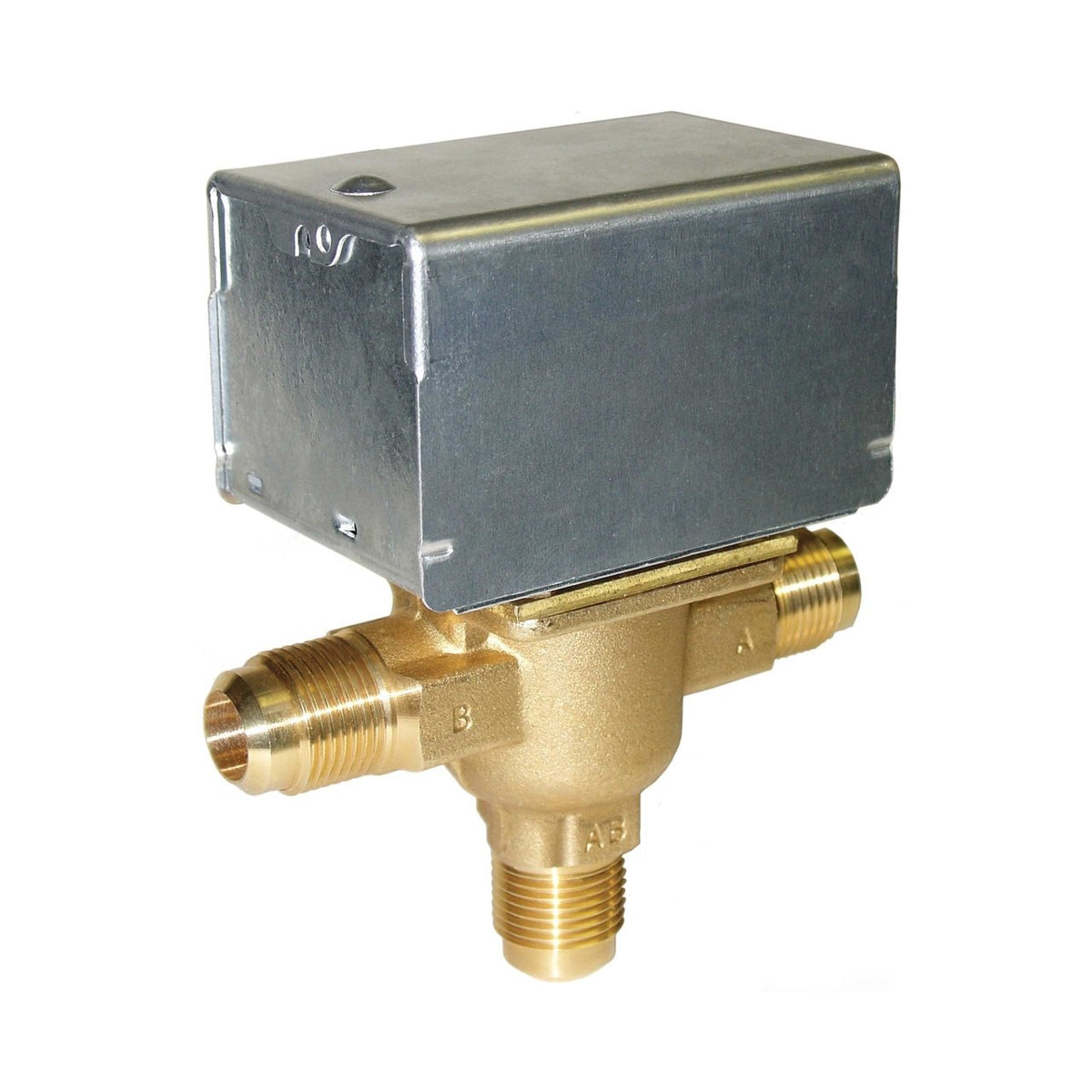

Honeywell Home V8044A1002/U Diverting Valve, 1/2 in Flare, 4 Cv, 24 VAC
Honeywell Home

Honeywell Home V8044A1002/U Diverting Valve, 1/2 in Flare, 4 Cv, 24 VAC

Item #
HONE-V8044A1002/U
Mfr. part #
V8044A1002/U
UPC
085267109833
Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.
$156.57
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.4 lb
  • Box size: 6.15 × 5.15 × 3.75 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandHoneywell Home
Manufacturer part #V8044A1002/U
UPC085267109833

24 V/60 Hz diverting valve with 1/2 in flare connection (5/8 SAE nut/joint) and 4 Cv.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: V8044A1002/U
  • Valve Ball Material: Buna-N (NBR) Rubber
  • Approvals and Standards: UL Listed: File MH11826
  • Color: Brass
  • Includes: Manual Opener
  • Product Height: 5.38 in, 136 mm
  • Product Length: 2.38 in, 60 mm
  • Product Weight: 1.09 lb
  • Product Width: 4.69 in, 118 mm
  • Warranty: 1 Year
  • Ambient Operating Temperature (Max): 125 °F, 52 °C
  • Connection Type: Flare
  • Differential pressure for close-off (Max): 20 psi, 138 kPa
  • Flow Coefficient: 4 Cv, 3.4 Kvs
  • Media Temperature (Min): 40 °F, 5 °C
  • Media Temperature (Max): 200 °F, 93 °C
  • Static Pressure Rating: 125 psi, 862 kPa
  • Valve Body Material: Brass
  • Valve Body Pattern: Three-way, Diverting
  • Valve Plug Material: Buna-N (NBR) Rubber
  • Valve Seat Material: Brass
  • Valve Start Position: Port A Closed
  • Valve Stem Material: Stainless Steel
  • UPC: 085267109833
  • Country of Origin: HU
  • Category: 3-Way Zone Valve
