1-1/2 in DialSet Female NPT Single Union Sweat-PRV

Resideo 1-1/2 in DialSet Female NPT Single Union Sweat-PRV

Roll over image to zoom in Click on image to zoom

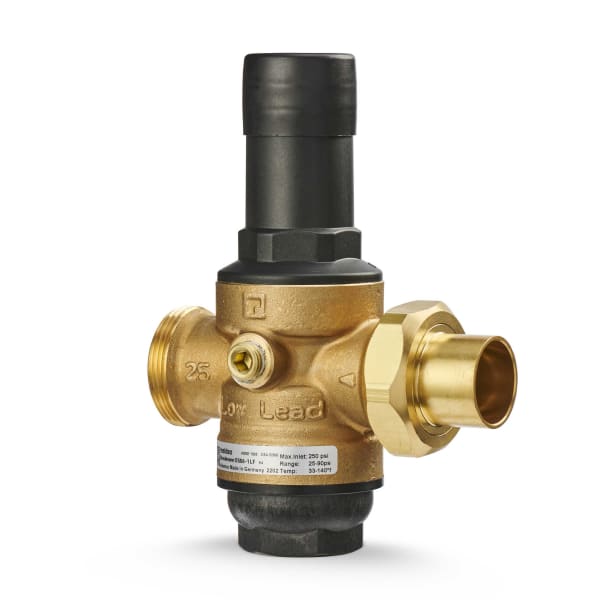

Resideo DS06-104-SUS-LF/U 1-1/2 in DialSet Female NPT Single Union Sweat-PRV

Name: Resideo DS06-104-SUS-LF/U 1-1/2 in DialSet Female NPT Single Union Sweat-PRV
Brand: Resideo
SKU: HONE-DS06-104-SUS-LF/U
Price: 464.59 USD
Availability: InStock

ResideoSKU: HONE-DS06-104-SUS-LF/U

Price:

$464.59

Stock:

Only 3 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 8.4 lb

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Pipe Size	1 1/2 IN.
Connection Type	Female NPT Threaded Inlet & Outlet Externally threaded for Unions
Valve Type	Pressure Regulating Valve
Operating Temperature	140 F Maximum
Controlled Fluid	Potable water
Materials (Body)	Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics.
Dimensions	11-13/16 in. high x 5-1/8 in. long (Union body no tailpieces)
CSA	Certified (B356-10)
Approvals, Others	NSF/ANSI; IAPMO
Outlet Pressure Adjustment Range (psi)	25-90 psi
Max. Inlet Pressure Rating (psi)	250 psi
Gauge Tap	1/4 in. NPT (two, one on each side of body).
Calibrated Adjustment Dial	YES
Reducing Ratio	10:1 Maximum
Union Fittings	Single-Union Sweat
Approvals, ASSE	Certified 1003-2009
Approvals, IAPMO	Listed

The DS06-104-SUS-LF is a lead-free pressure reducing valve from Resideo (Honeywell Home), 1-1/2 inch, sweat connection, single union.

A pressure reducing valve sits where the water service enters the building and holds house pressure at a set value regardless of what the street is doing. Municipal mains commonly run well above what residential fixtures are rated for, and street pressure is not constant — it climbs at night when demand drops.

Uncontrolled pressure is what shortens the life of everything downstream. Fill valves, supply lines, washing machine hoses and water heaters all fail earlier on high pressure, and most plumbing codes cap what may be delivered to fixtures. The PRV is the single component that decides whether the rest of the system lives at its rated pressure.

This is a DialSet valve: the outlet pressure is set on a dial on the valve itself, without plumbing in a gauge and without trial and error. On a commissioning visit that is the difference between setting the pressure in a minute and chasing it with a test gauge and an adjusting screw.

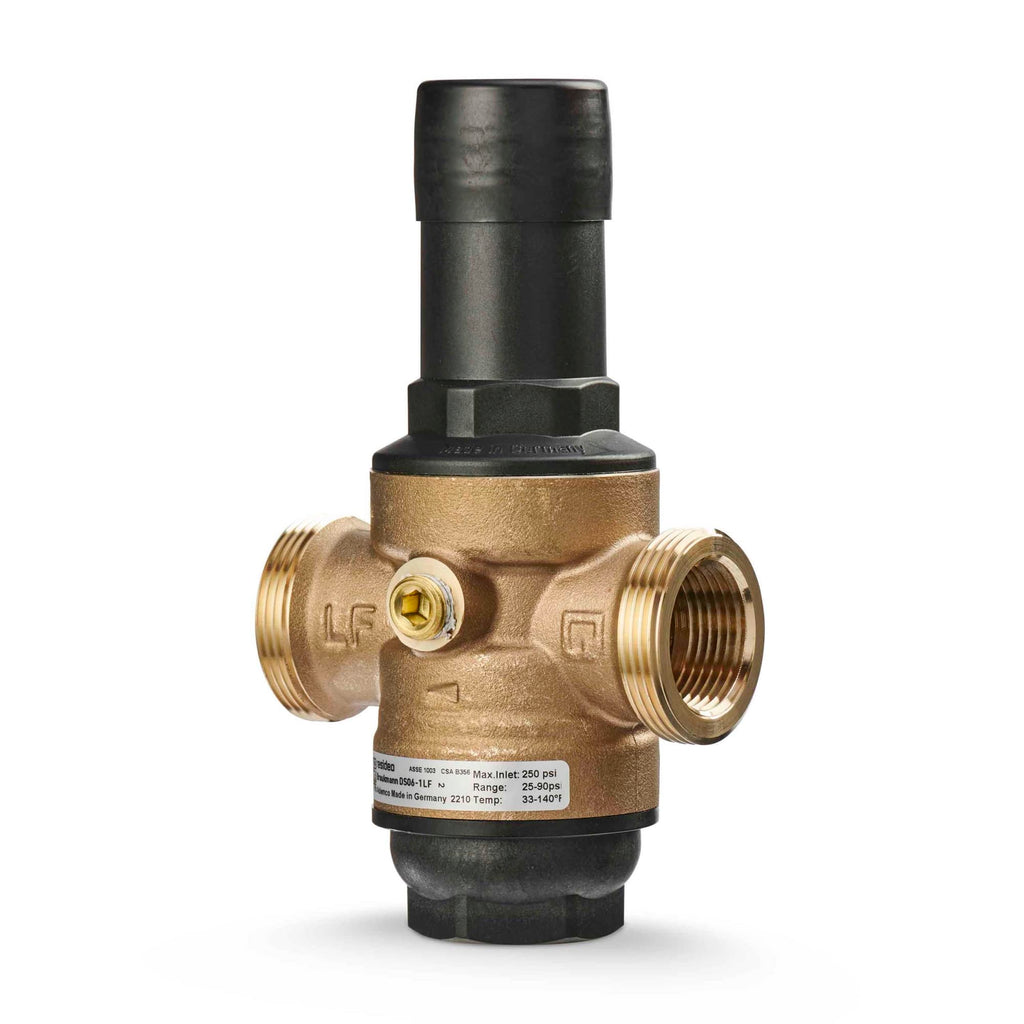

The single union body gives a service joint on one side. It is the more compact arrangement where the run into the valve is fixed and the outlet side can be broken.

Lead free construction, as required for potable water in the United States.

Size the valve to the service line, not to the fixture count. An oversized PRV hunts at low flow; an undersized one starves the building at peak draw.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: DS06-104-SUS-LF/U
Type: Pressure reducing valve
Size: 1-1/2 in
Connection: sweat
Union: Single union
DialSet: Yes
Lead free: Yes
UPC: 085267422918
Shipping weight: 8.4 lb
Category: Pressure Reducing Valves

Full Specifications

Ambient Operating Temperature (Min)	33°F, 1 °C
Ambient Operating Temperature (Max)	140°F, 60 °C
Approvals and Standards	ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance The wettable surfaces contain less than 0.25% of lead by weighted average
Color	Metallic, Black
Connection Size	1 1/2 in
Connection Type	Single Union Sweat
Differential Pressure (Min)	14.5 psi, 99.97 kPa
Domestic Hot Water	Valve
Inlet Pressure (Max)	250 psi, 1723.69 kPa
Lead Free	Yes
Media Temperature (Min)	33°F, 1 °C
Media Temperature (Max)	140°F, 60 °C
Number of Connections	2
Outlet Pressure (Min)	25 psi, 172.37 kPa
Outlet Pressure (Max)	90 psi, 620.53 kPa
Preset Outlet Pressure	60 psi, 414 kPa
Pressure Reducing Ratio	10:1 Maximum
Product Height	11.81 in, 300 mm
Product Length	6.61 in, 168 mm
Replacement Parts	D06FA-11/2, ES06F-11/2A, SB06T-11/2
Valve Body Material	Lead-free ECO BRASS®
Valve Body Pattern	Straight Through
Warranty	1 Year
Application	Potable Water Pressure Regulation
Valve Type	DialSet Pressure Regulating Valve
DN Size	DN40
Controlled Media	Potable Water
Product Features	Dial Calibration ± 4 psi, Balanced cartridge design allows for thermal expansion properties. Use expansion tanks and safety valves where applicable.
Valve Diaphragm Material	Fabric-reinforced diaphragm
Number of Gauge Taps	1
