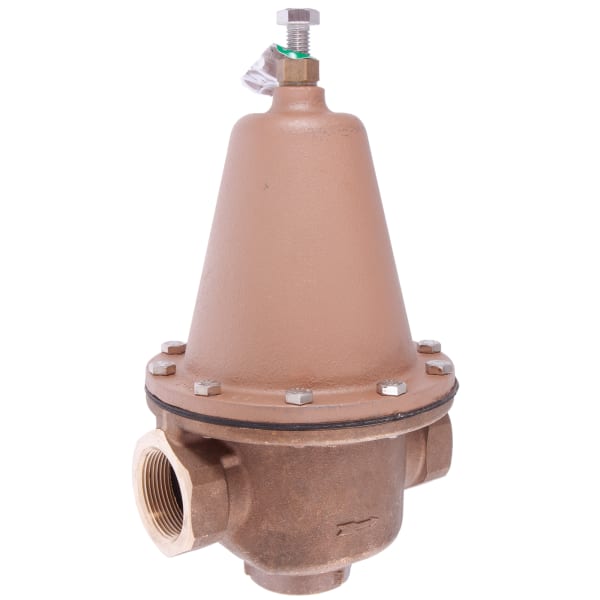

The Watts 0298500 (model LF223 1/2) is a 1/2 in. high capacity, lead free water pressure reducing valve with female NPT inlet and outlet. It is typically installed at the water meter in residential, commercial and industrial buildings to lower pressure to fixtures and appliances.
Key features
- Enlarged diaphragm, spring cage and seat orifice for high capacity
- Heat-resistant diaphragm for hot or cold water
- Sensitive spring for accurate pressure control
- Removable disc holder; the disc can be replaced without special tools
- Sealed spring cage
Specifications
-
Brand: Watts
-
Manufacturer part number: 0298500
-
Model: LF223 1/2
-
Size: 1/2 in.
-
Connections: Female NPT inlet and outlet
-
Body: Lead free cast copper silicon alloy
-
Max working pressure: 300 psi
-
Adjustable range: 25 to 75 psi
-
Standard setting: 50 psi
-
Temperature range: 33°F to 160°F
-
UPC: 098268349375
